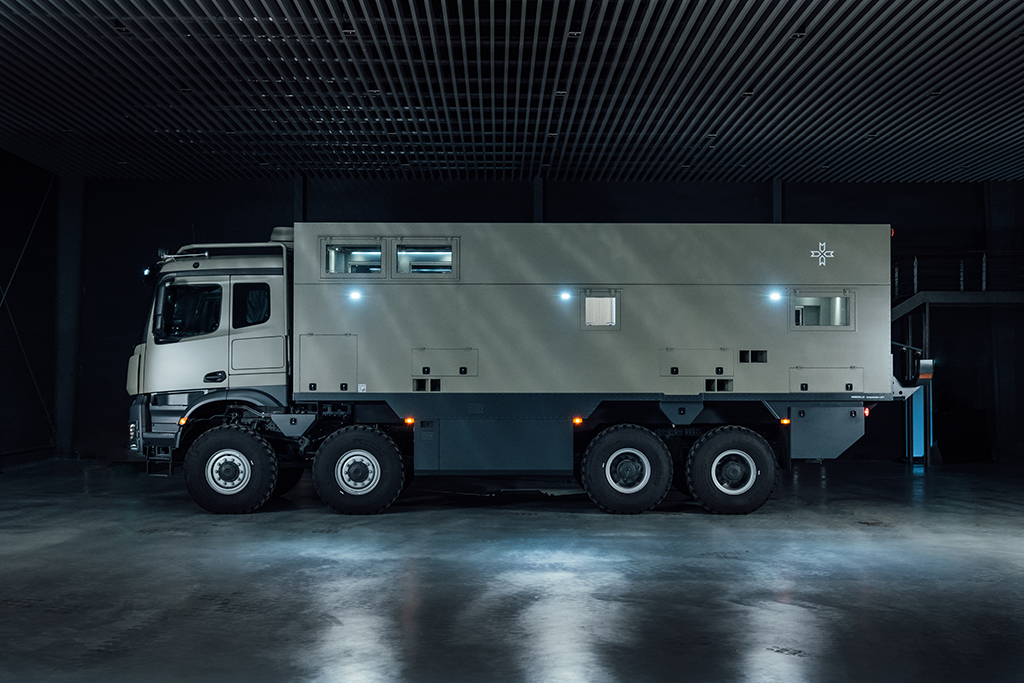

ARMADILLO Conquistador Loft

¥12800000

exterior life chassis circuit
Total length: 11130 mm
Overall width: 2545mm
Total height: 3955 mm
Wheelbase: 1750+3650+1450mm
Chassis: Mercedes Benz Arocs 5 4158 8 × eight
Total weight: 23000 kilograms
Minimum ground clearance: 385mm
Approach angle: 30 degrees
Departure angle: 28 degrees
Longitudinal passing angle: 36 degrees
Residency: 9 people
Front: L-shaped 5-seater sofa and electric lift dining table combination, can be transformed into 1 double bed, 2000 x 1300 mm
Middle: Wet and dry separation bathroom, storage space, standard kitchen
Rear: Standard bedroom with door, double bed 2000 X 1500 mm

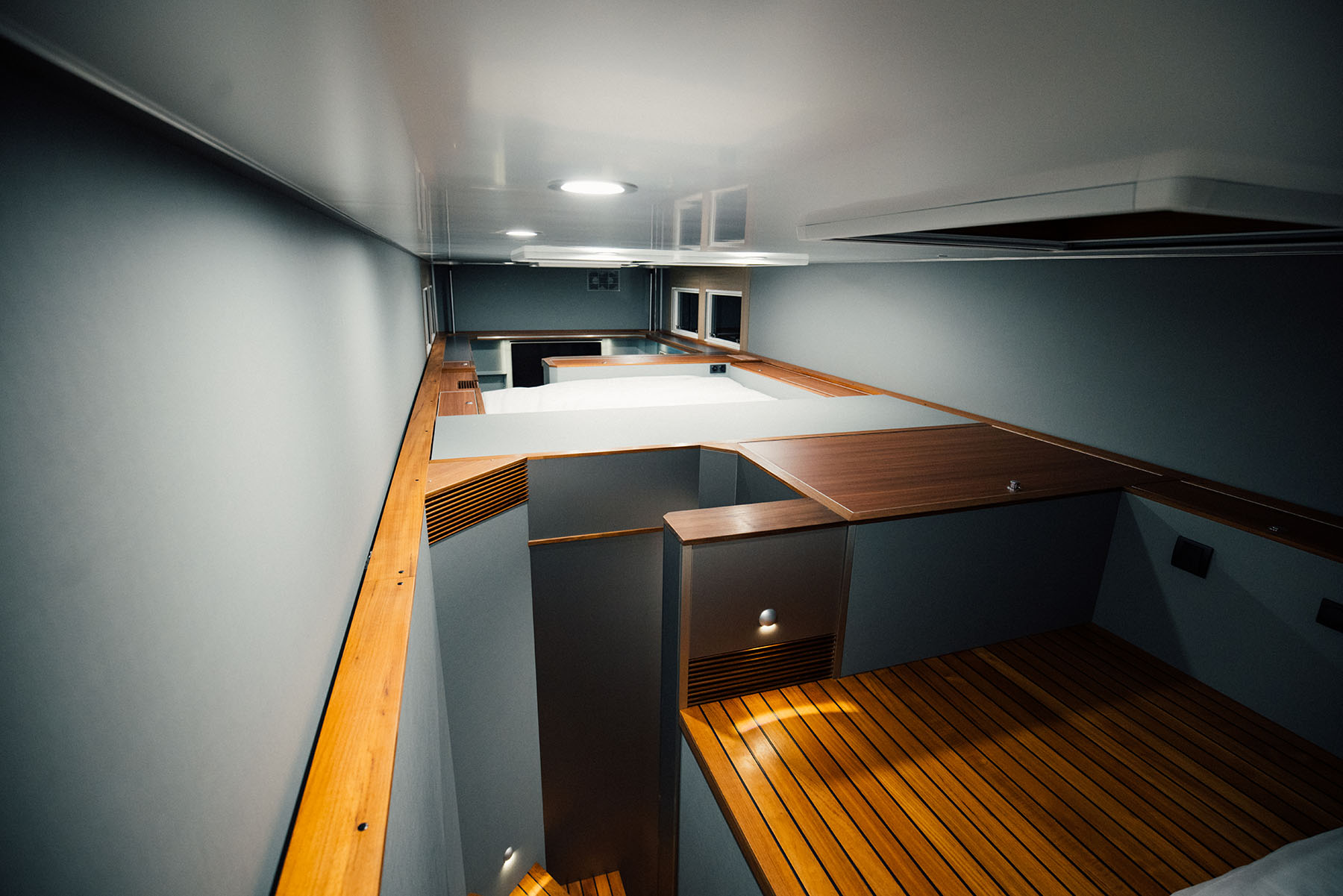

Second floor: independent bedroom, central multifunctional activity area

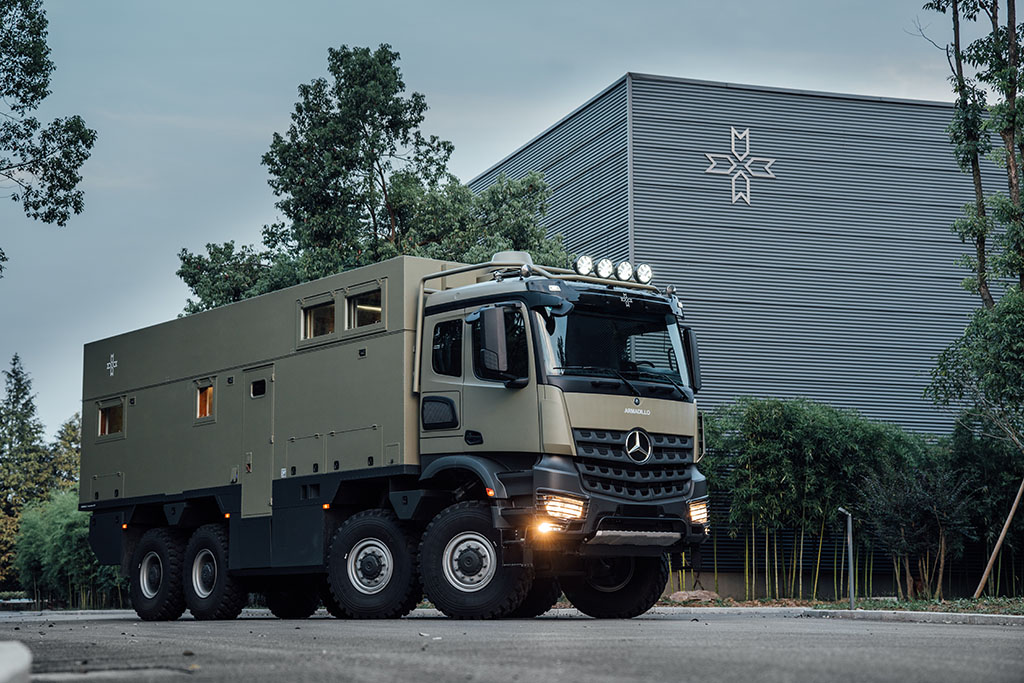

Conqueror L adopts the new generation Mercedes Arocs 8 × The 5th generation Arocs with 8 chassis, Mercedes Benz's internal code is 4158 AK, with 41 representing a carrying capacity of 41 tons and 58 representing a horsepower of almost 580 horsepower.
3200mm high and 2300mm wide
Equipped with an inline six cylinder diesel engine with a displacement of 15.6L that meets the national VI B emission standard
Maximum power 425kW/578P
Maximum torque 2800N · m
Matching PowerShift 12 speed AMT automatic transmission
Perfect power supply mode, not limited to one charging method
The Conqueror L is equipped with an ARMADILLO fully automatic high-power hybrid power supply system, with a rear box of 605AH lithium iron phosphate battery pack as the storage carrier. Multiple charging methods such as walking charging, direct charging, solar charging, and American brand ultra quiet water-cooled generators ensure stable power supply. Chinese standard sockets, outdoor power interfaces, and other configurations make your outing as convenient as at home.

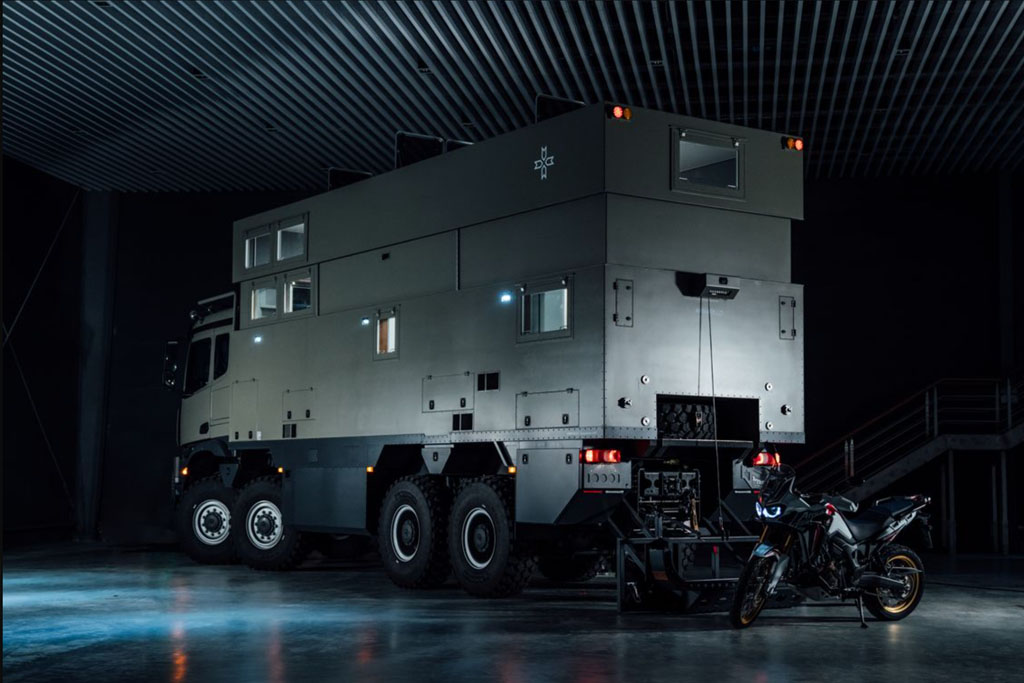

Innovative two-story fully elevated design

The luxurious Loft apartment is inspired by the first two story fully elevating roof design applied to this car. Based on years of technical accumulation, it cleverly solves the placement problem of large lifting mechanisms, and cooperates with international top technology to preset and eliminate potential problems of lifting mechanisms in extreme harsh conditions such as northern cold, desert heat, and Gobi dust.

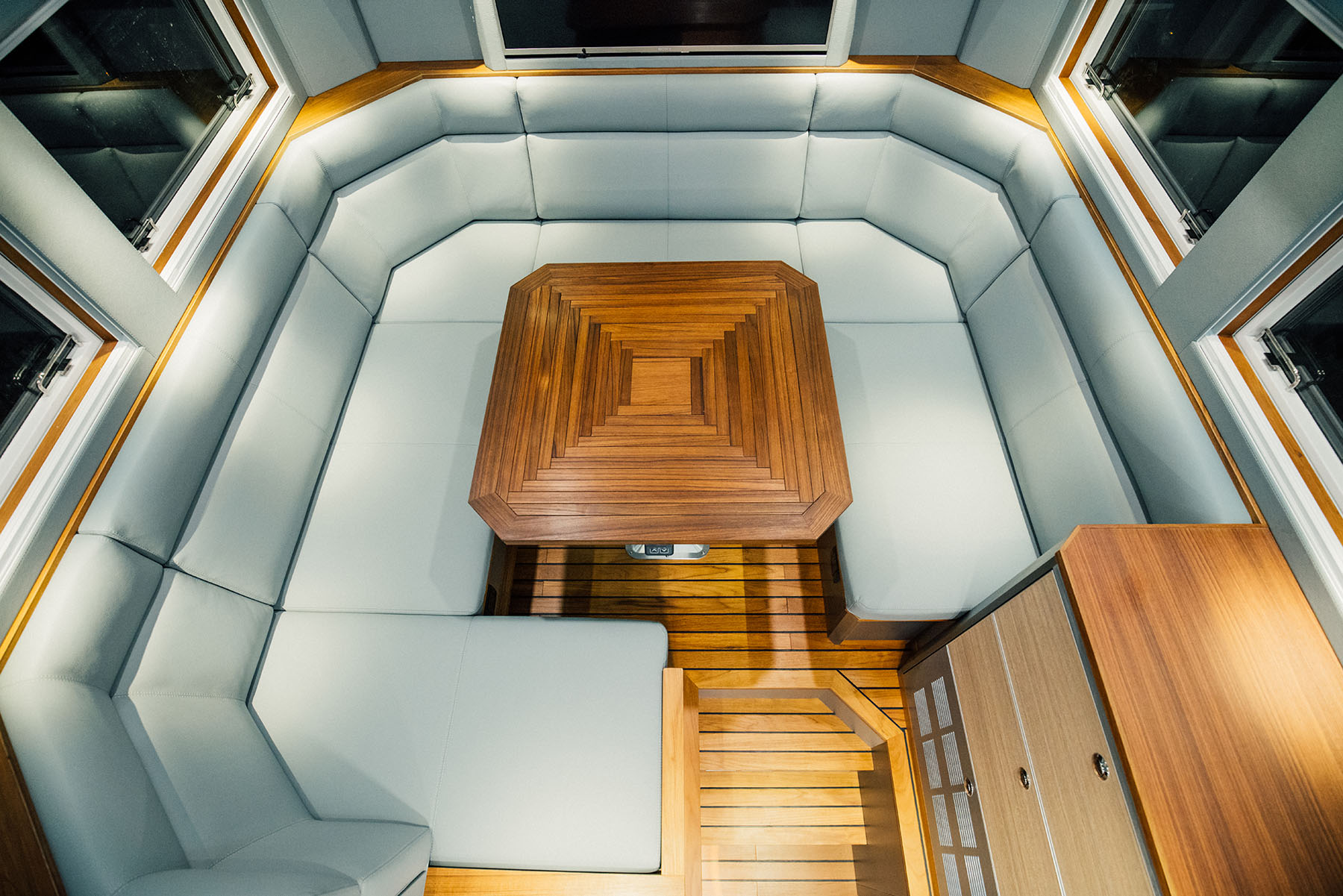

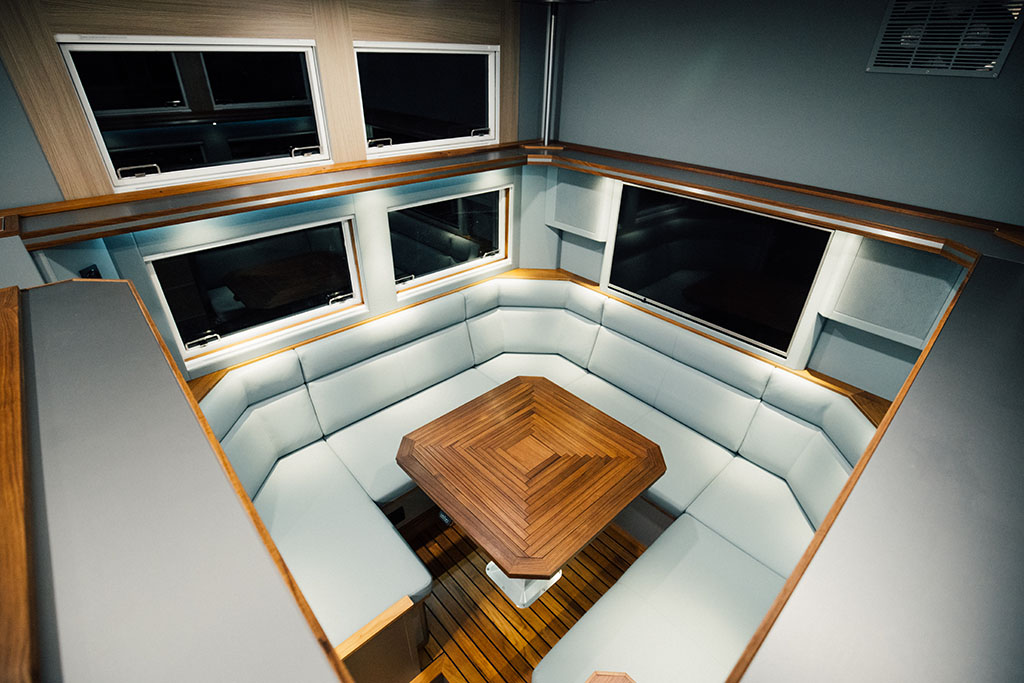

Main activity area in the front of the first floor

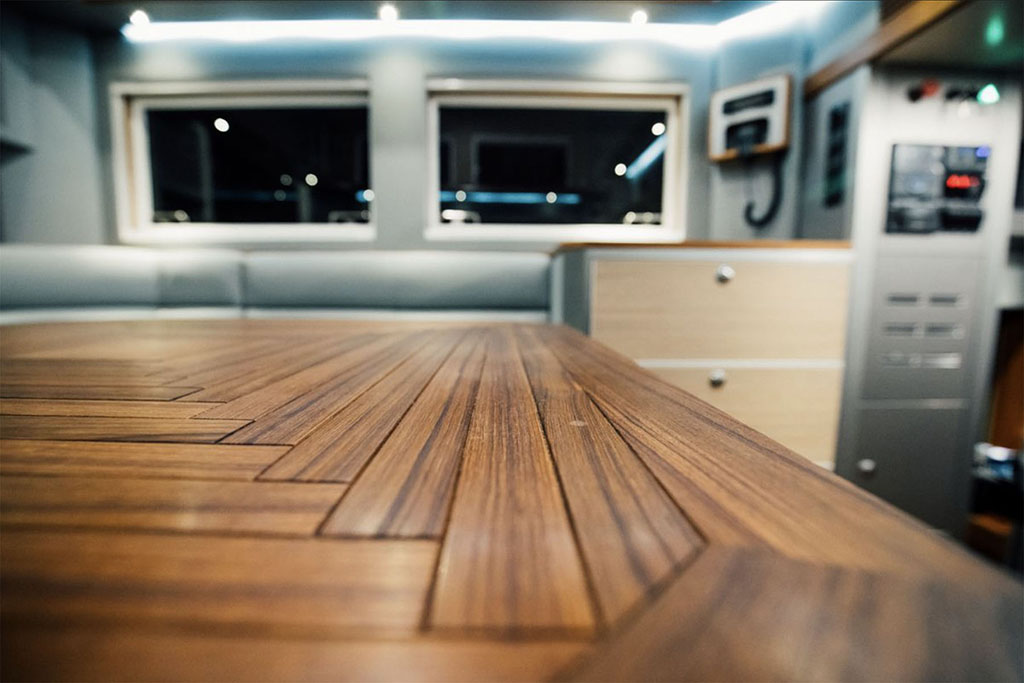

The front is an L-shaped 5-seater sofa and electric lifting table combination, which can be adjusted to become a double bed, with a size of 2000 * 1300 (mm). This is the main leisure area after parking, equipped with a 42 inch lifting LCD TV.





Functional area in the middle of the first floor

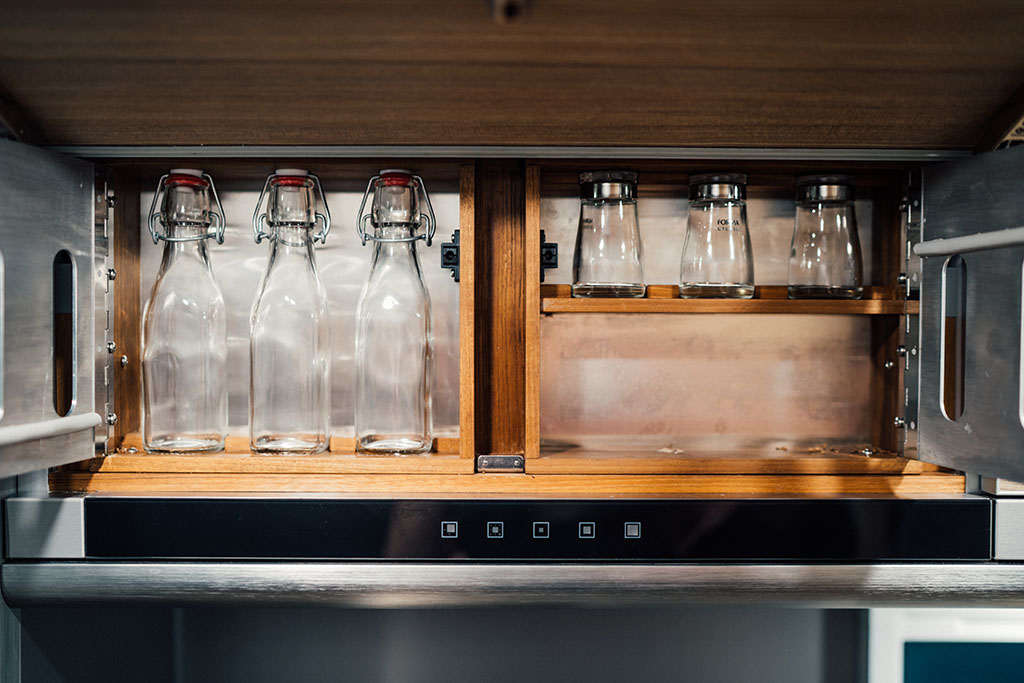

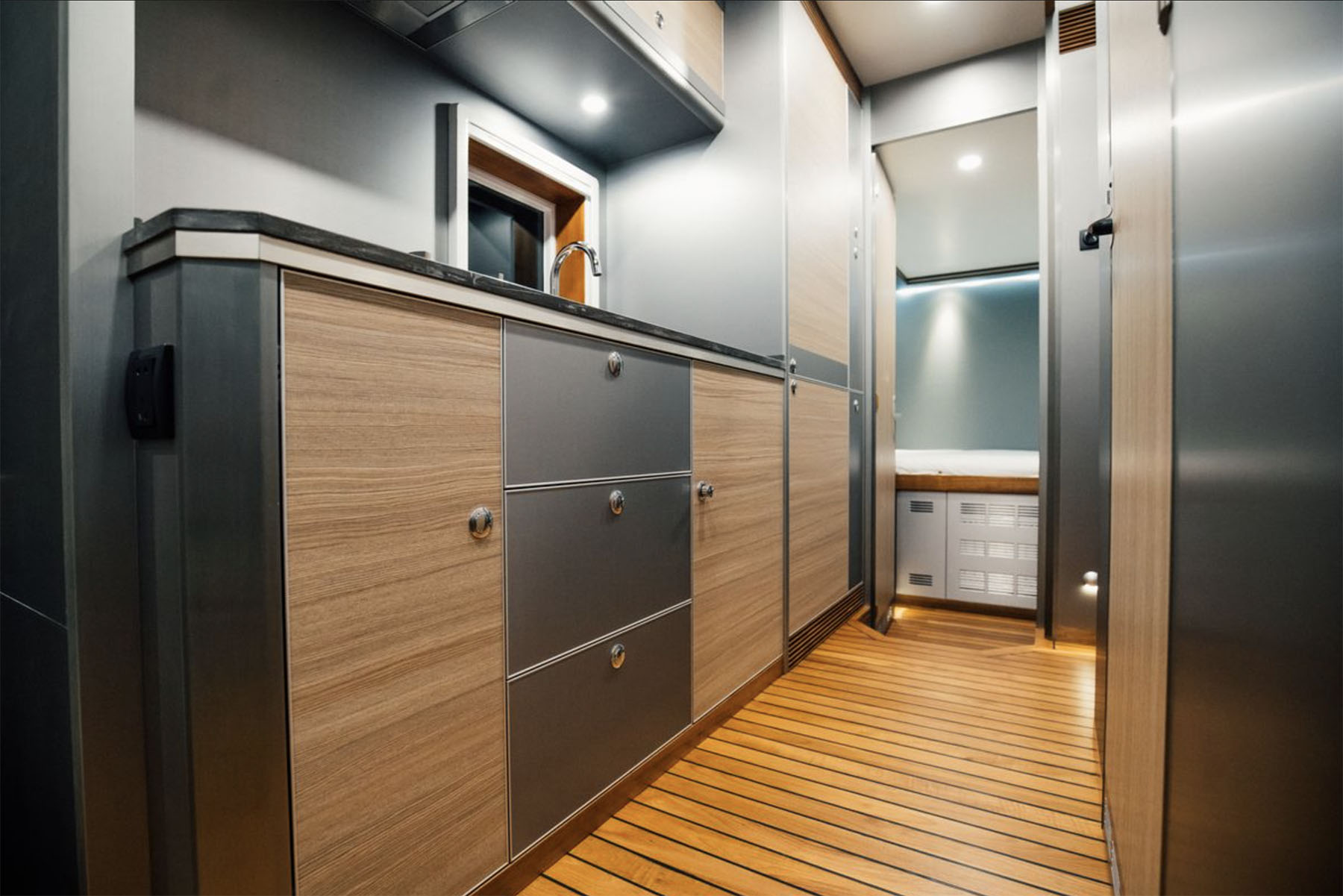

The central area is composed of a standard kitchen, bathroom, and storage space, with complete functions and a strong home atmosphere. The kitchen appliances are equipped with imported embedded refrigerators, eye induction cookers, range hoods, imported embedded microwave ovens, imported embedded coffee machines, and a complete set of imported kitchen utensils from Germany.

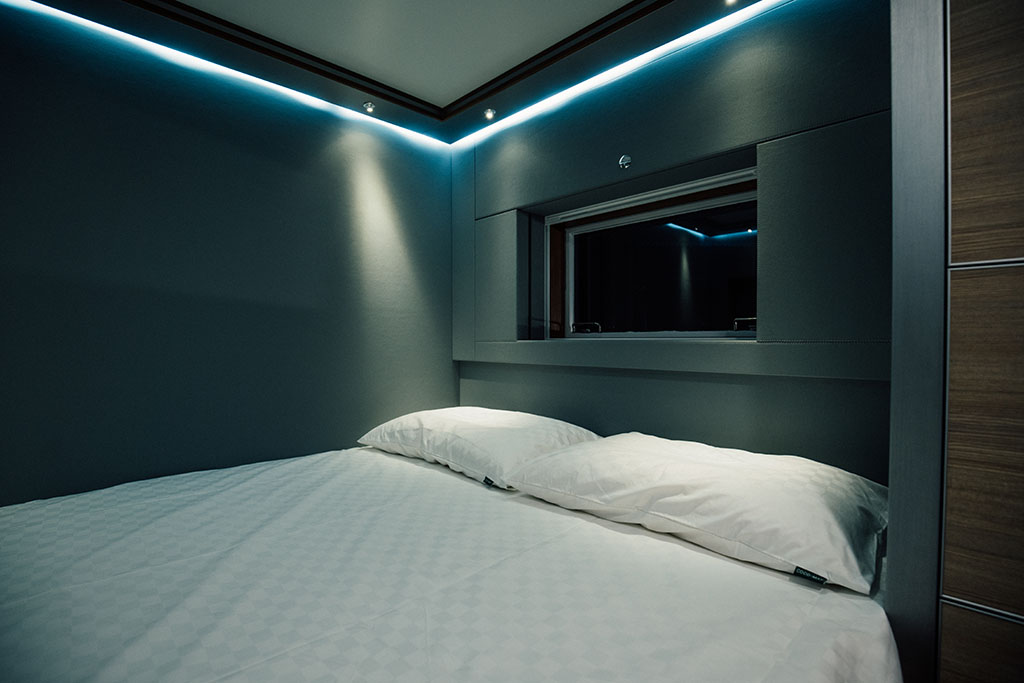

1st floor rear bedroom area

The back is a standard bedroom with a door, with a double bed and a size of 2000 × 1500 (mm), there is a 32 inch elevating LCD TV indoors.





All time drive system

Arocs 5 is a full-time 8-wheel drive system and is equipped with 3 inter axle differential locks between the 4 axles, and 4 inter wheel differential locks on the 4 axles, achieving a total of 7 differential locks.





Ultra strong power output

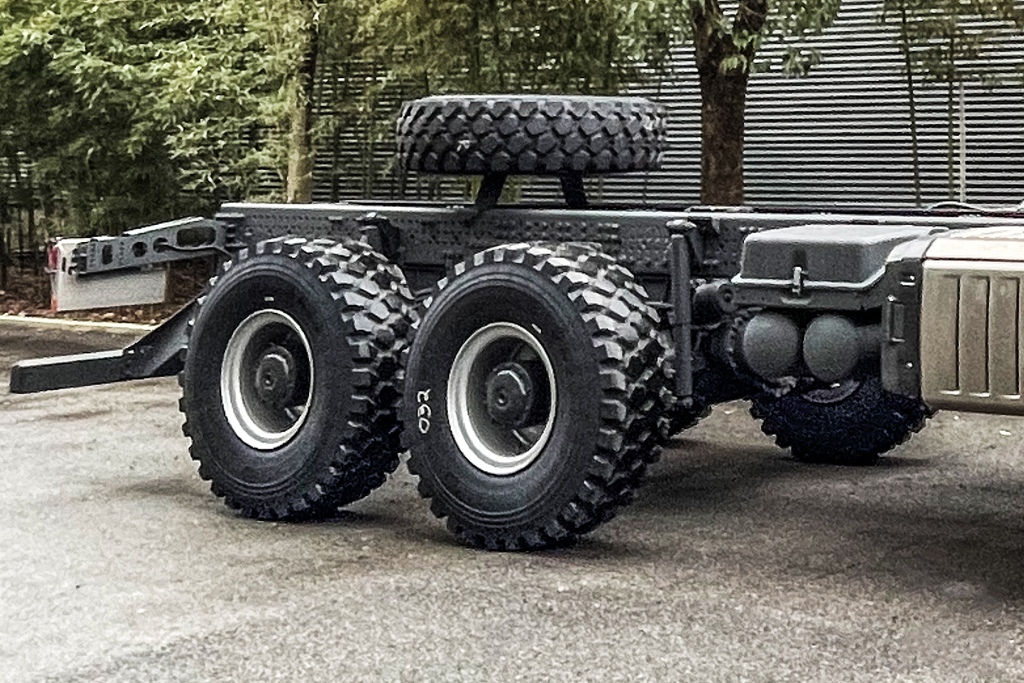

Using a size of 14.00R20 Michelin XZL off-road tire, the rear axle head is equipped with a crown wheel 300 planetary gear reducer, achieving a reduction ratio of 4.143





Chassis suspension system

All four axles adopt straight integral bridges, without using gantry bridges. In the braking system, the original mechanical drum brake is used. On the chassis suspension, a 3-piece steel plate spring suspension system is used, and in order to improve driving comfort, an air spring is used in the suspension system of the cockpit.

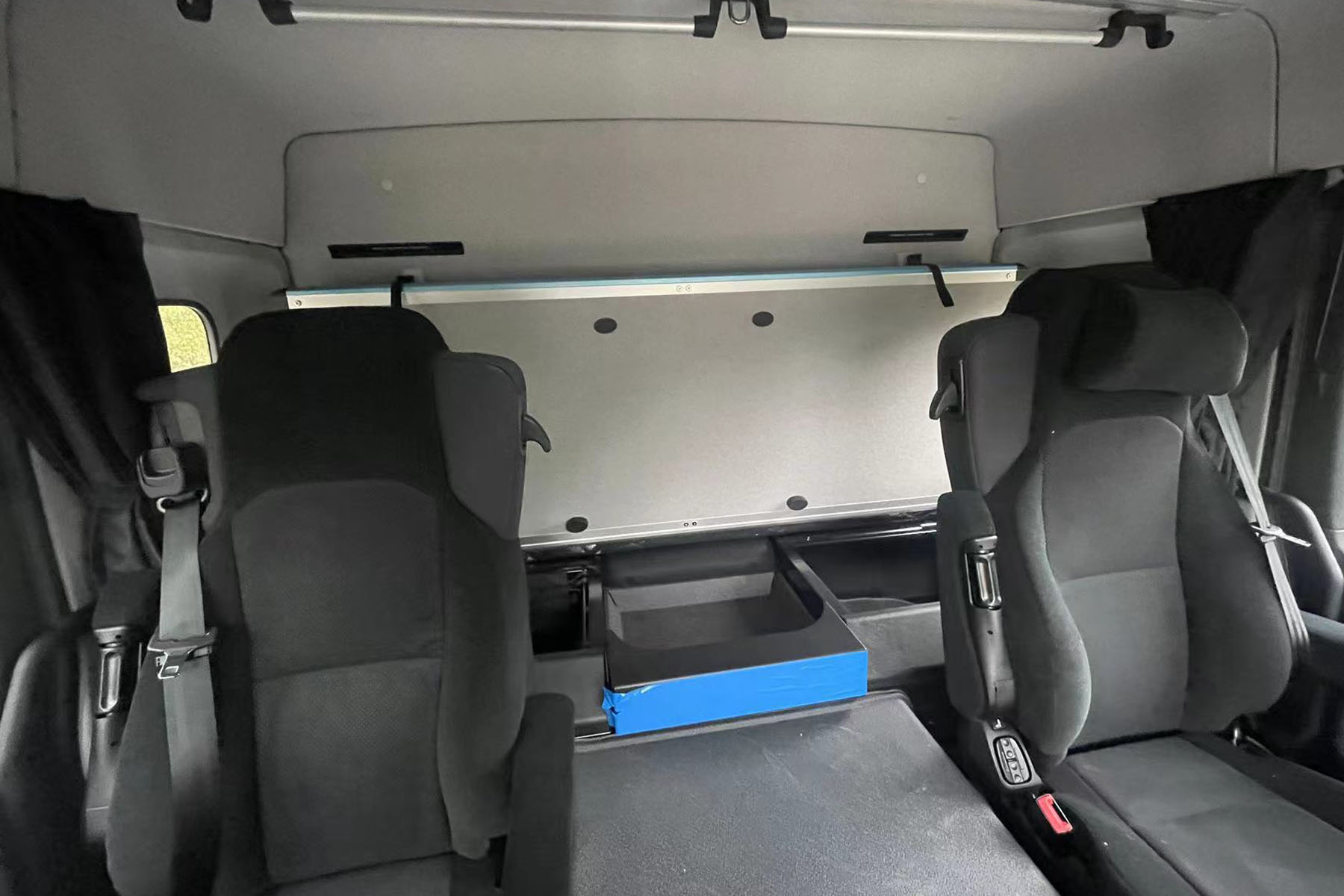

L-shaped technology cockpit

The L-shaped cockpit is equipped with technology and comfort, and the overall design style that leans towards the driver's side improves the driver's ability to operate various functions of the vehicle during driving.





Comfortable driving experience

The seats are equipped with air suspension and ventilation function, allowing the driver to enjoy the highest level of comfort in difficult environments.





Ultra quiet water-cooled generator control switch

Conqueror L is equipped with an American brand 5 kW ultra silent water-cooled diesel generator, which adopts a direct fuel supply method from the fuel tank. When the vehicle's power is low, simply activate the control switch inside the vehicle to replenish the vehicle's power.





Dutch brand current monitor

The Dutch brand current monitor with a large LCD color display screen can more intuitively reflect the remaining battery, load, power supply, and power situation of the vehicle.





Dutch brand inverter charging all-in-one machine

As a power conversion device in the RV power system, inverters play a crucial role. In order to ensure the perfect integration of various charging methods and numerous electrical equipment, Conqueror L is equipped with a Dutch brand inverter charging all-in-one machine with an apparent power of up to 8 kVA.





Lithium iron phosphate battery pack

The Conqueror L is equipped with a customized 605 ampere hour lithium iron phosphate battery pack from Amodillo, with a 24 volt voltage and 14.5 kilowatt hour battery reserve, ensuring the normal use of numerous electrical equipment.
