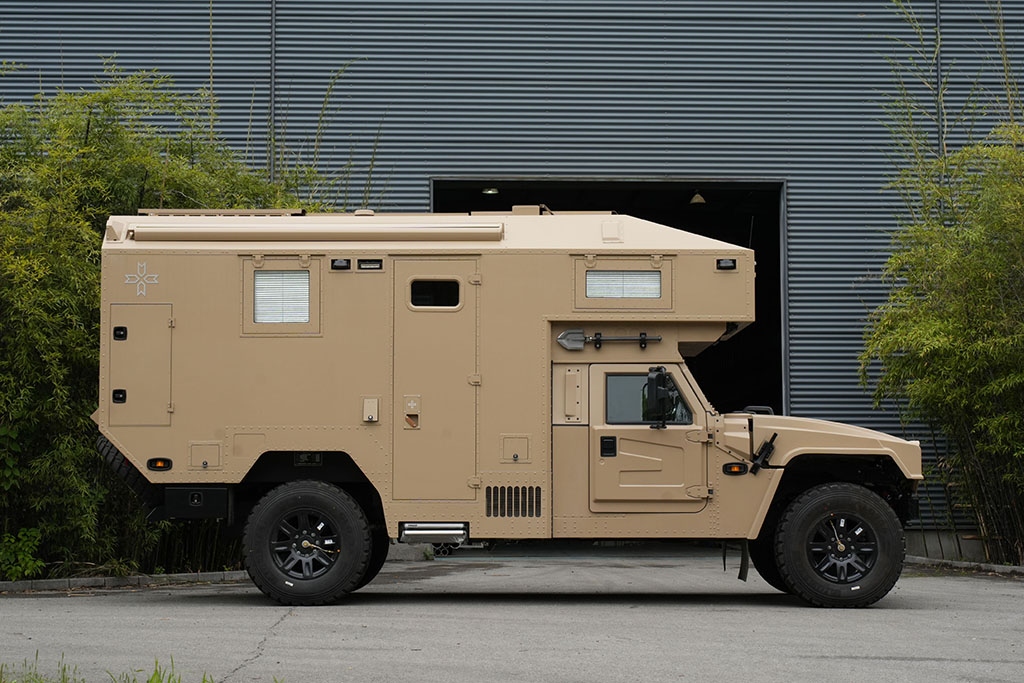

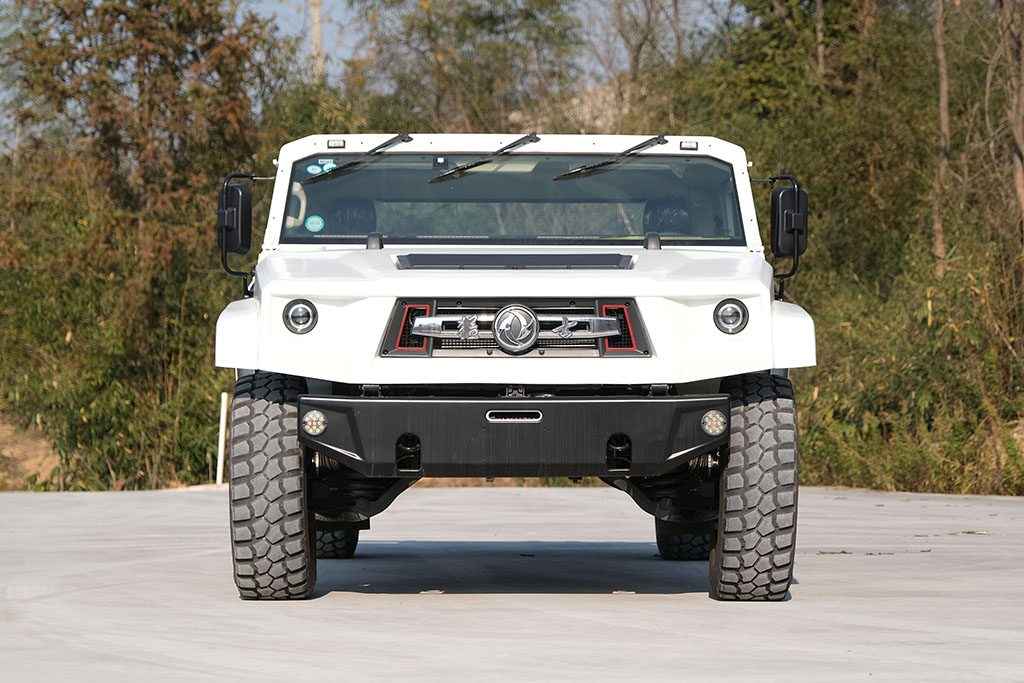

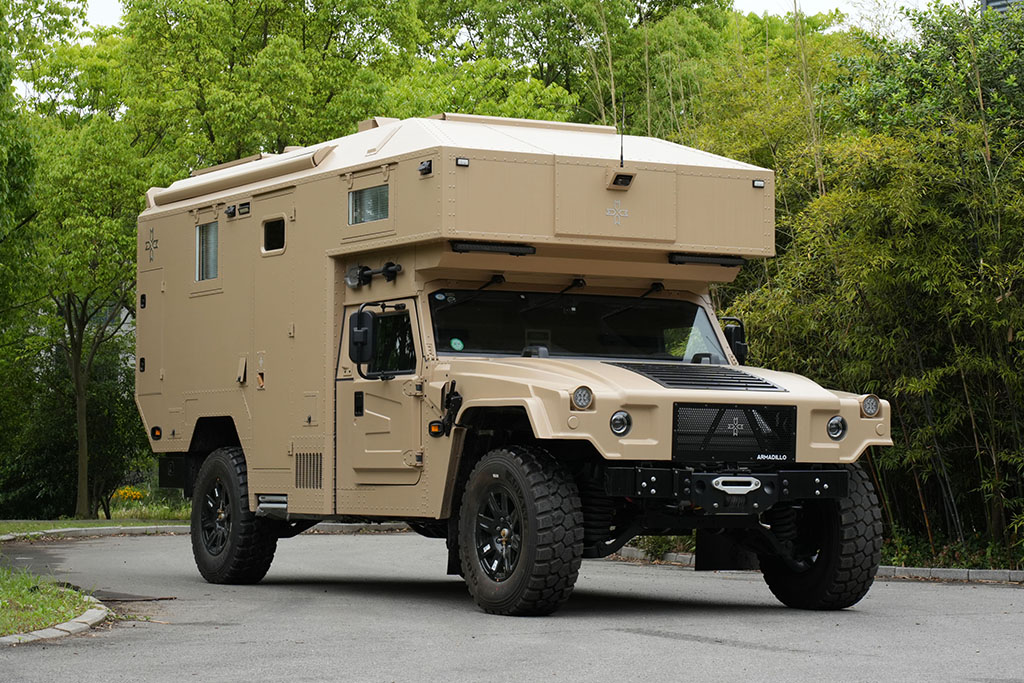

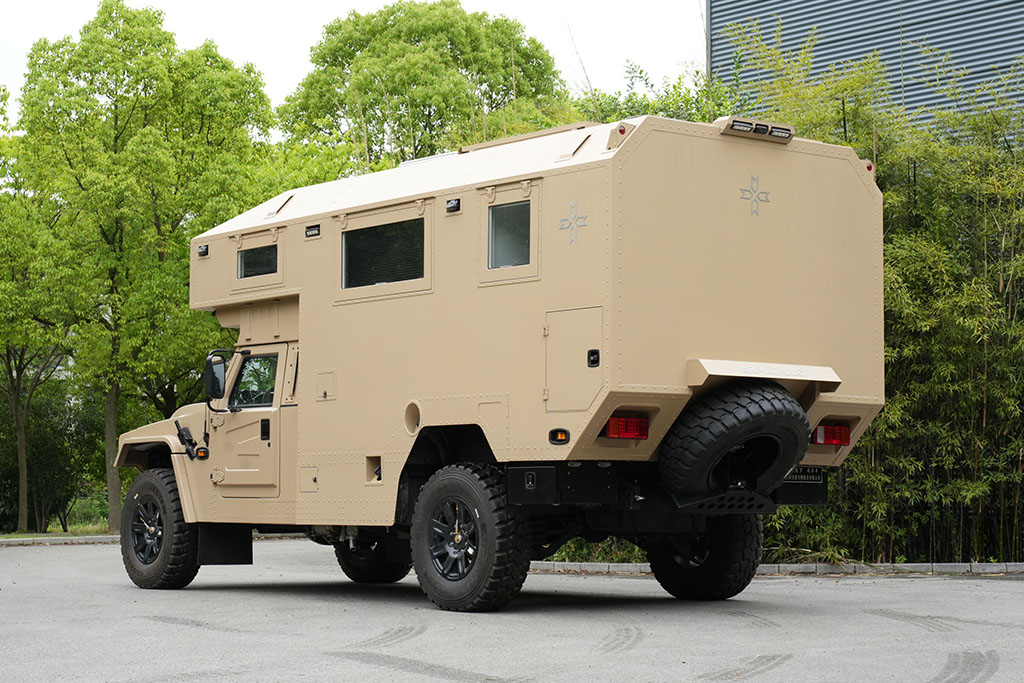

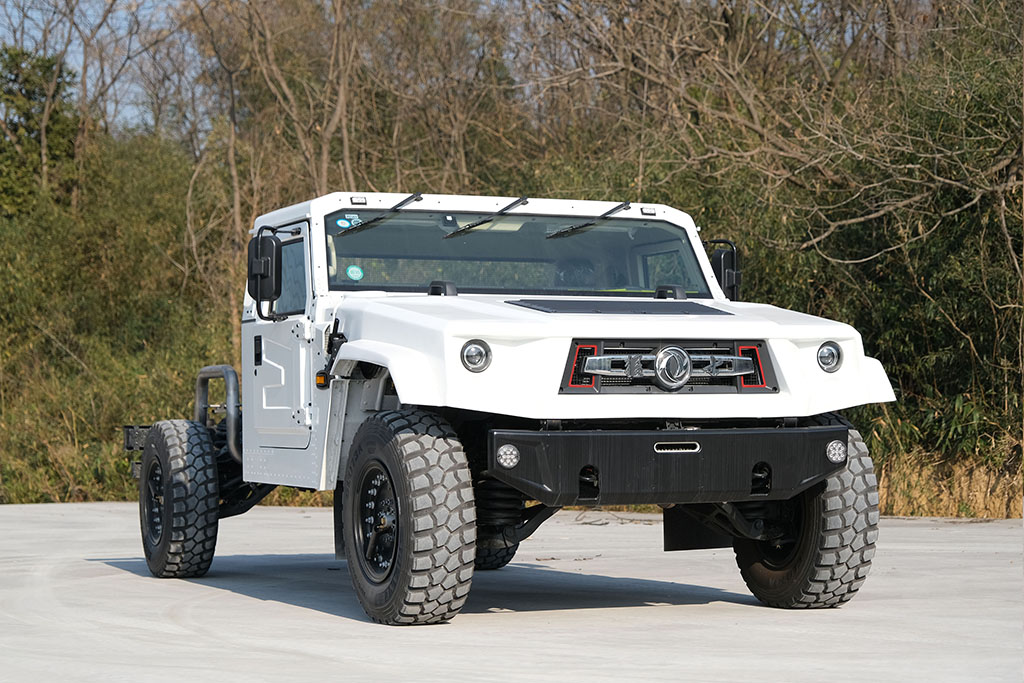

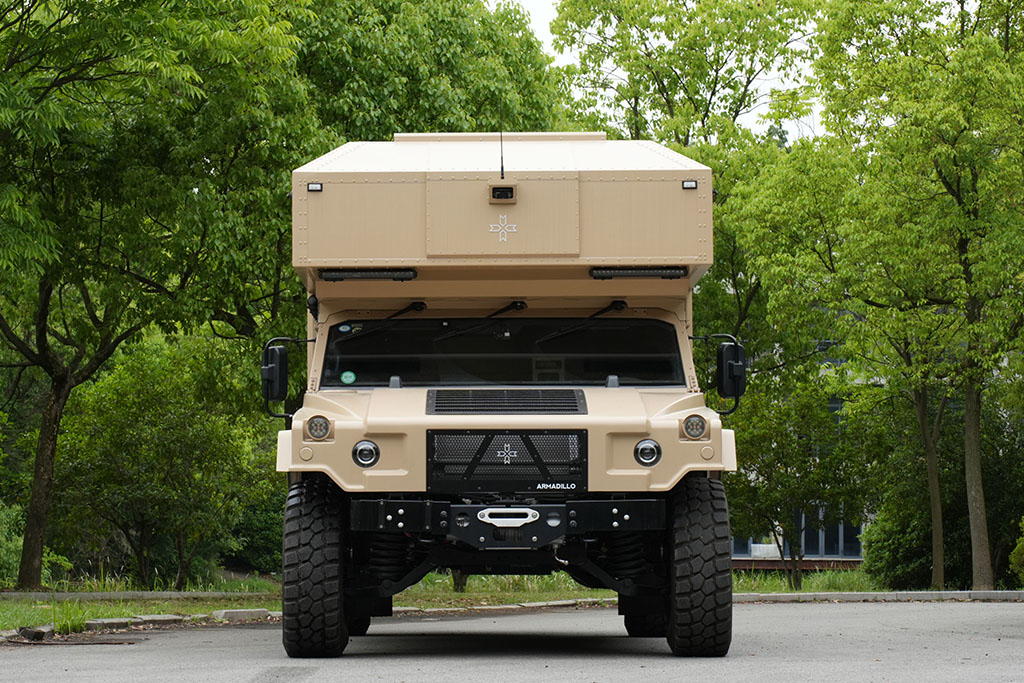

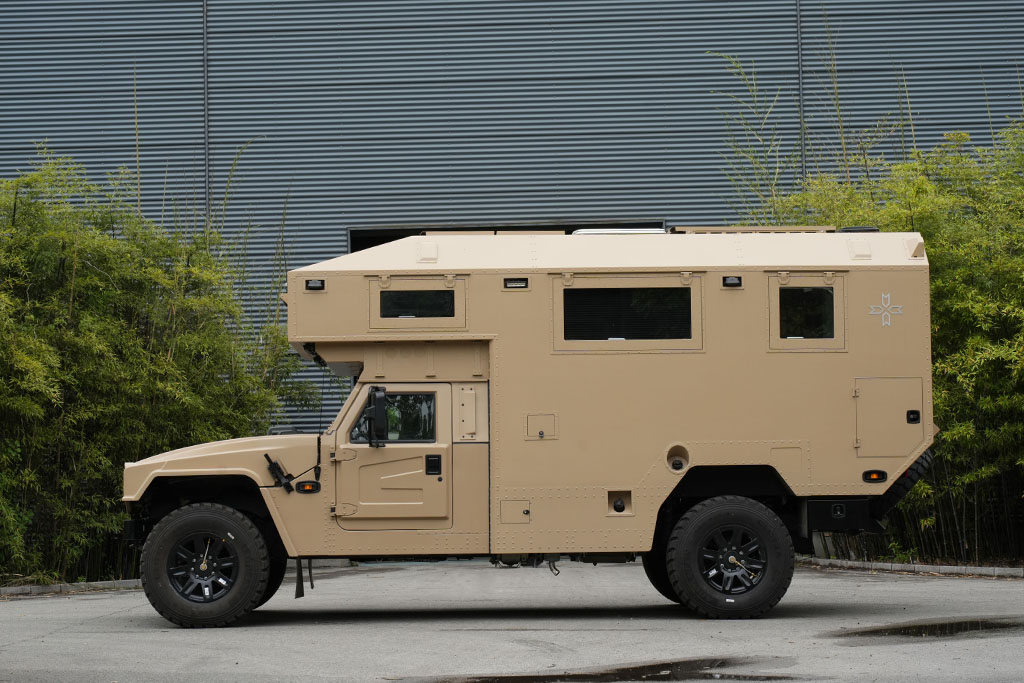

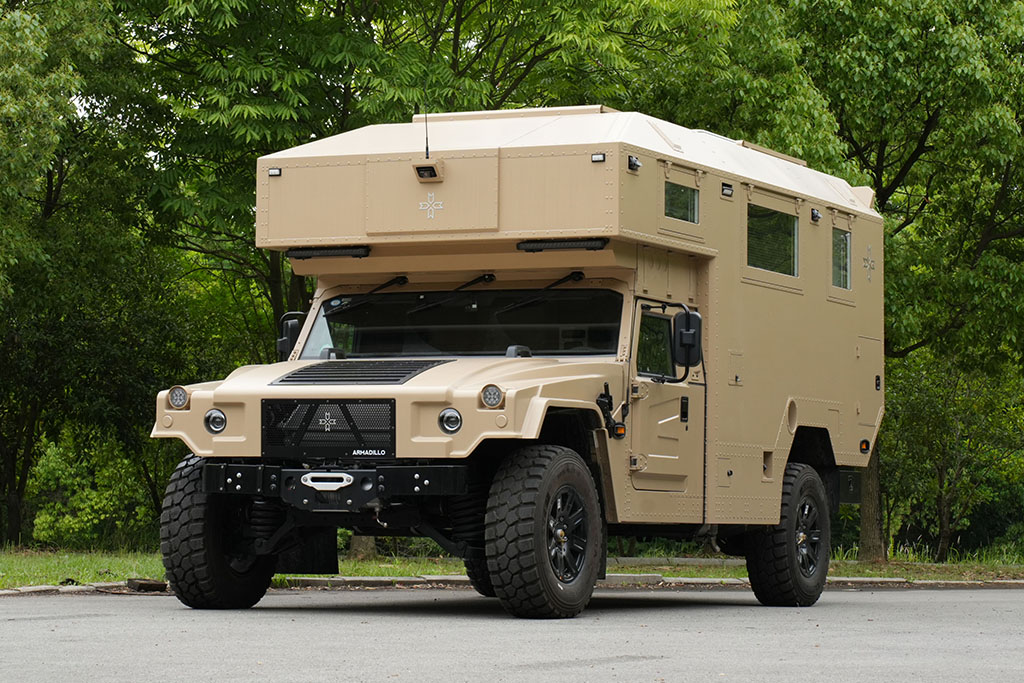

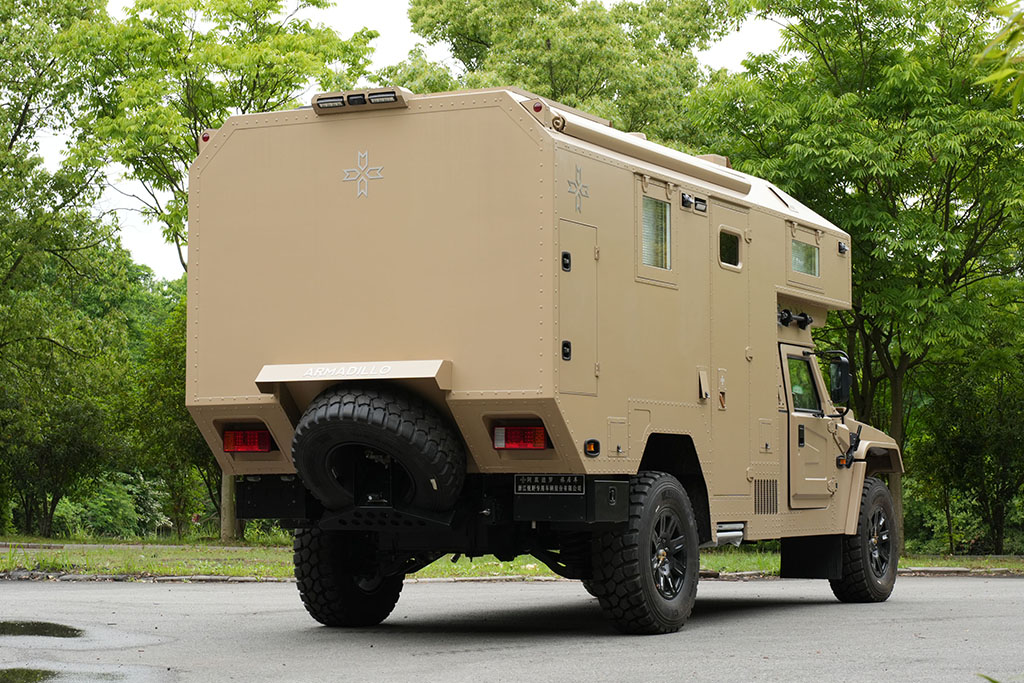

Vehicle information:

Total length: 5995 millimeters

Total width: 2260 millimeters

Total height: 2950 millimeters

Total weight: 6000 kilograms

Minimum ground clearance: 420 millimeters

Approach angle: 55 degrees

Departure angle: 35 degrees

Vertical passage angle: 30 degrees

Fuel tank: 180 liters

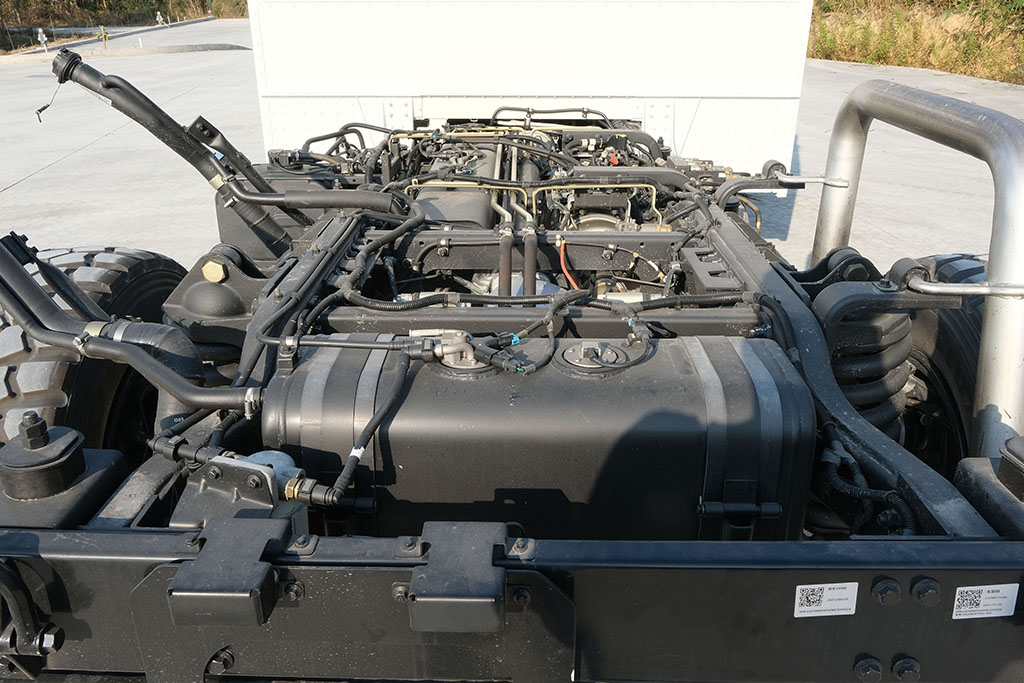

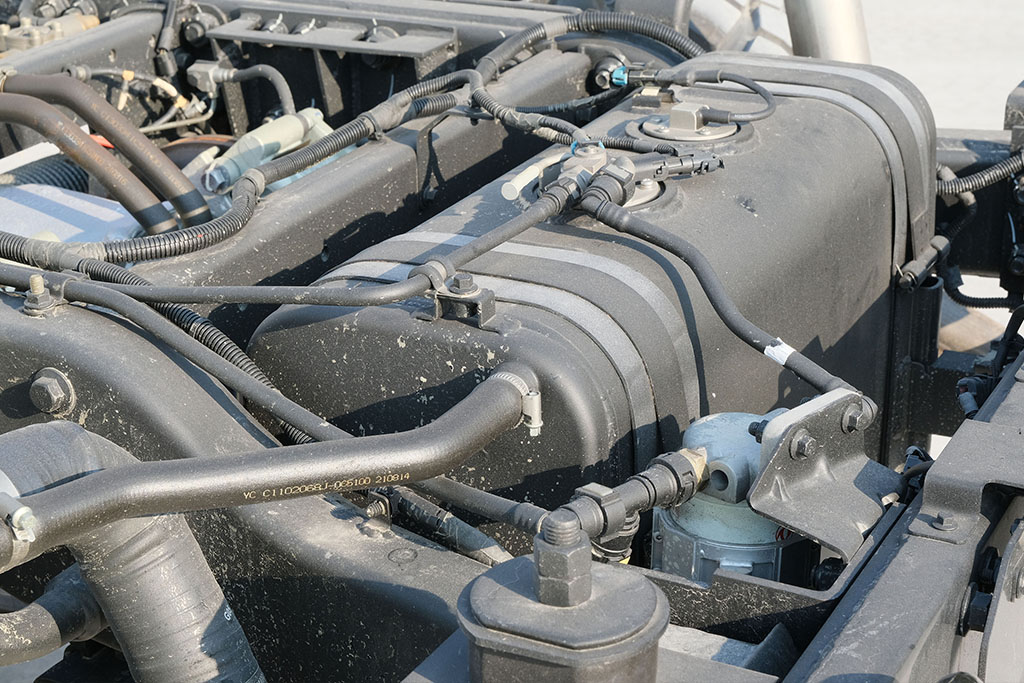

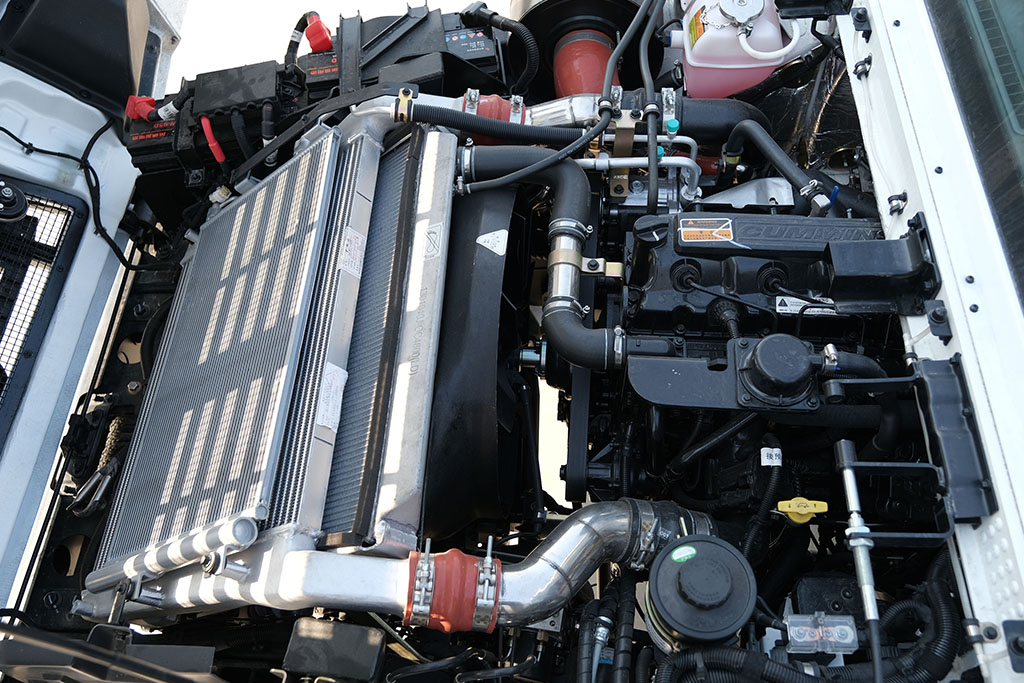

Engine: Cummins 4-liter diesel engine

Maximum power: 143kW/195HP

Maximum torque: 600 Nm

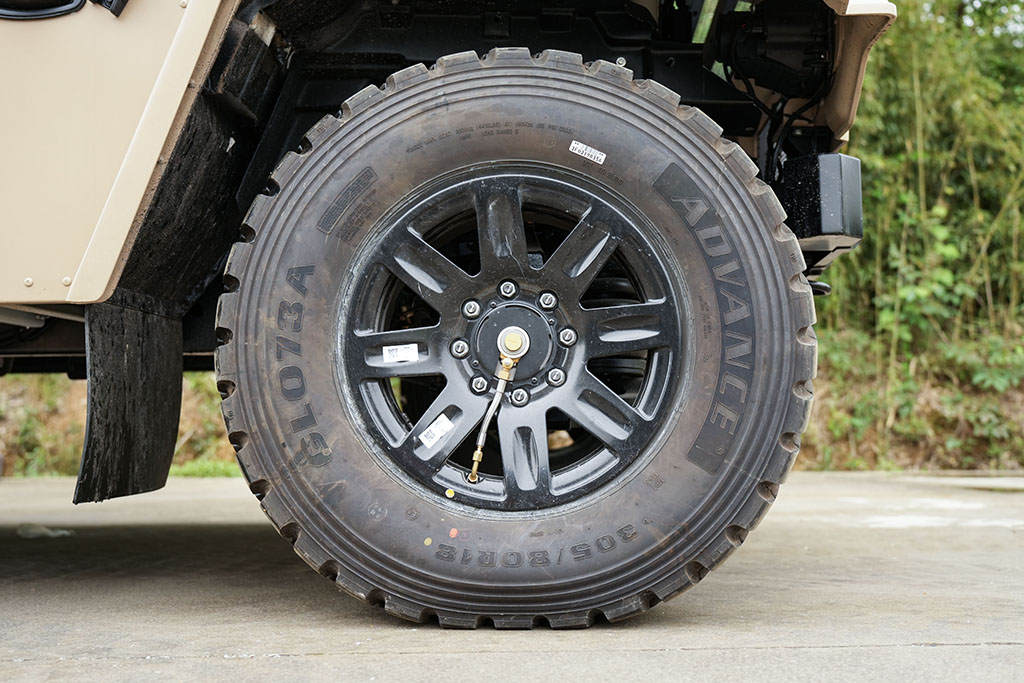

Tires: 305/80R18 MPT military all terrain tires

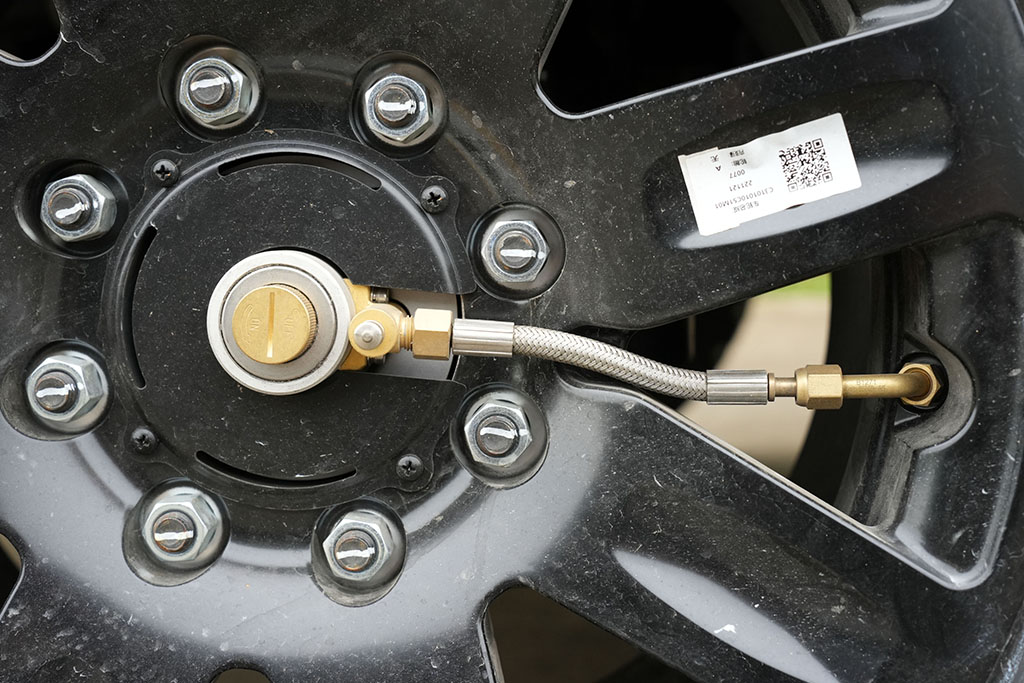

Wheel hub: aluminum alloy forged two body wheel hub

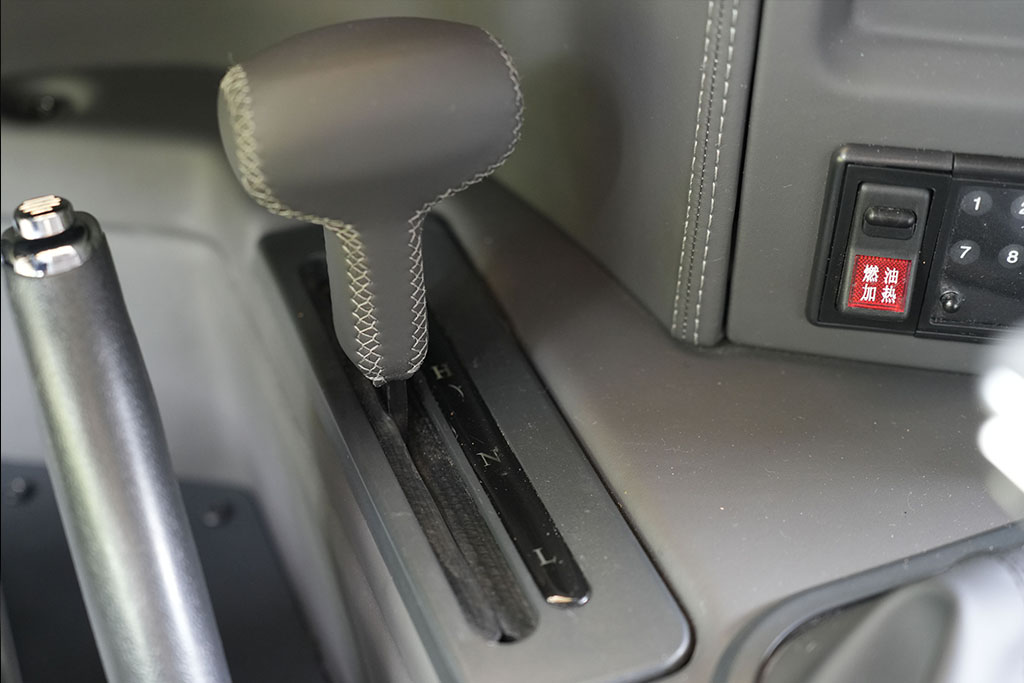

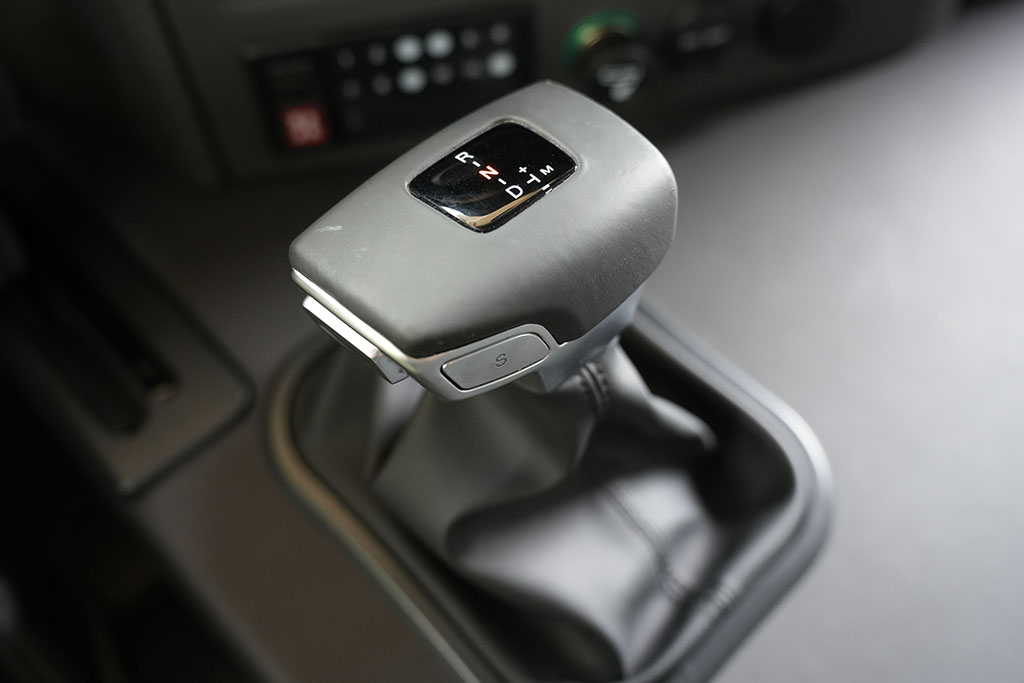

Transmission: 6-speed automatic

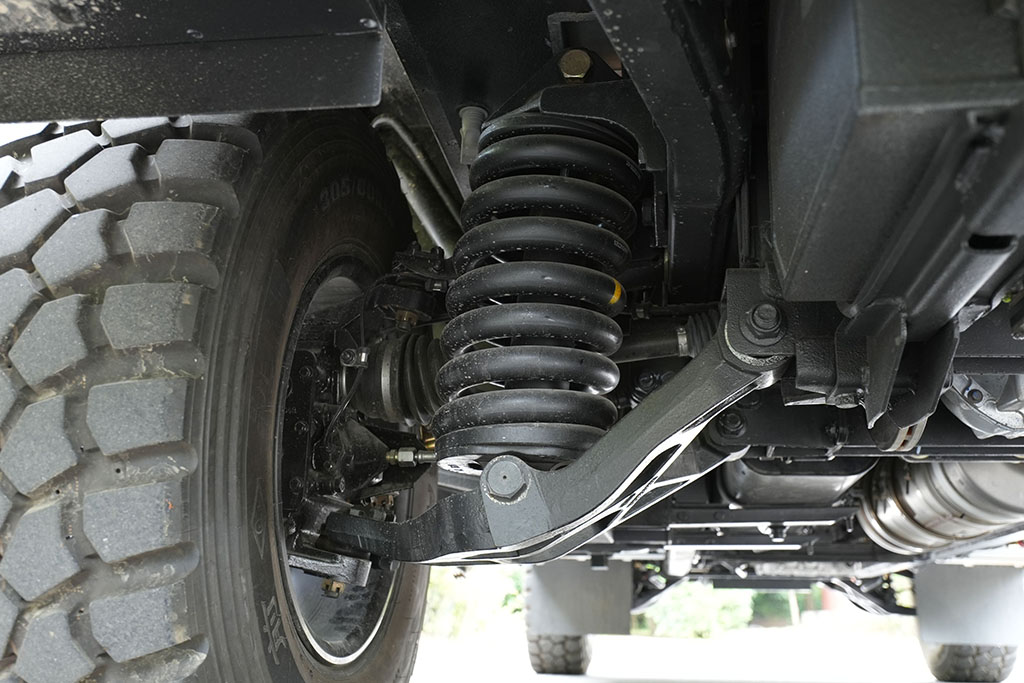

Drive: full-time 4-wheel drive with Torsen differential lock

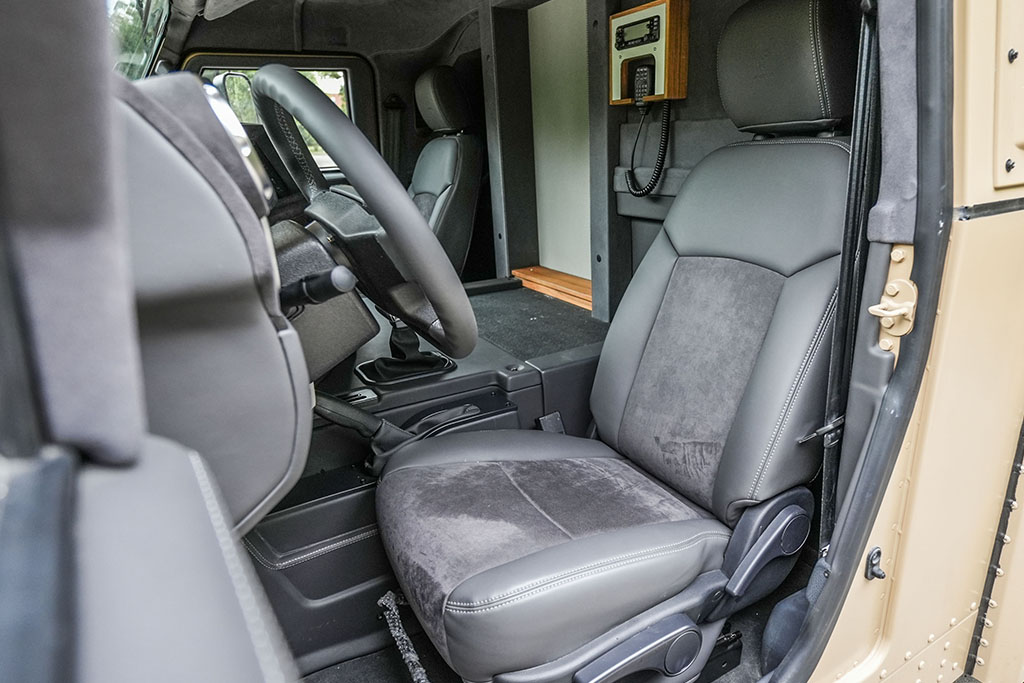

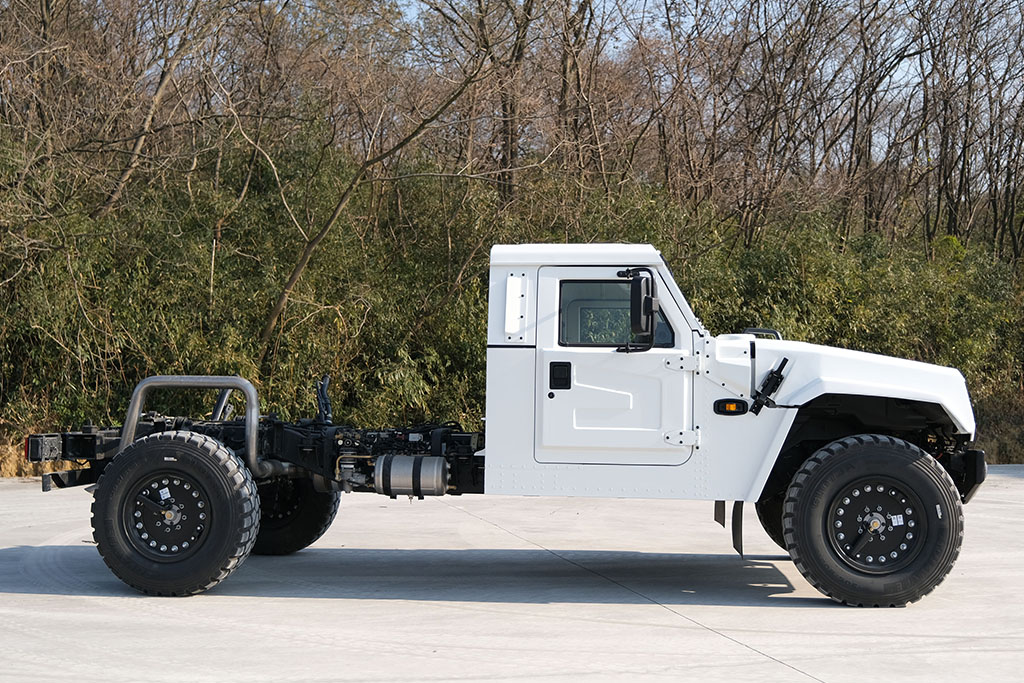

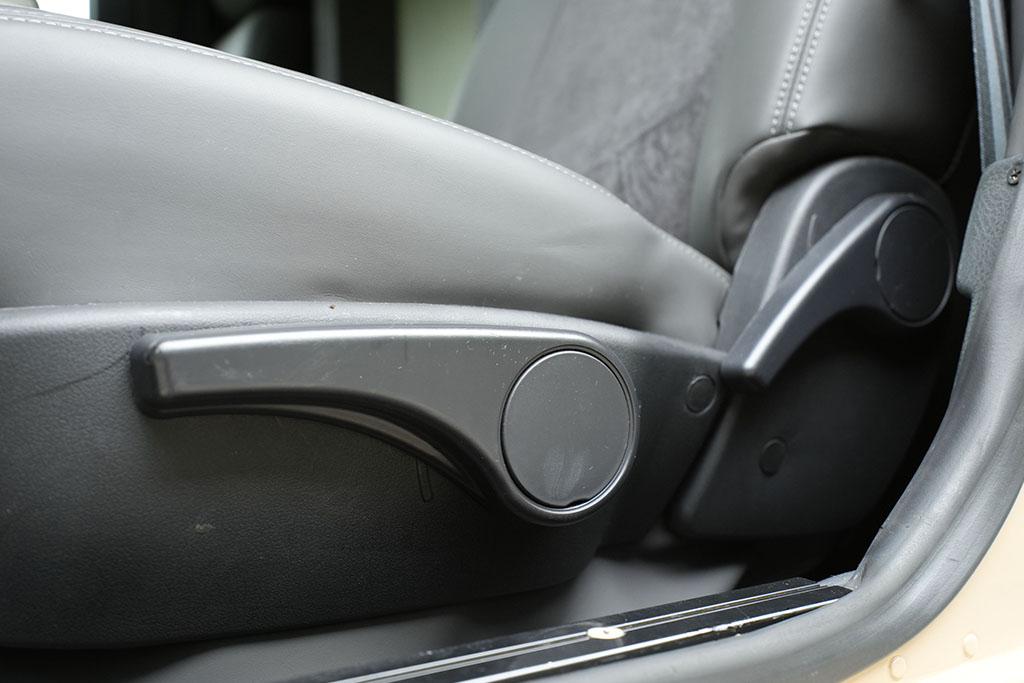

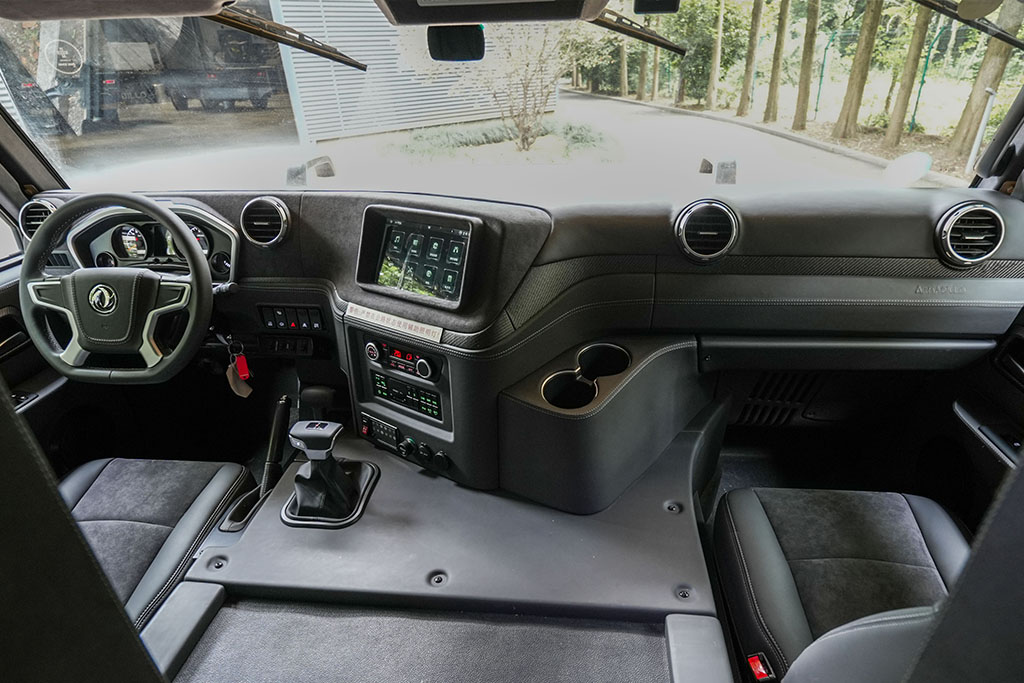

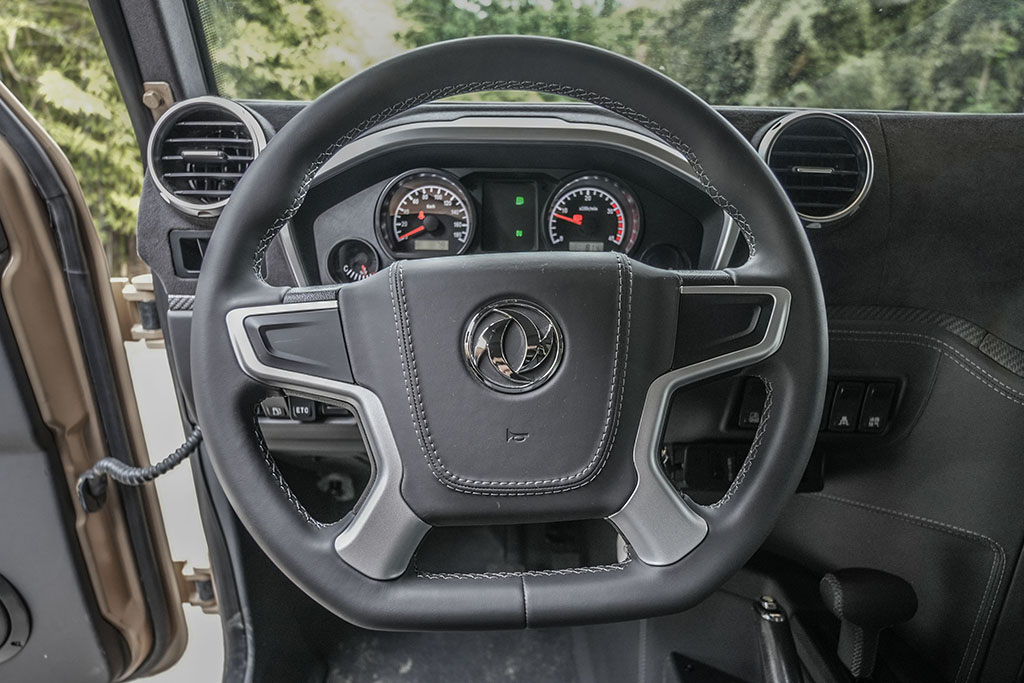

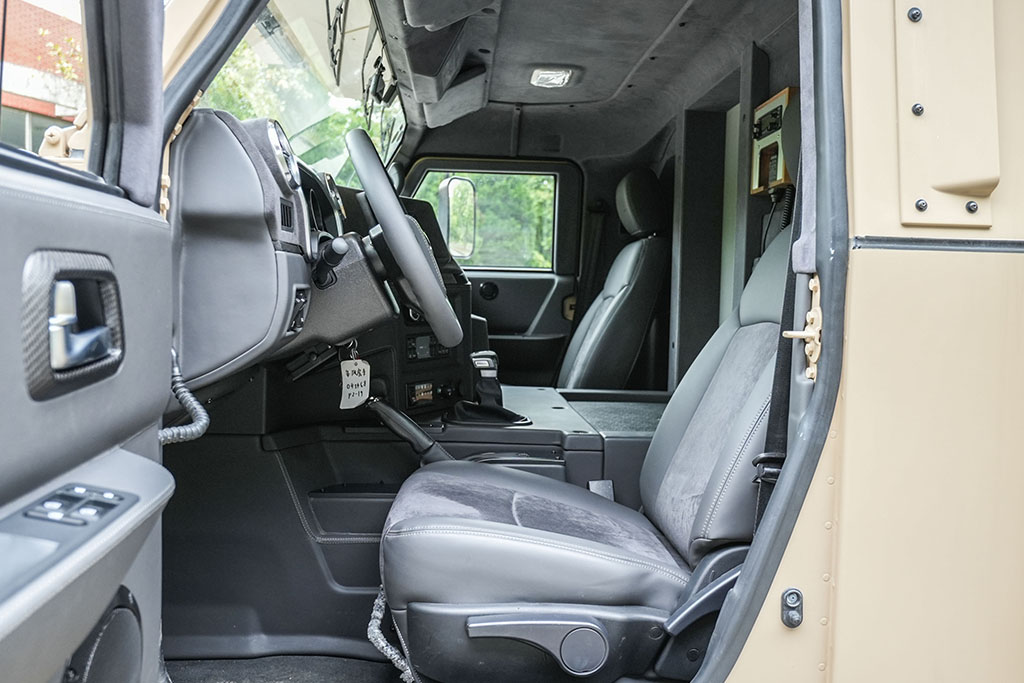

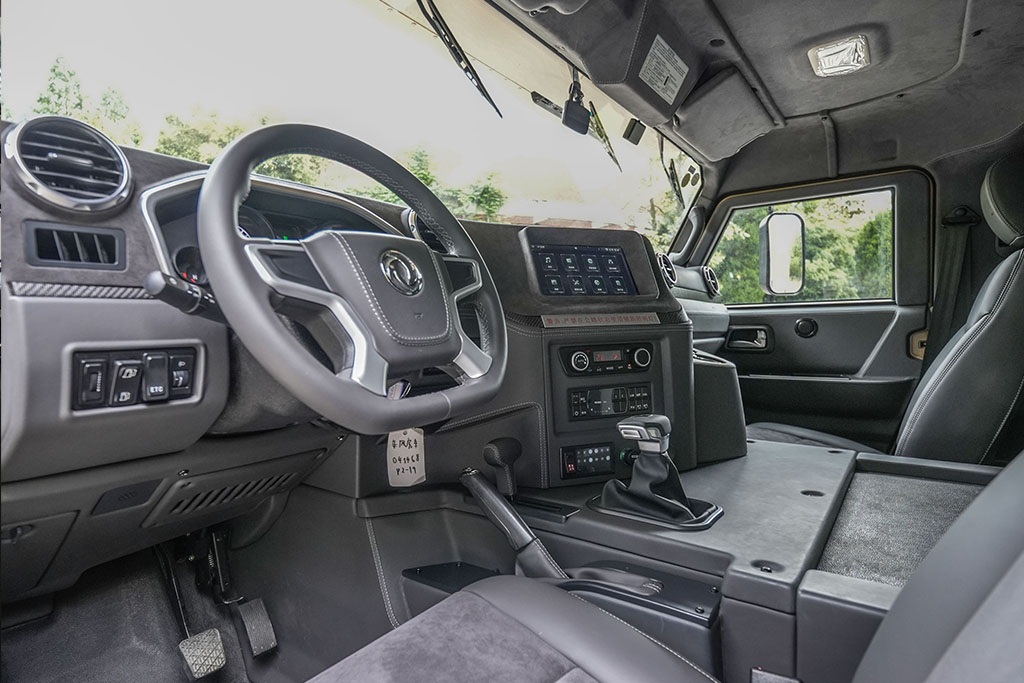

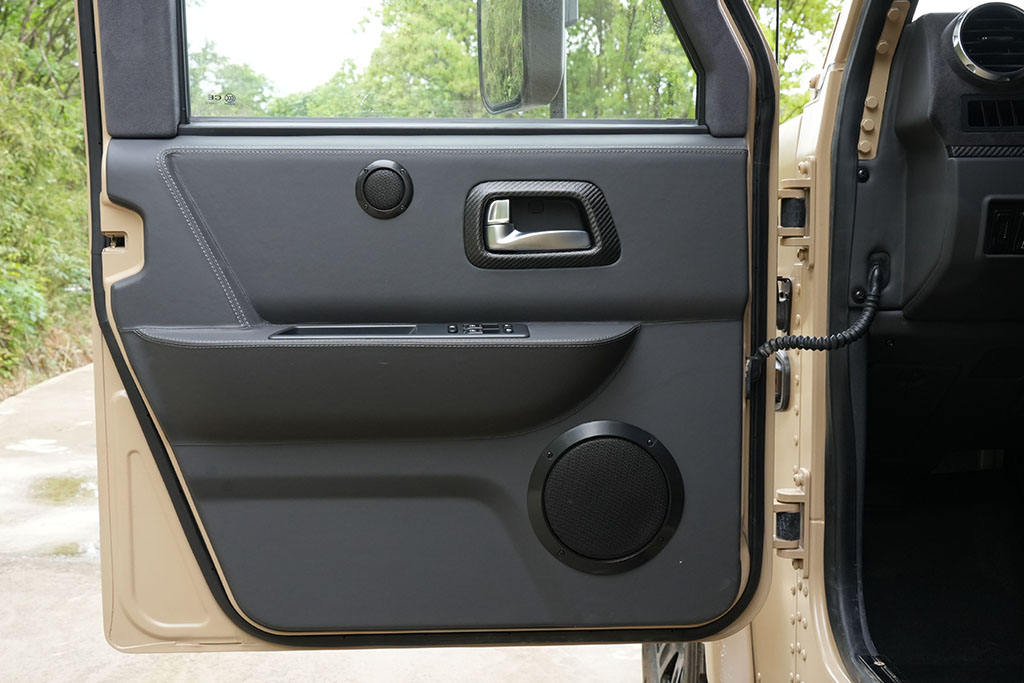

Driver's cab: single row cab with 2 seats

(The above data shall be based on the actual vehicle)

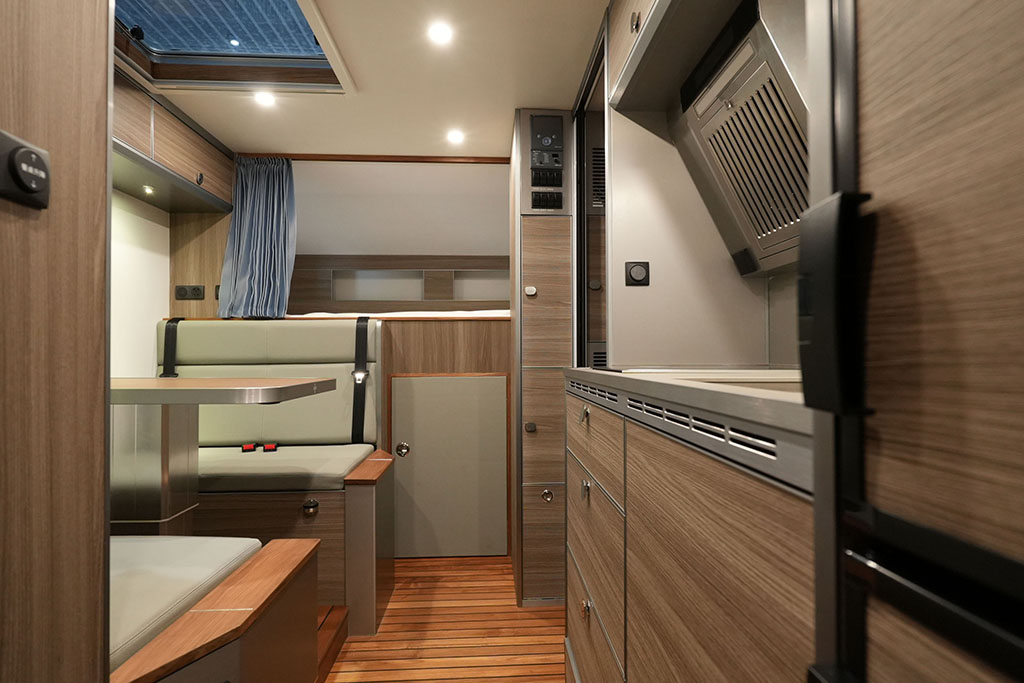

Structure and configuration:

Passenger capacity: 6 people

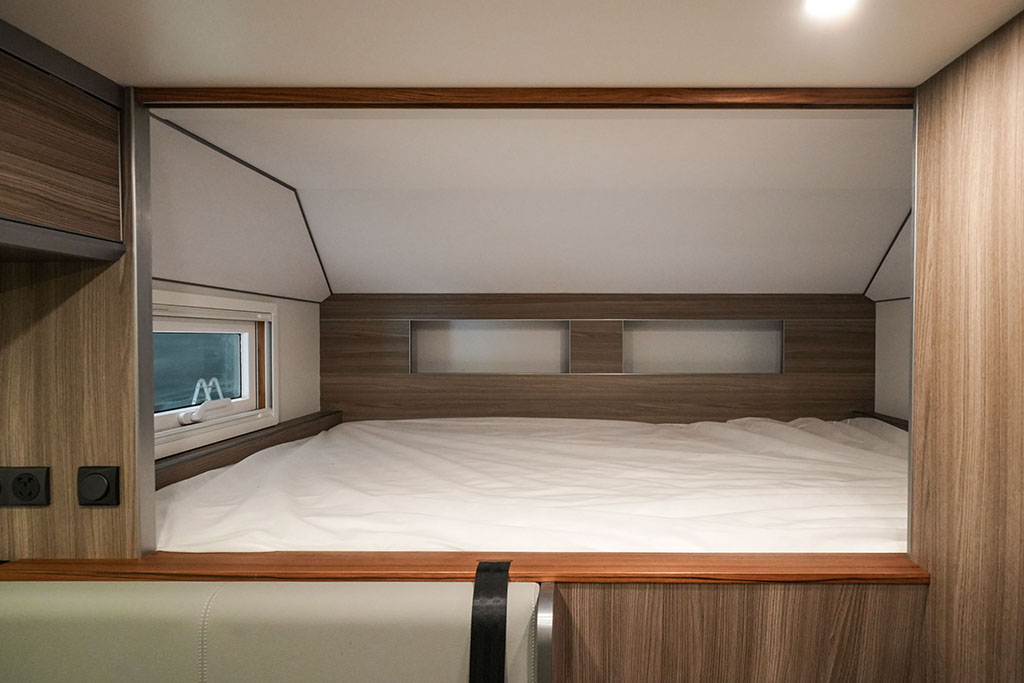

1 double bed 1900 x1250

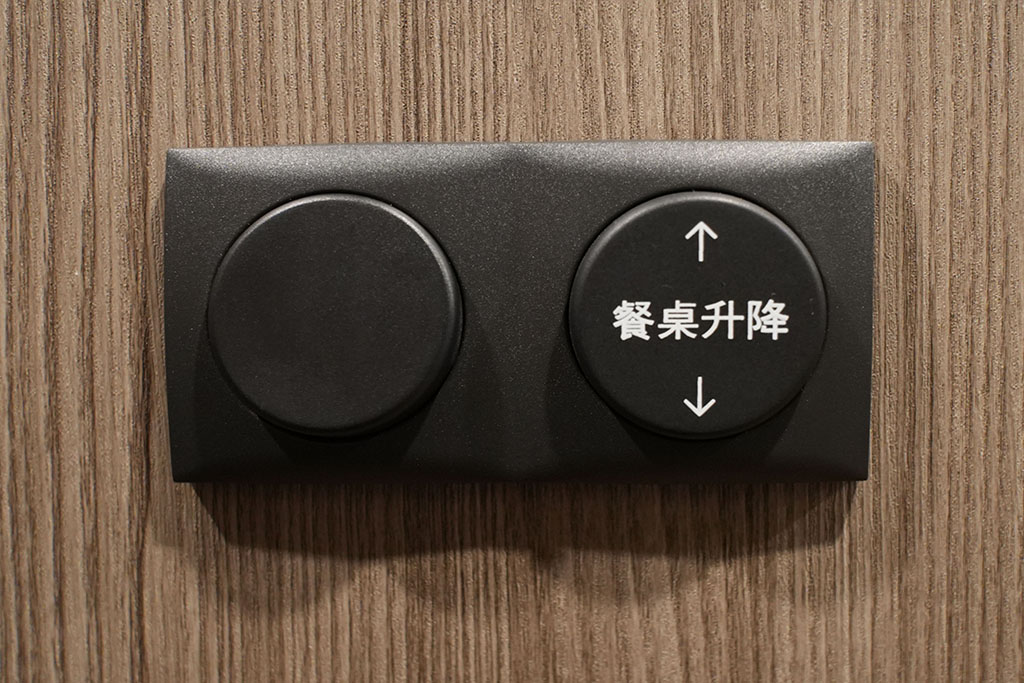

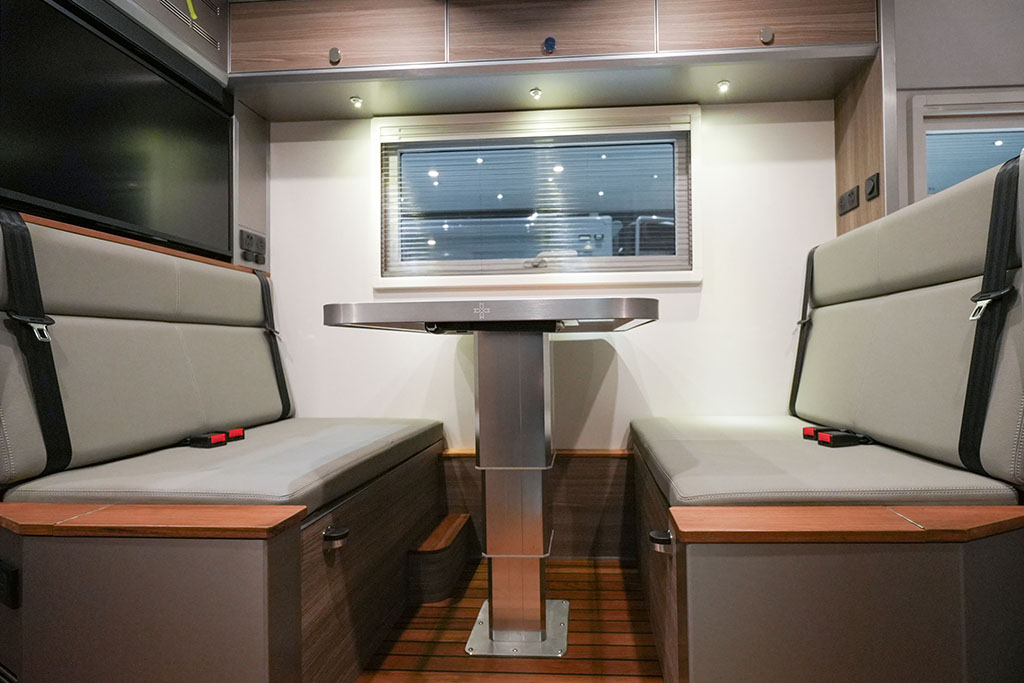

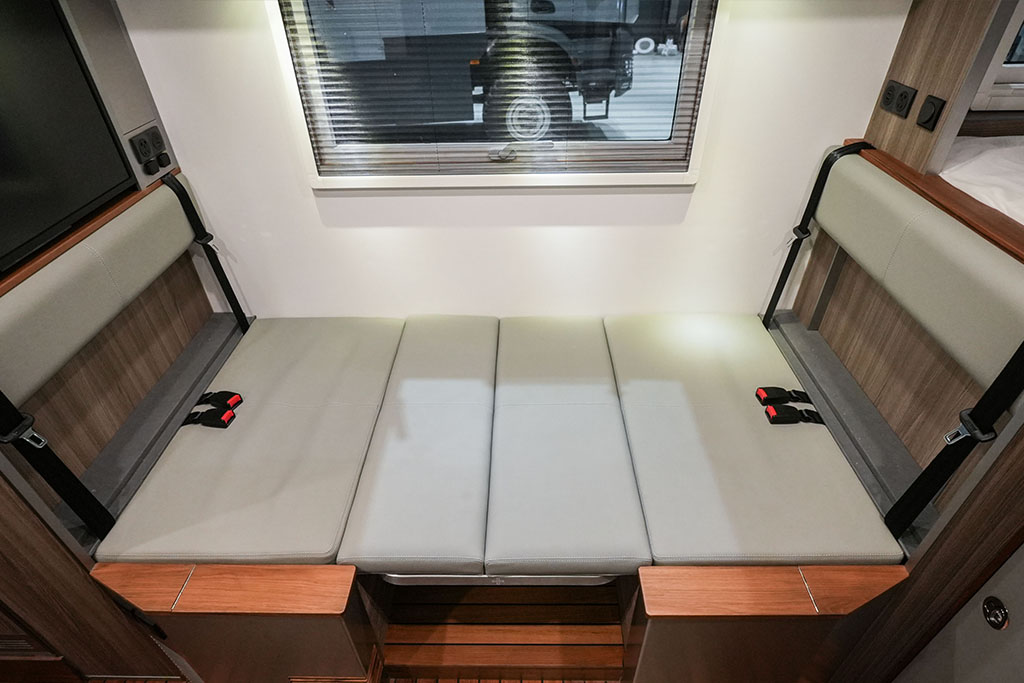

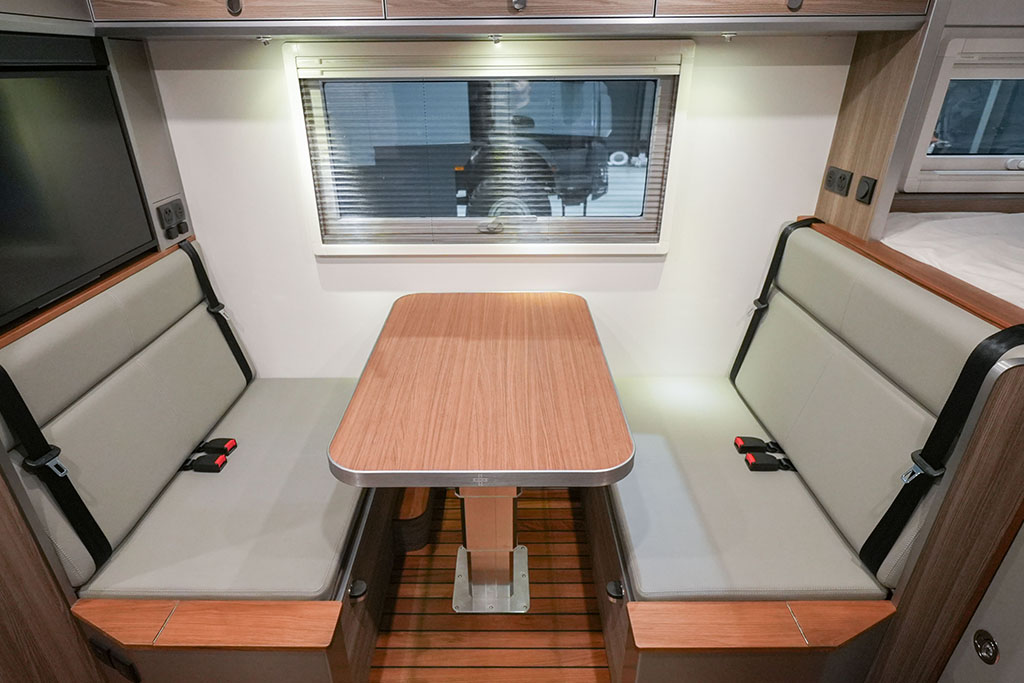

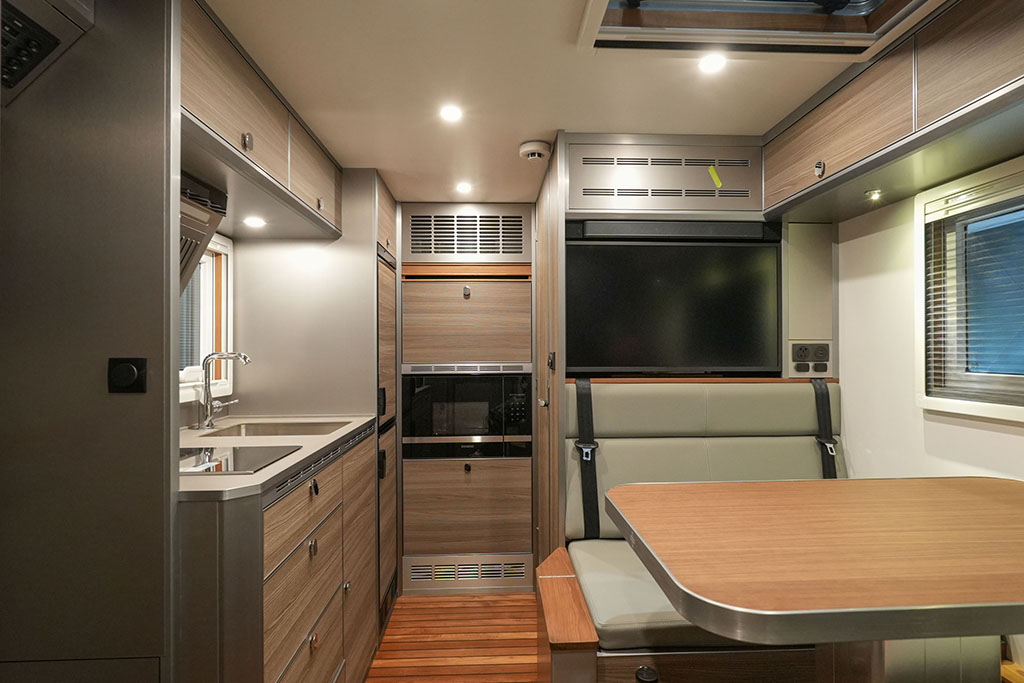

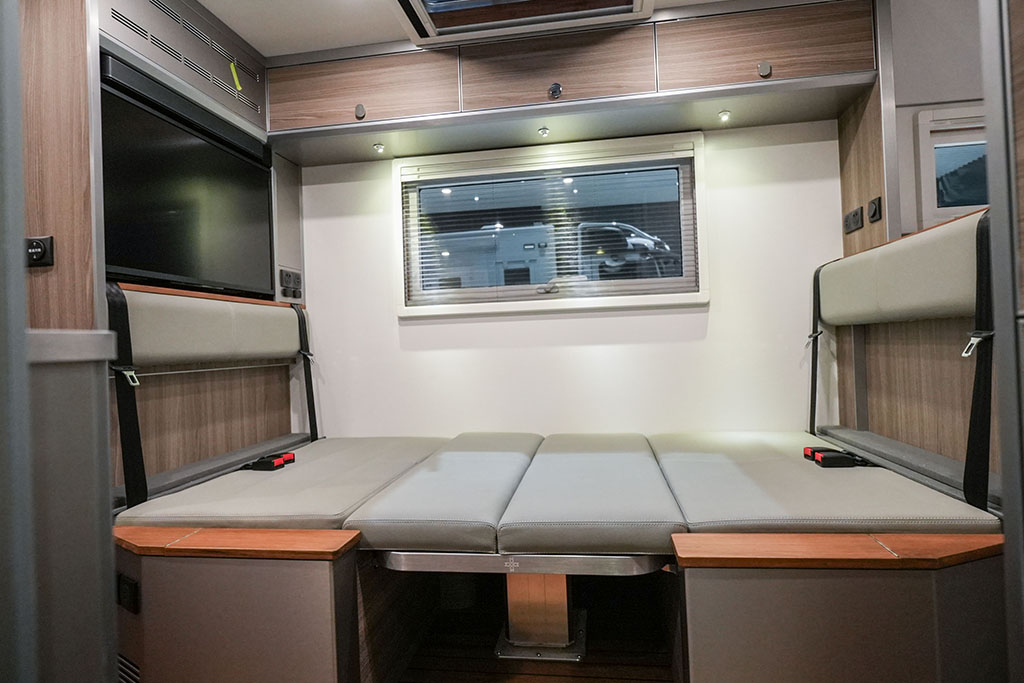

4-seater dining table holder, variable bed 1920 x 920

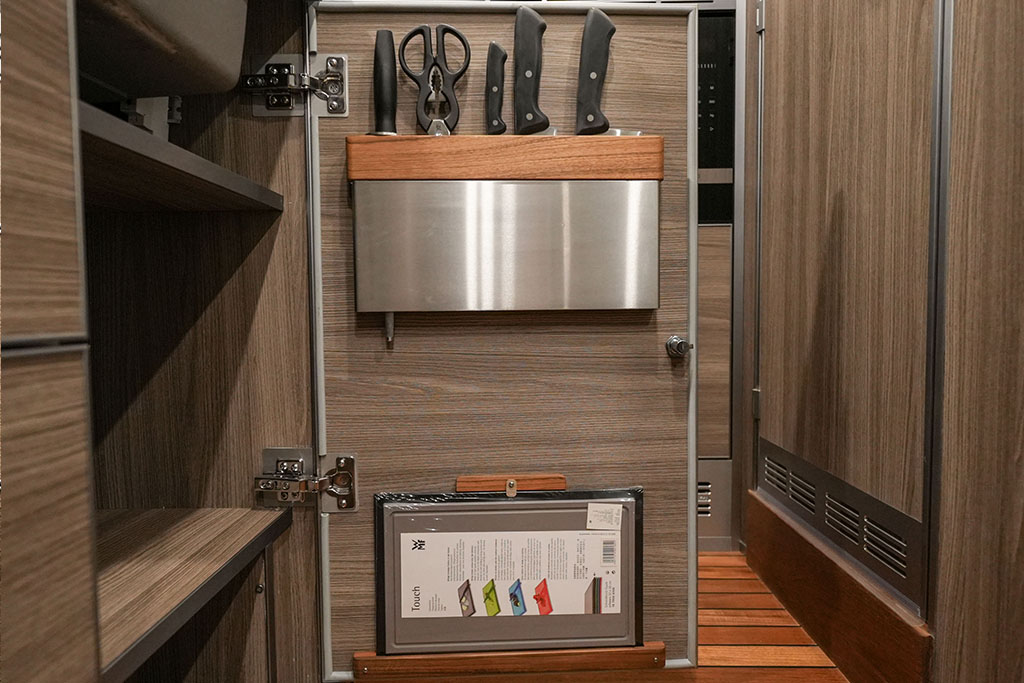

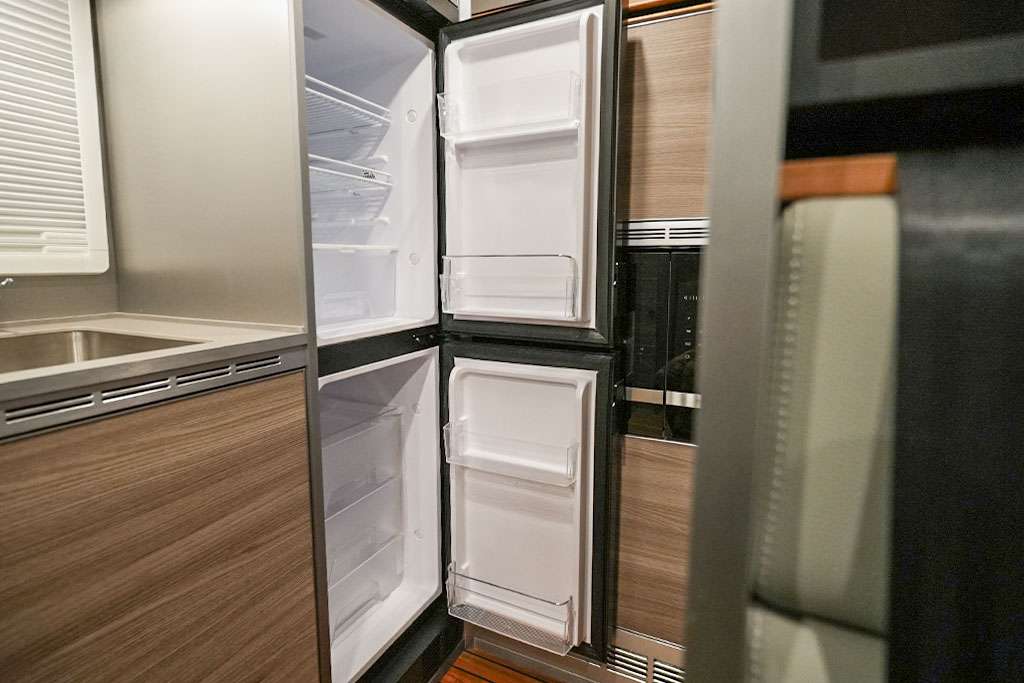

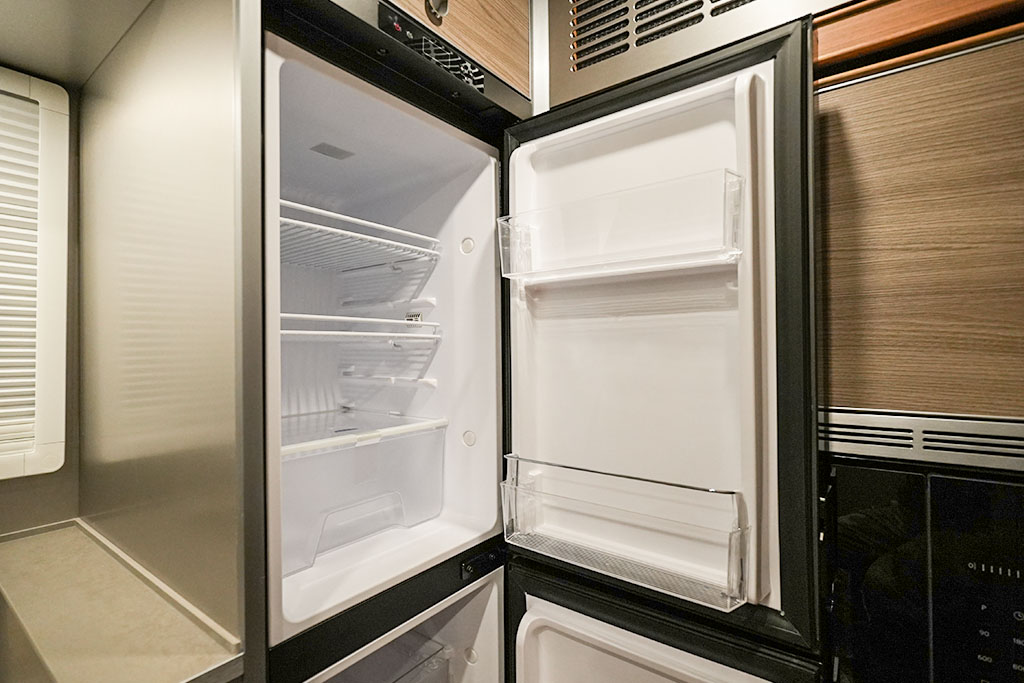

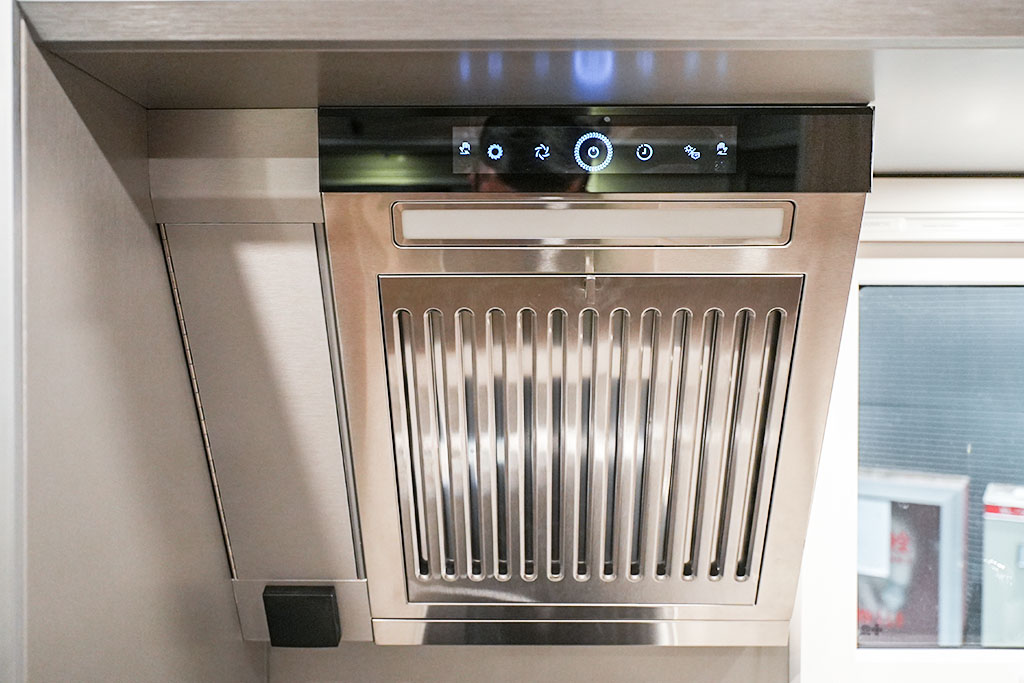

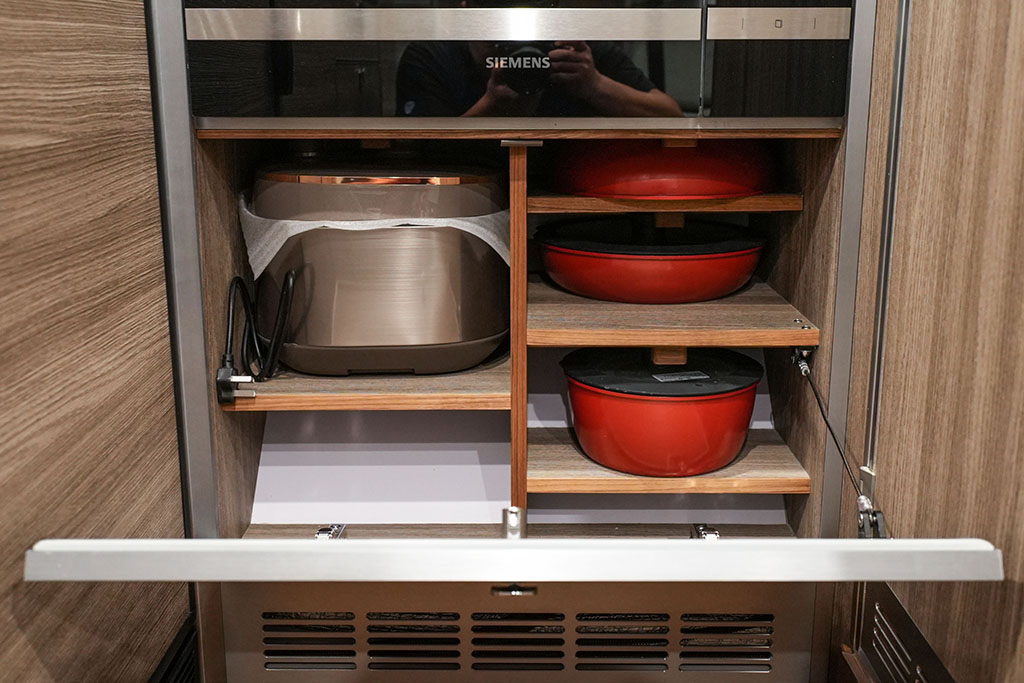

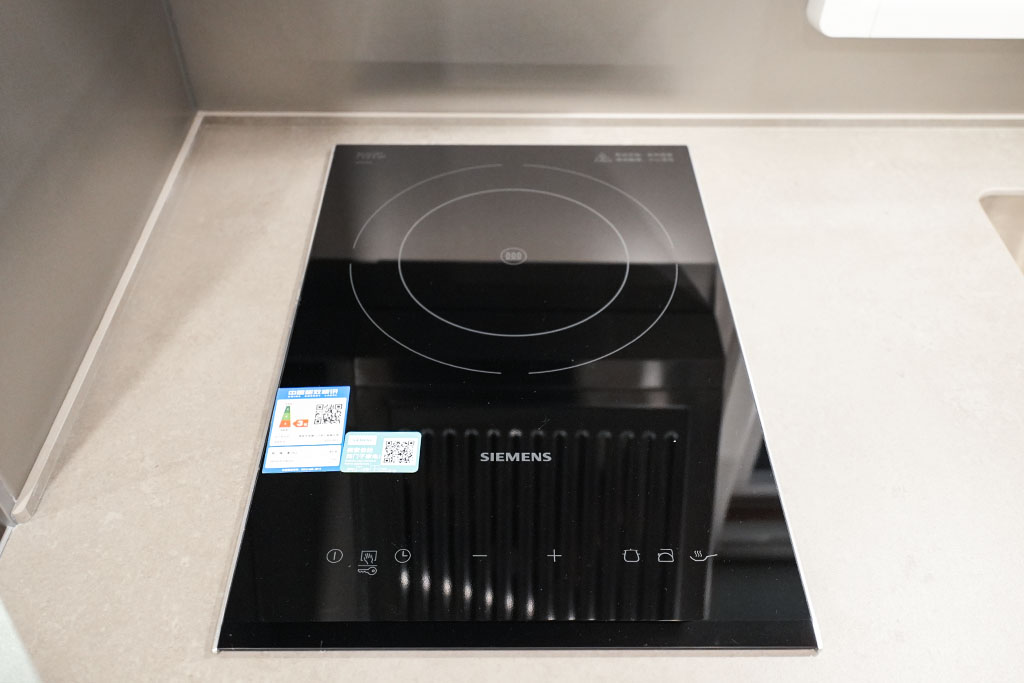

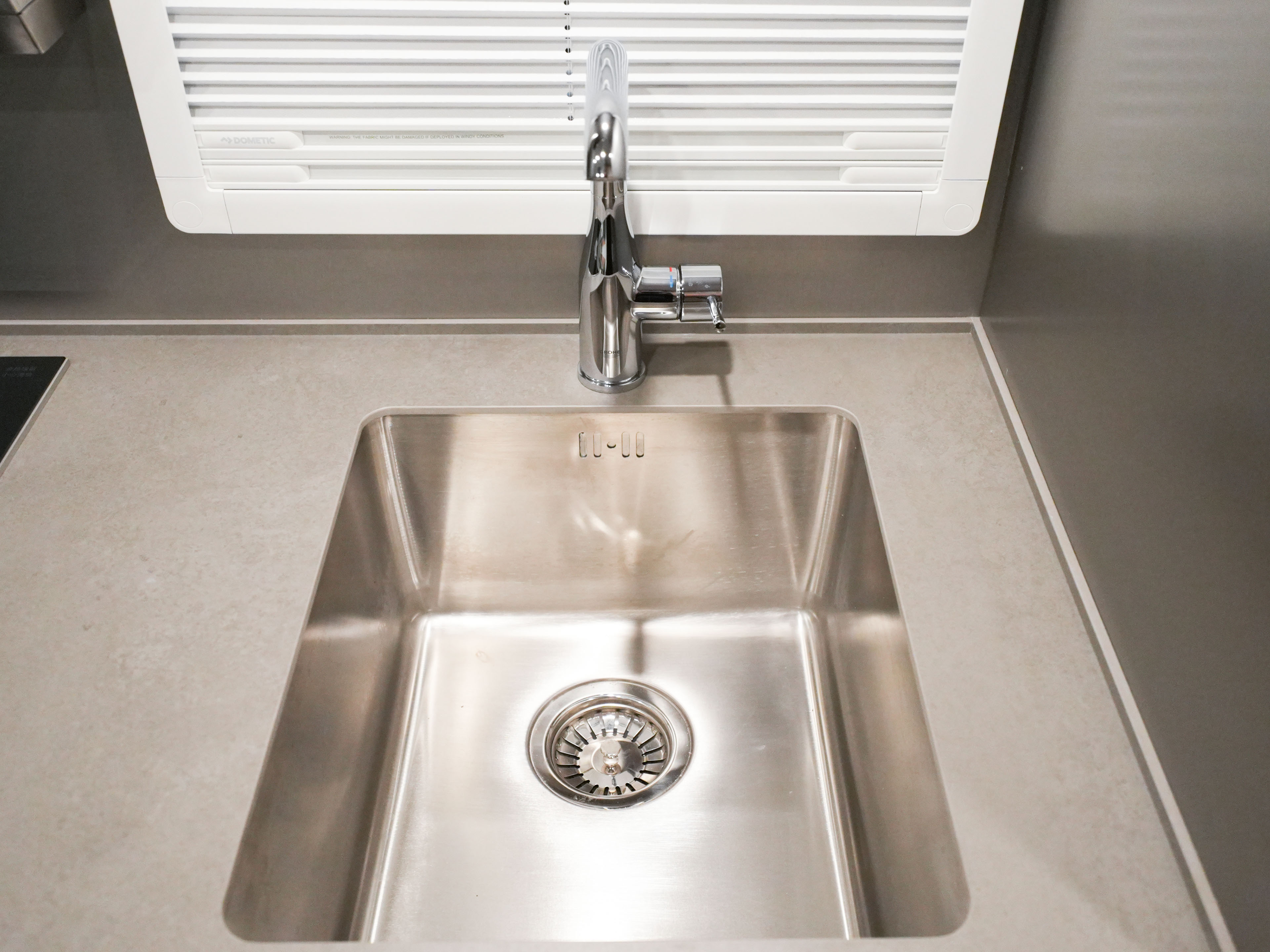

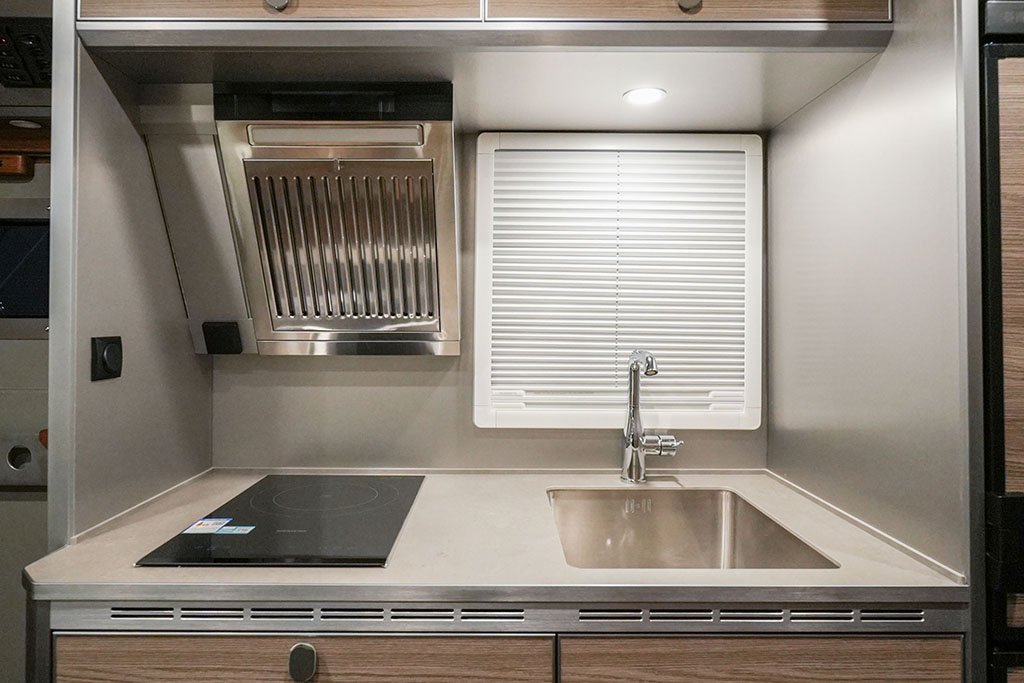

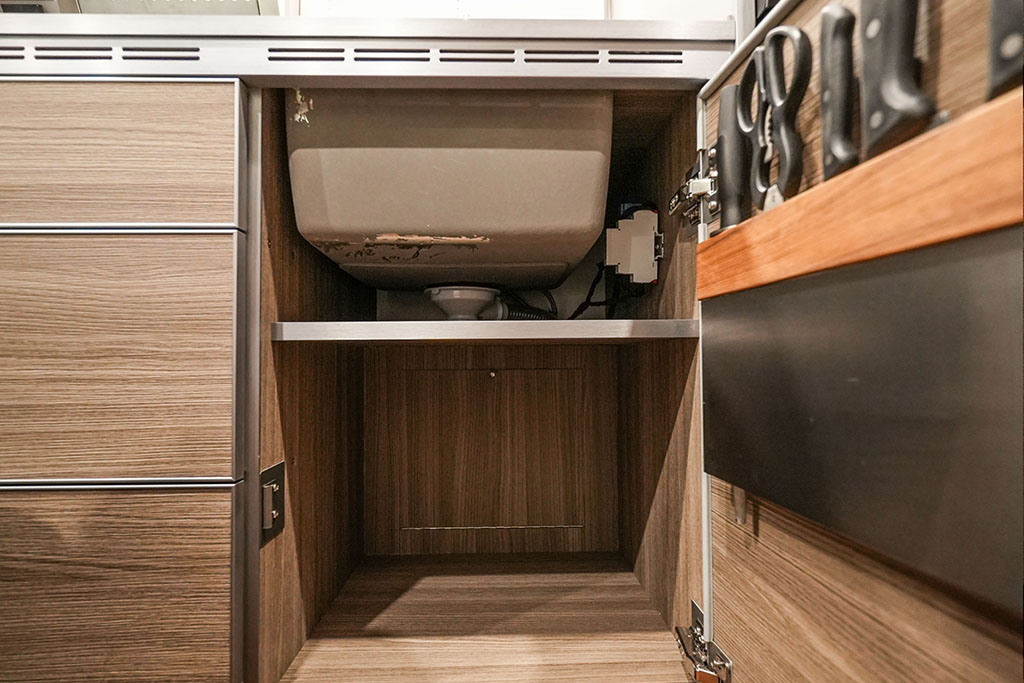

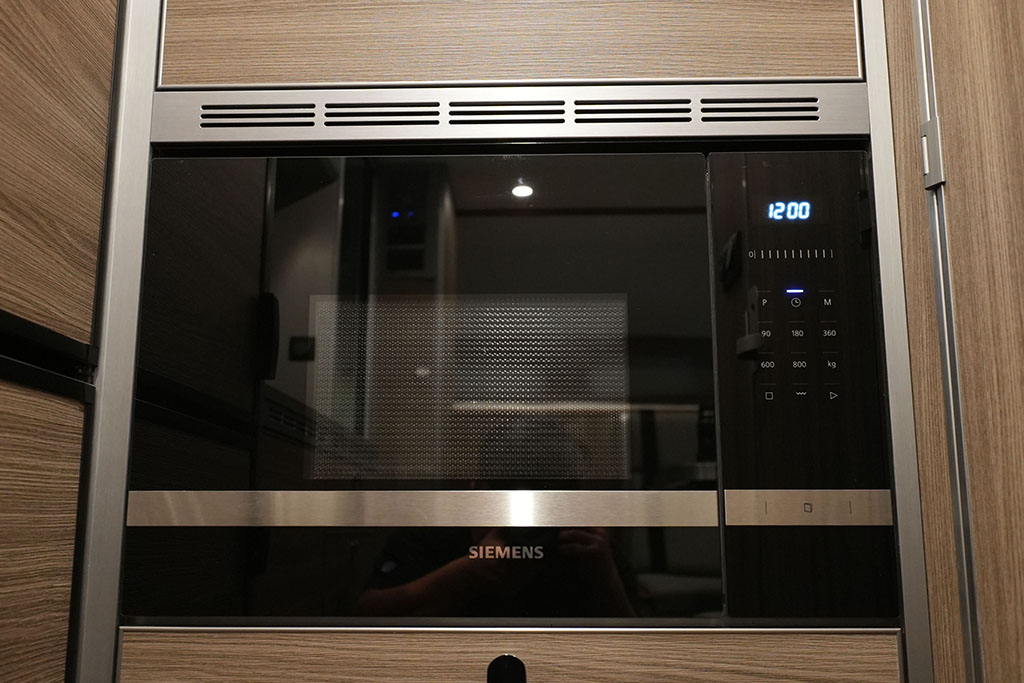

Standard kitchen

Standard bathroom with washbasin

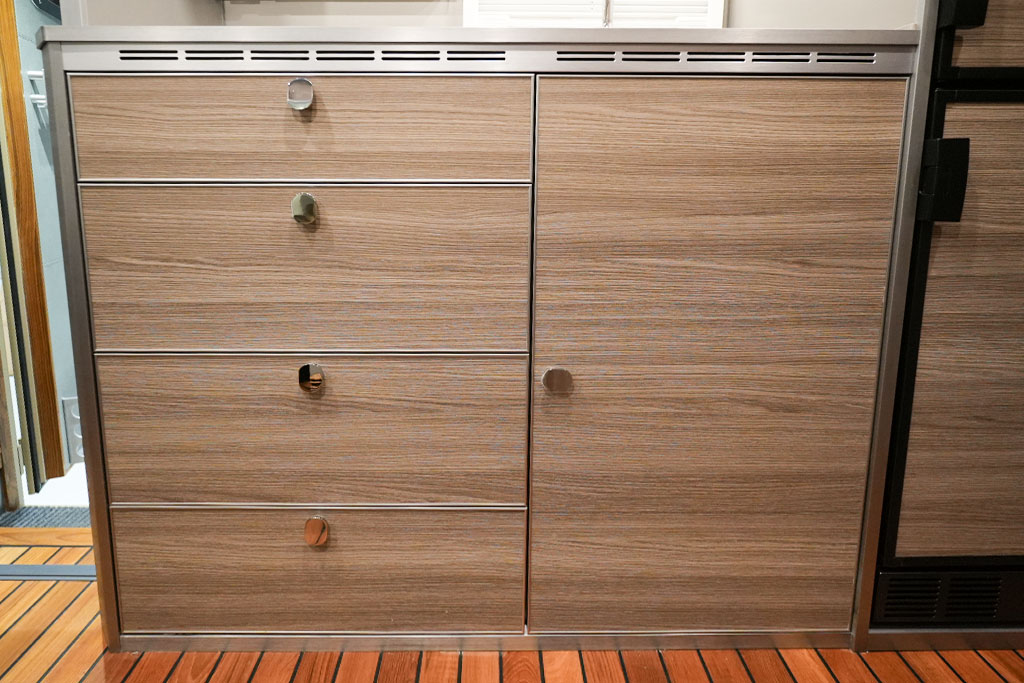

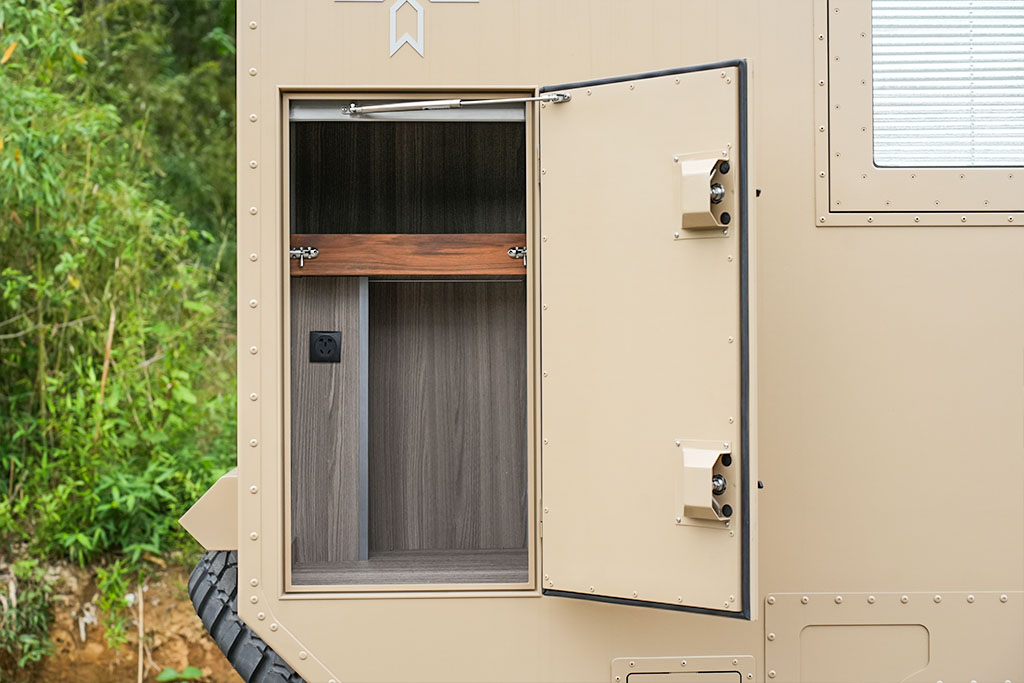

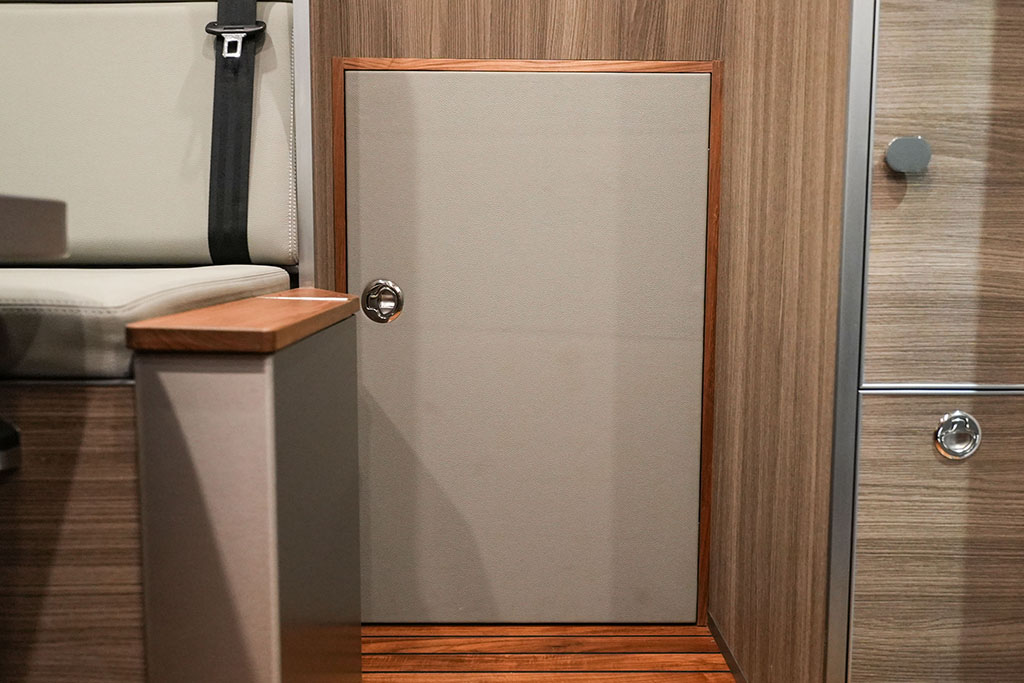

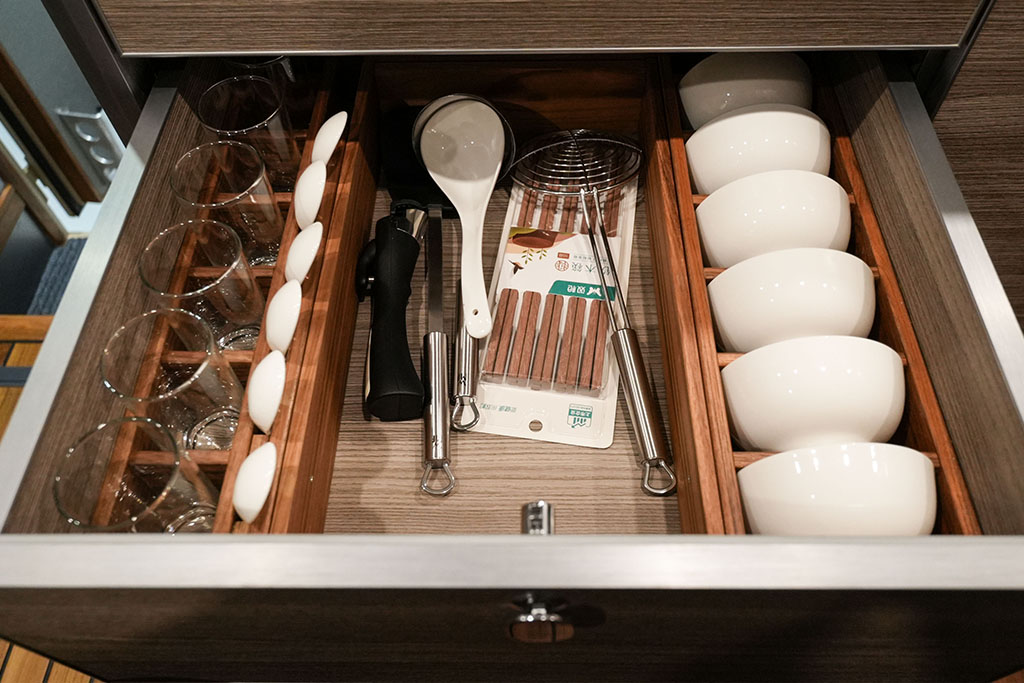

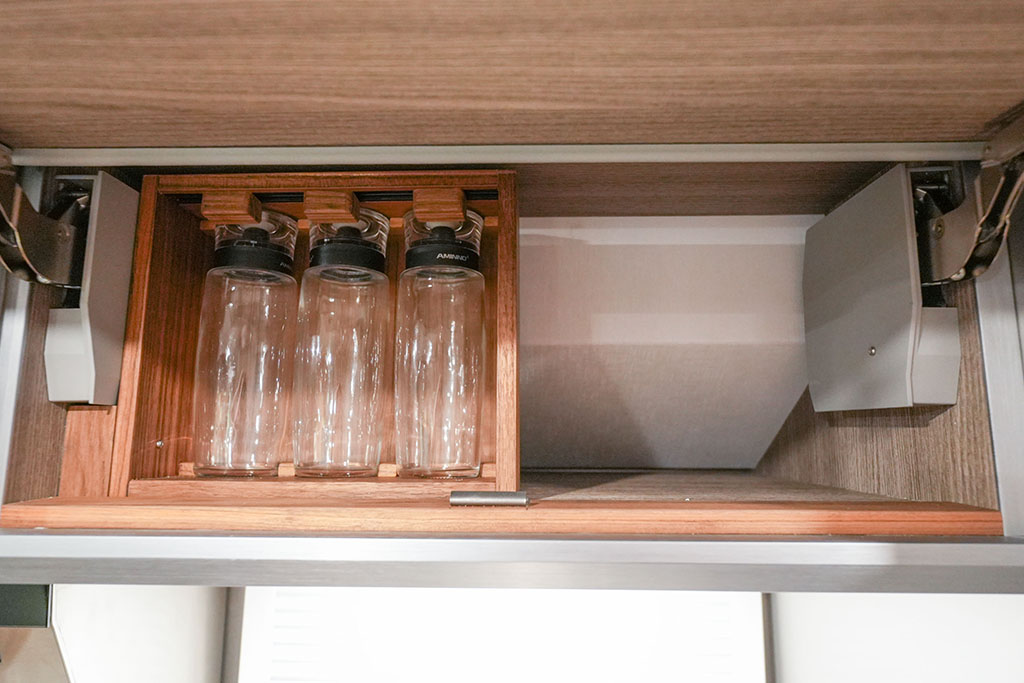

Lockers, wardrobes

Box:

The box body is a broken bridge insulation sandwich structure

The inner and outer skins are made of ultra-high strength fiberglass steel plates

No cold bridge connection

Amodillo three-point floating balance auxiliary beam system

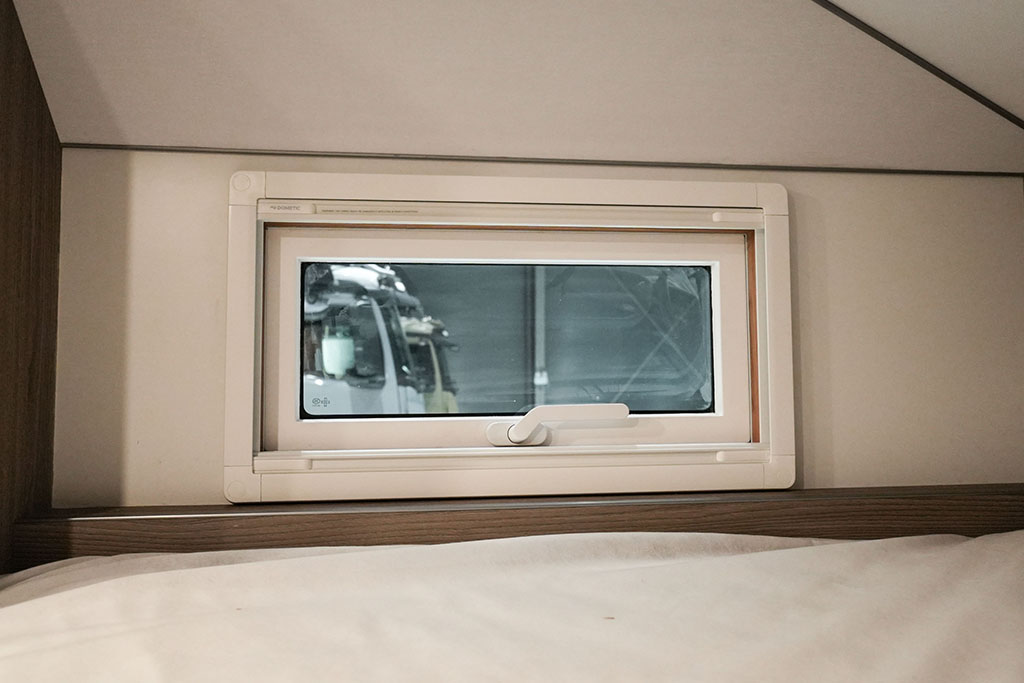

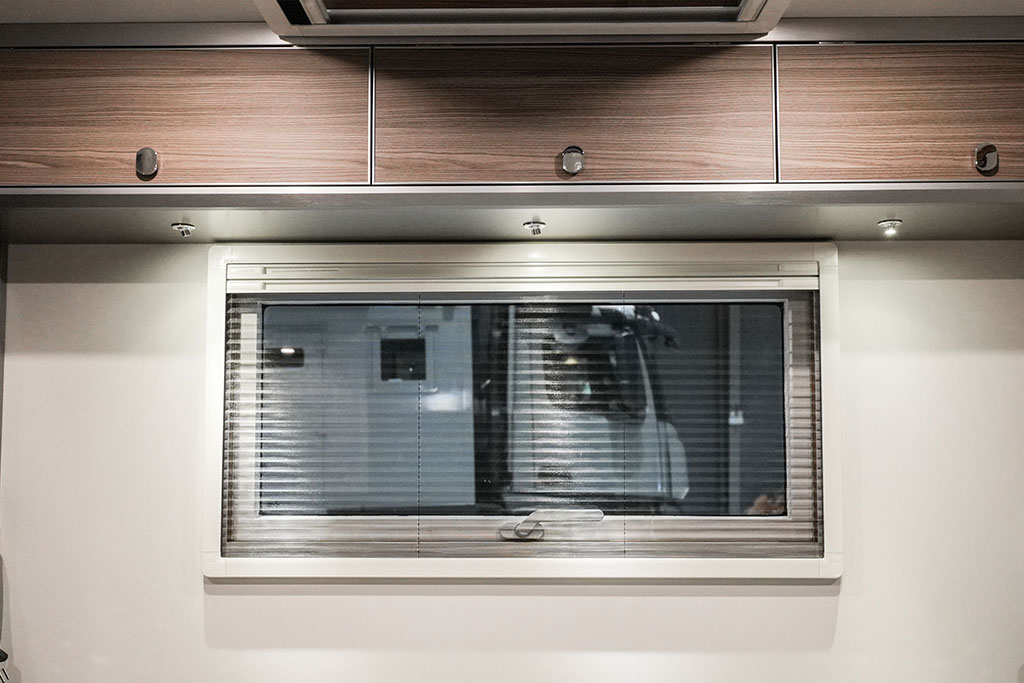

Window: Exclusive window for Amodillo, equipped with imported brand sunshades and mosquito nets

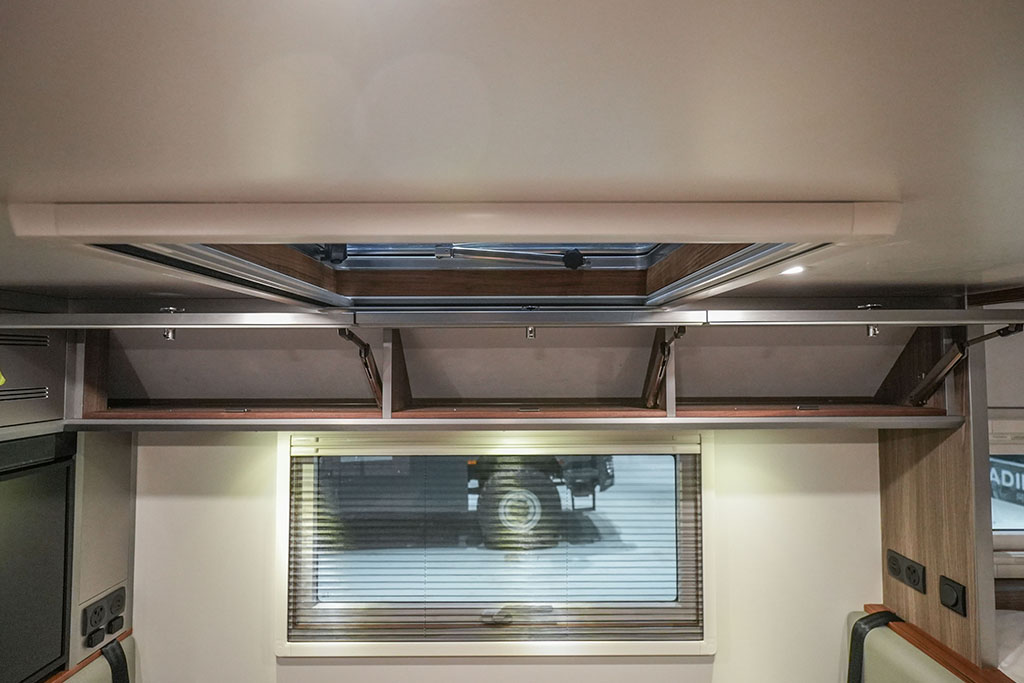

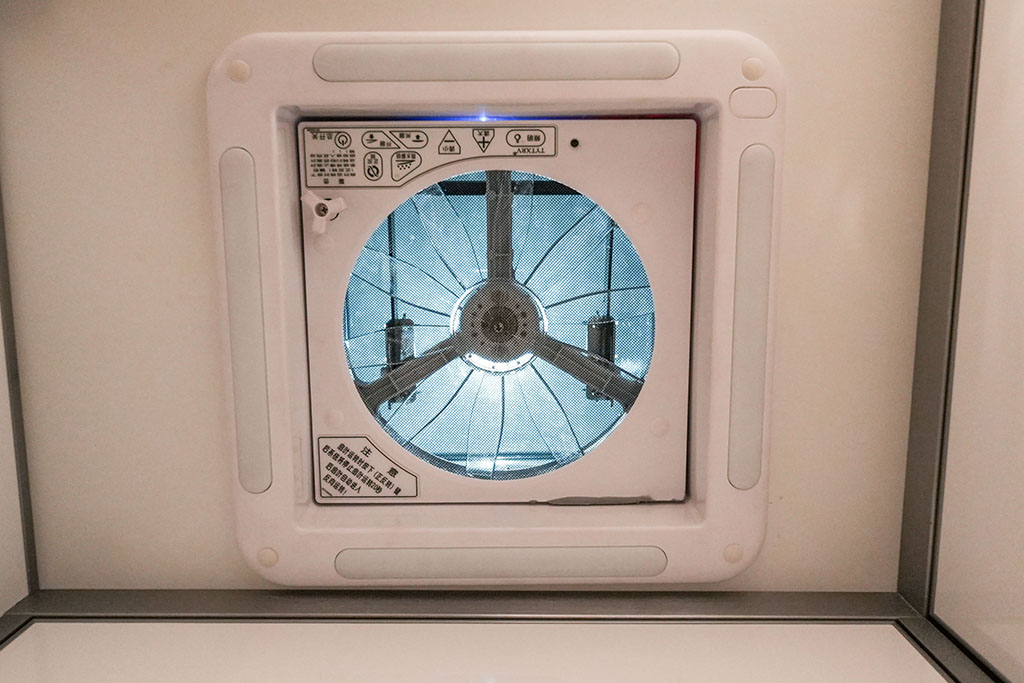

Skylight: marine grade, can be opened both inside and outside, equipped with sunshades and mosquito nets

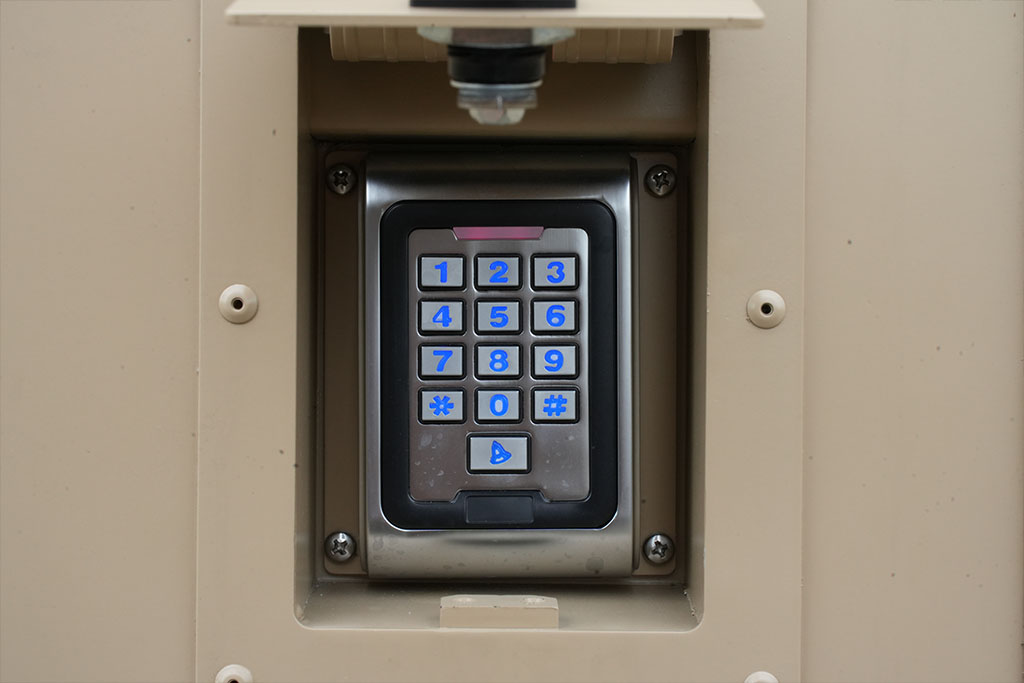

Main door: exclusively owned by Amodiro, password electrically opened

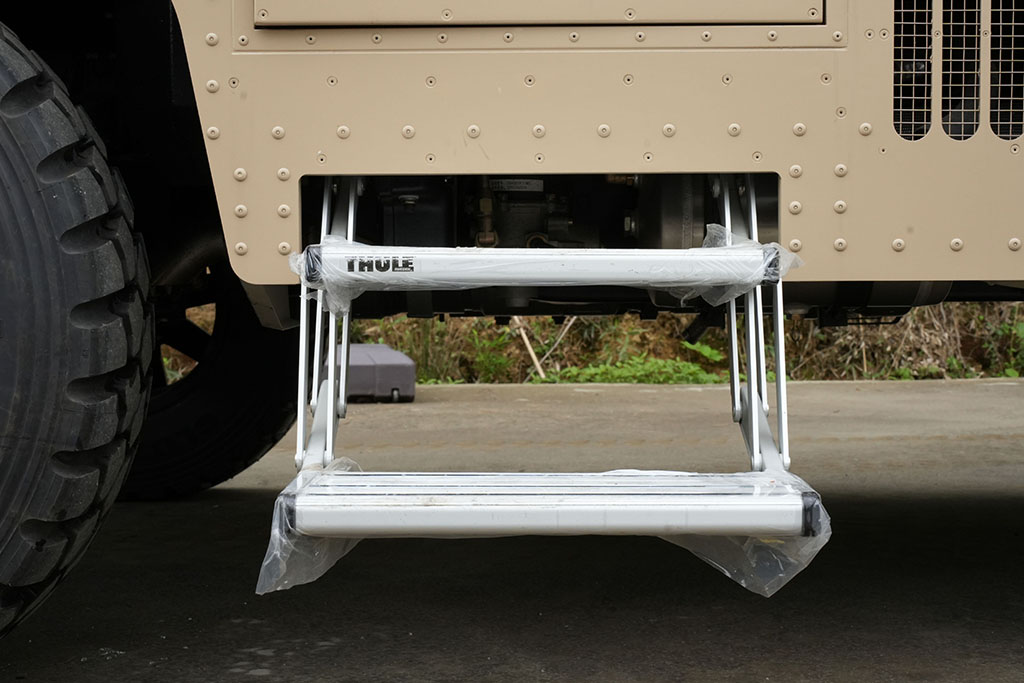

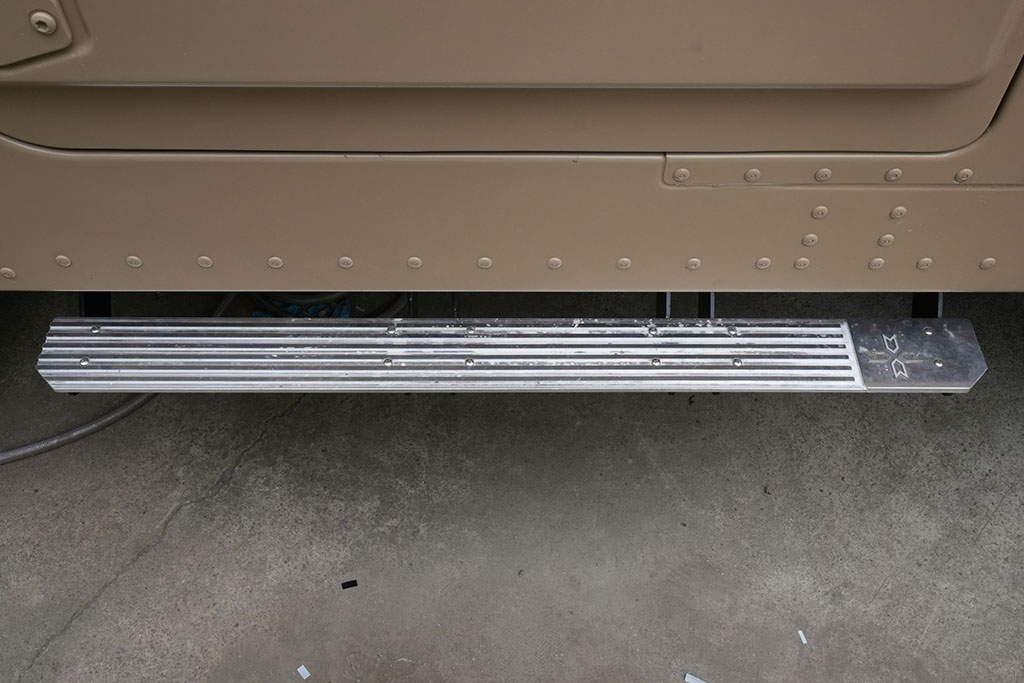

Stairs: Electric two-stage stairs

Floor: Marine grade teak wood floor with rubber anti slip strips

Power system:

Amordio fully automatic high-power hybrid power supply system

300 ampere hour dual DC generator (maximum 8.4 kW)

Imported brand 5kVA inverter charging all-in-one machine

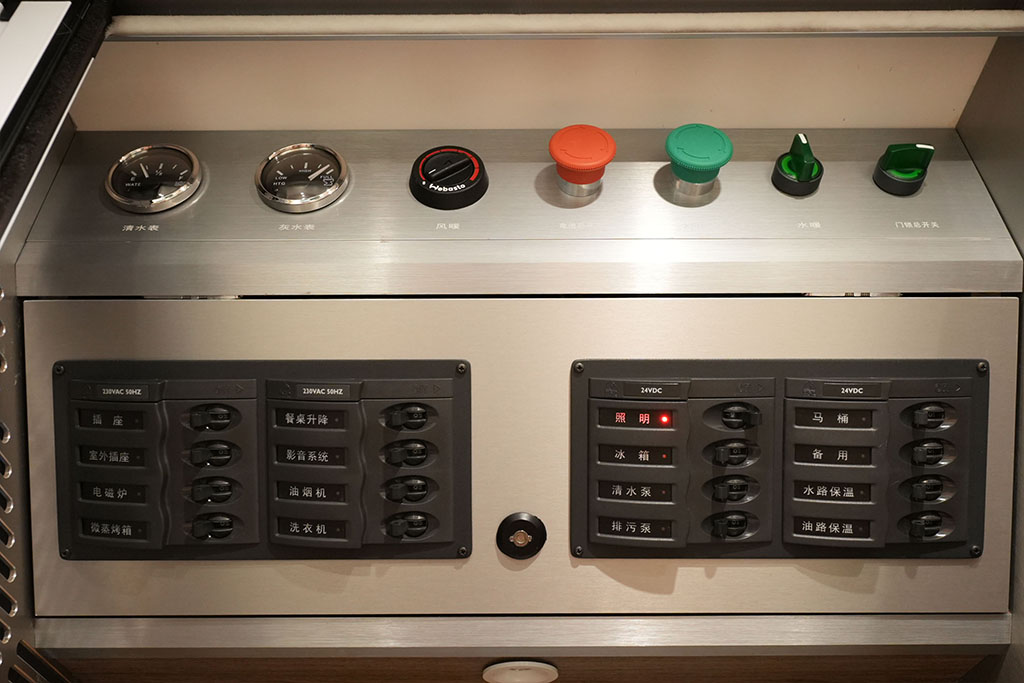

Imported brand fully automatic intelligent power management system

Imported brand distribution panel

Imported brand battery isolator

600 ampere hours, 24 volts, lithium iron phosphate battery pack (14.4 kW)

6 solar panels 660 watts

Imported brand solar charger

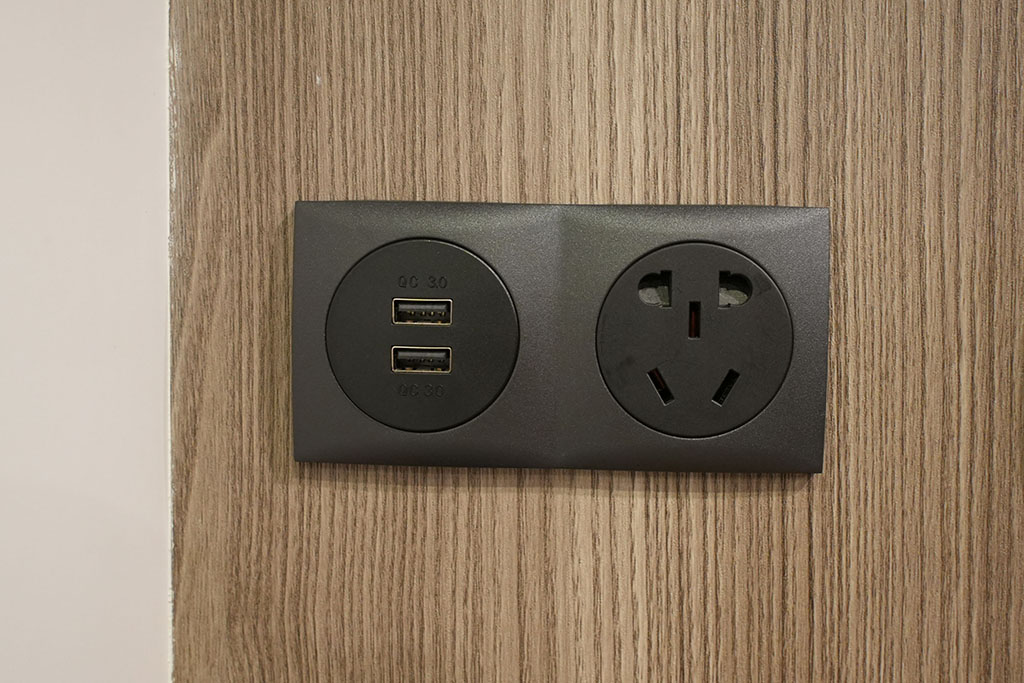

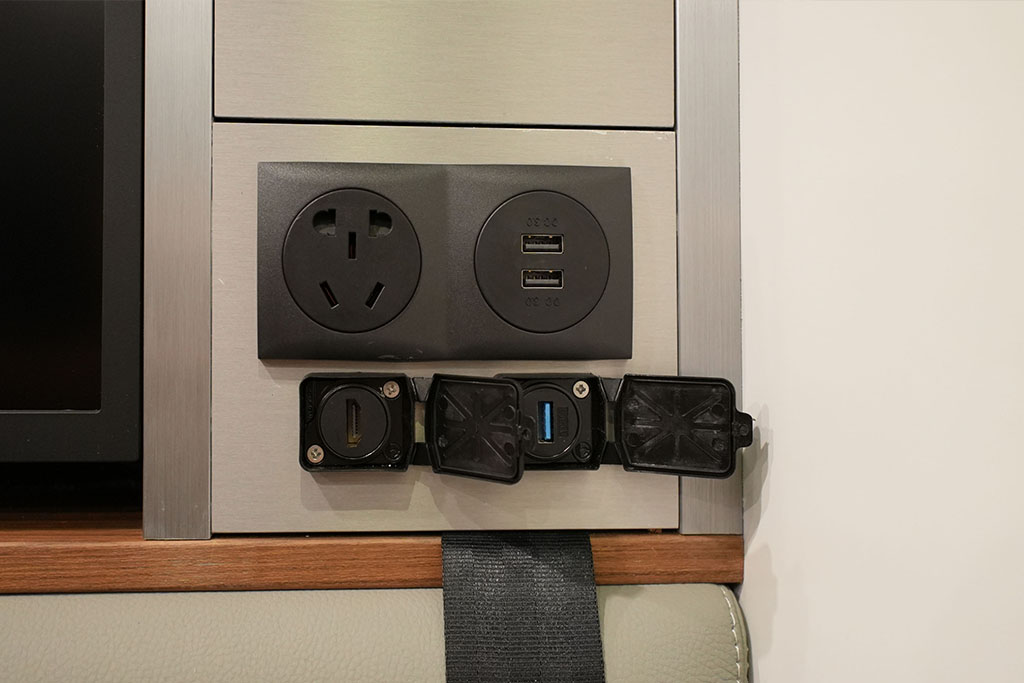

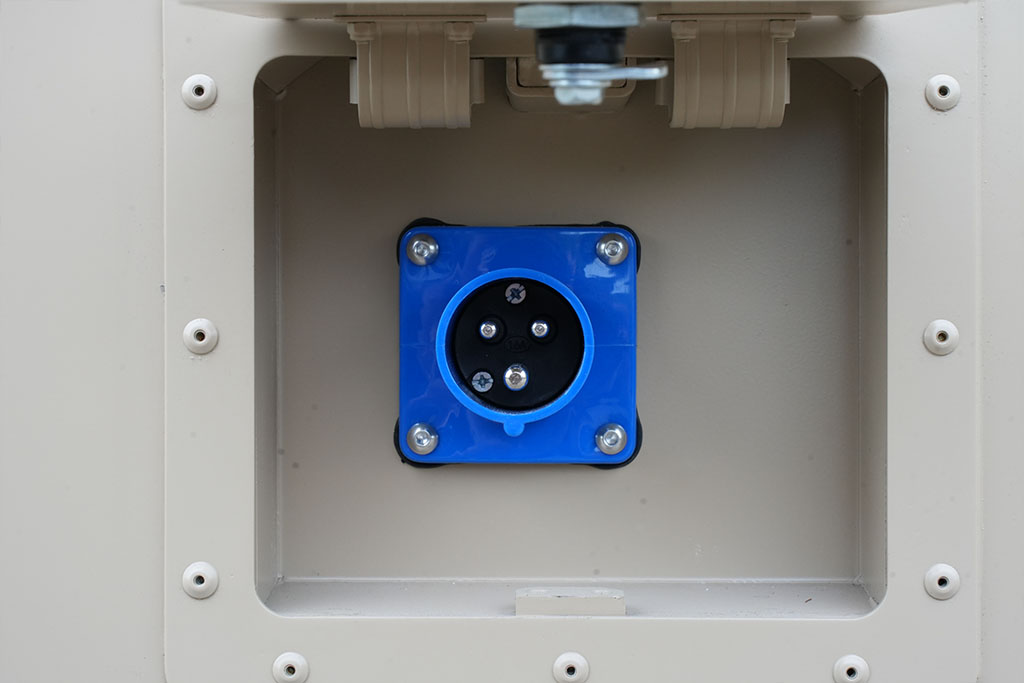

Municipal power connection entrance, outdoor power interface

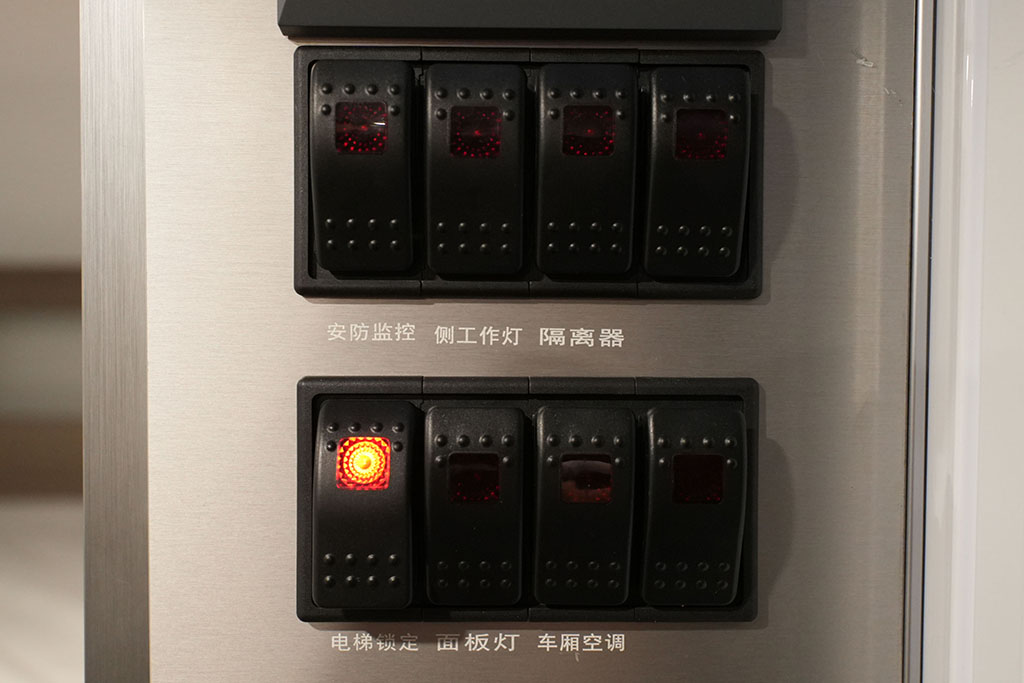

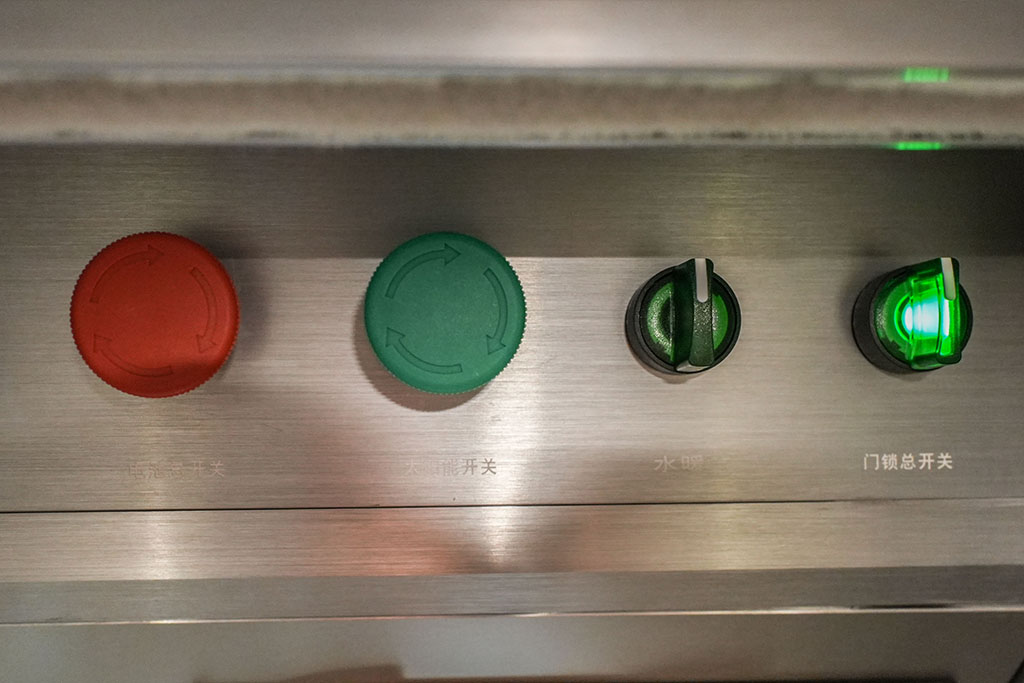

Switch, power supply system emergency switch

Current monitor

LED indoor lights

Air conditioning and heating systems:

1 split type DC variable frequency air conditioner with a cooling capacity of 2.6 kW

Exhaust system

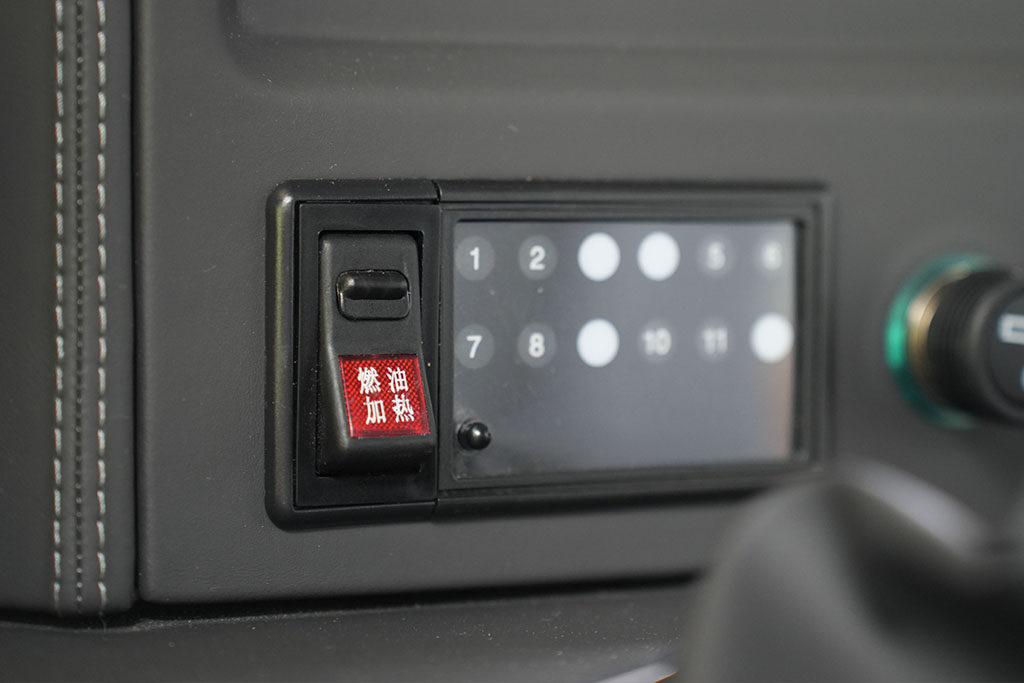

Imported brand 4 kW fuel air heater system, plateau version

Water supply system:

200 liter stainless steel clear water tank

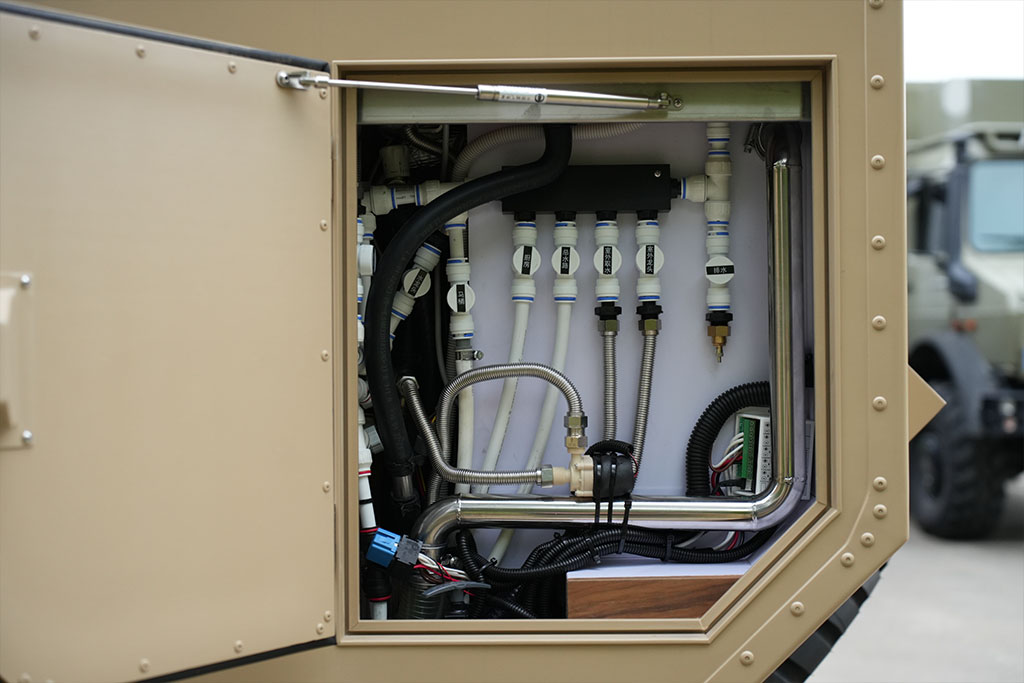

Imported fully automatic water pump and waterway system

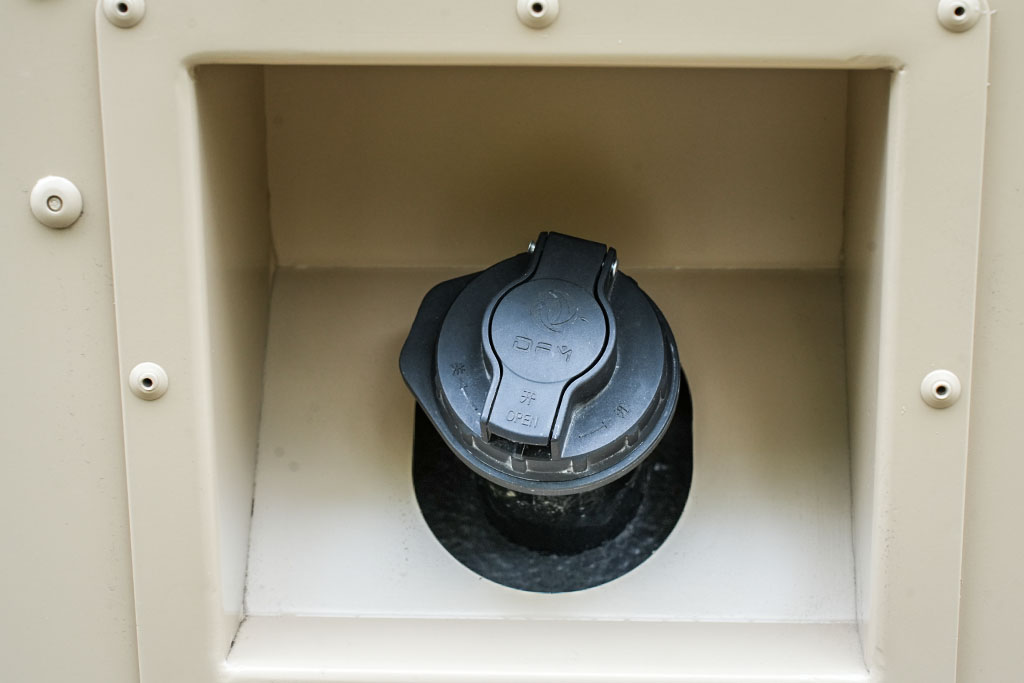

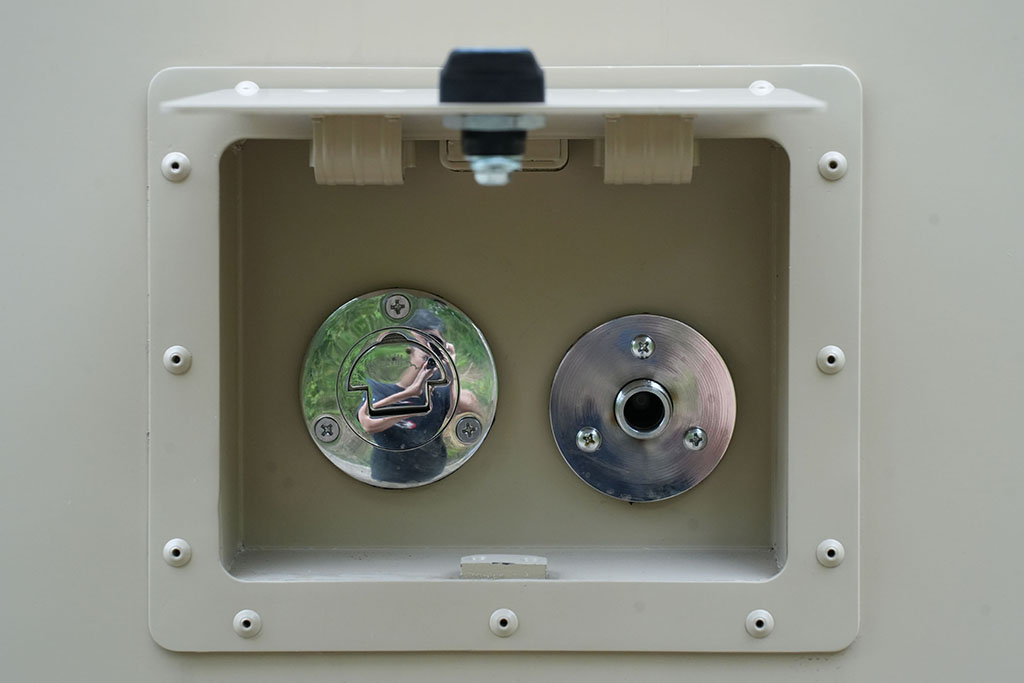

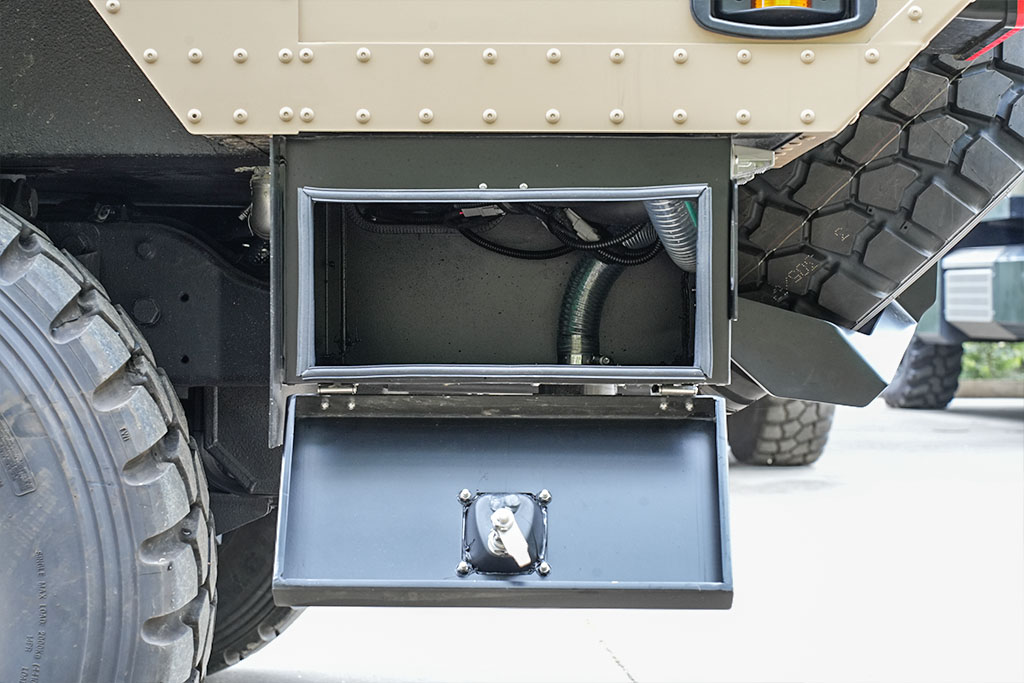

Water inlet, campsite water interface

Imported brand 9 kW fully automatic fuel water heater

Imported 23 liter heat exchanger

Waterway and water tank insulation system

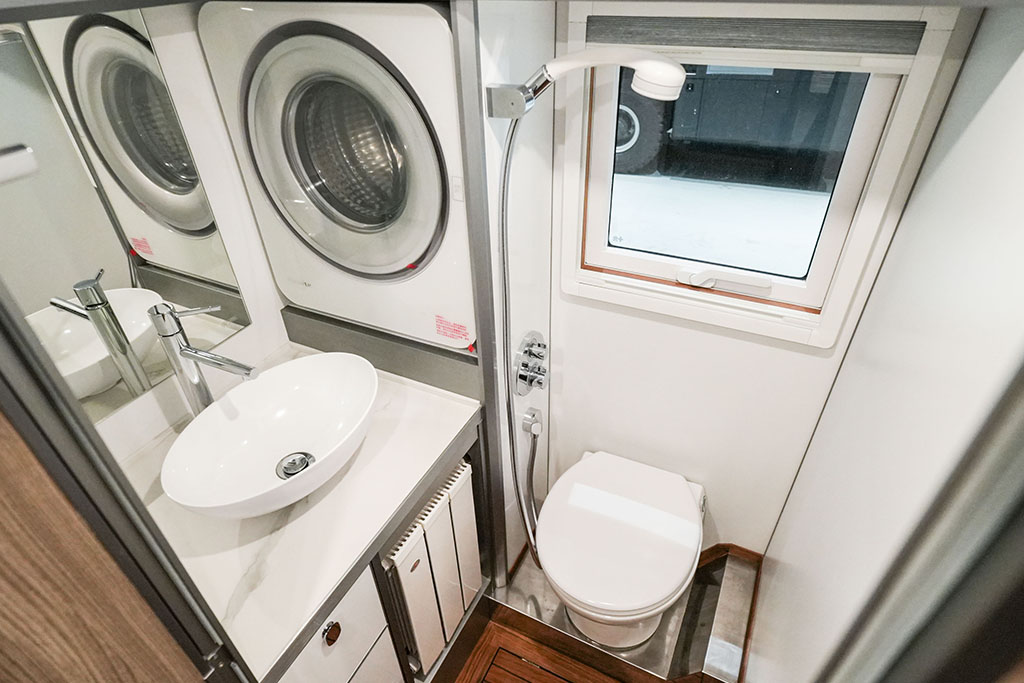

Toilet equipment:

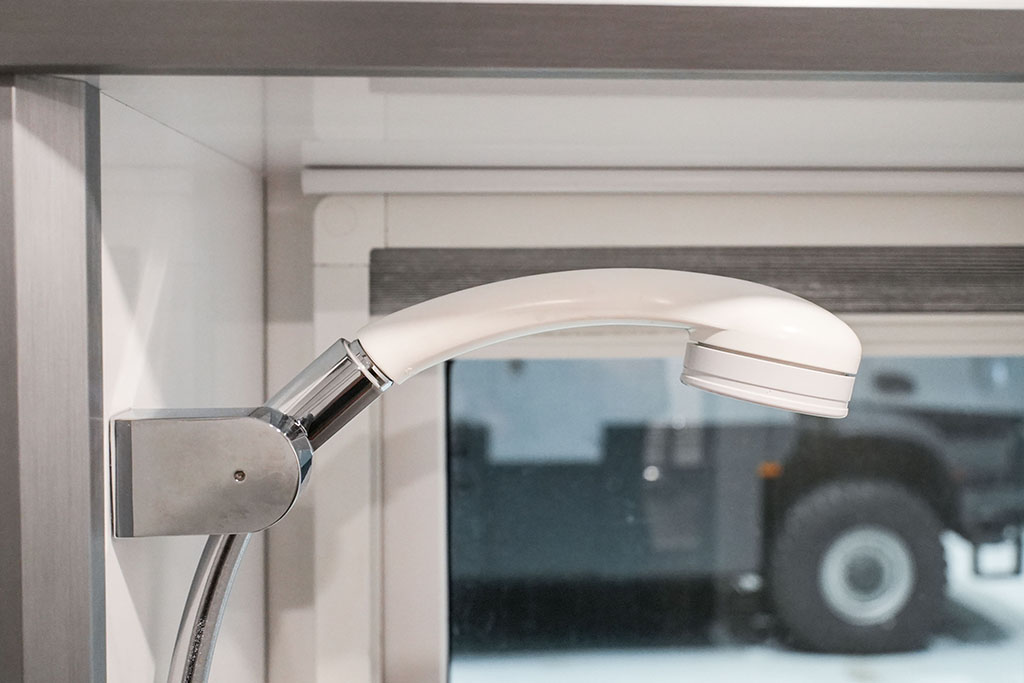

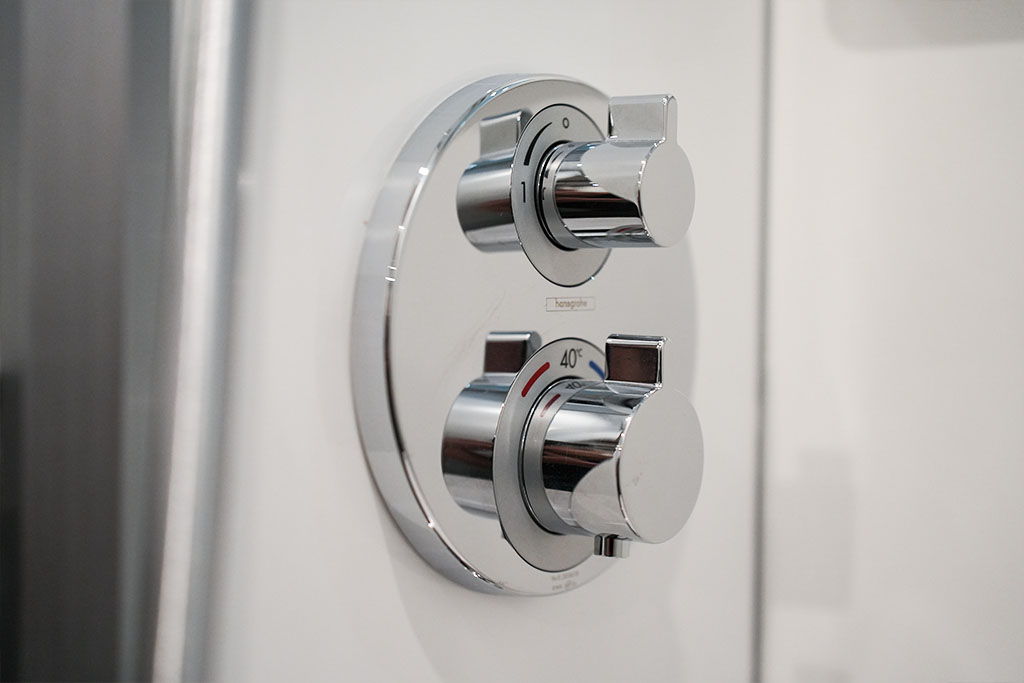

Imported brand automatic constant temperature water mixer and showerhead

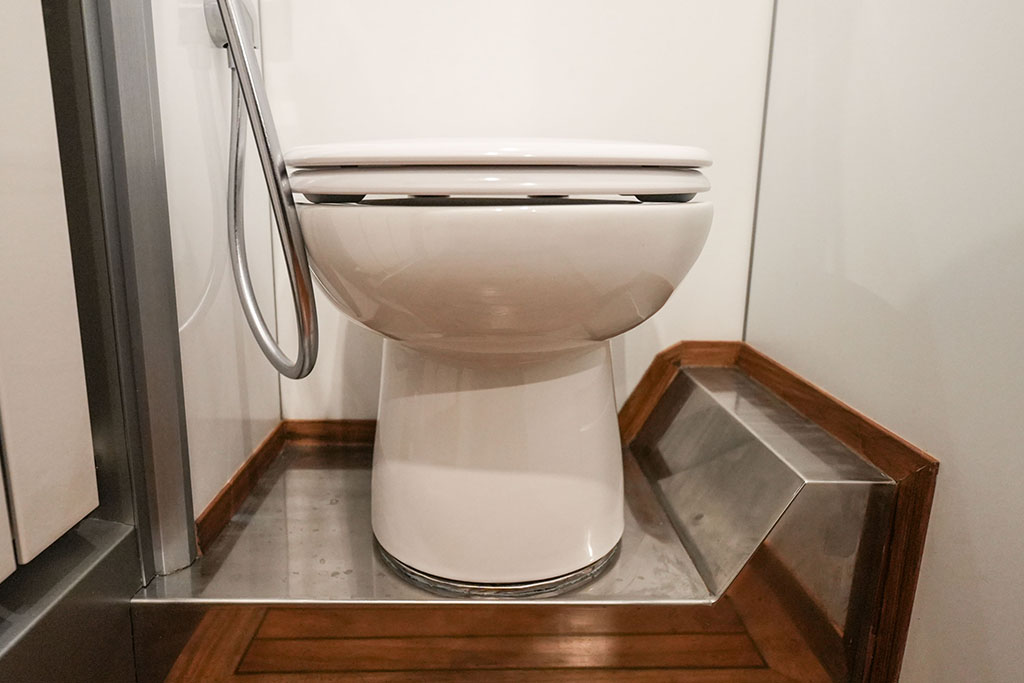

Imported brand all ceramic electric suction toilet

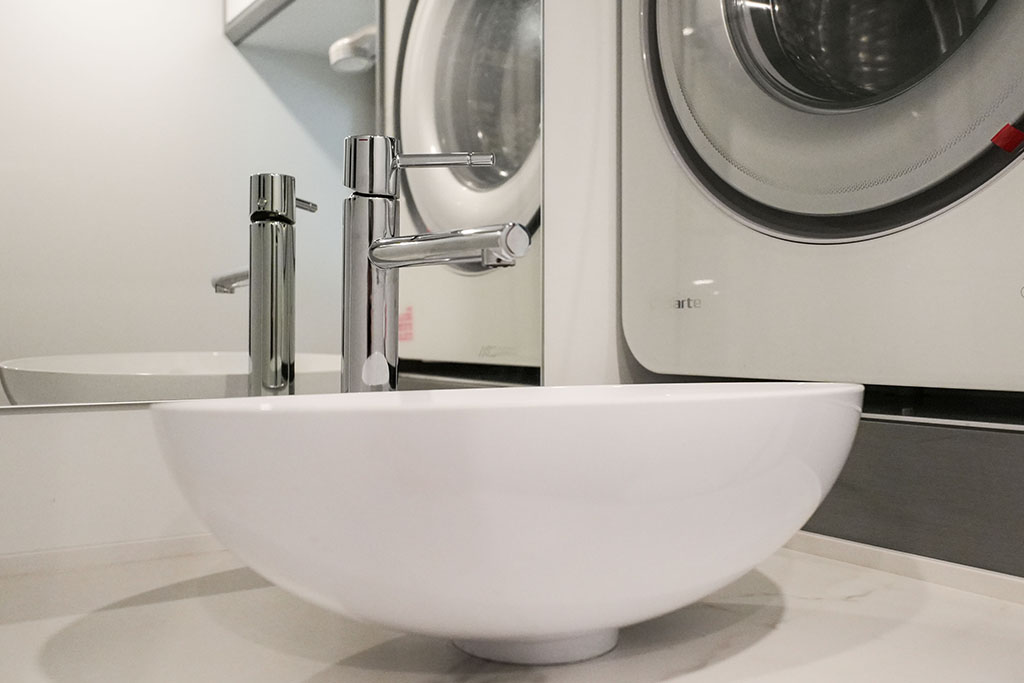

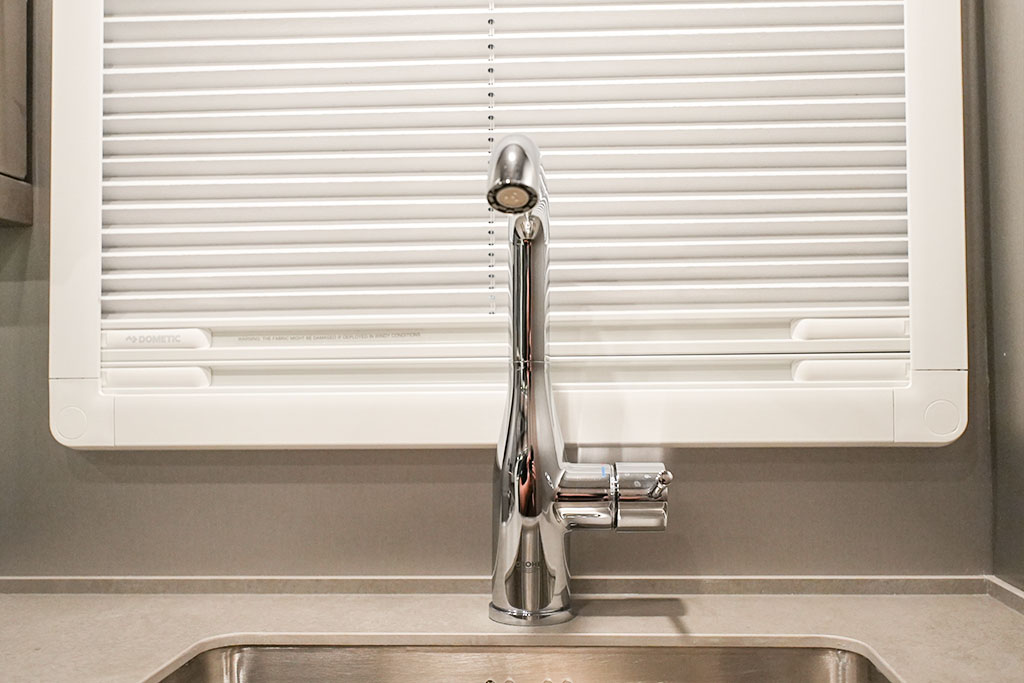

Wash basin with imported hot and cold water faucets

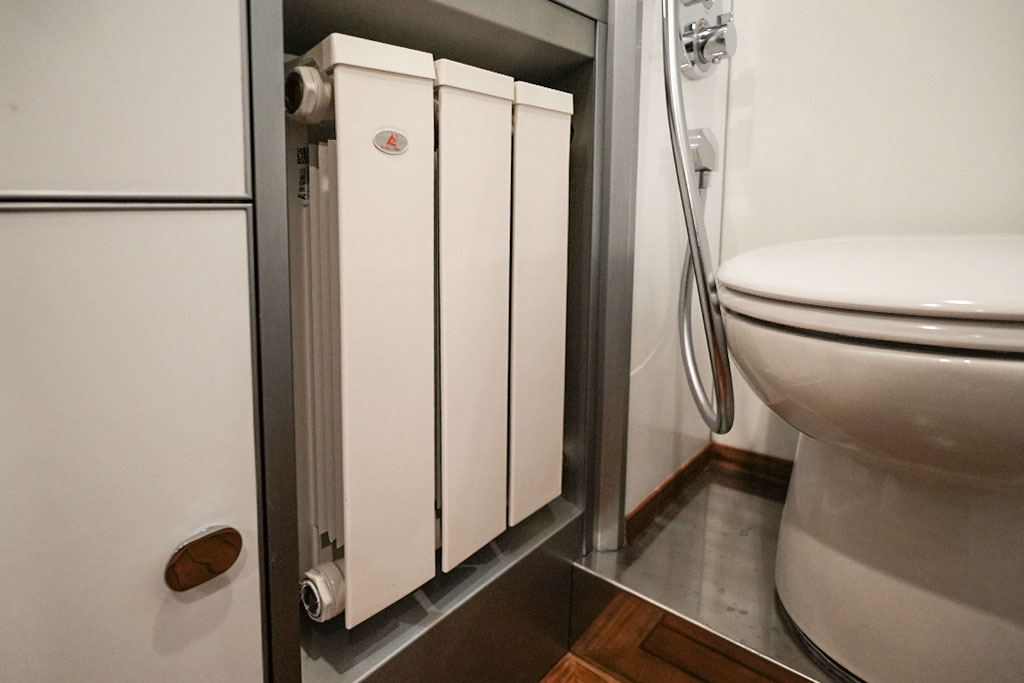

Bathroom plumbing and heating

Exhaust system

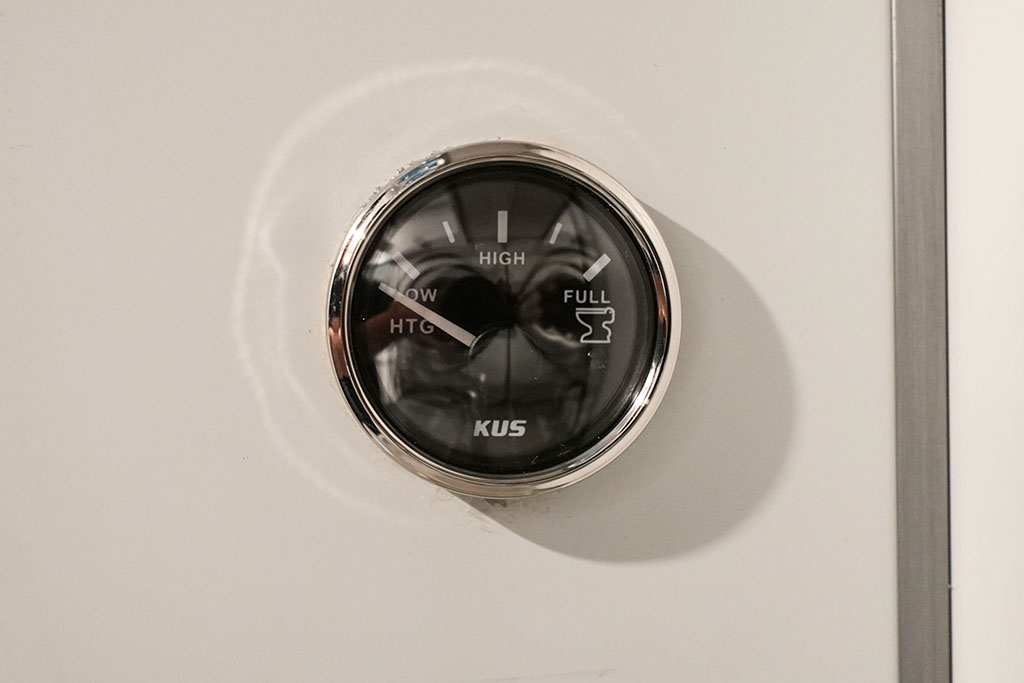

Sewage: 70 liter stainless steel gray water tank with liquid level sensor;

80 liter stainless steel black water tank with liquid level sensor and manual drain valve

Entertainment system:

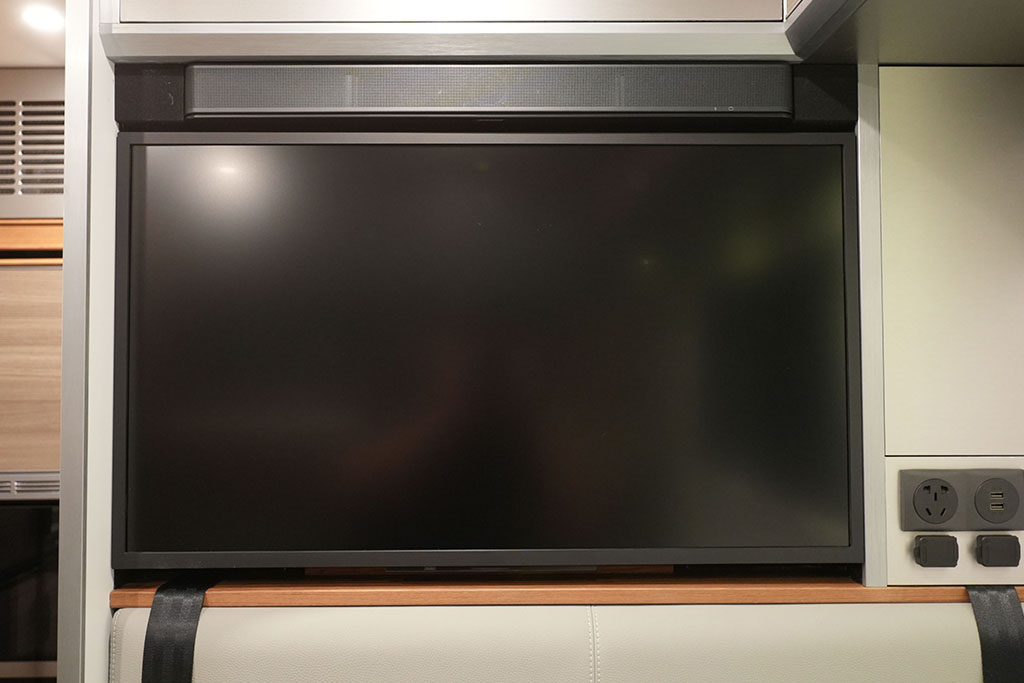

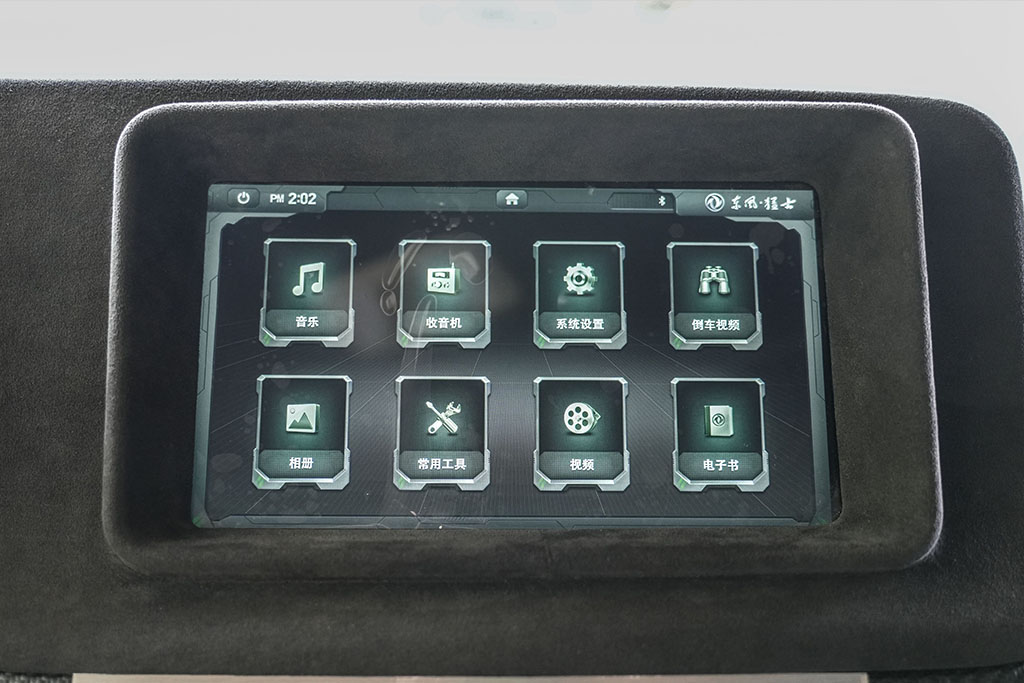

1 LCD TV with 5G router

Bluetooth sound

Other configurations:

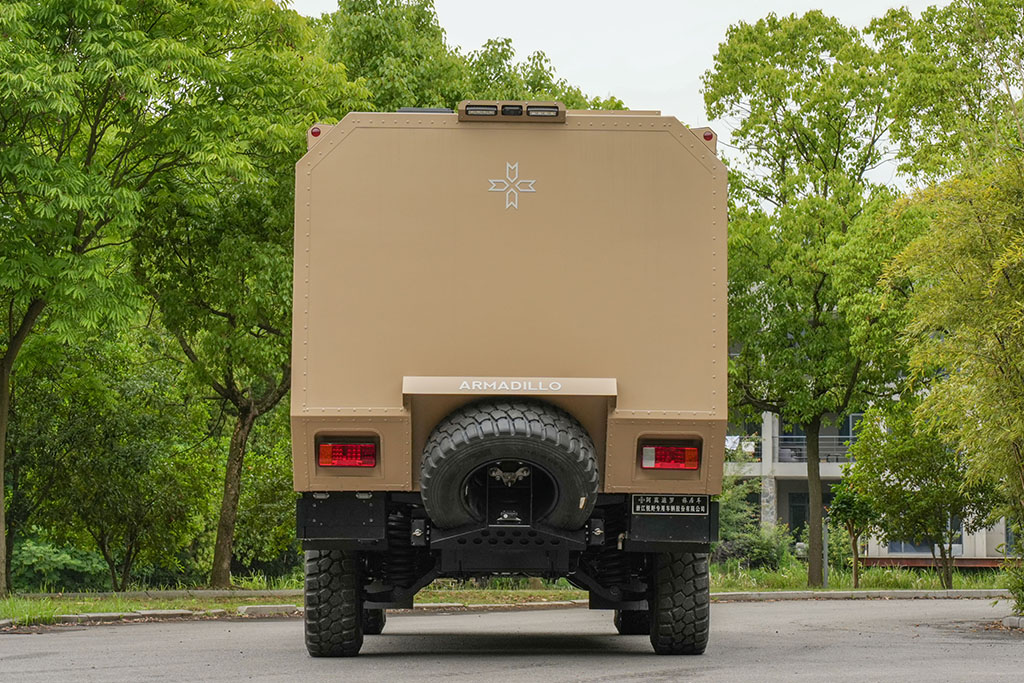

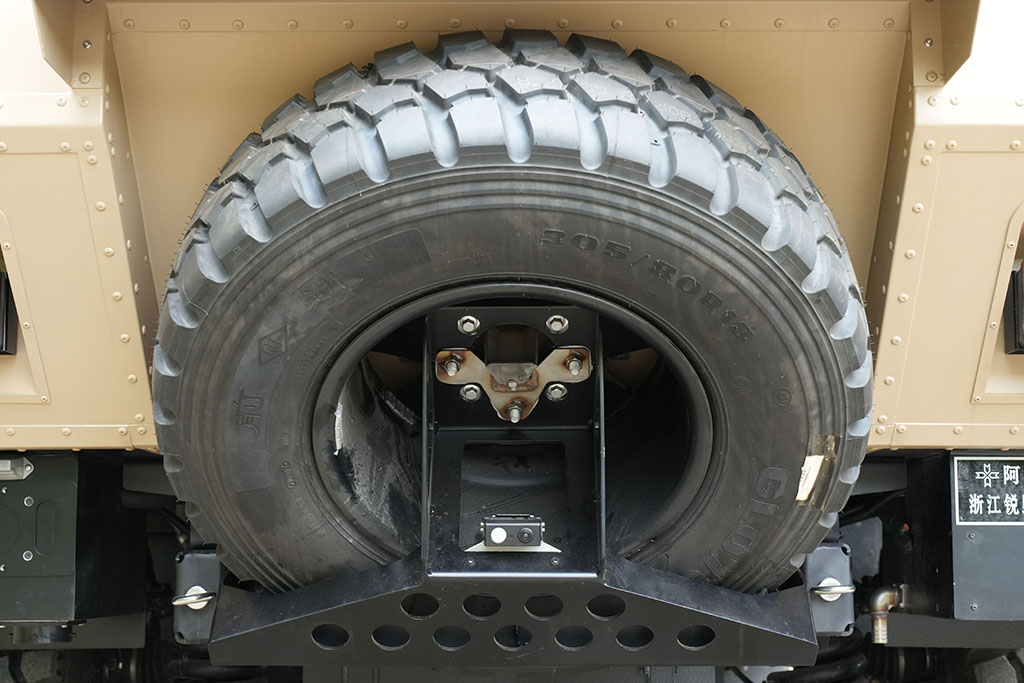

Rear mounted spare tire

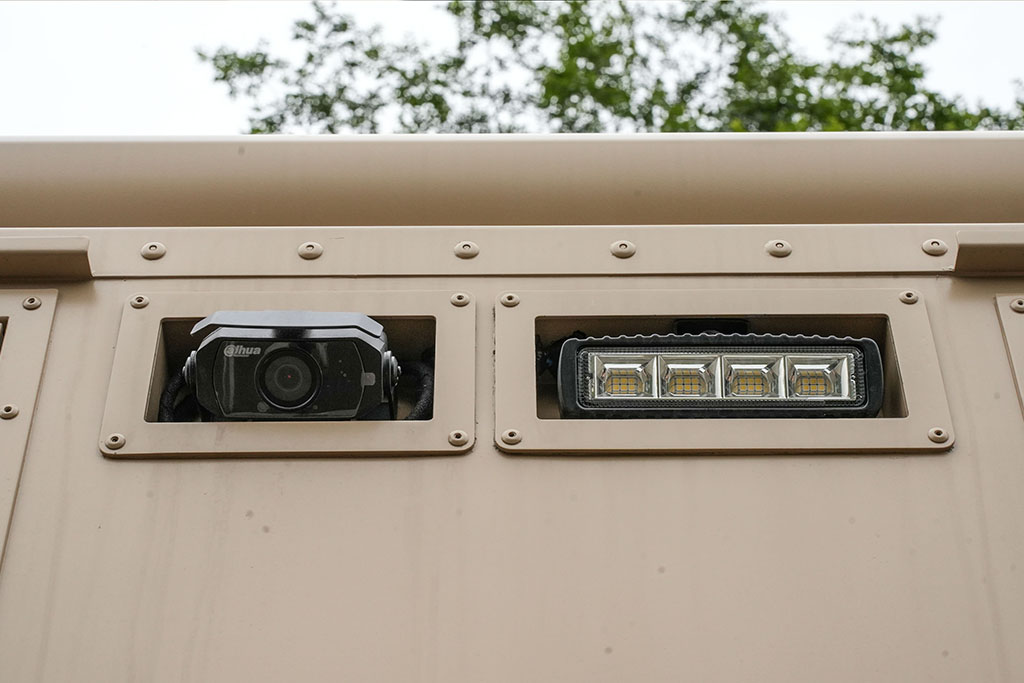

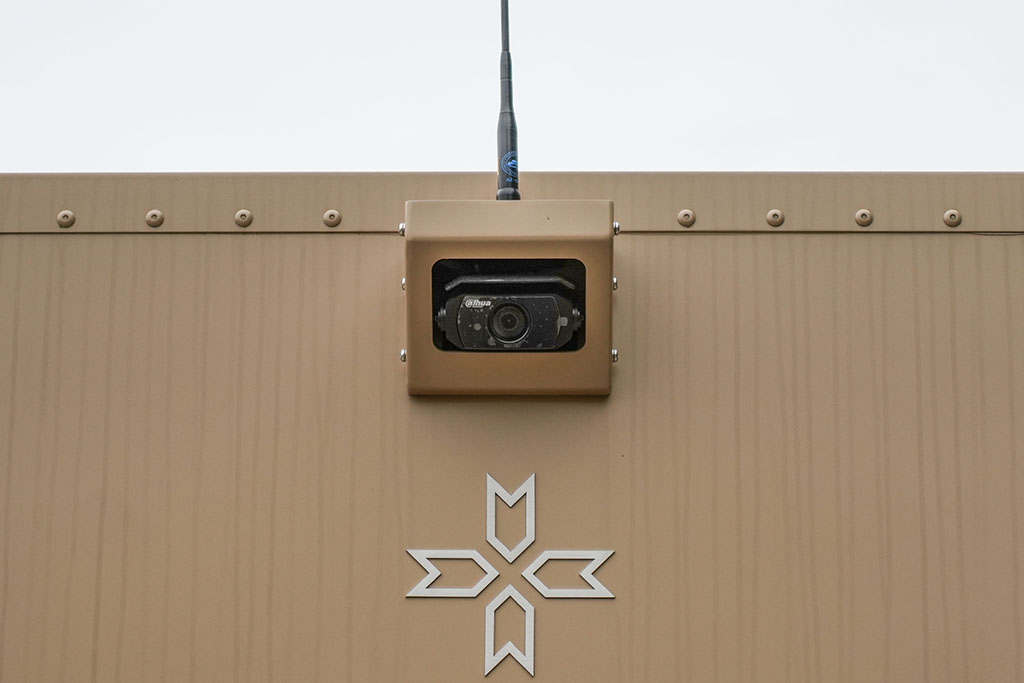

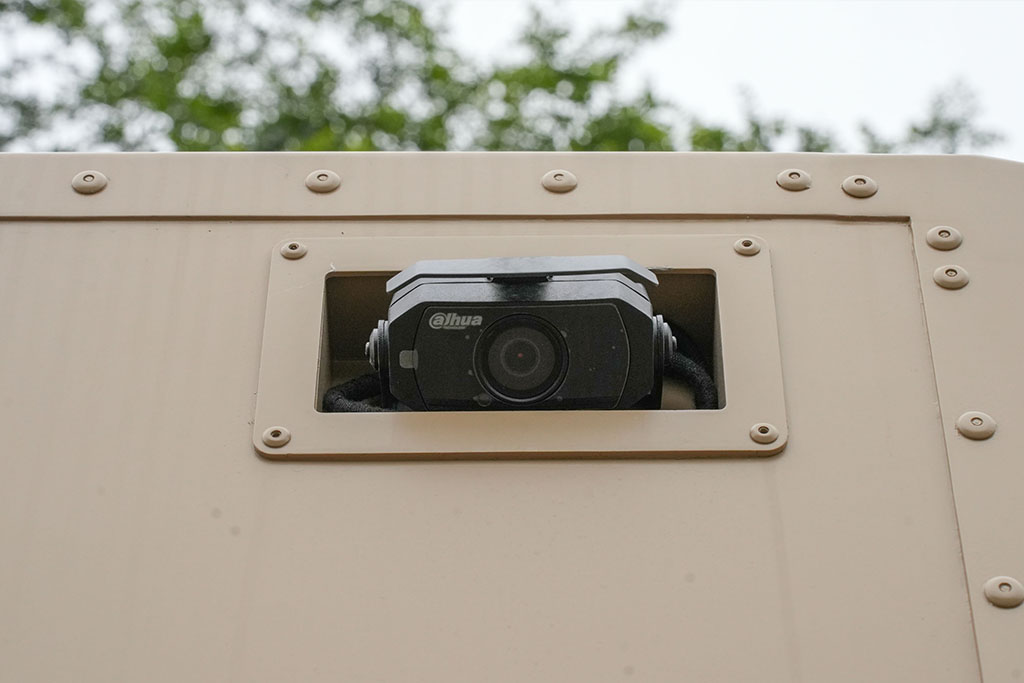

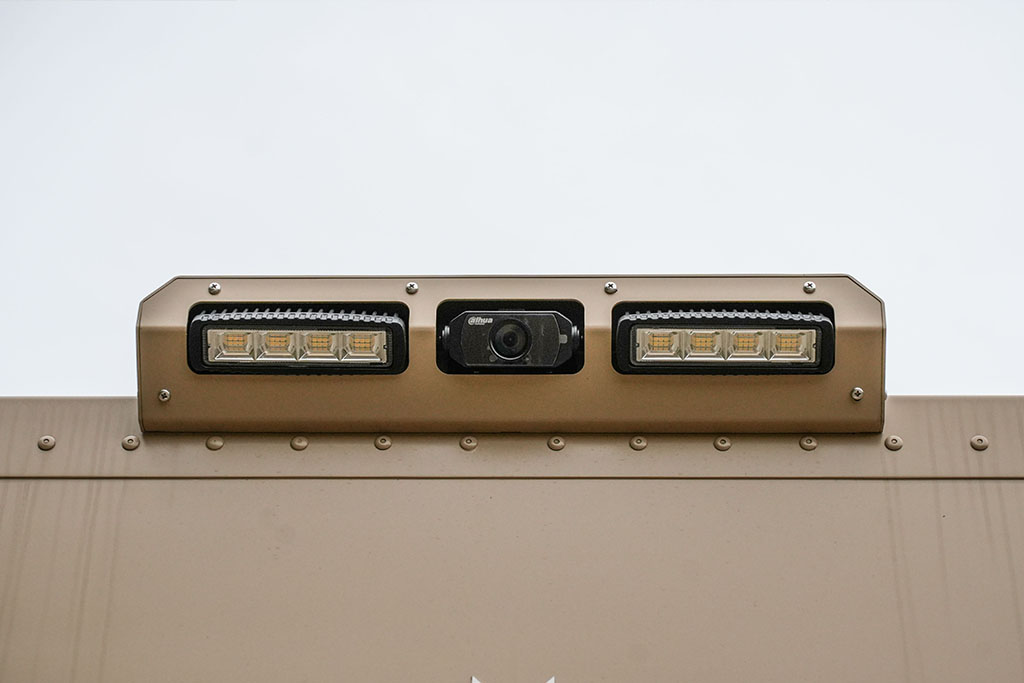

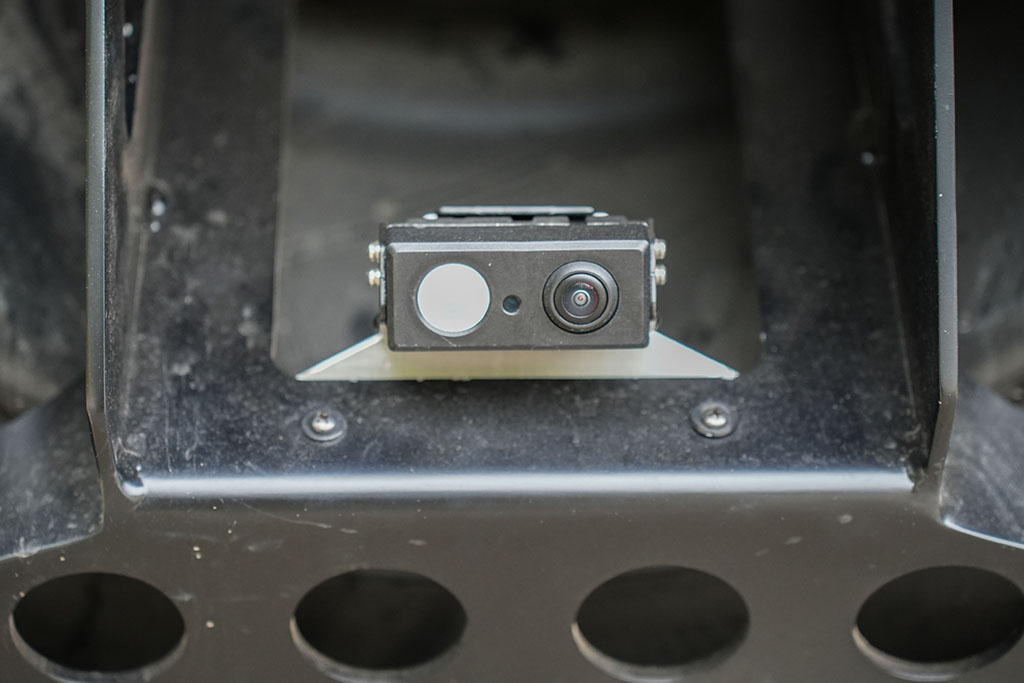

Reverse image

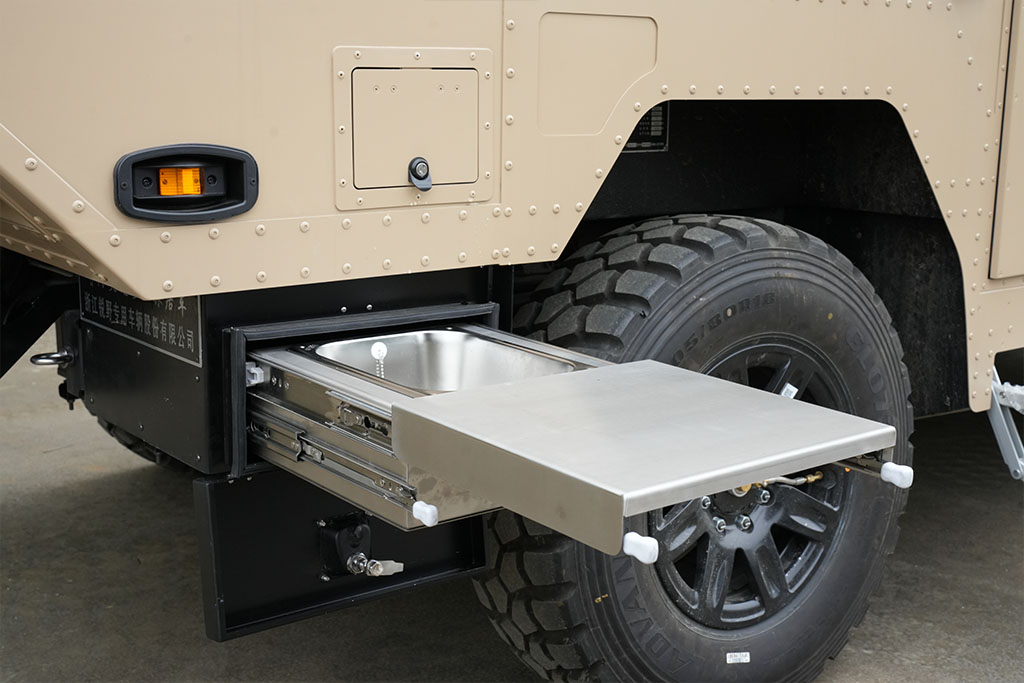

Outdoor pull-out simple kitchen

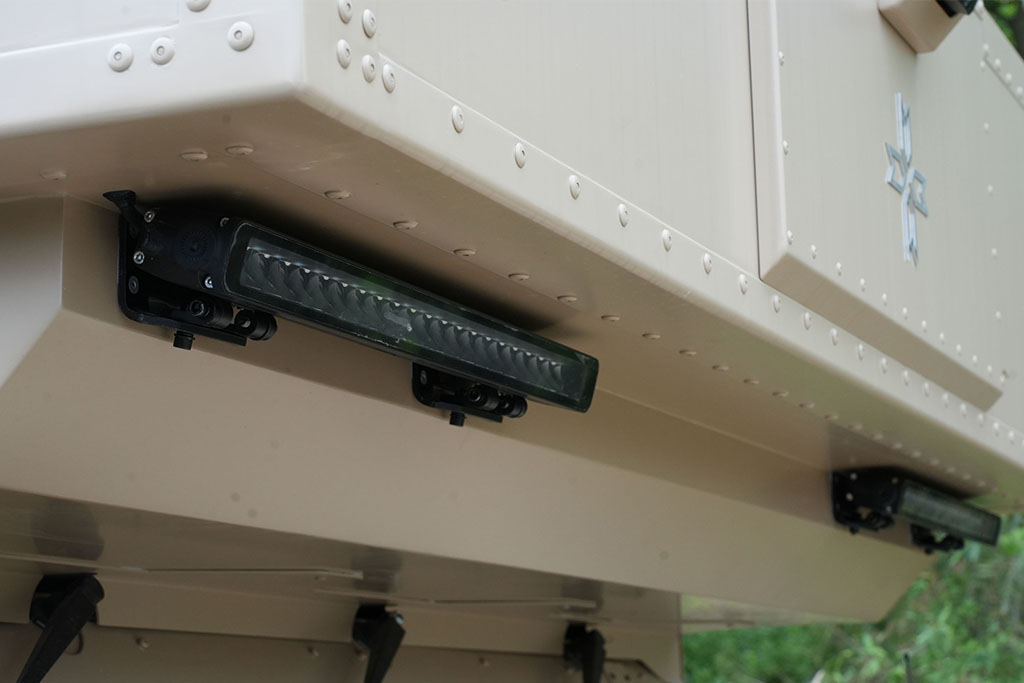

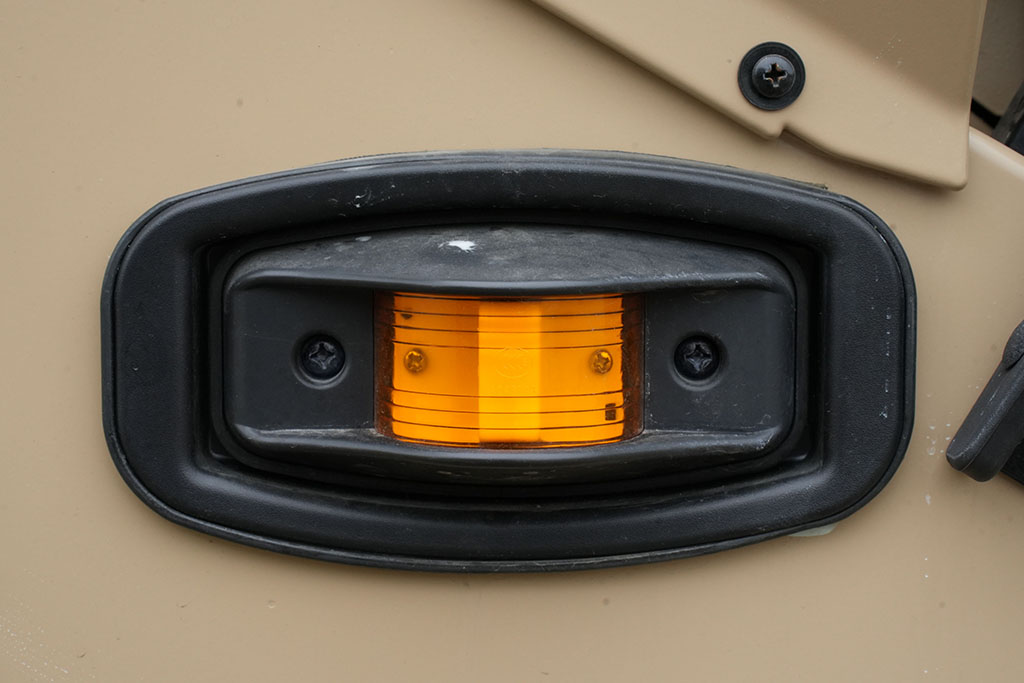

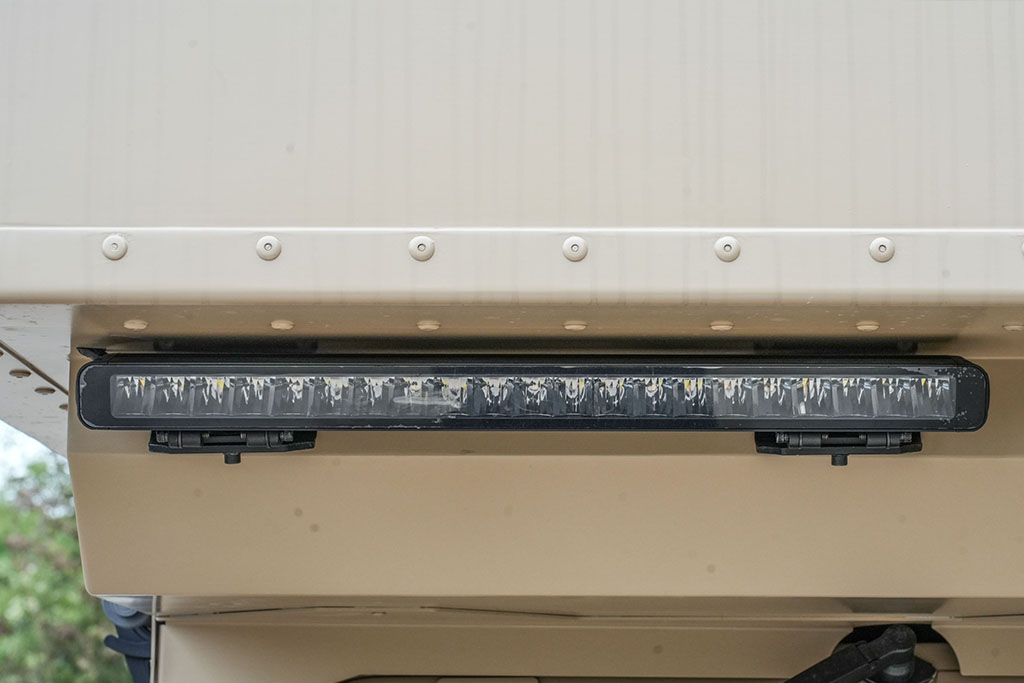

LED side lighting

Side sunshade

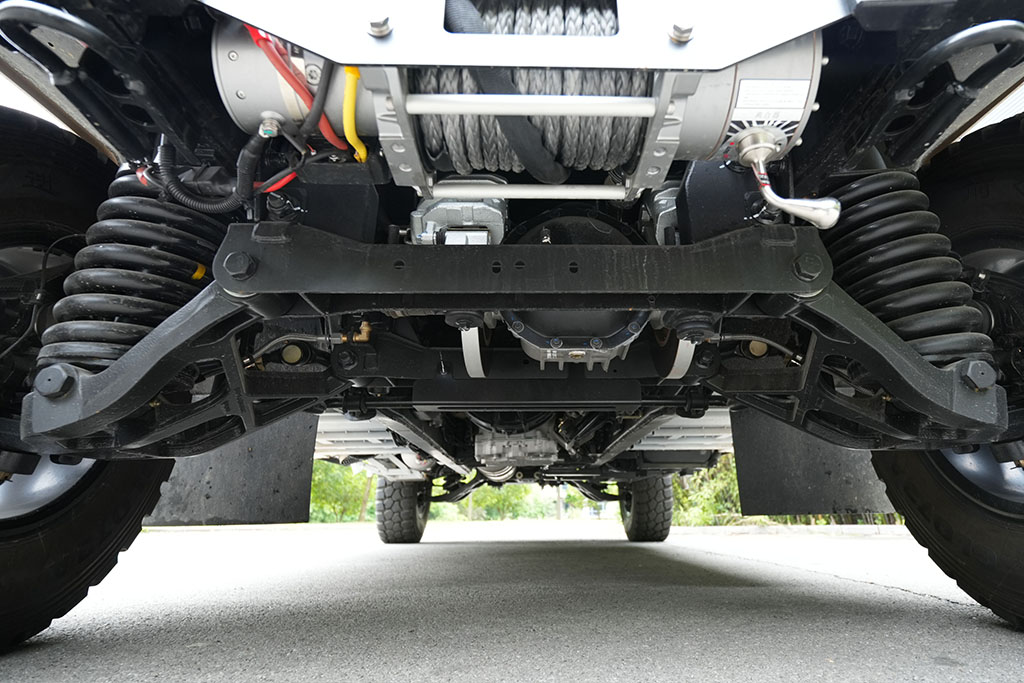

Front mounted winch T-MAX 12500 pounds

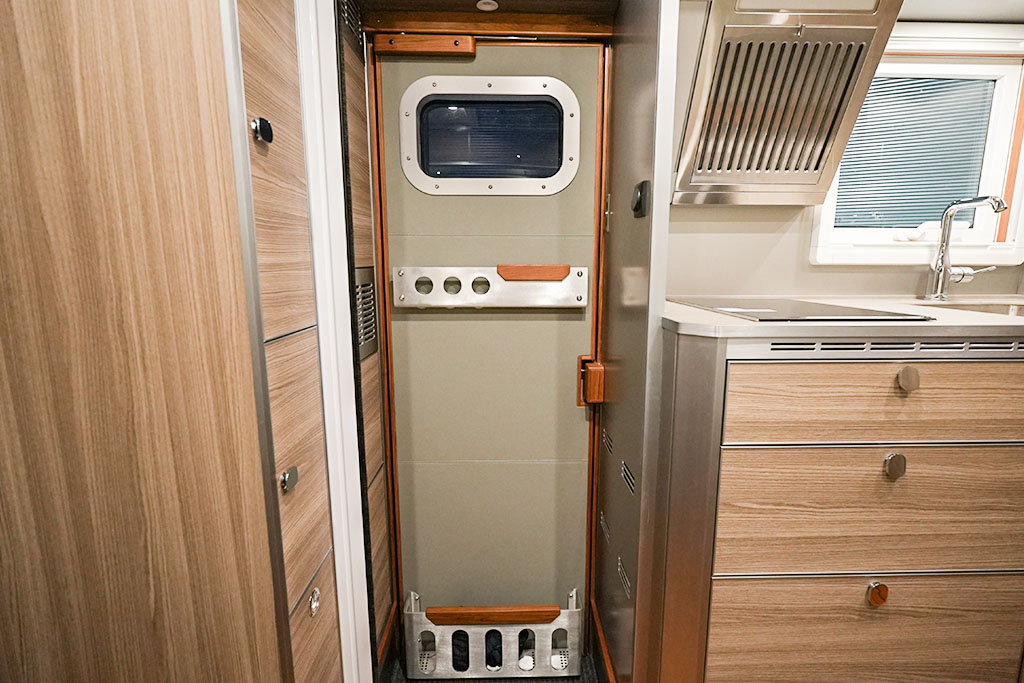

The cockpit and living quarters are connected to the hatch with a door

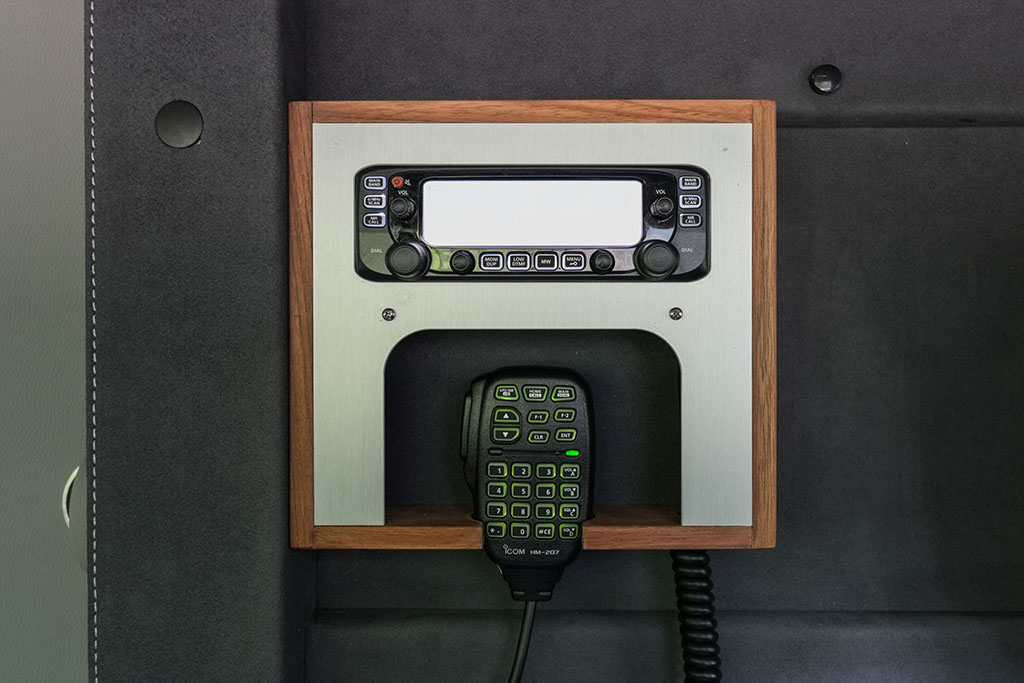

Wireless radio station

Optional configuration:

External hanging points at the tail end

Off road escape board

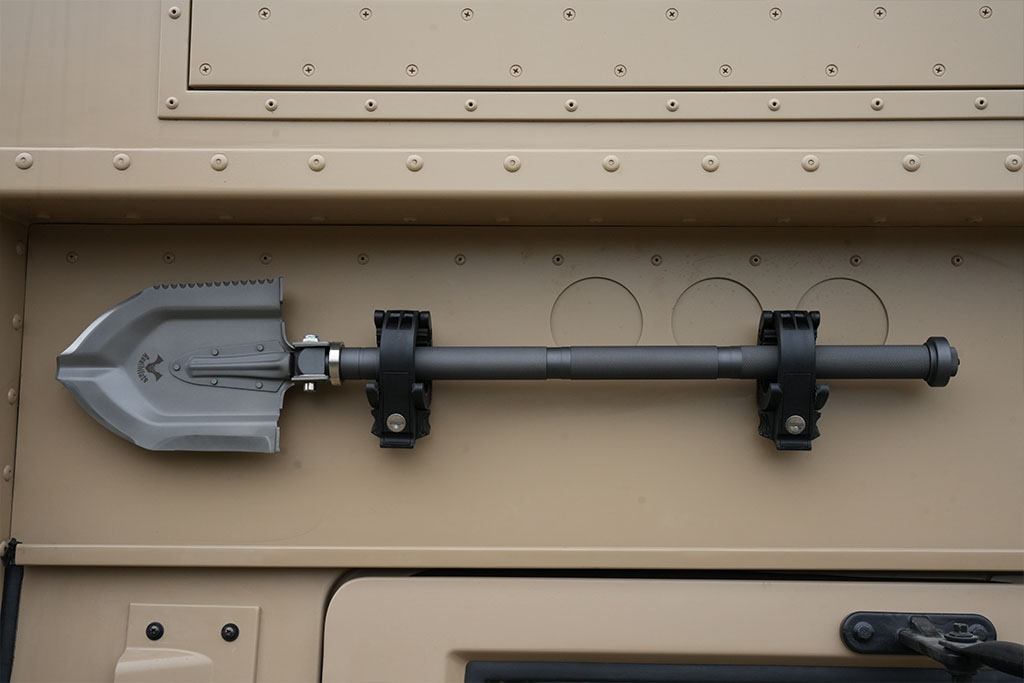

Off road engineering shovel

Four way monitoring

Driver's cab upgrade
