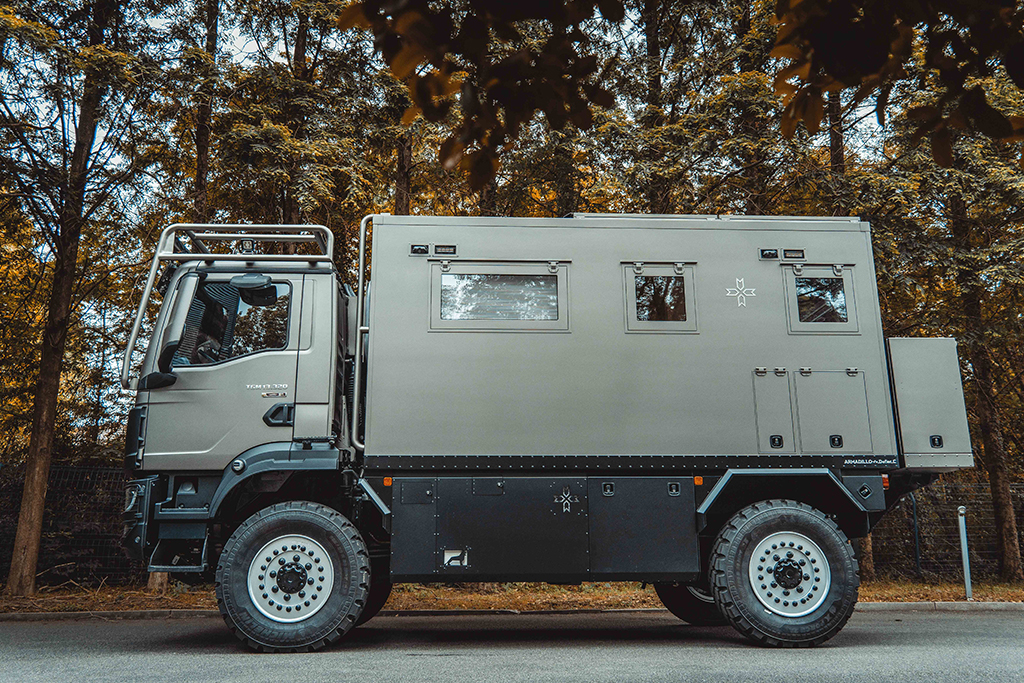

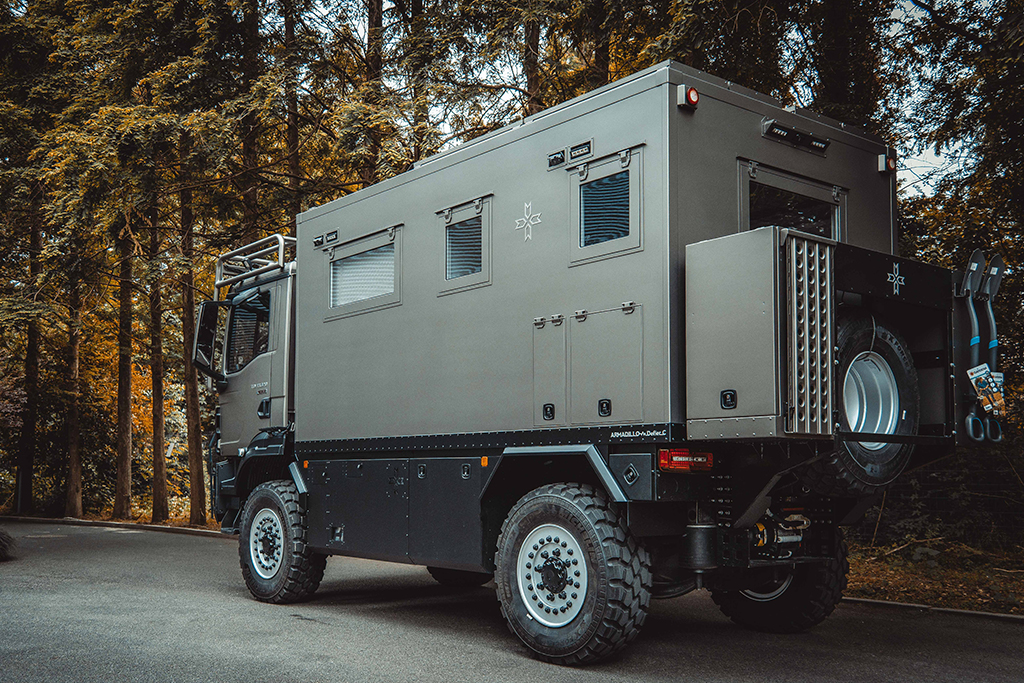

Complete Vehicle Information:

Overall Length: 5,995 mm (Excluding rear spare tire and external storage box)

6,500 mm (Including rear spare tire and external storage box)

Overall Width: 2,450 mm (Excluding awning)

             Box Width 2,340 mm

Overall Height: 3,380 mm

Curb Weight: 7,990 kg

(All data subject to official certification)

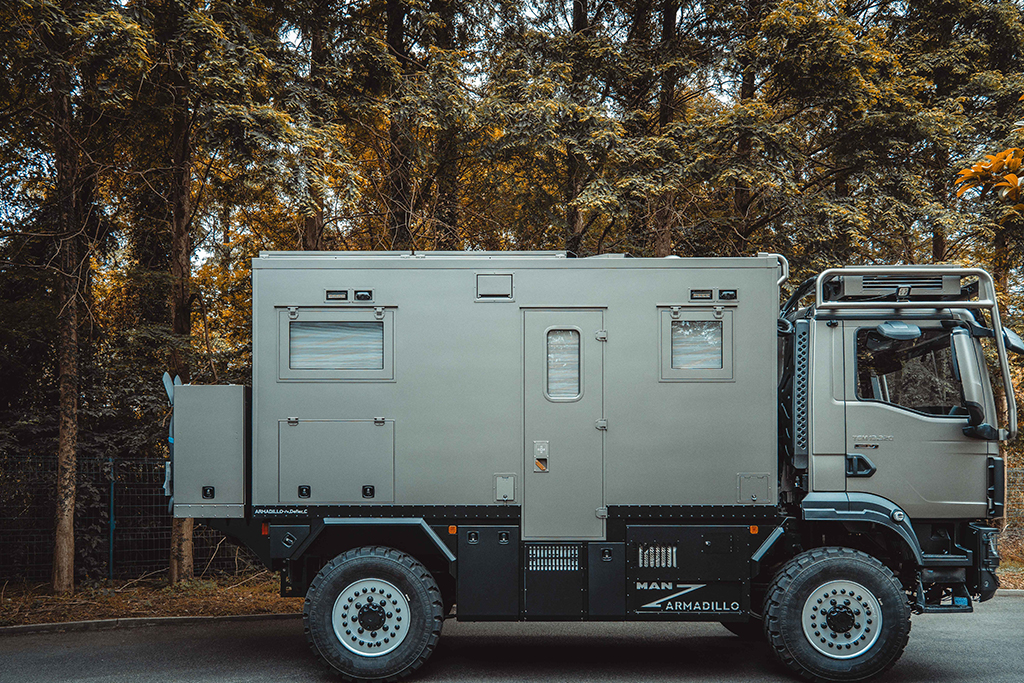

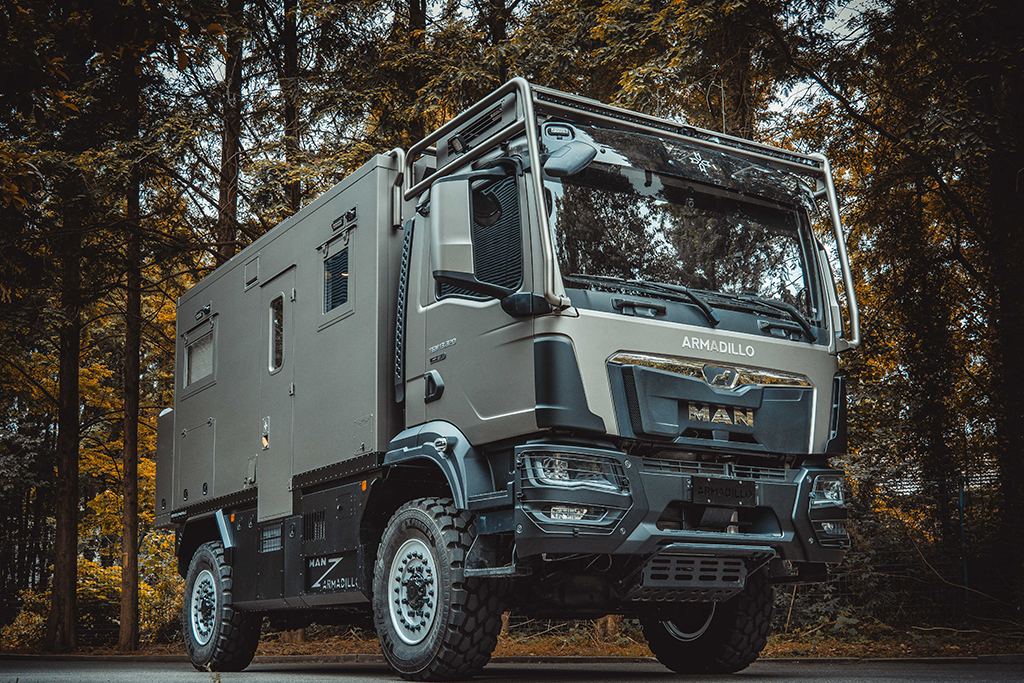

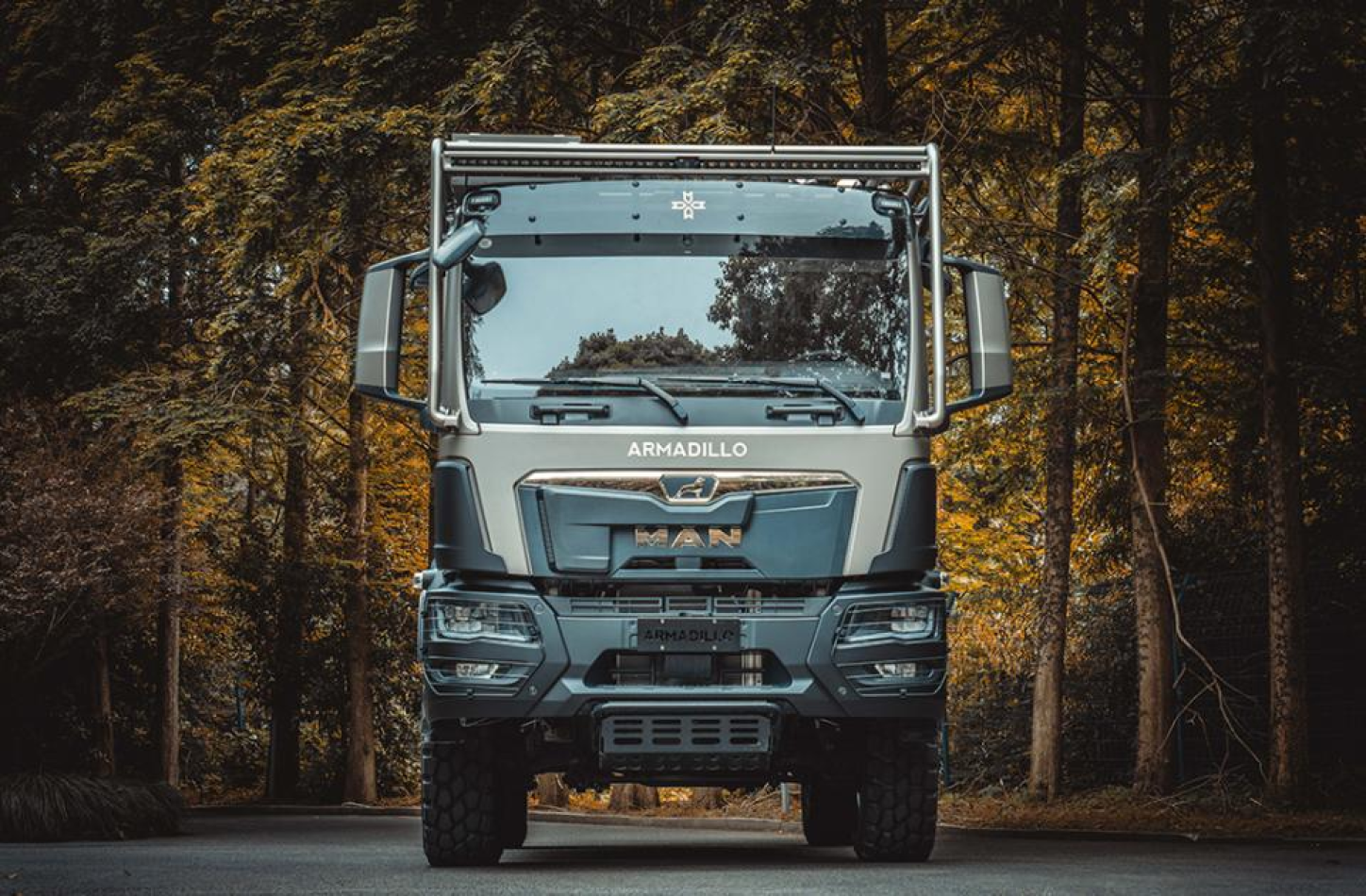

Chassis: MAN TGM 4X4 13.320

Engine: MAN 6.9L Inline 6-Cylinder High-Pressure Common Rail Diesel Engine

Fuel Tank: 300 Liters

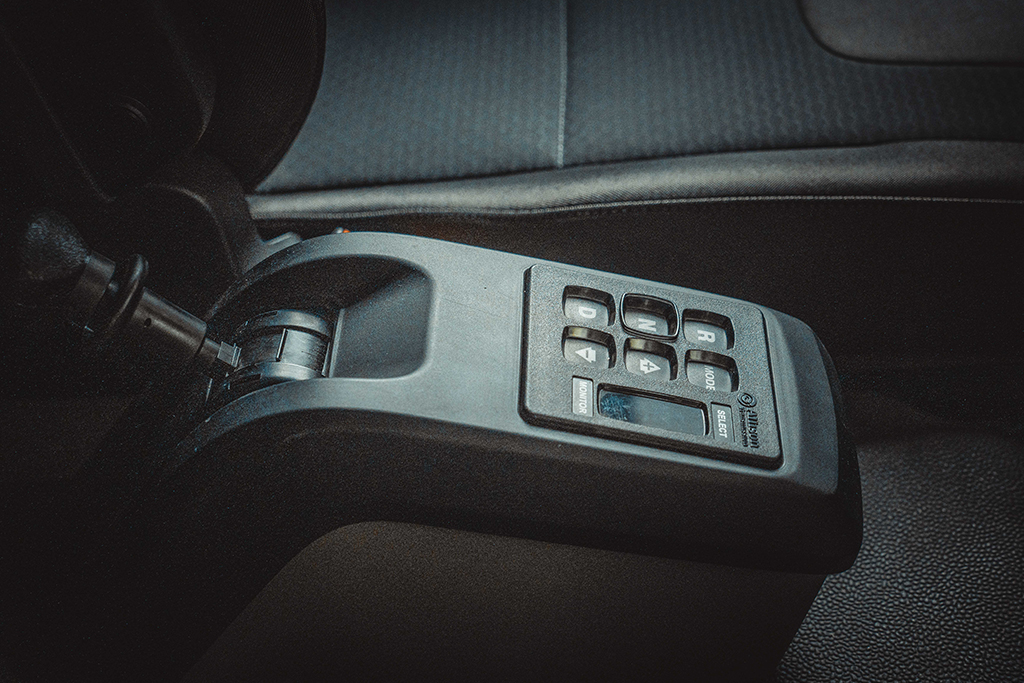

Transmission: Allison 6-Speed Automatic Transmission

Power: 320 HP

Torque: 1,250 Nm

Tires: Michelin 365/80R20 Off-road Tires

Drivetrain: Full-time 4WD, with 3 Differential Locks

Front Axle: Parabolic Leaf Springs; Rear Axle: Air Suspension

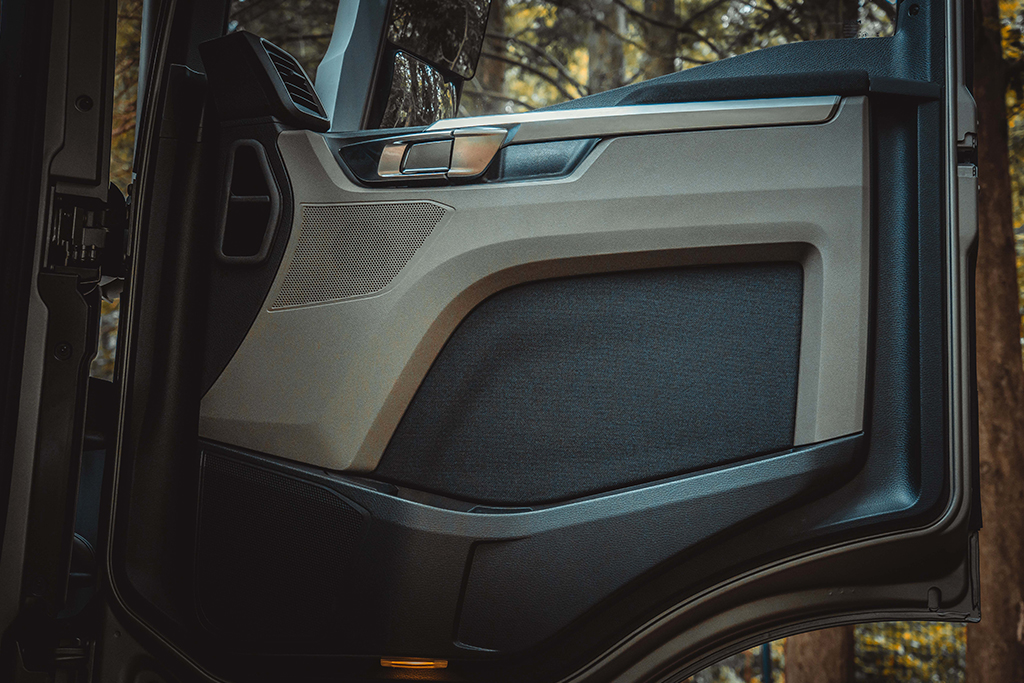

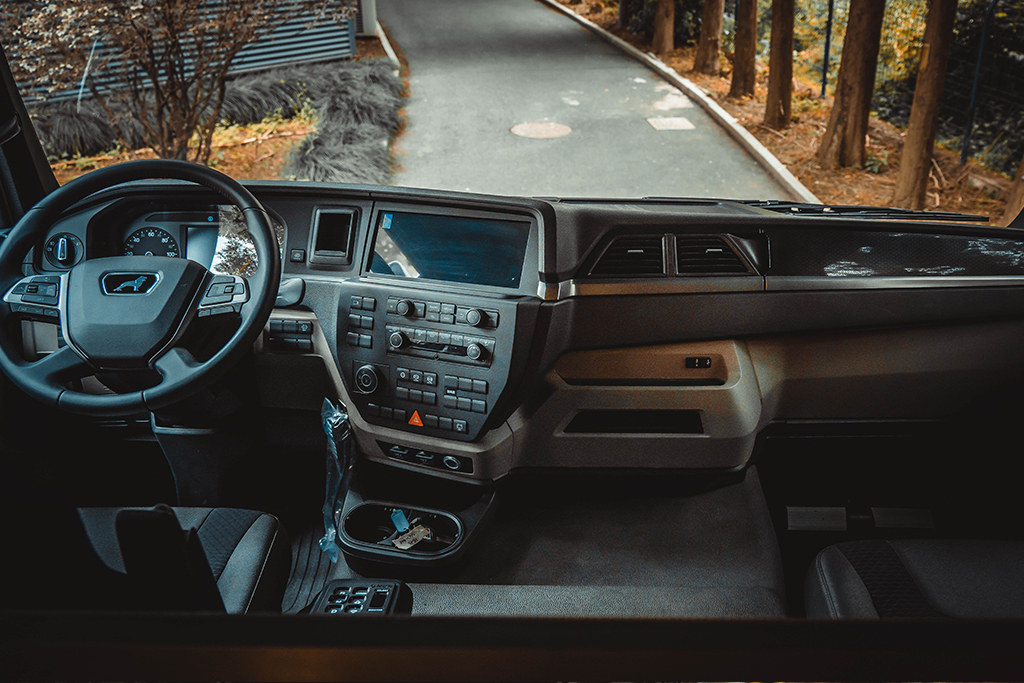

Cabin:     Type C, 2 Seats

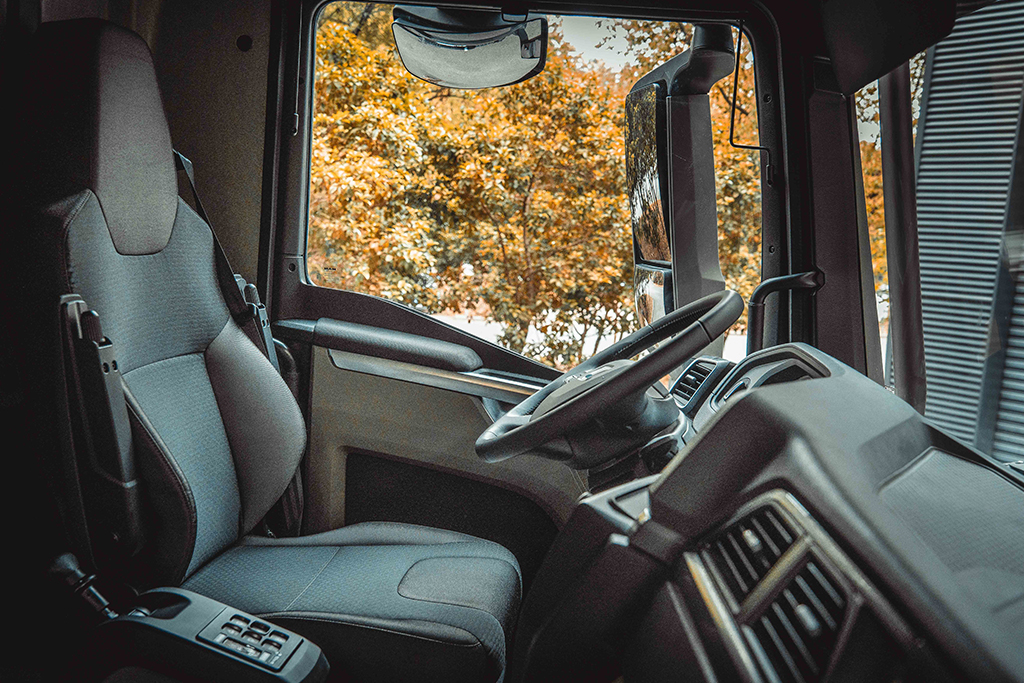

Driver's air suspension seat, with heating and ventilation

Structure & Configuration:

Seating Capacity: 6 persons

Sleeping Capacity: 4 persons

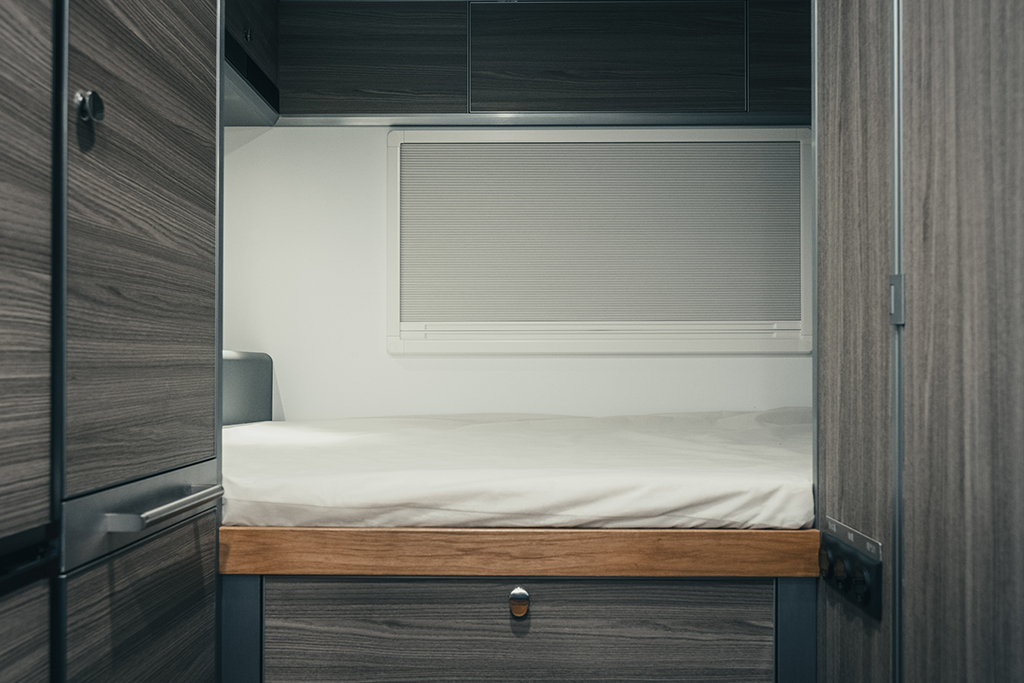

Rear Double Bed

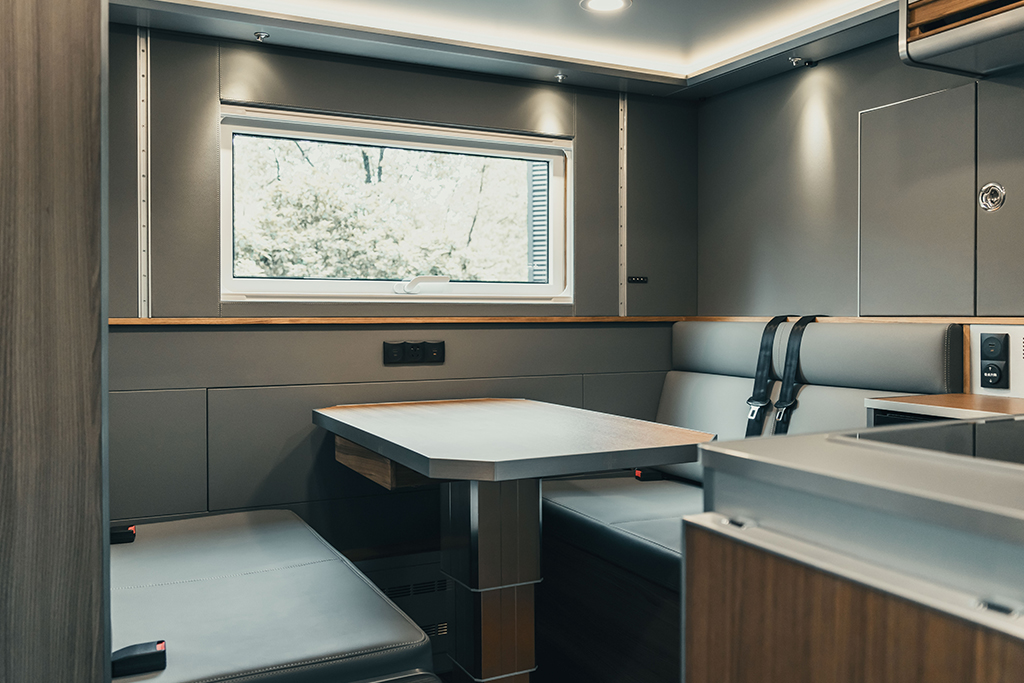

Convertible Dinette Bed

Elevating Bed (Optional instead of elevating TV)

Wet Bathroom

Body Engineering:

Dry Carbon Sandwich Composite Body Structure

Inner/outer skins made of ultra-strong carbon fiber with PMI insulation core

Non-thermal-bridge structure throughout the vehicle, cold-resistant and insulated

Armadillo 3-point Floating Balanced Subframe System

Main Door: Armadillo proprietary, with imported brand electronic lock, code entry, and card entry

Windows: Armadillo proprietary, double-glazed vacuum Low-E coated glass,

with marine-grade dual-layer honeycomb shades and mosquito nets

Steps: Aluminum alloy 3-step, automatic

Electrical System:

Imported Brand 5 kW Inverter/Charger

Imported Brand Power Management System

Imported Brand Distribution Panel with Electronic Circuit Breakers

Imported Brand Battery Isolator

920 Ah, 24 V Lithium Iron Phosphate (LiFePO4) Battery Bank

8 x 110 W Solar Panels

Emergency Power Shut-off Protection Device

Emergency Solar System Shut-off Protection Device

Shore Power Inlet, External Power Outlet

Dedicated Interior Lighting and Exhaust Fan Switches

Water Systems:

410 L Stainless Steel Anti-freeze Fresh Water Tank

Imported Automatic Water Pump

Pressure Water Inlet with Pre-filter

External Water Access Point / Campground Water Connection

100 L Grey Water Tank

110 L Black Water Tank with Winter Anti-freeze System, Electric/Manual Drainage (Drain outlet with electric heating)

8.5 L High-Efficiency Water Heater with Electric Heating Element

Fresh Water Tank and Pipes with Winter Insulation and Heat Circulation System

AC, Heating & Ventilation:

DC Inverter Split-type Air Conditioner

Positive Pressure Fresh Air System

Exhaust Fan System

Imported Brand 9 kW Automatic Diesel Hot Water Boiler

Underfloor Heating System

Bathroom Heater Radiator

Imported Brand 4 kW Diesel Air Heater System

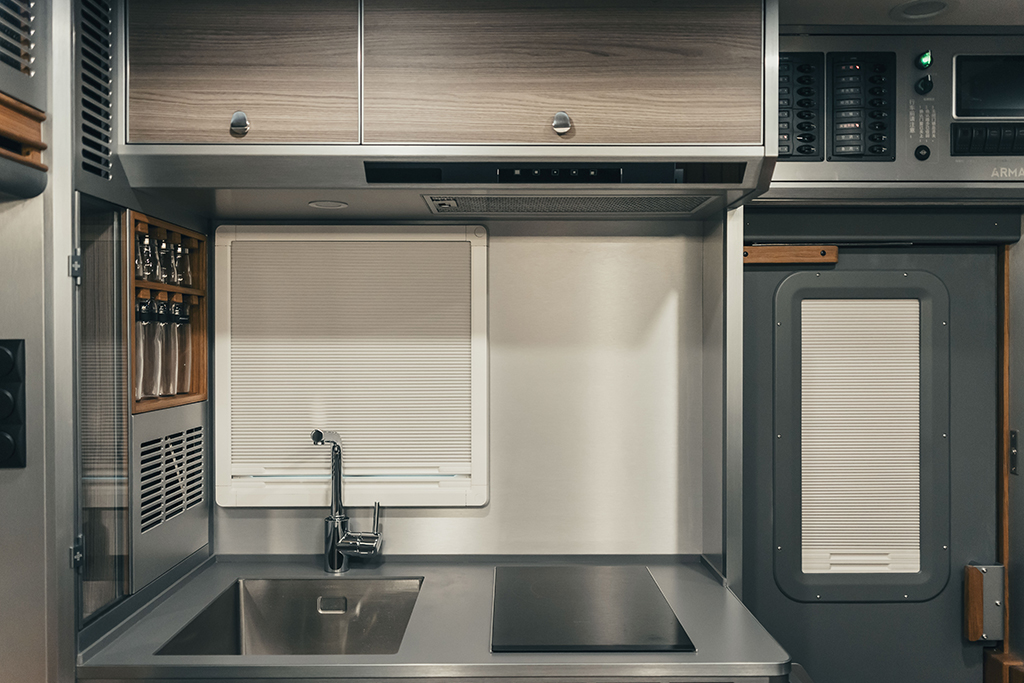

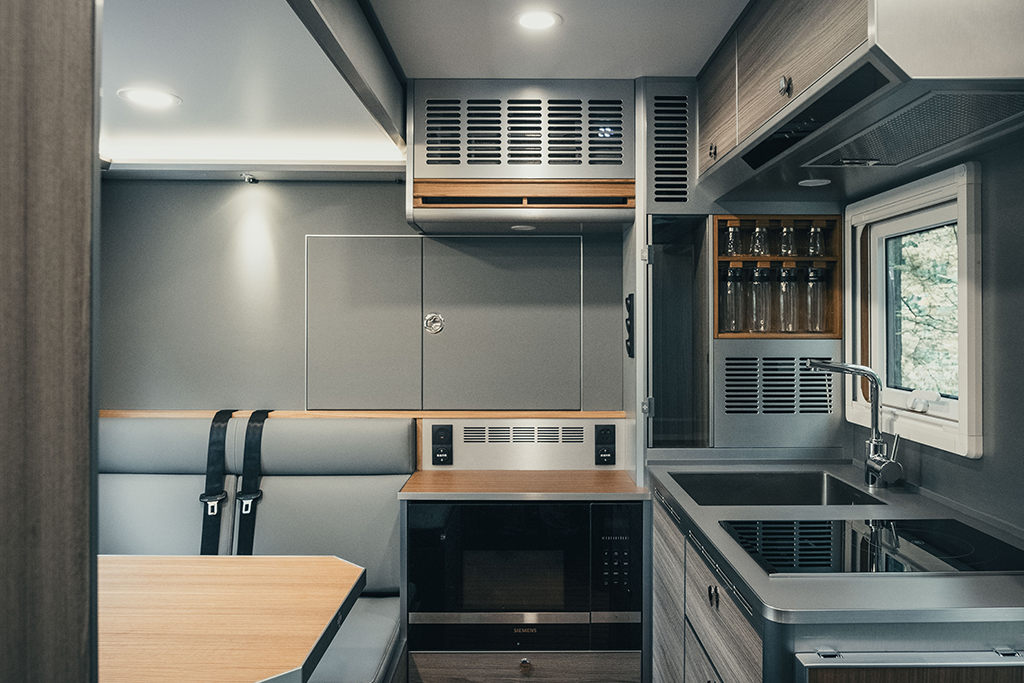

Kitchen Equipment:

Stainless Steel Sink with Imported Brand Mixer Tap

Imported Brand Built-in Induction Cooktop

Refrigerator

Imported Brand Built-in Combination Microwave/Convection Oven

Full Set of Kitchenware

Range Hood

Bathroom Equipment:

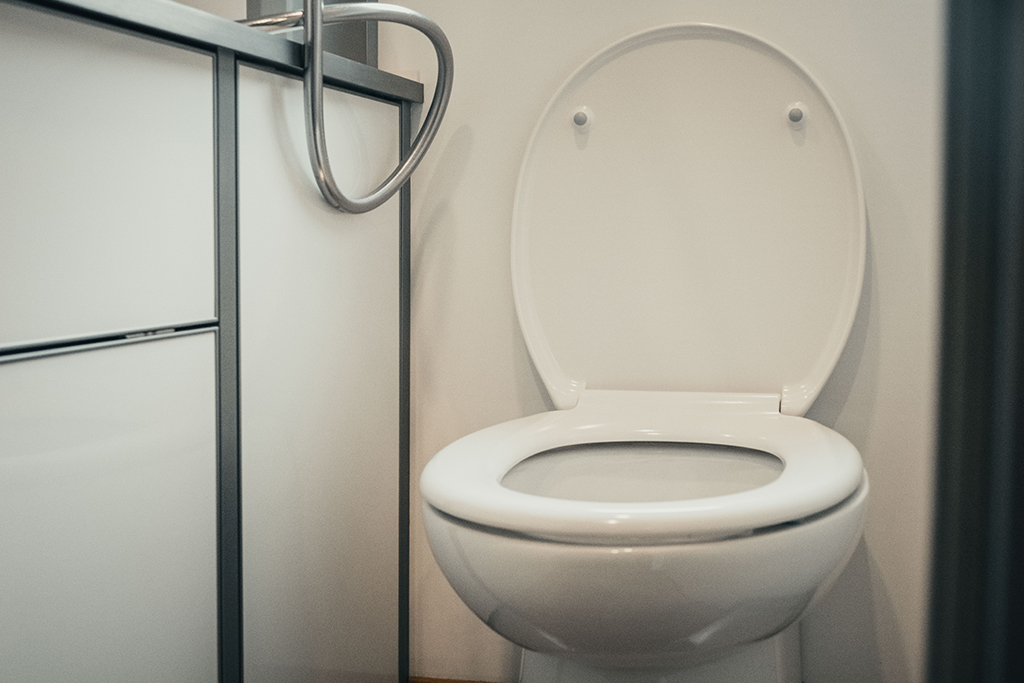

Imported Brand Electric Macerating Toilet

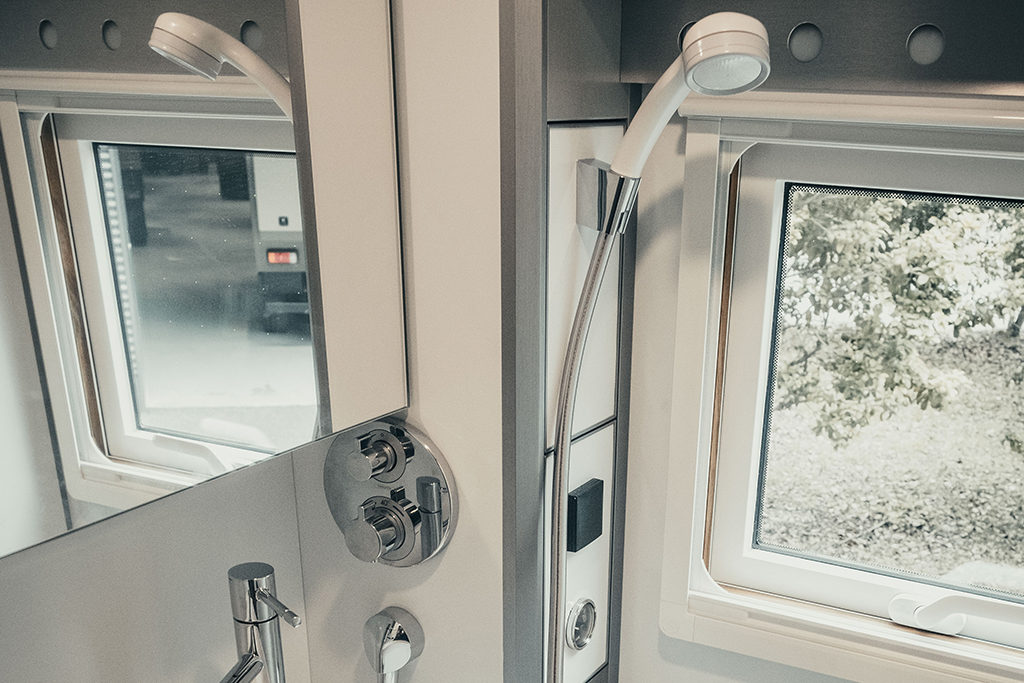

Imported Brand Thermostatic Shower Mixer and Showerhead

Washbasin, Imported Brand Tap, Vanity Mirror

Exhaust Fan

Heater Radiator

Other Standard Features:

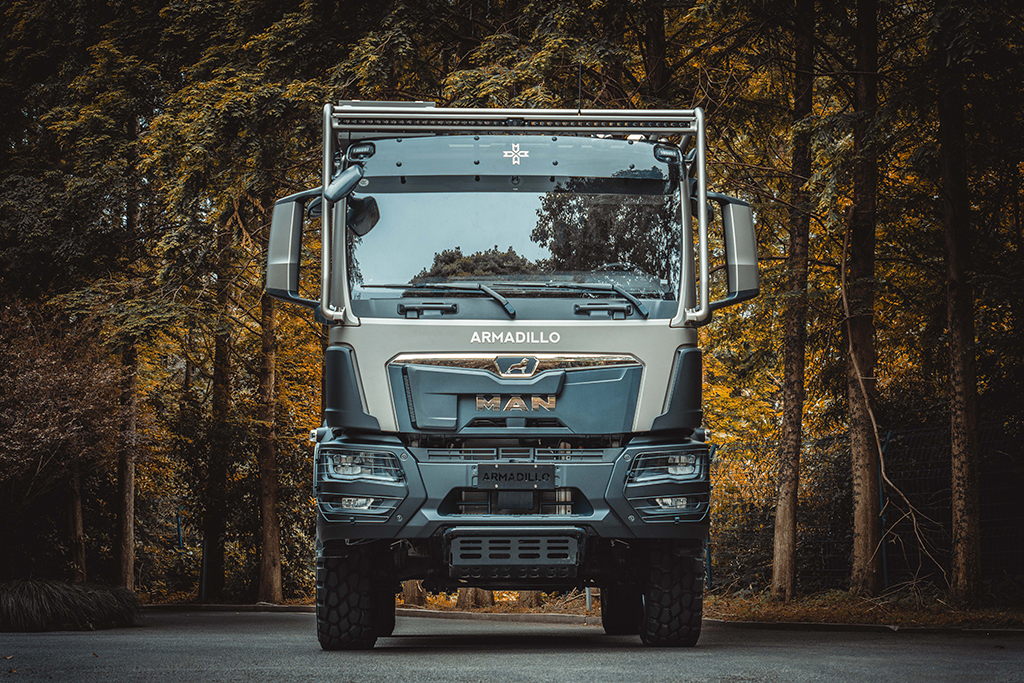

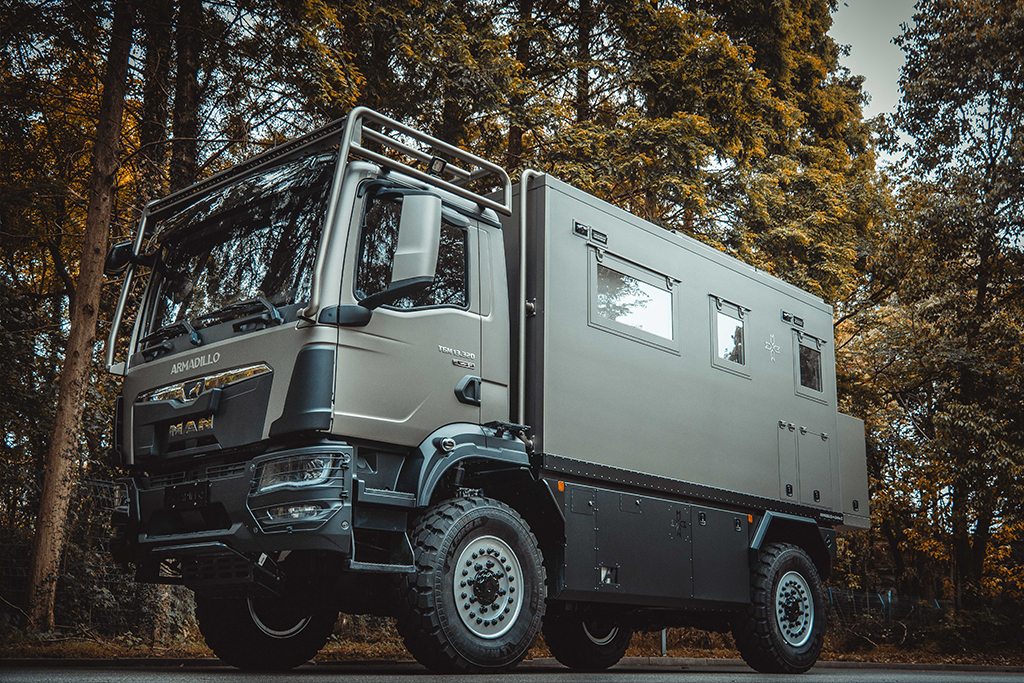

Aluminum Alloy Cabin Roll-Over Bar with LED Light Bar

Rearview Camera (Integrated into original vehicle screen)

Natural Latex + 3D Structural Sofa and Mattress

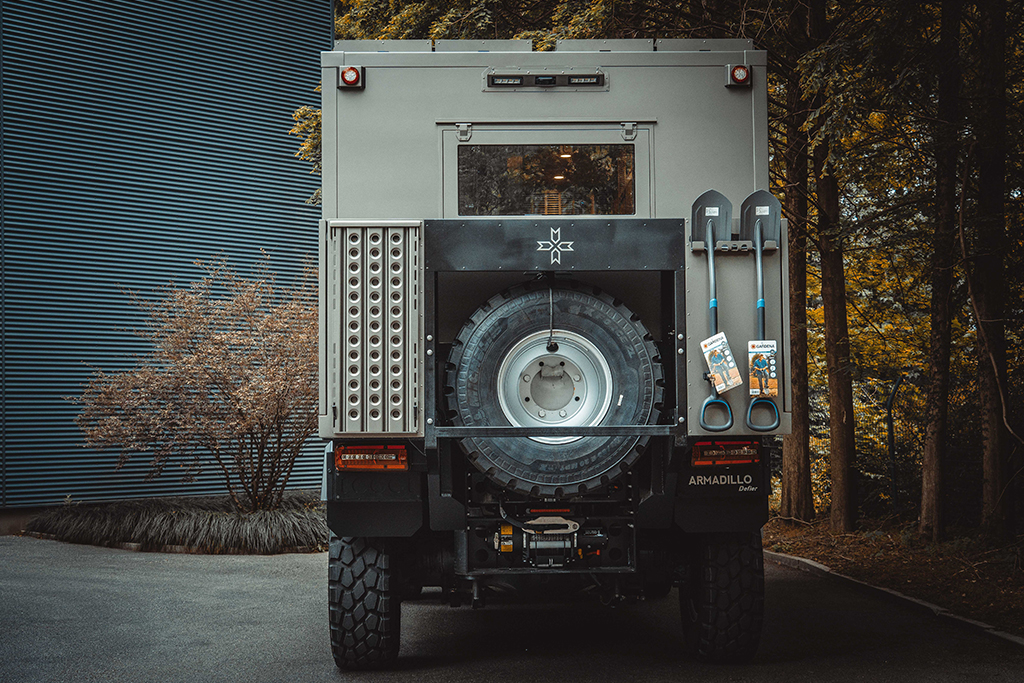

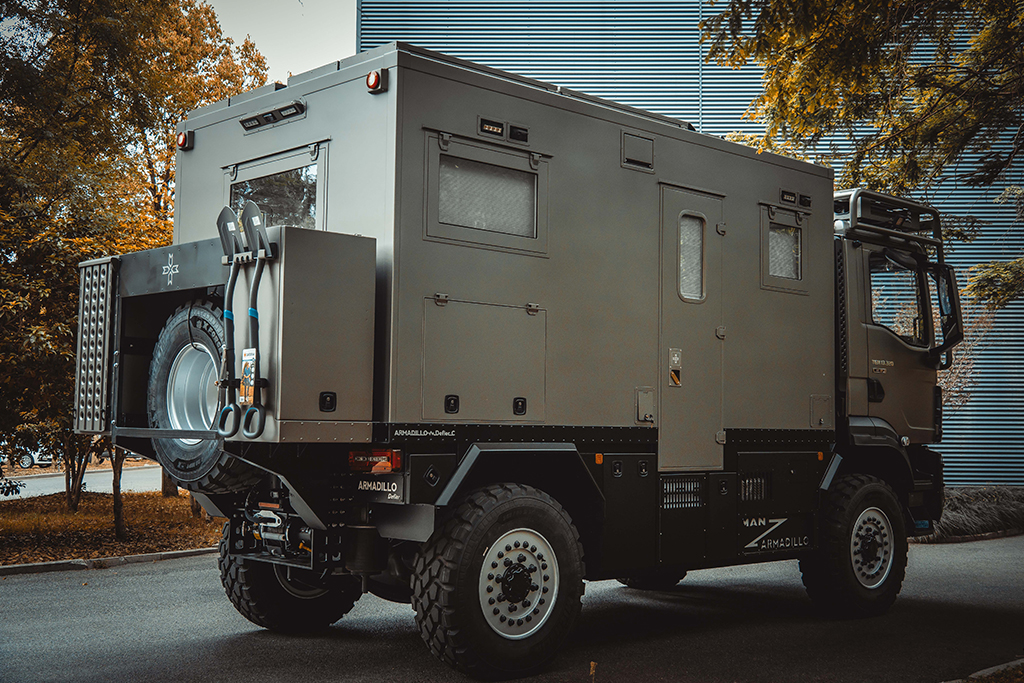

Rear Spare Tire Mounting System (Electric lifting/dropping)

External Water Outlet

Side Lighting

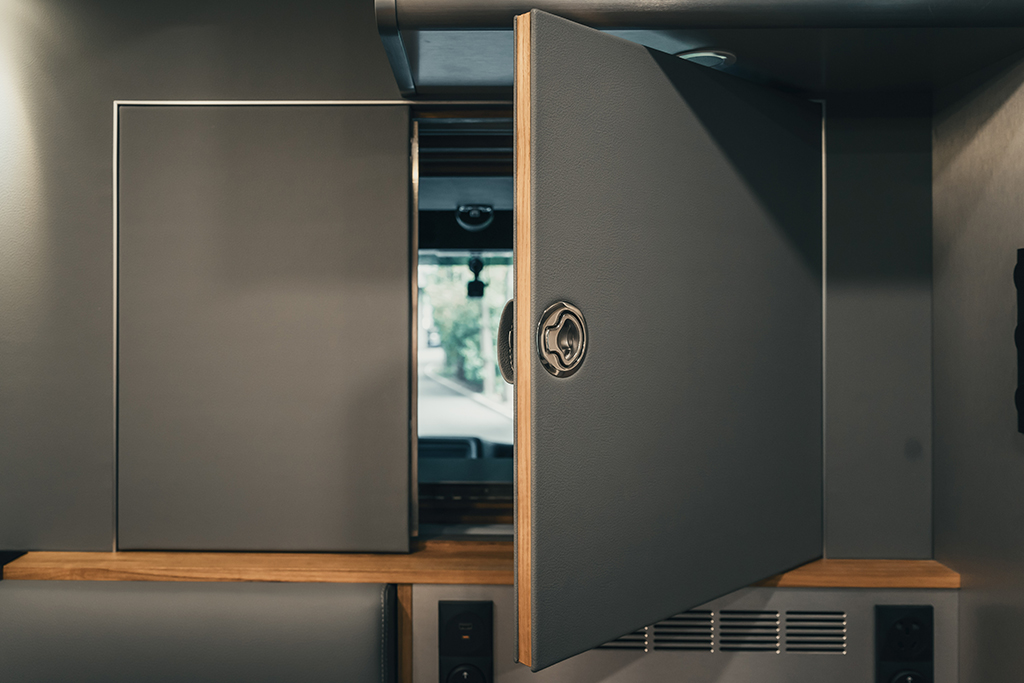

Pass-through between Living Cabin and Driver Cabin

Optional Equipment:

18,500 lb Rear Winch

Side-mounted Awning, 4000 mm long

Bluetooth Audio System

Mini Washing Machine

External Kitchen

6-Channel Surveillance Security System with 14-inch Monitor

Rear External Storage Box

Rear Bicycle Rack

Aluminum Forged Two-Piece Rims
