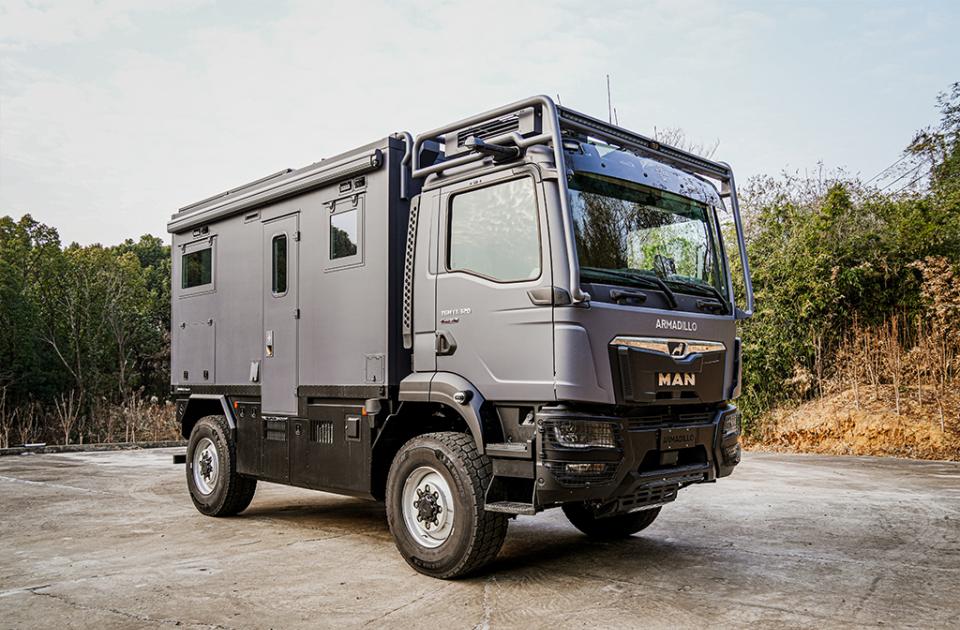

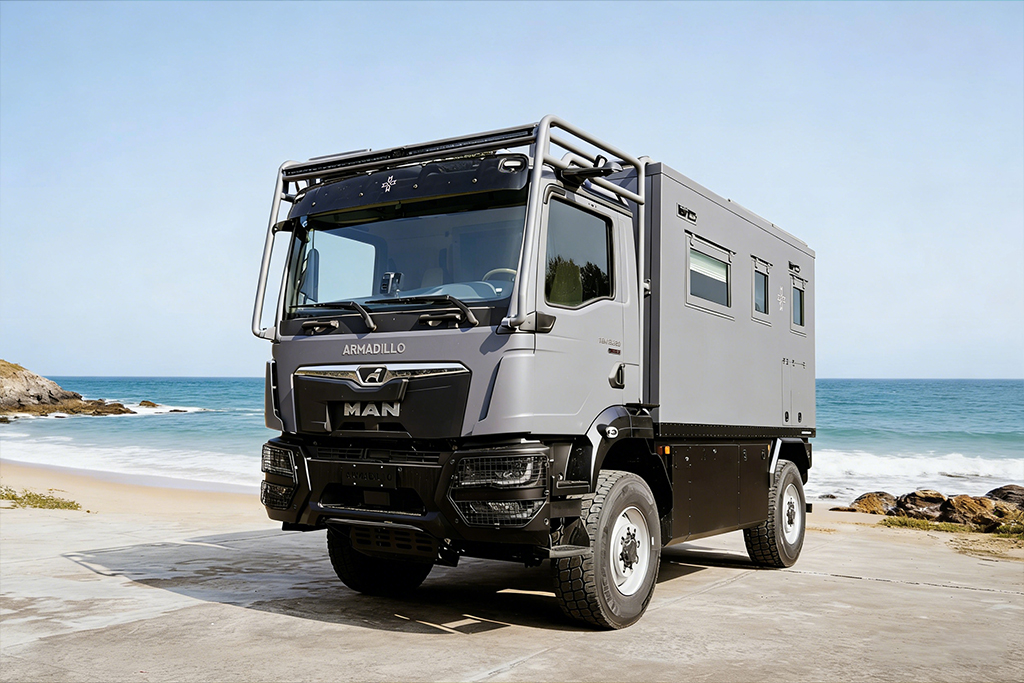

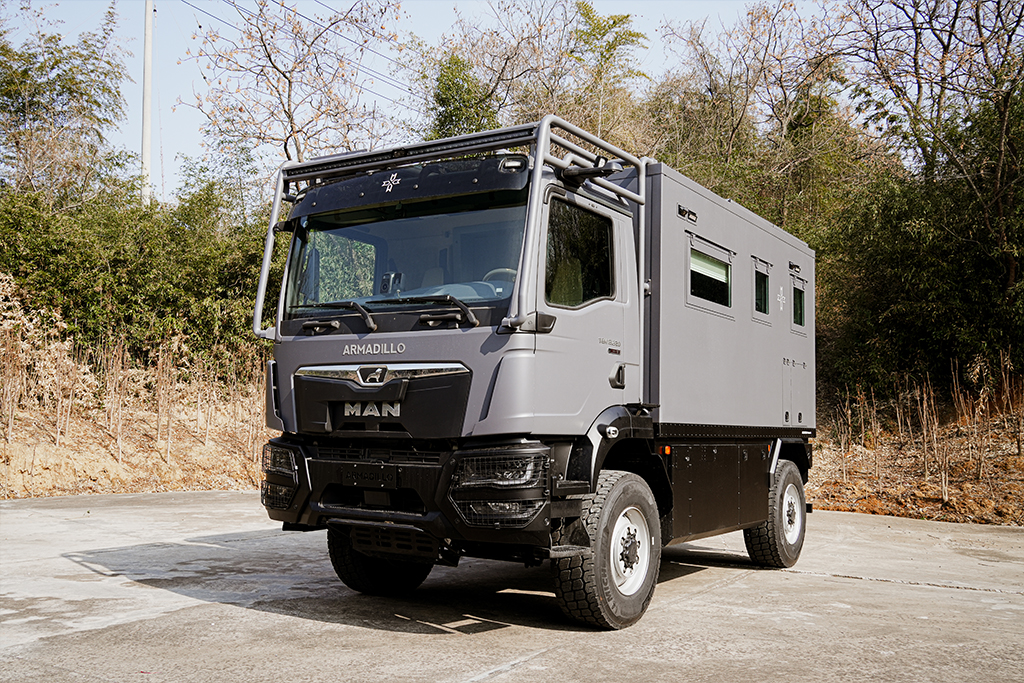

Vehicle Information:
Overall Length: 5,995 mm (excluding rear-mounted spare tire and external storage box)
6,500 mm (including rear-mounted spare tire and external storage box)
Overall Width: 2,550 mm (excluding awning)
Overall Height: 3,570 mm
Curb Weight: 7,800 kg (minimum curb weight, not the certified weight)
(All above specifications are subject to the official certification data.)

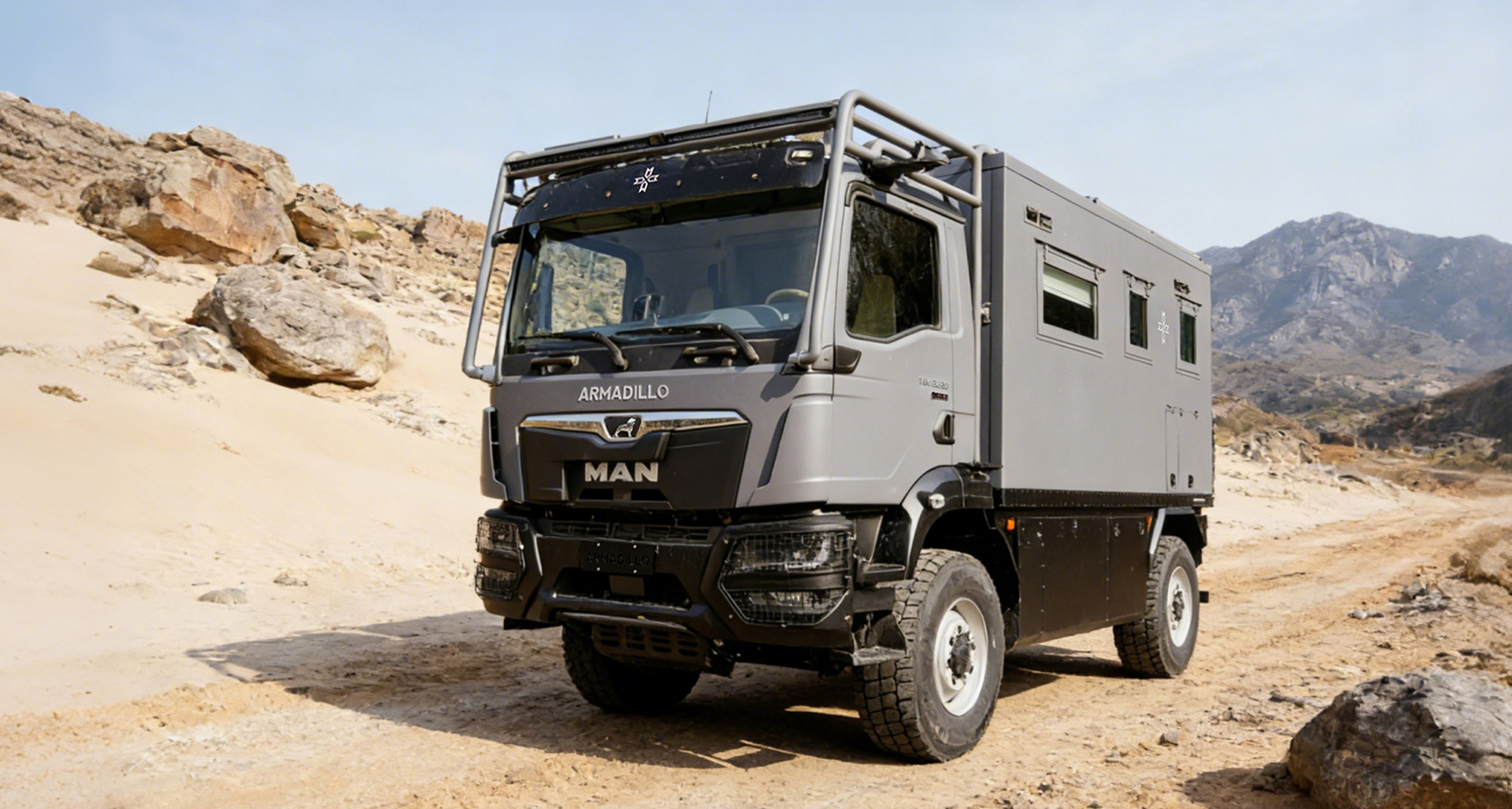

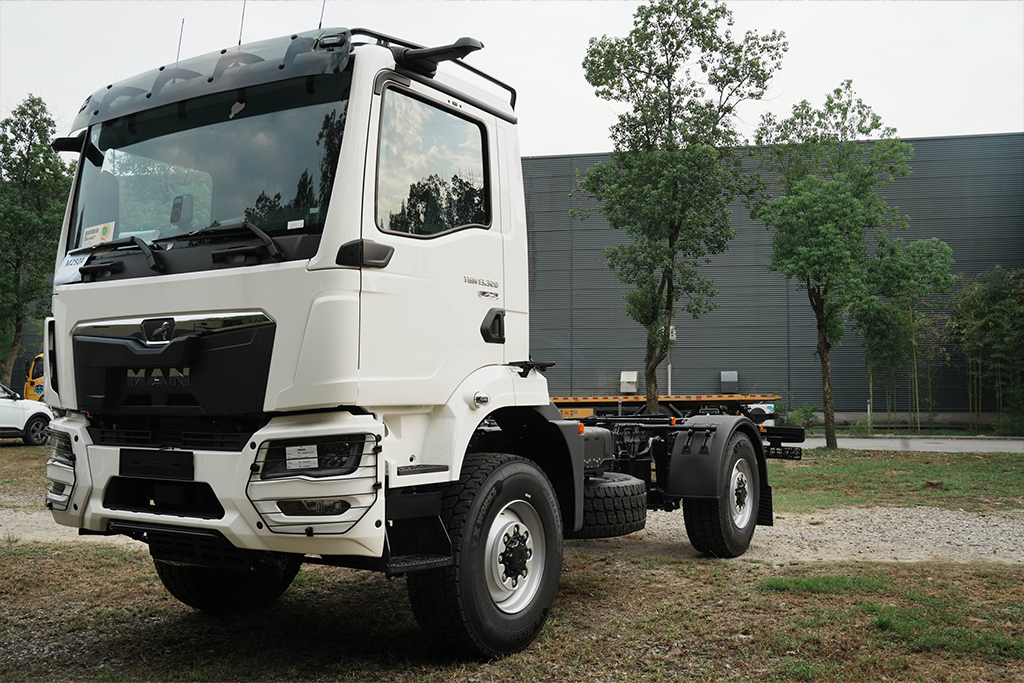

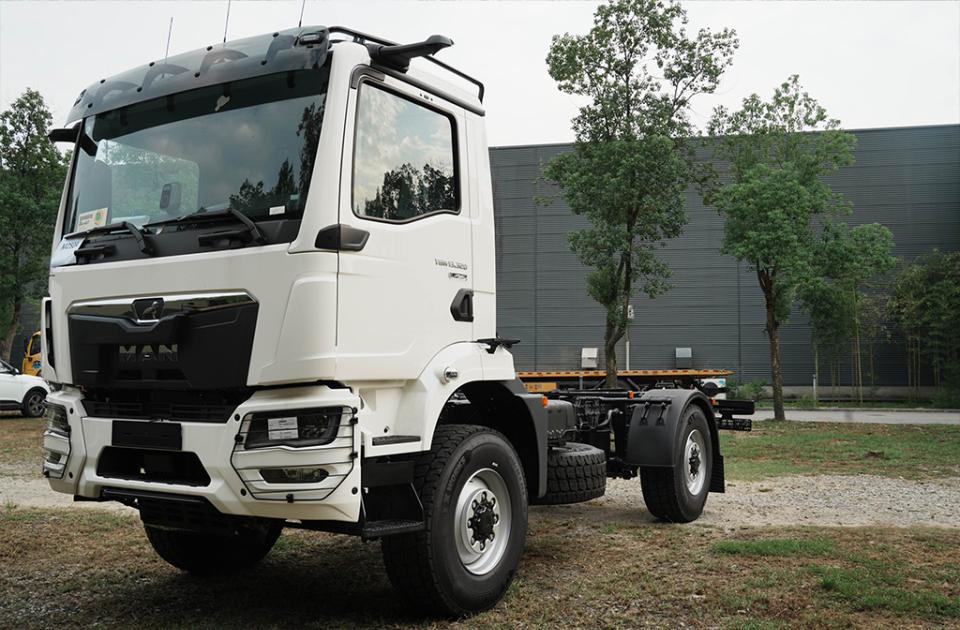

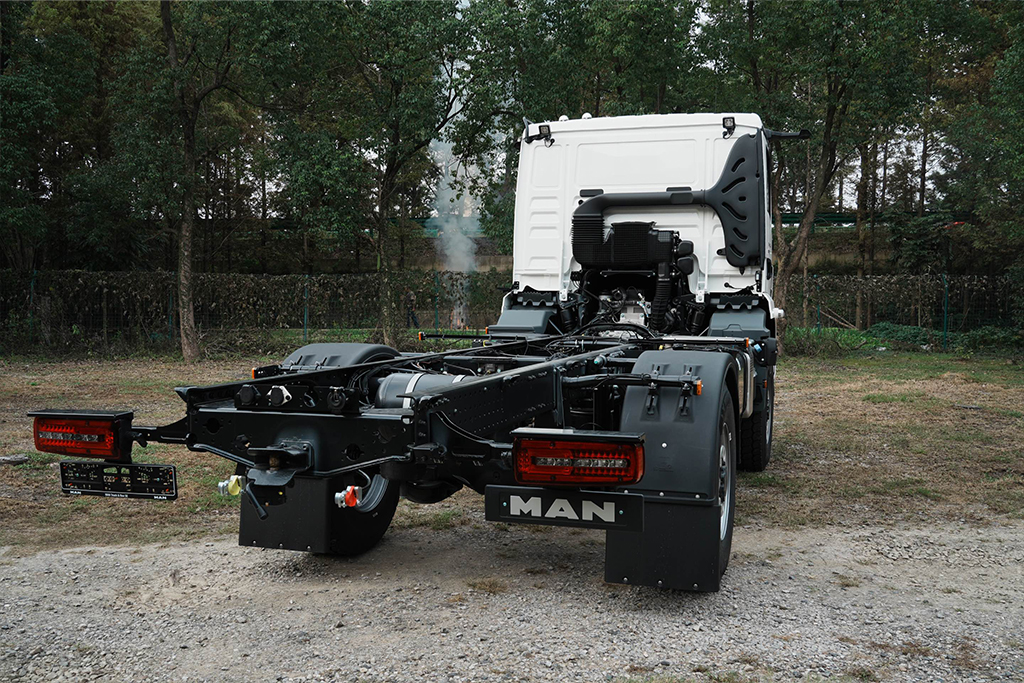

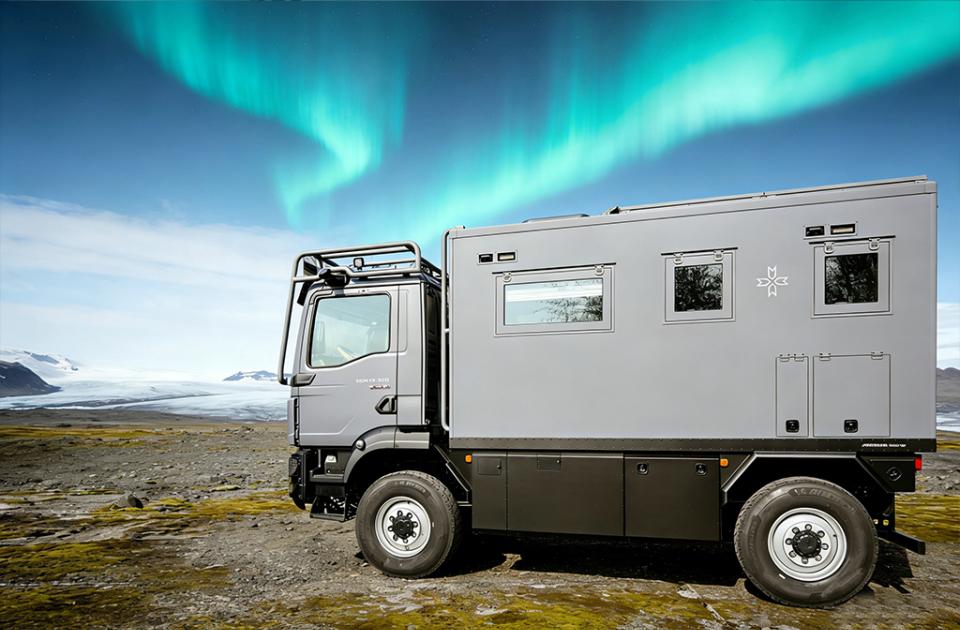

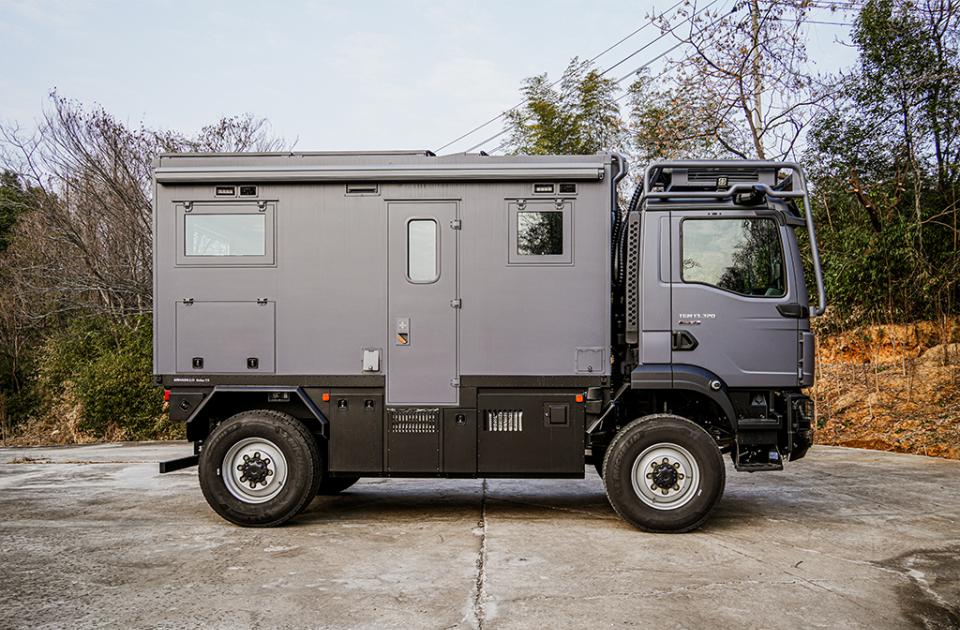

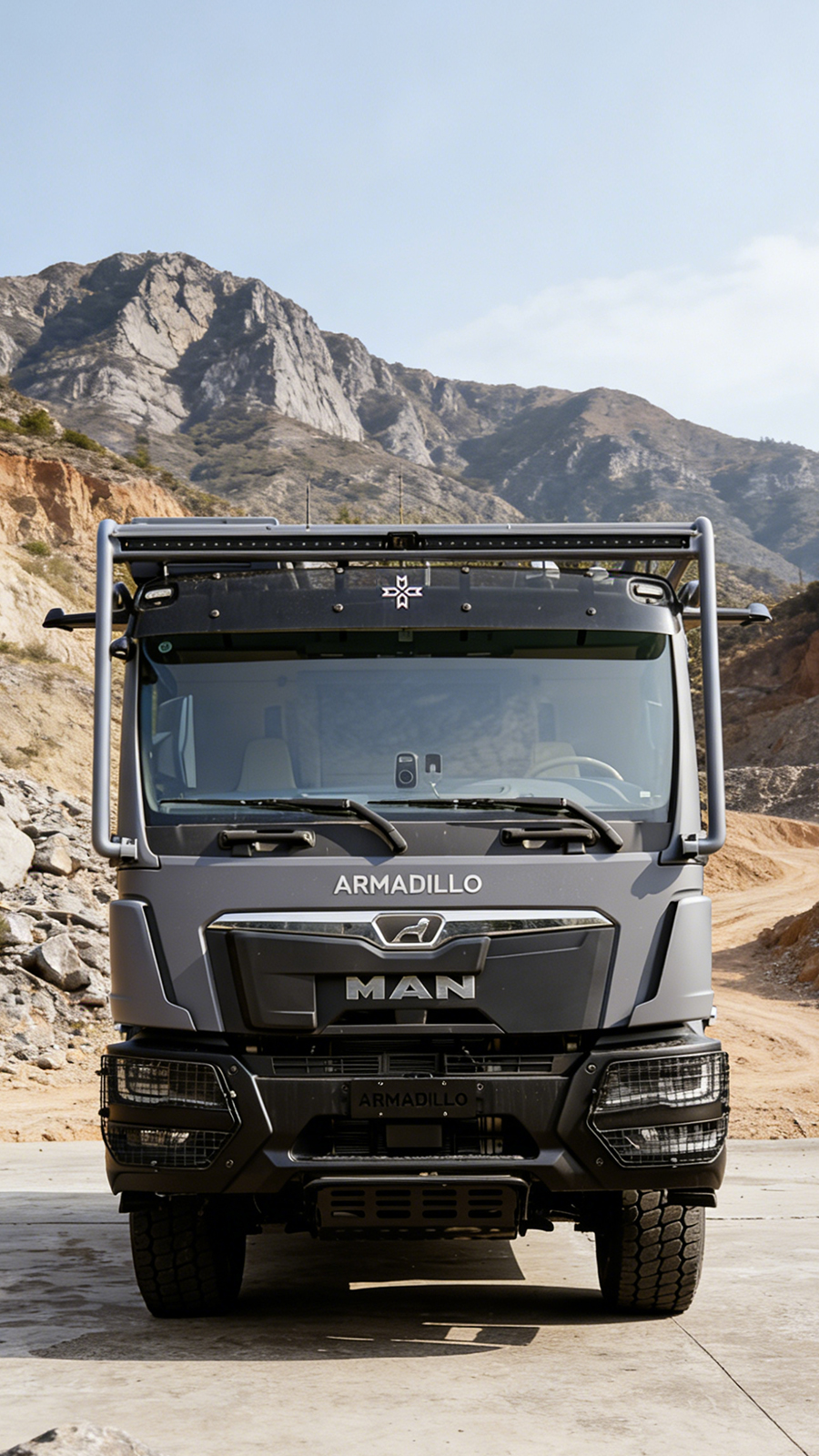

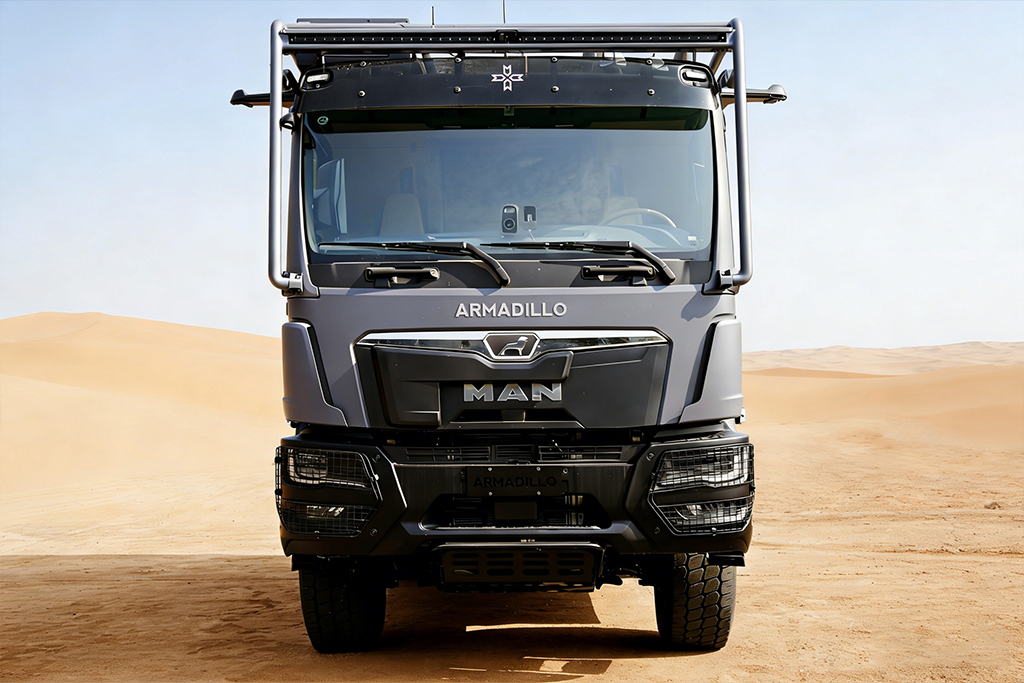

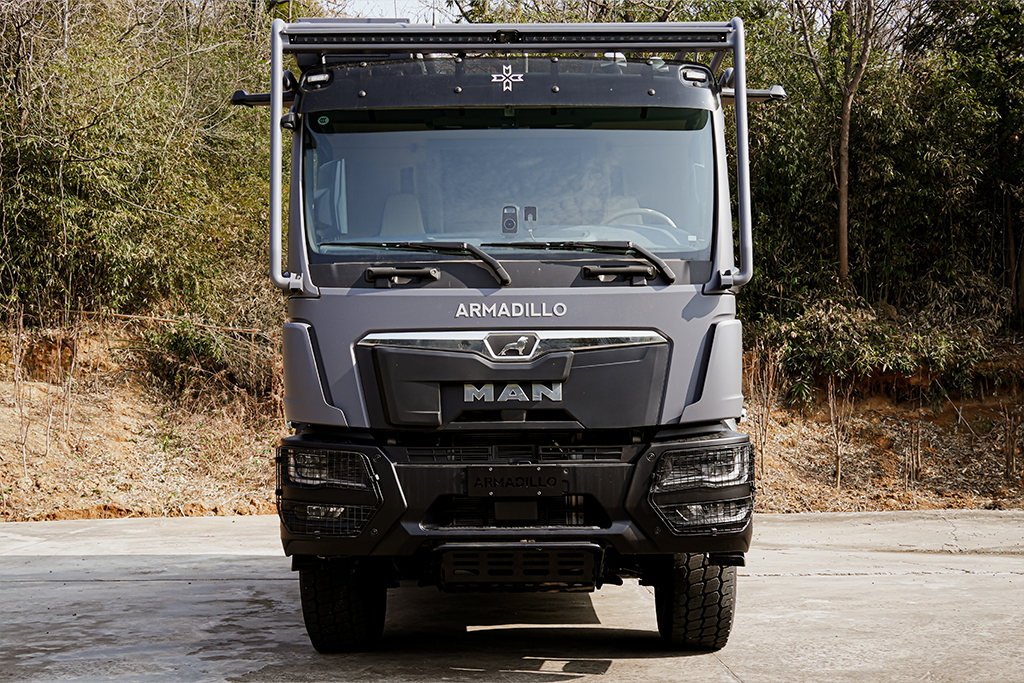

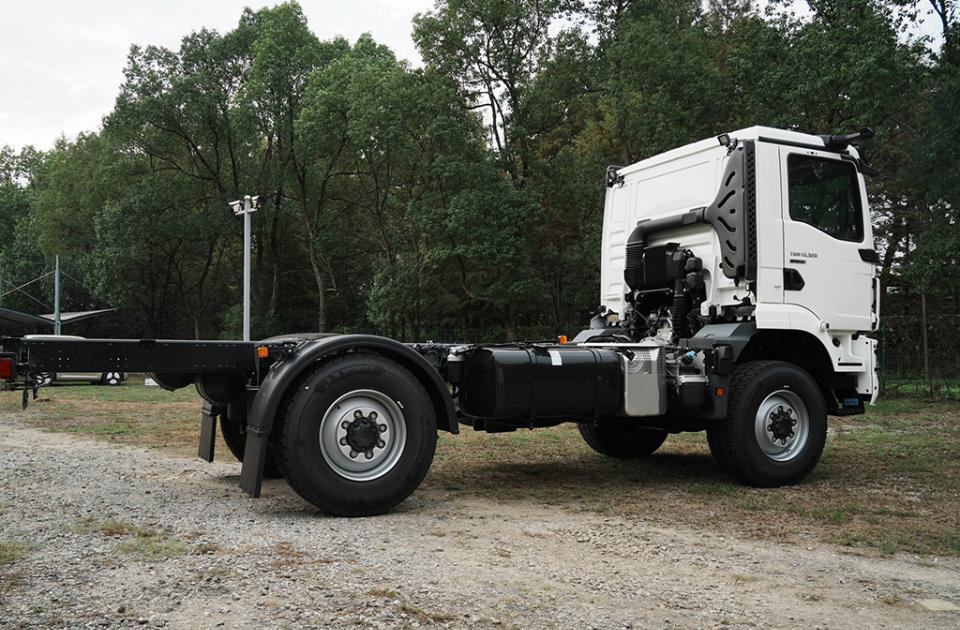

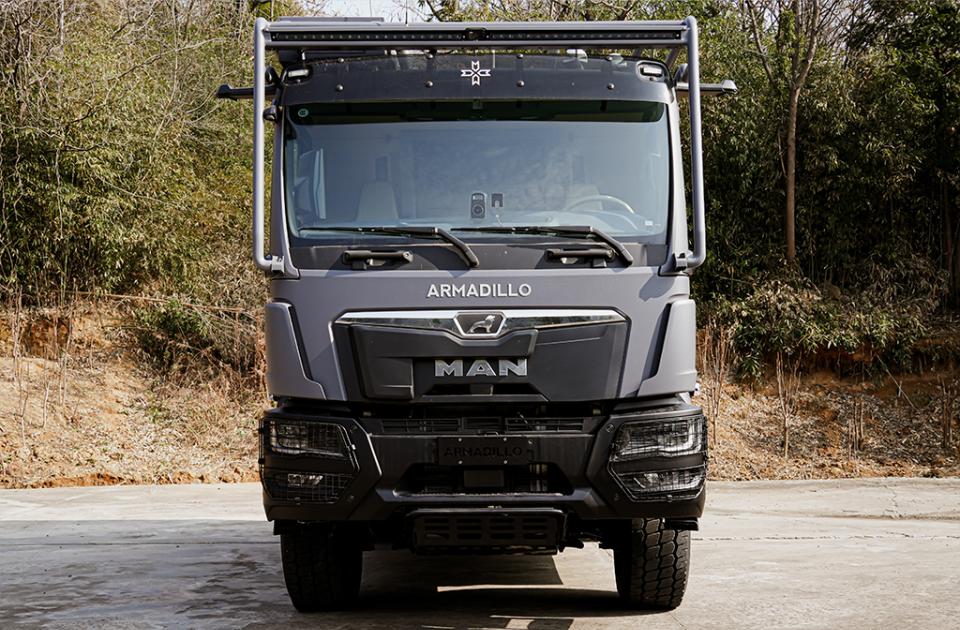

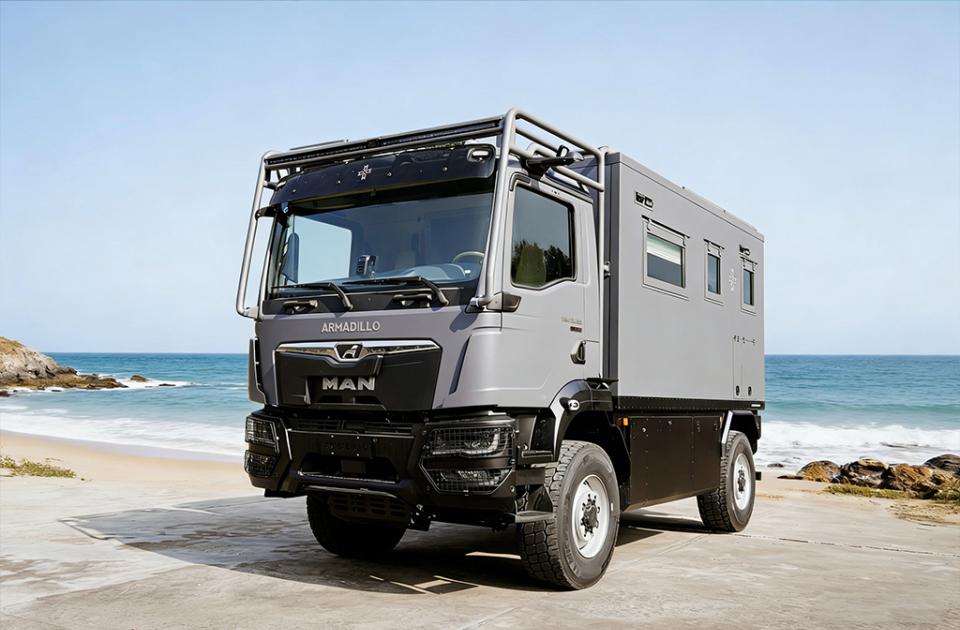

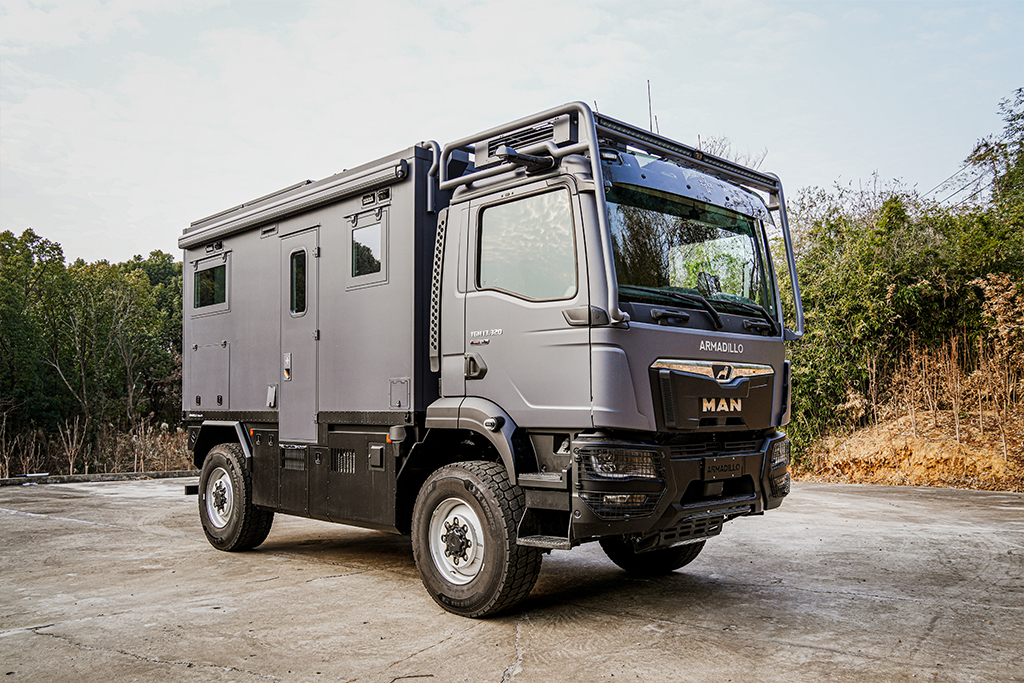

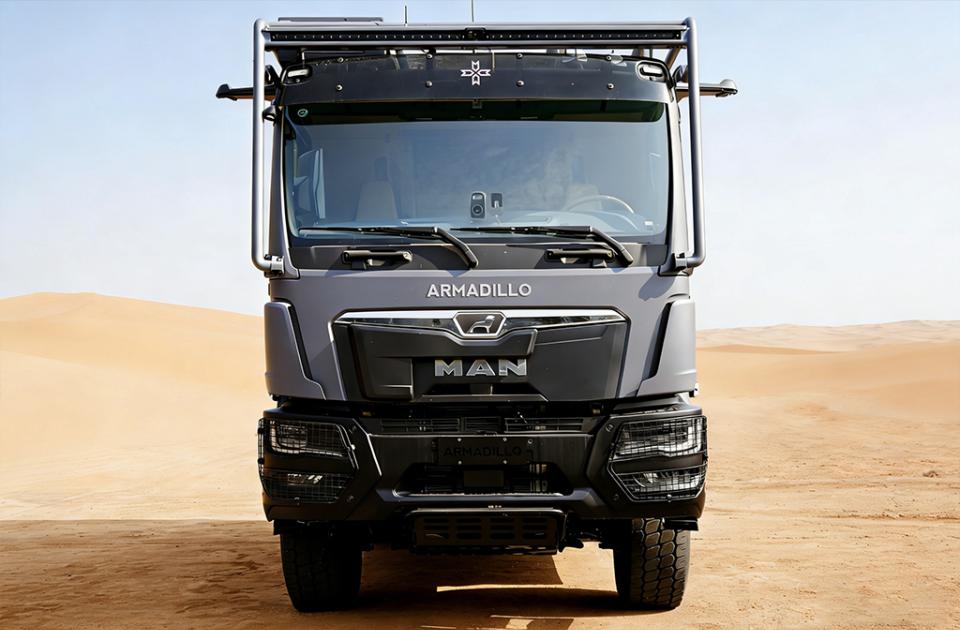

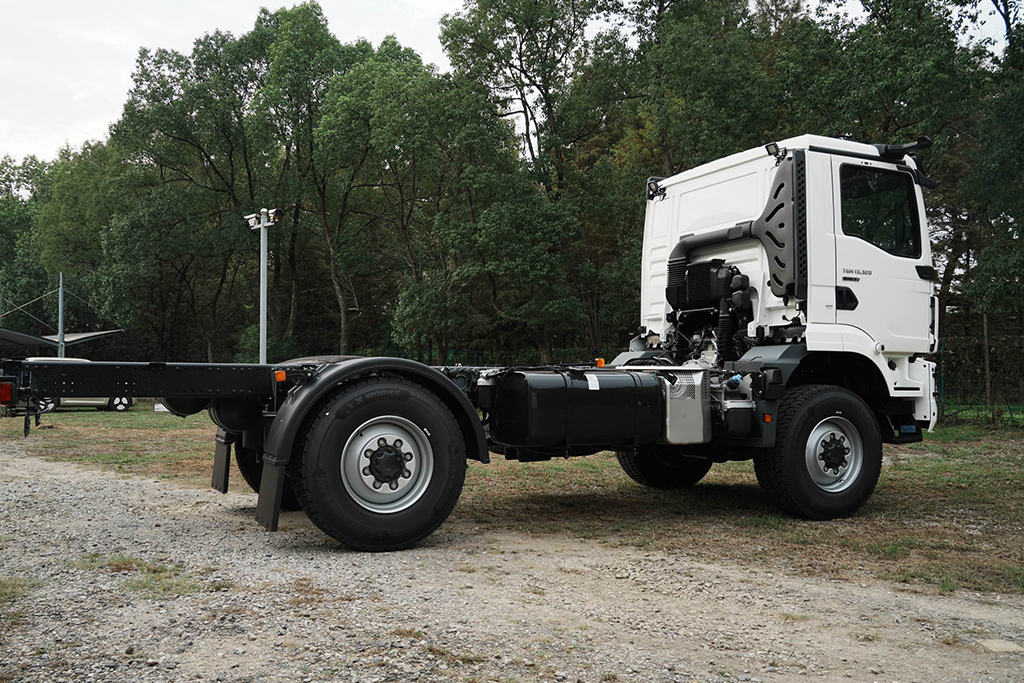

Chassis: MAN TGM 4X4 13.320

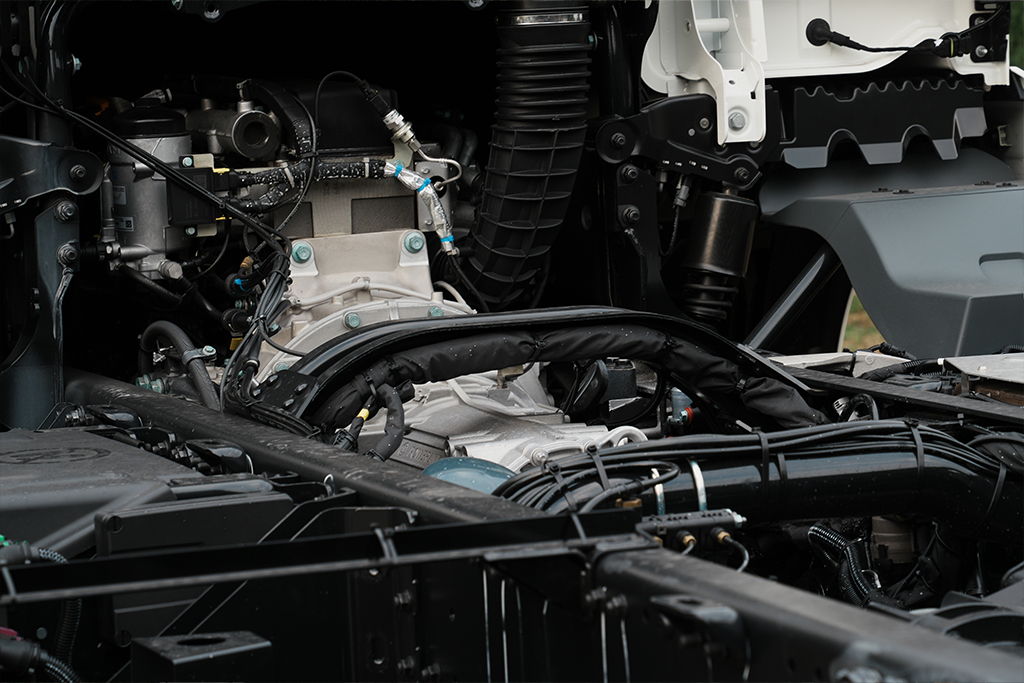

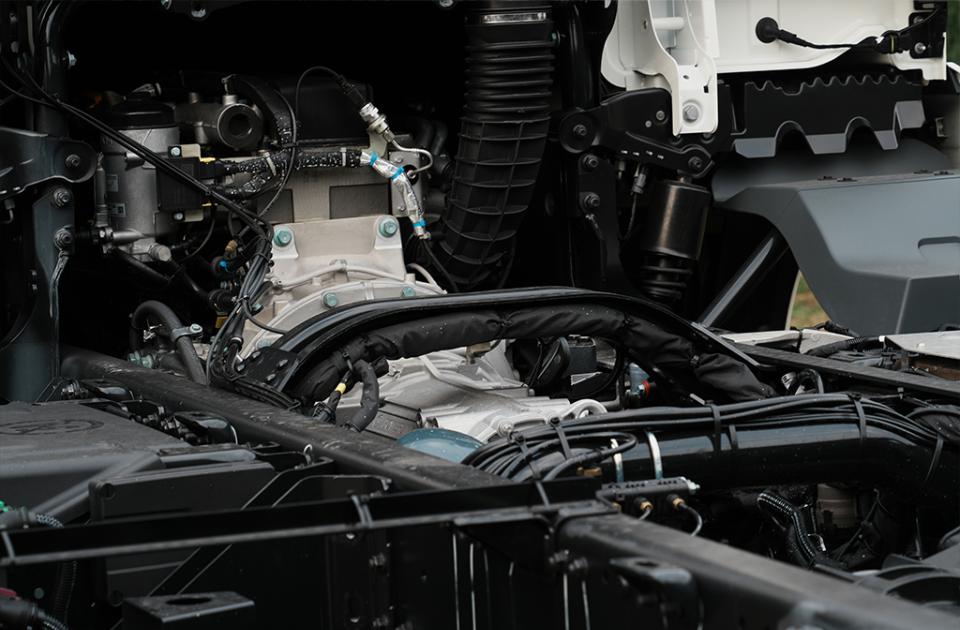

Engine: MAN 6.9-liter inline 6-cylinder high-pressure common rail diesel engine
Fuel Tank: 300 liters
Transmission: ZF 8-speed automatic transmission (8AT)
Power: 320 hp
Torque: 1250 Nm
Tires: Michelin 385/65R22.5 off-road tires
Drive Type: Full-time all-wheel drive with 3 differential locks
Suspension: Parabolic leaf spring front axle; air suspension rear axle

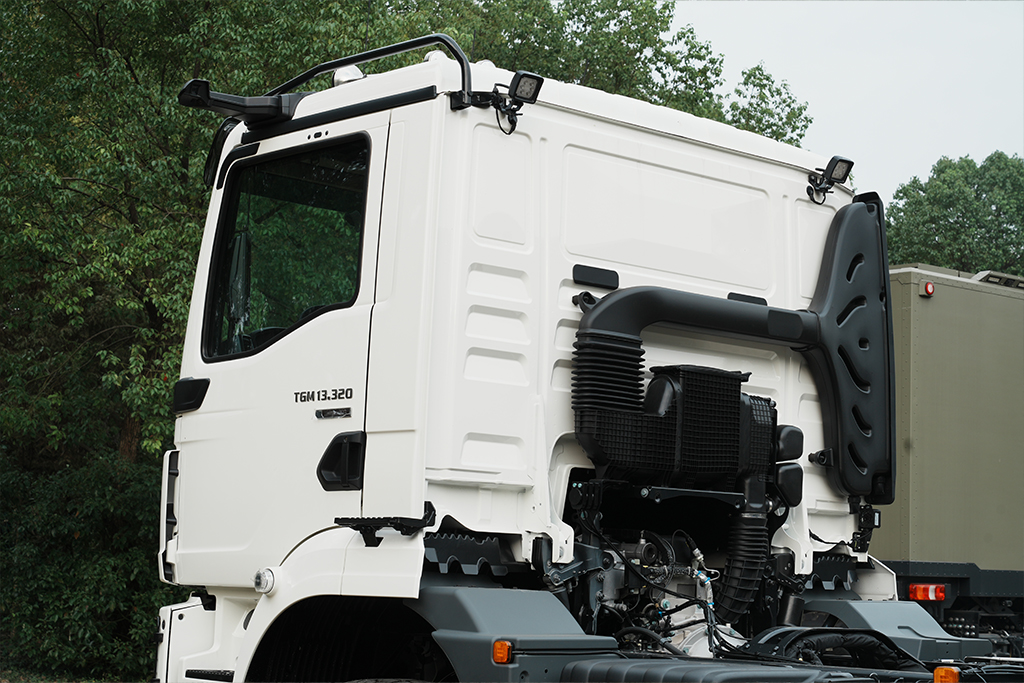

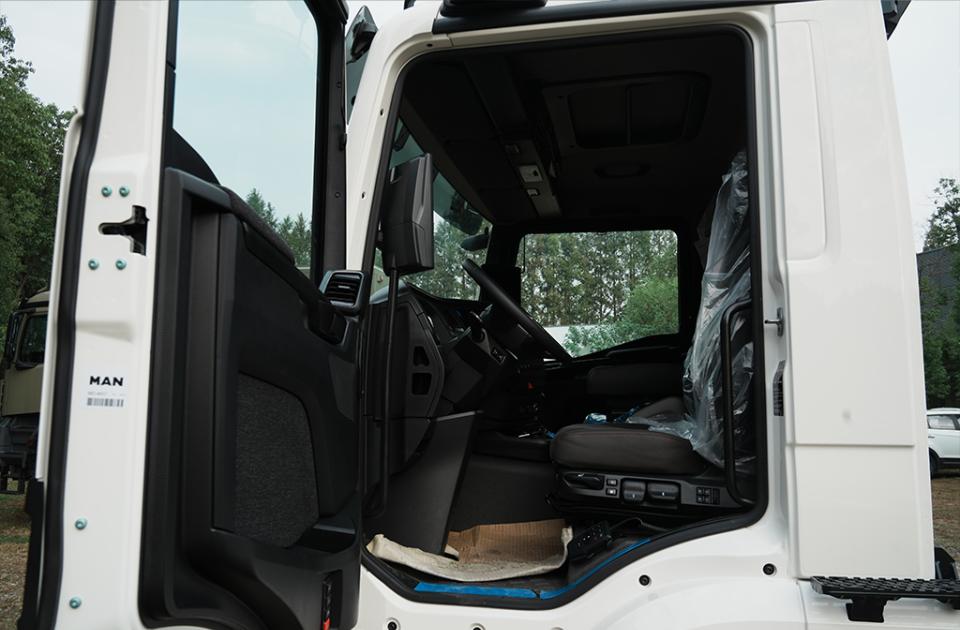

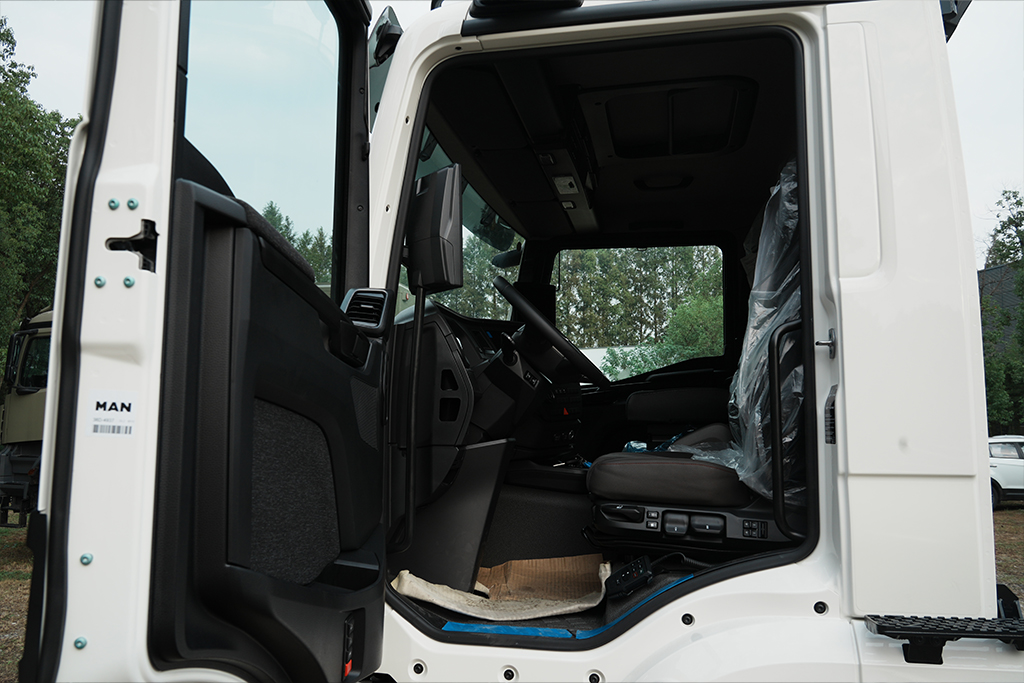

Cab: C-type, 2 seats
Driver's air suspension seat with electric heating and ventilation

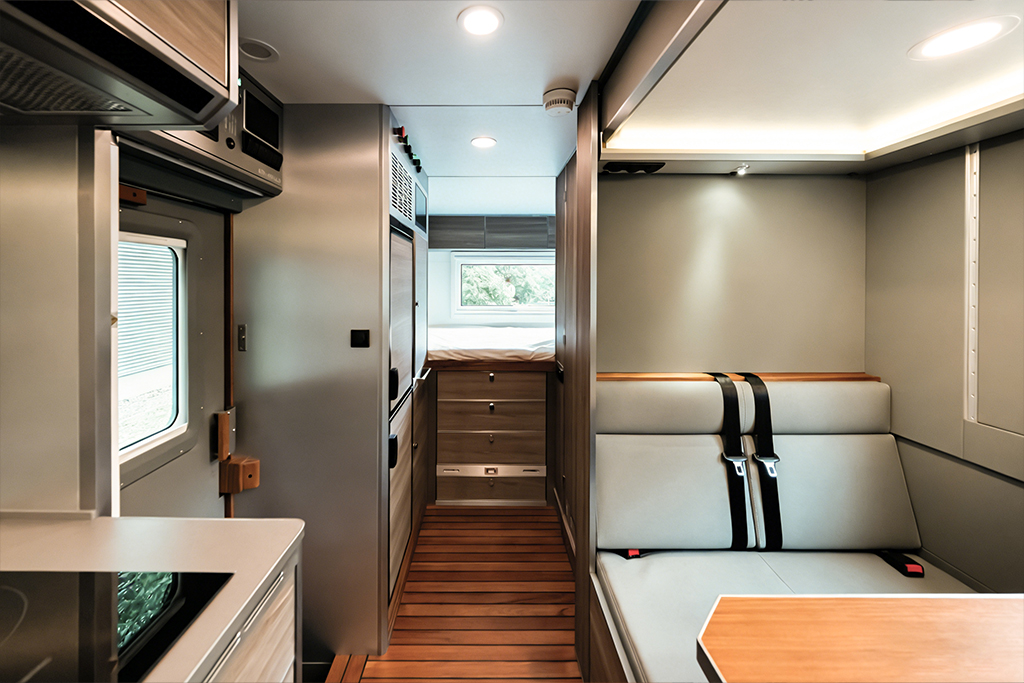

Structure & Configuration:
Seating Capacity: 6 persons
Sleeping Capacity: 4 persons

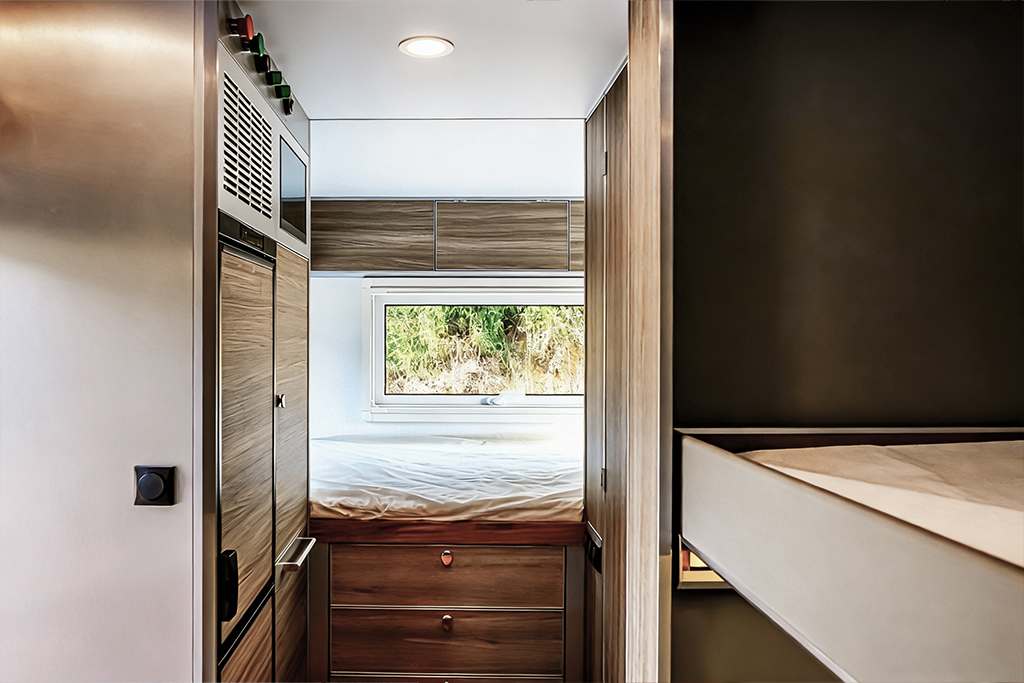

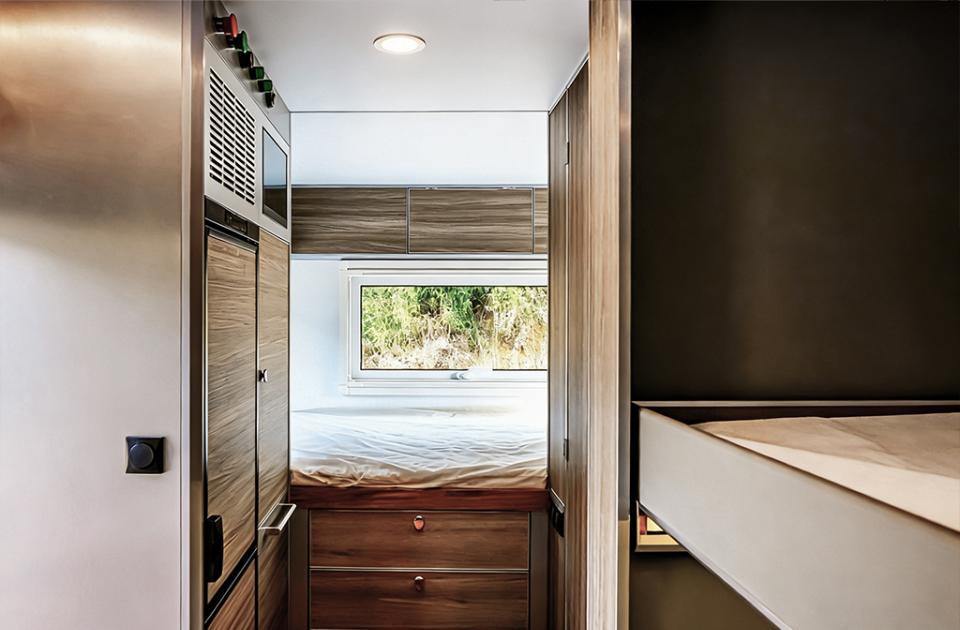

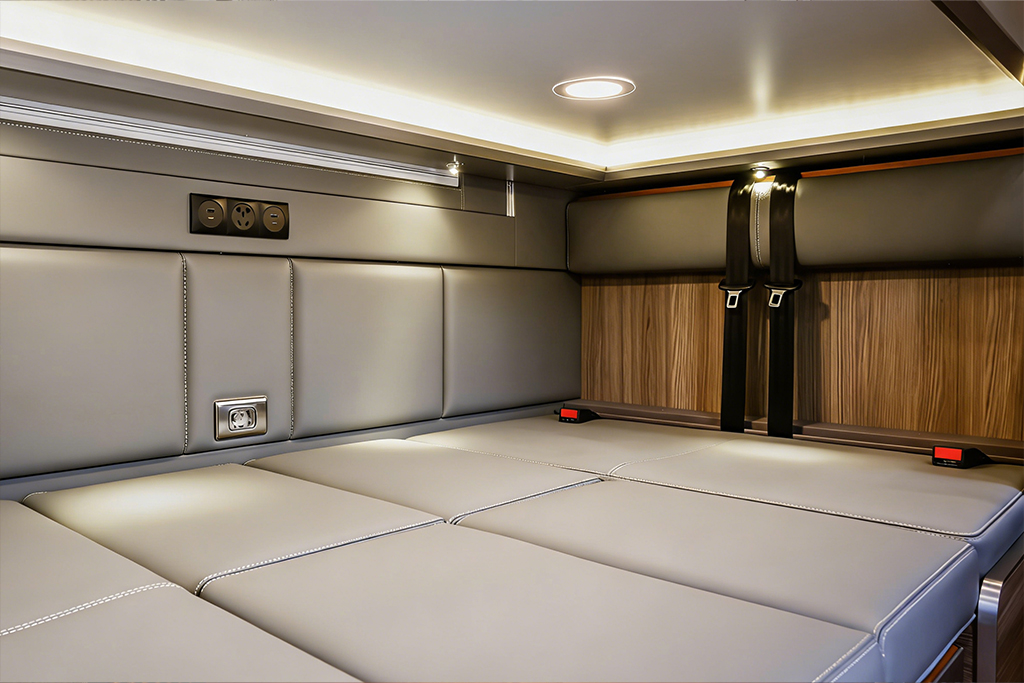

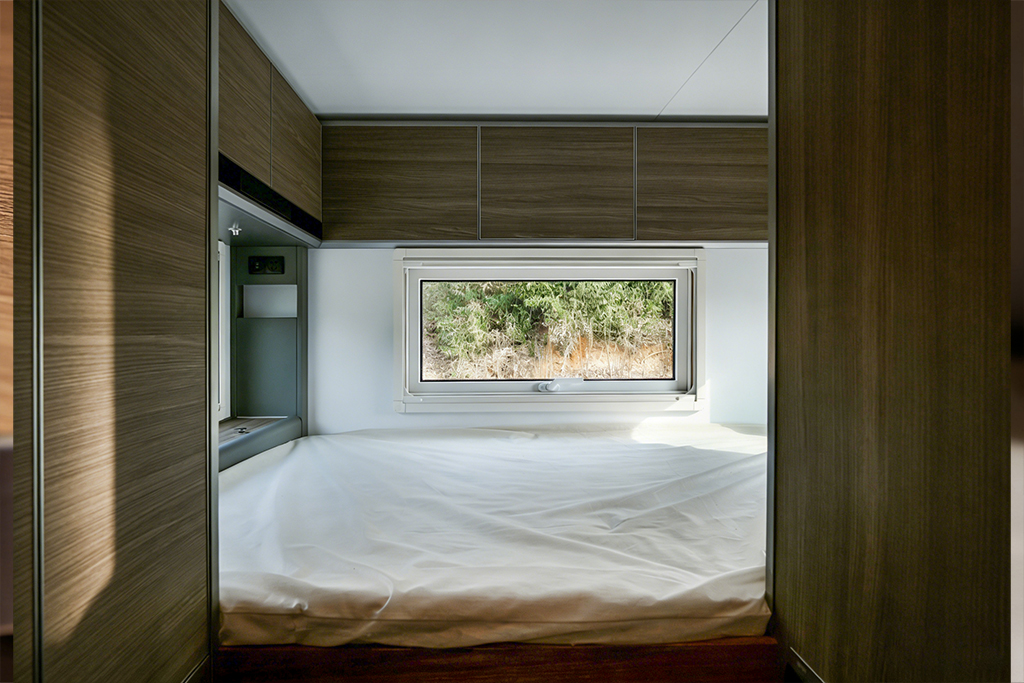

Rear double bed

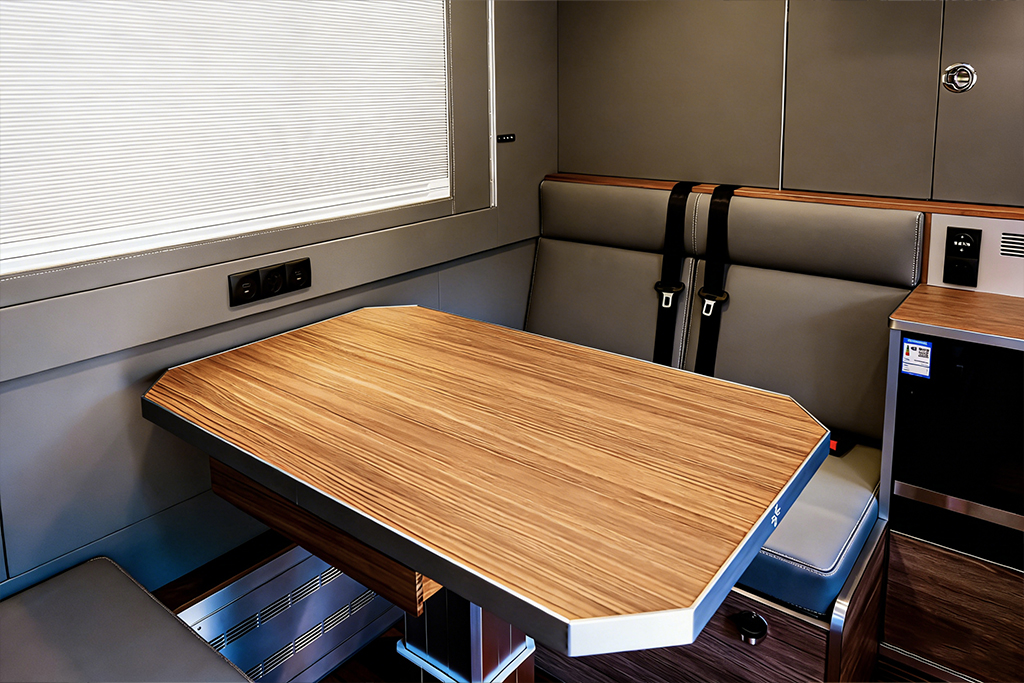

Dinette convertible bed

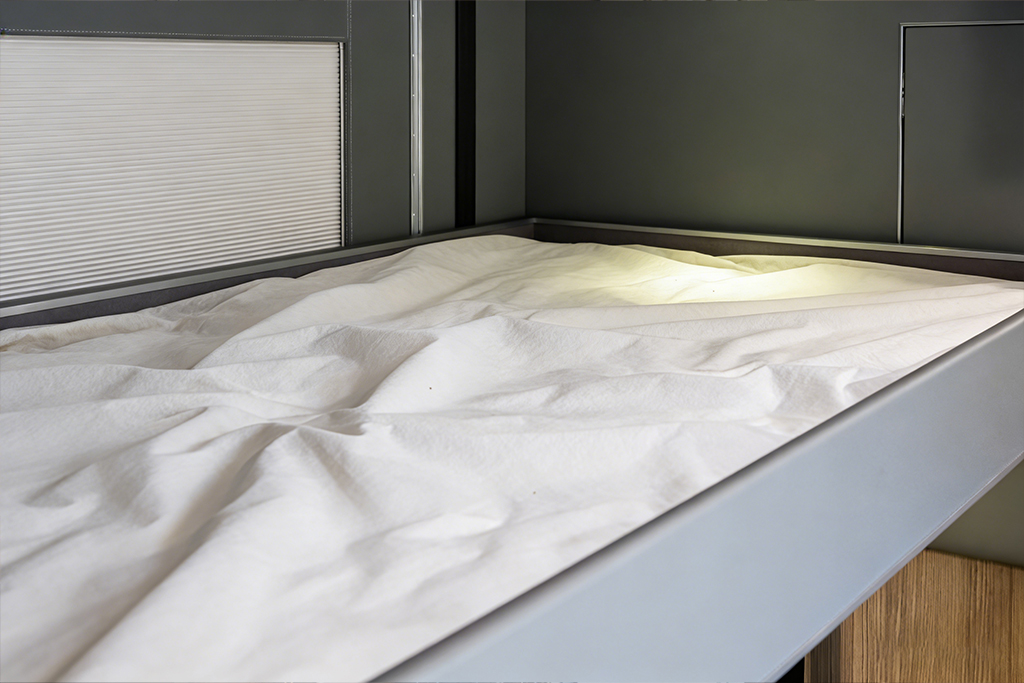

Lifting bed (alternatively, a lifting TV)
Wet-bath combination toilet

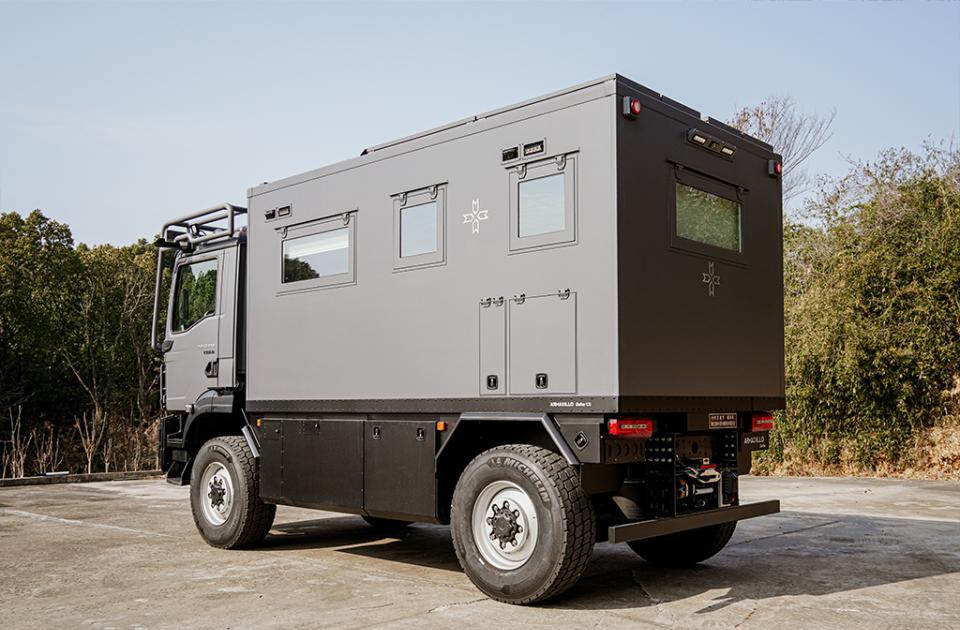

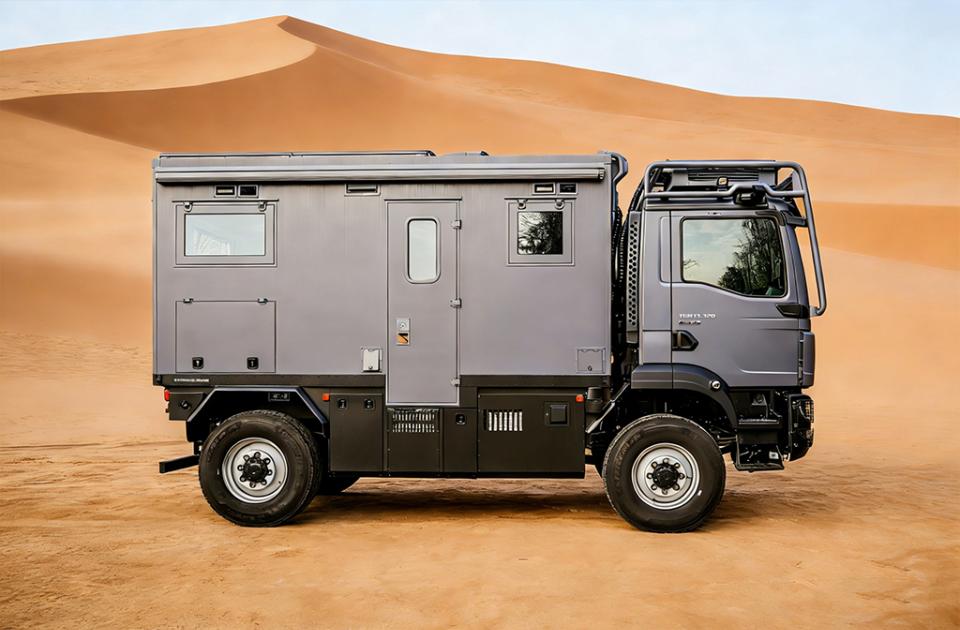

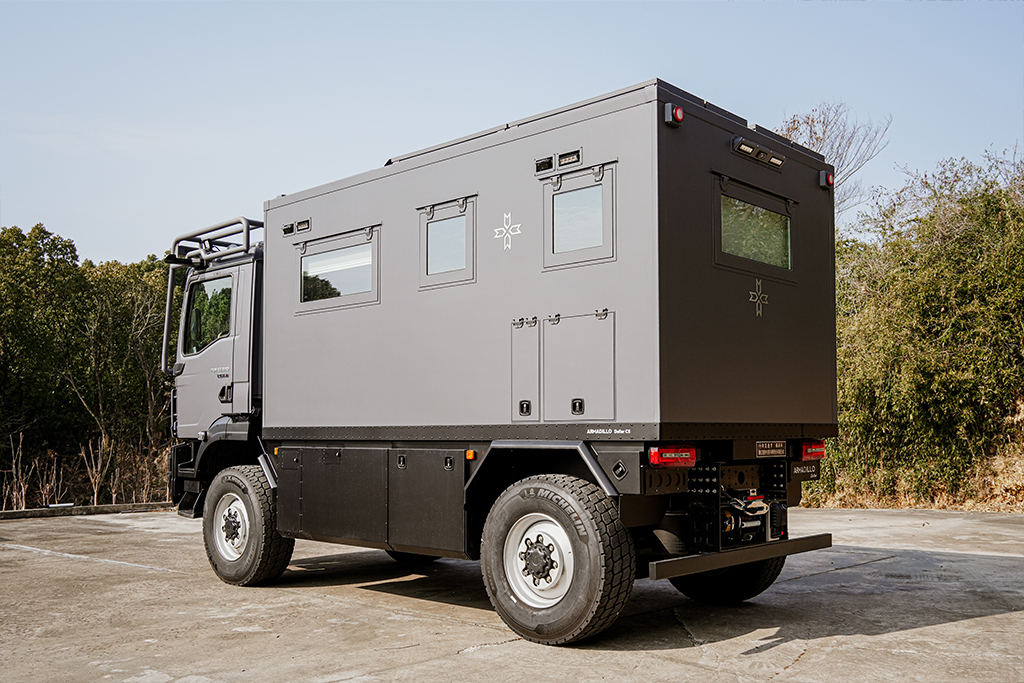

Body:
Carbon fiber sandwich panel construction
Inner and outer skins made of ultra-high-strength carbon fiber; PMI foam core for insulation
Thermal bridge-free construction for cold weather resistance and insulation
Armadillo 3-point floating subframe system
Main Entry Door: Armadillo exclusive design, equipped with imported electric door lock (keyless entry via code or magnetic card), large porthole window (double-glazed, vacuum-sealed Low-E coated glass), and marine-grade double-layer honeycomb sunshade
Windows: Armadillo exclusive design, double-glazed, vacuum-sealed Low-E coated glass, with marine-grade double-layer honeycomb sunshade and mosquito screens
Staircase: Aluminum 3-step, automatic

Electrical System:
Imported 5 kW inverter/charger
Imported power management system

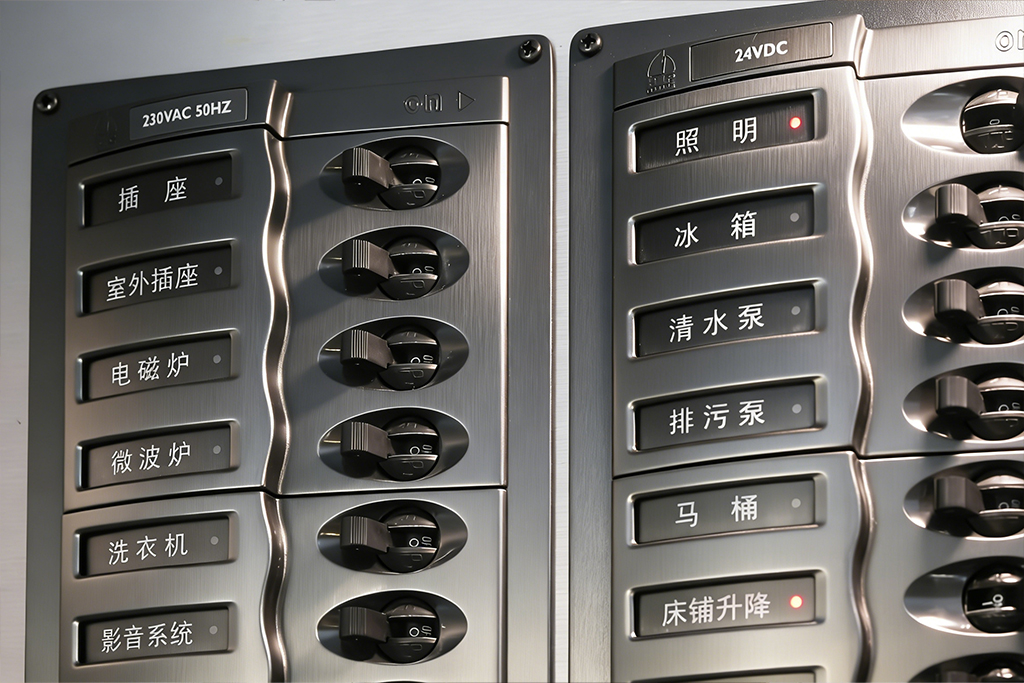

Imported distribution panel with electronic circuit breakers
Imported battery isolator
940 Ah, 24 V lithium iron phosphate battery pack
8 x 110 W solar panels
Power supply emergency shutdown protection
Solar system emergency shutdown protection
Mains power connection, external power outlet
Dedicated interior lighting and exhaust fan switches

Water Supply and Drainage System:
400-liter stainless steel freeze-proof fresh water tank
Smart water pump
Pressure-fed water inlet with pre-filter
Outdoor water intake / campsite water connection / air intake port
100-liter gray water tank
180-liter black water tank with electric and manual discharge
8.5-liter high-efficiency water heater with electric heating
Winter insulation and hot water circulation system for fresh water tank and supply lines

Air Conditioning and Heating System:
DC Inverter Split-Type Air Conditioner
Positive-Pressure Fresh Air System
Imported 9 kW Fully Automatic Diesel Hot Water Boiler
Underfloor Heating System
Radiators in Bathrooms
Imported 4 kW Diesel Heating System

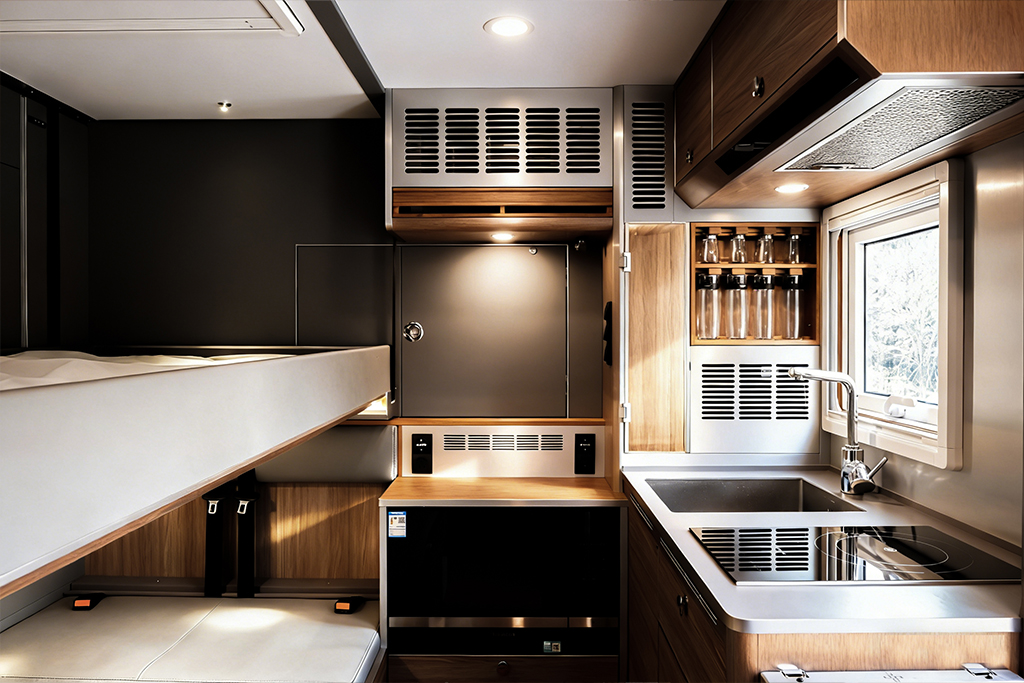

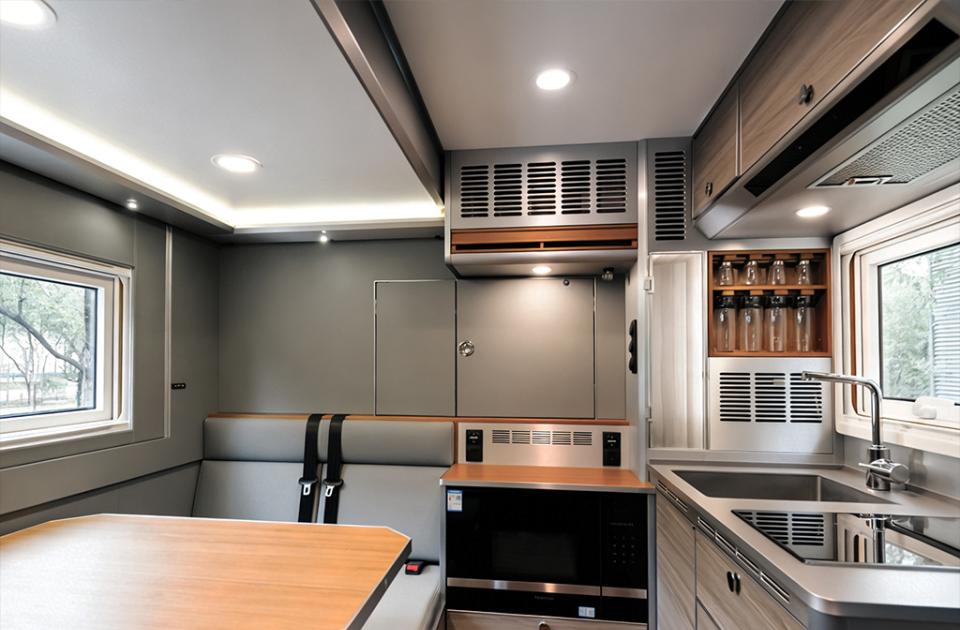

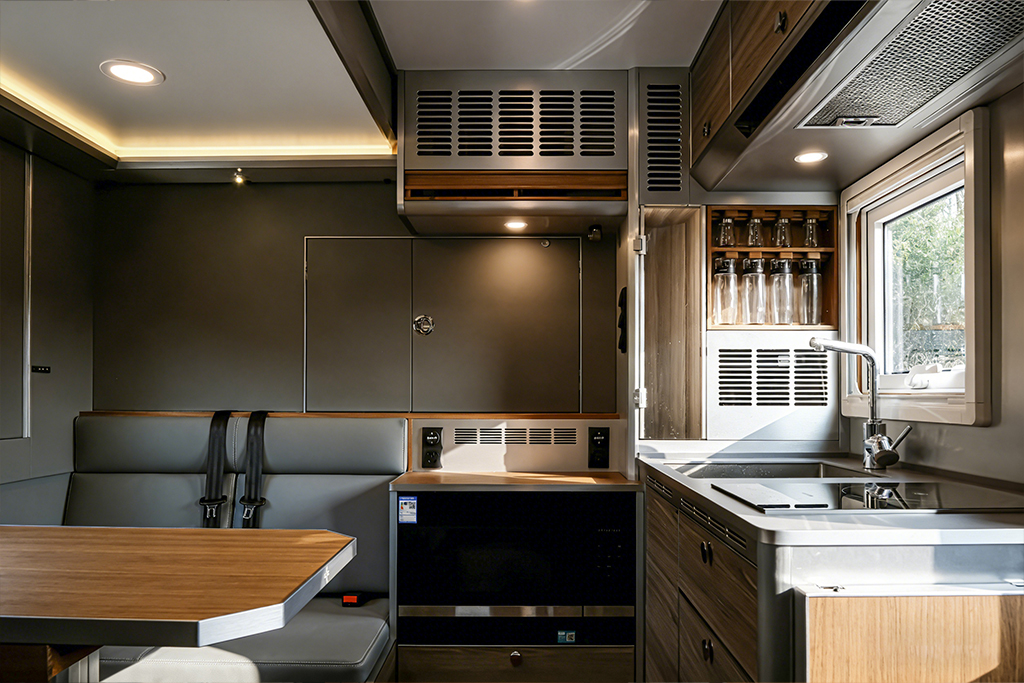

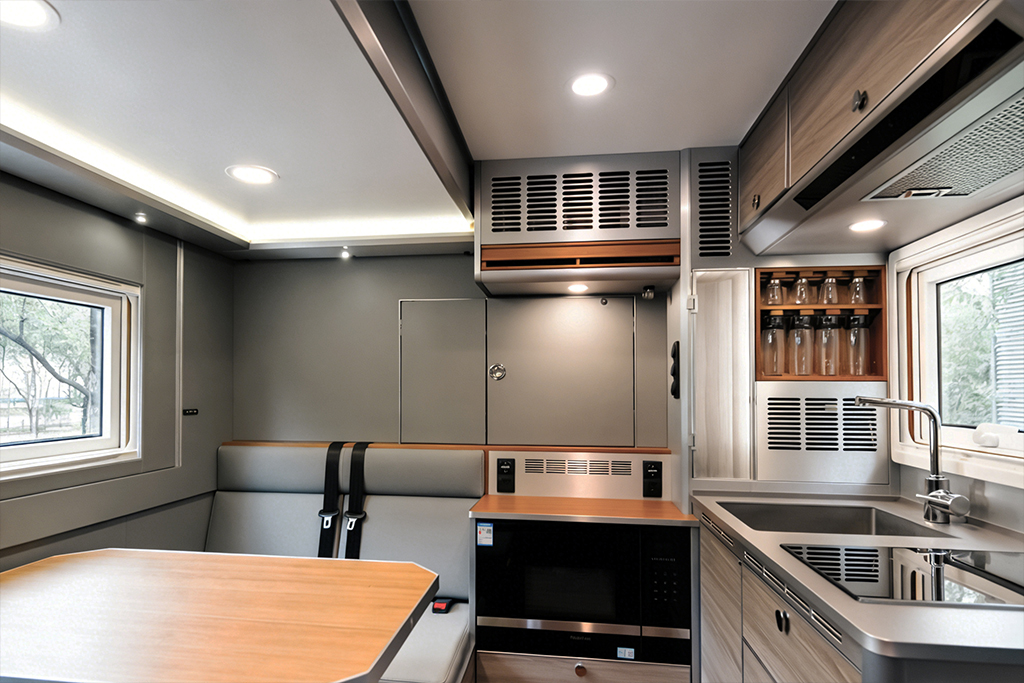

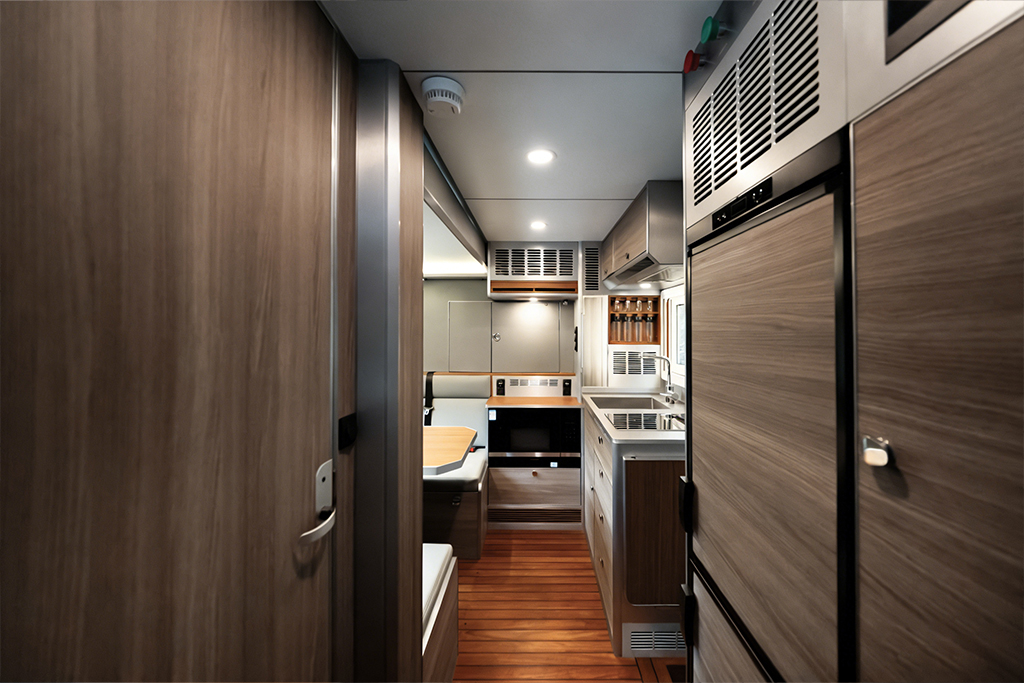

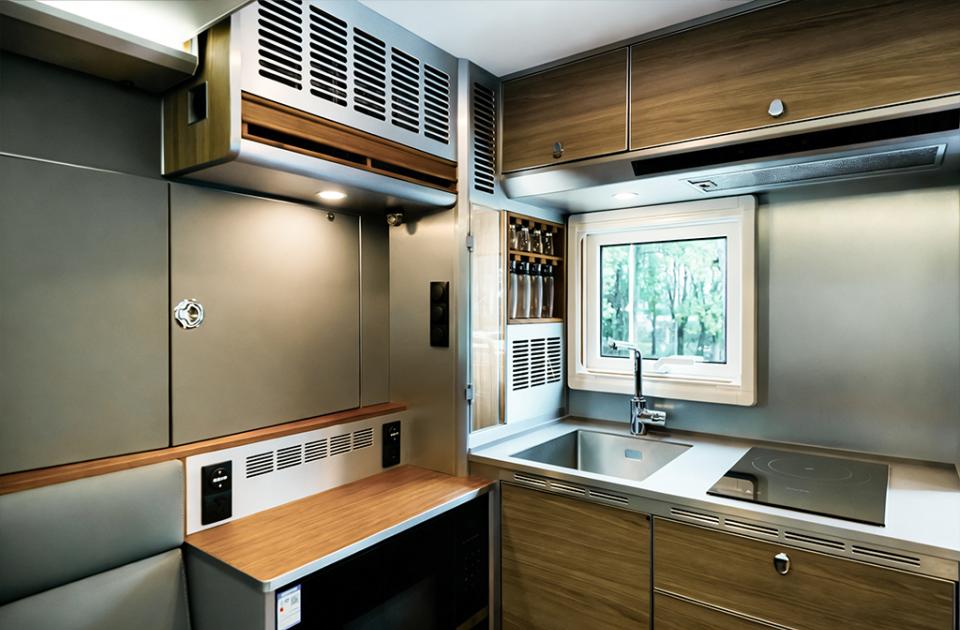

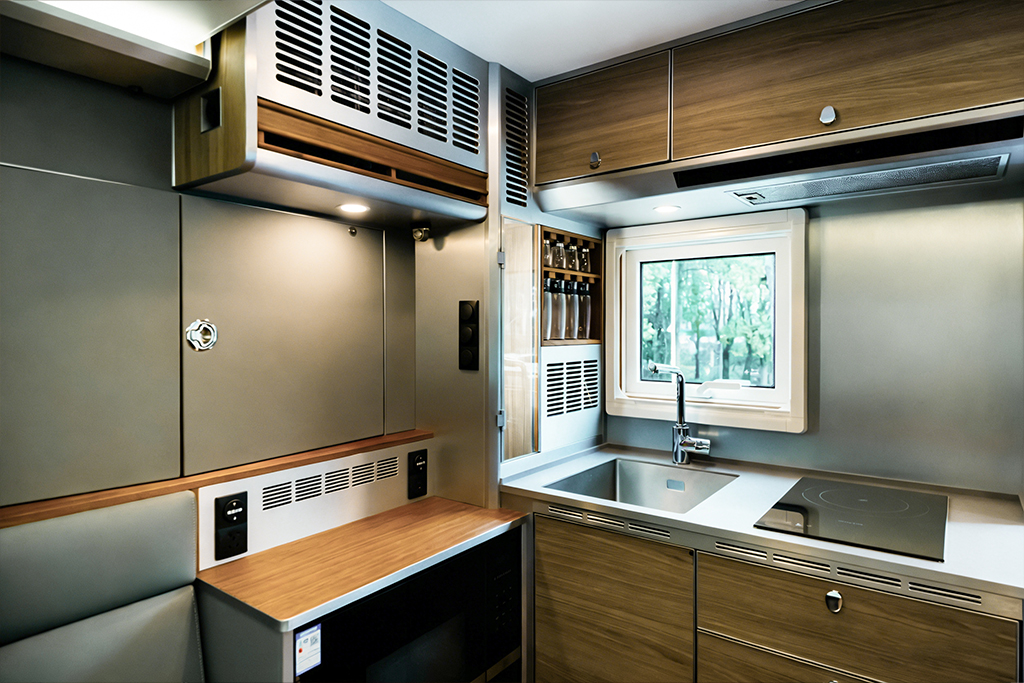

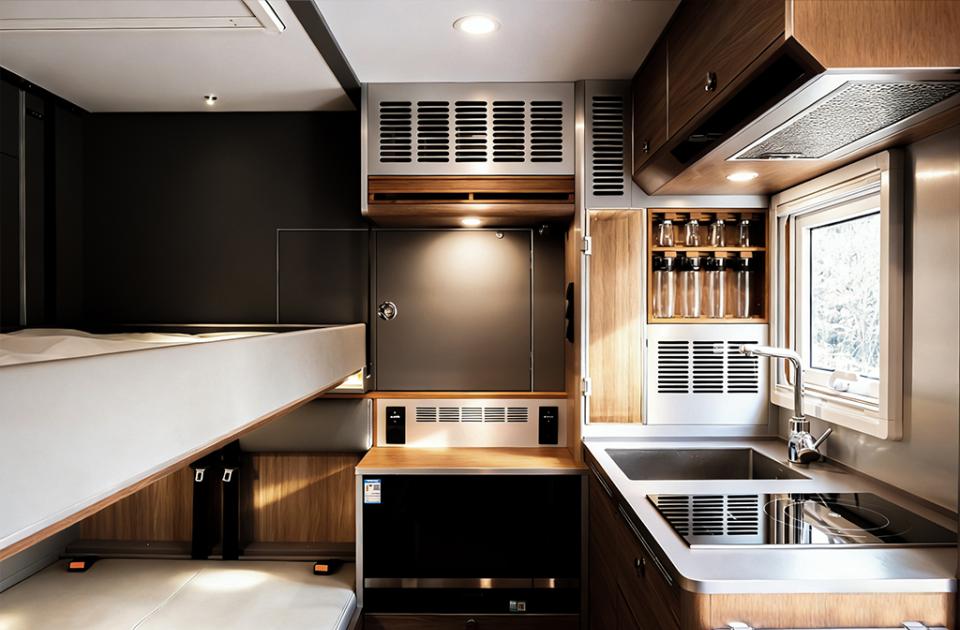

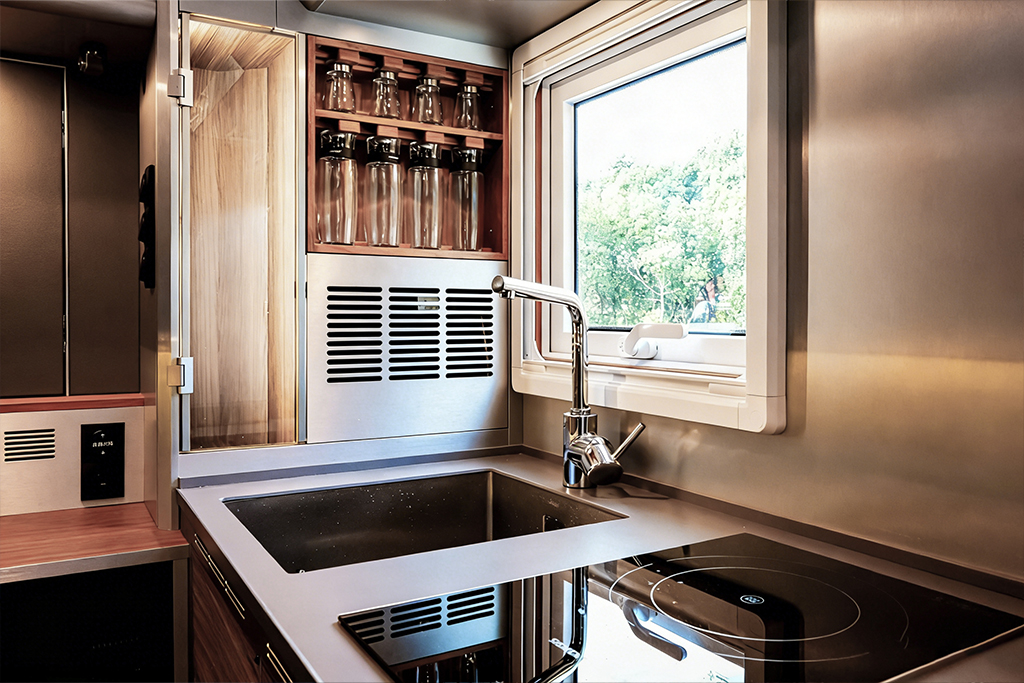

Kitchen Equipment:
Stainless Steel Sink and Imported Hot/Cold Water Faucets
Imported Built-in Induction Cooktop

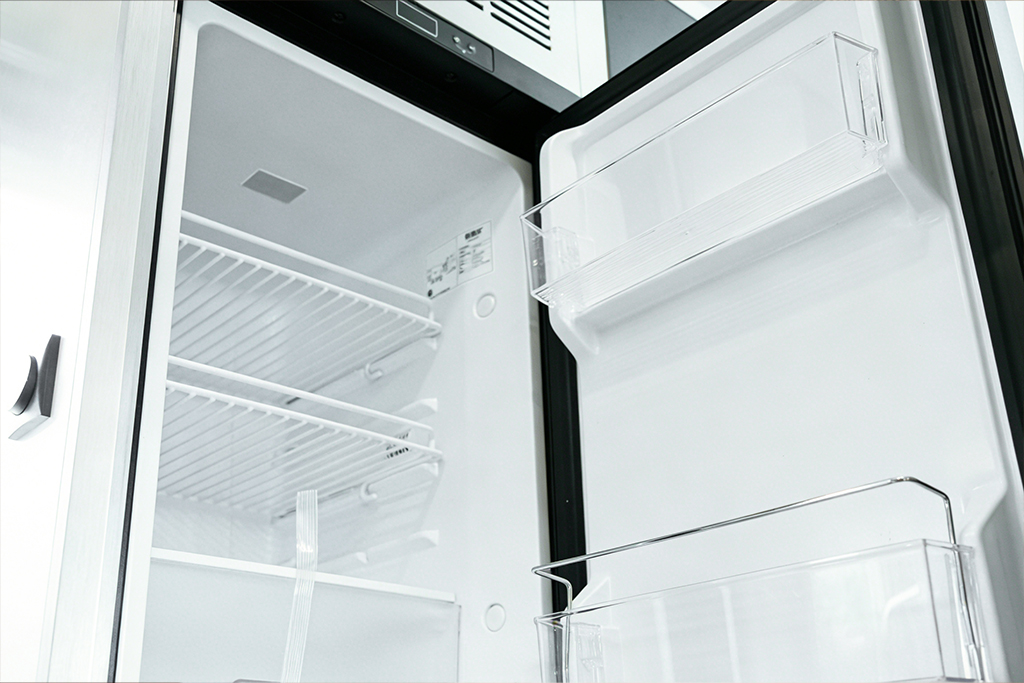

Refrigerator

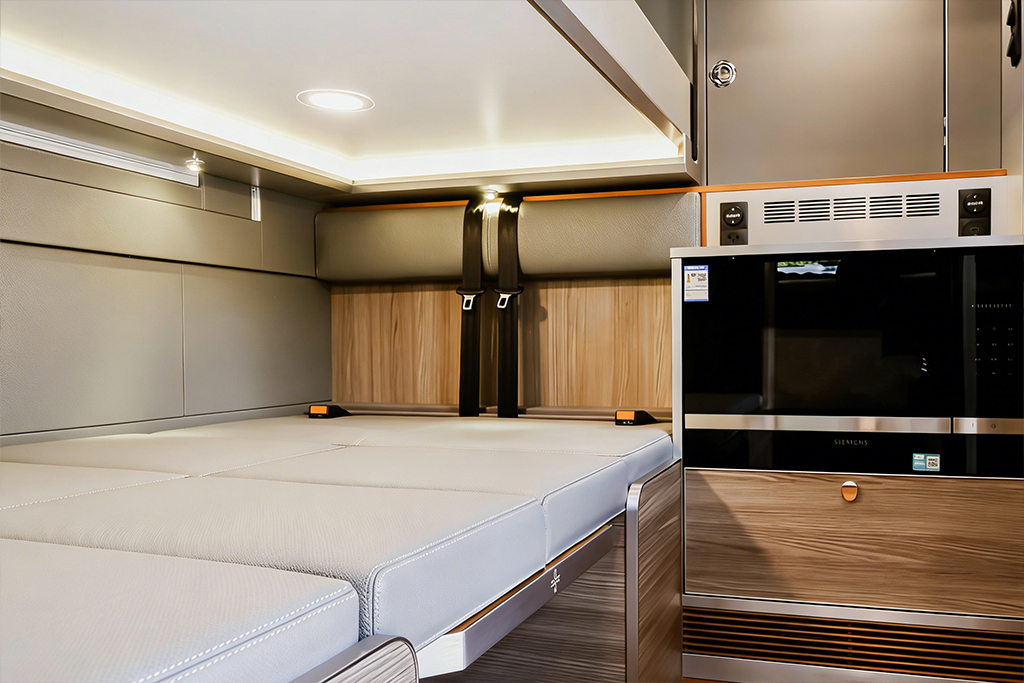

Imported Built-in Microwave-Oven Combo

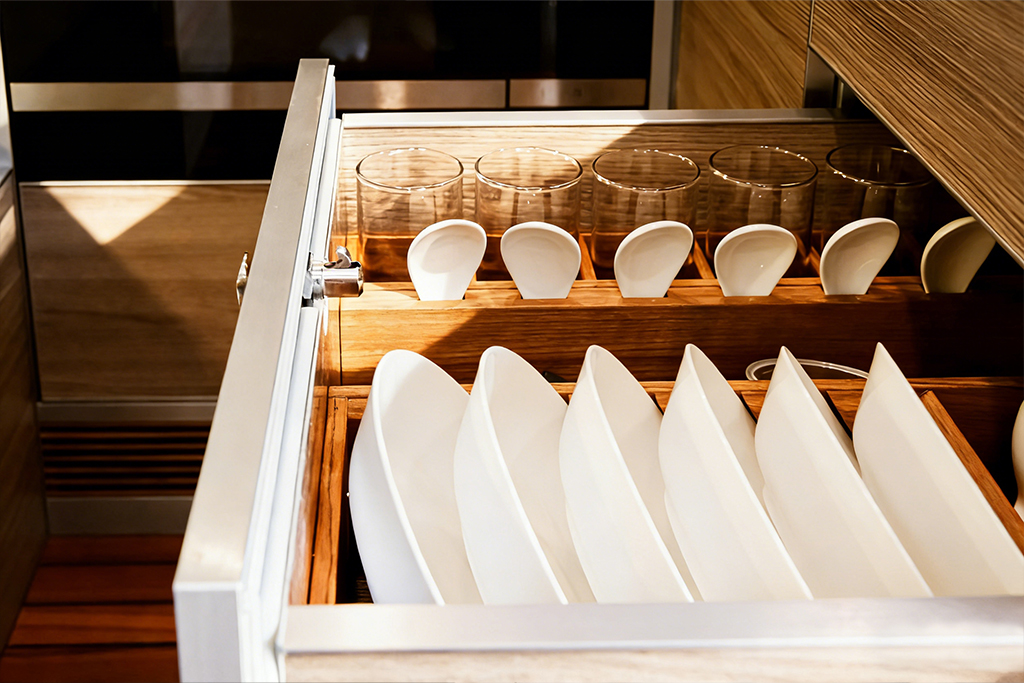

Complete Set of Kitchenware
Range Hood

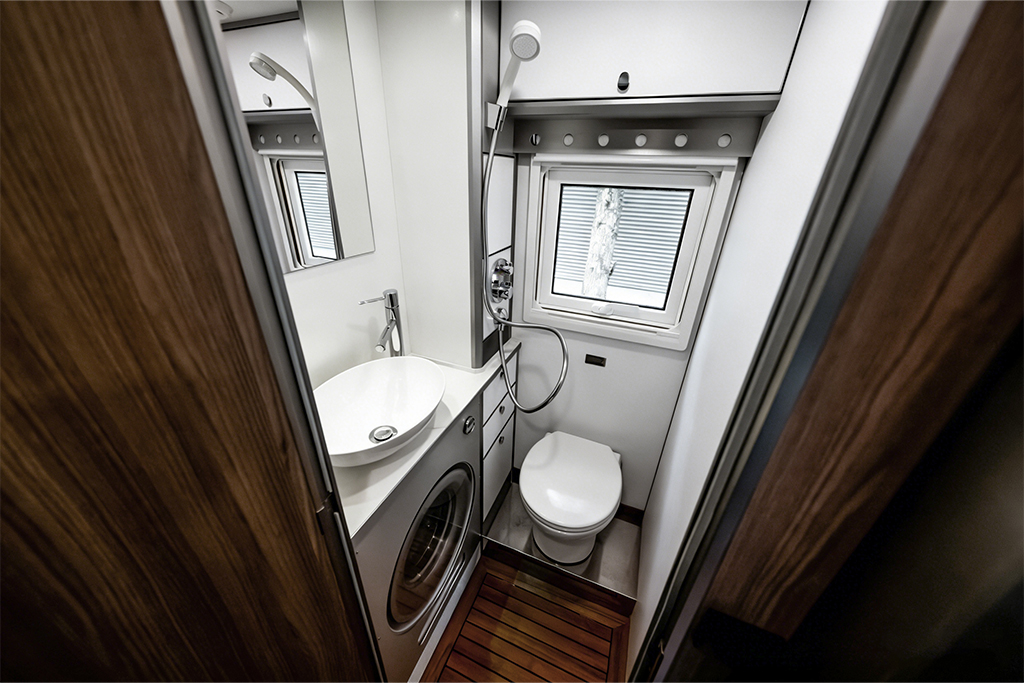

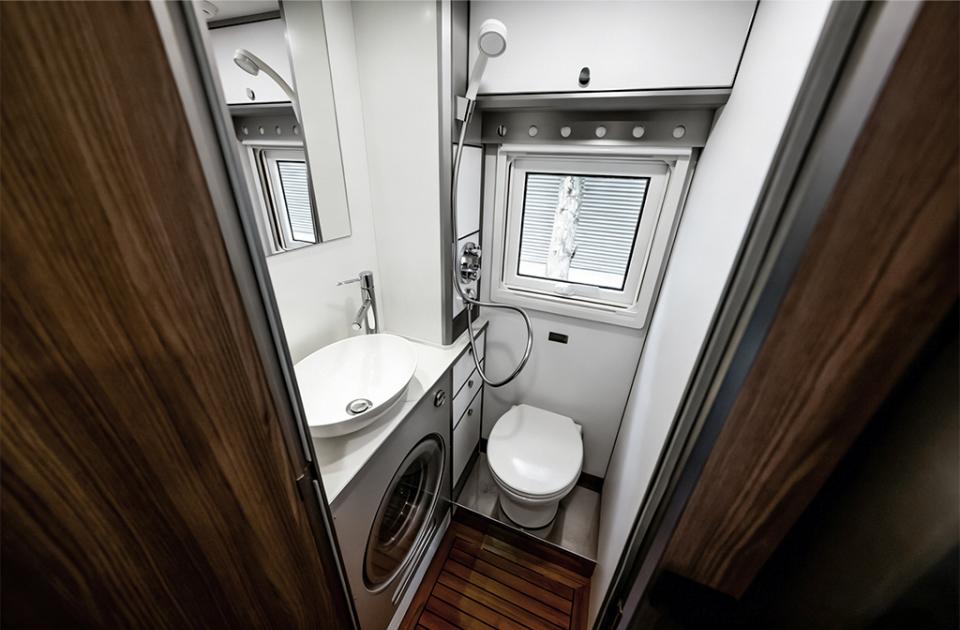

Bathroom Equipment:
Imported brand electric suction macerating toilet
Imported brand thermostatic mixer and shower set
Washbasin, imported brand faucet, makeup mirror
Ventilation system
Radiator

Other Configurations:
Aluminum alloy roll cage for the cab, LED strip work light
Reverse camera (original vehicle screen + original vehicle camera)
Natural latex + 3D structure sofa and mattress
Pass-through hatch between the living compartment and the cab
Surround lighting
Side-mounted awning, 4000 mm long
Spare tire carrier
Side-mounted storage box

Optional Configurations:
Outdoor kitchen
Rear-mounted bicycle rack
Side-mounted awning, 4000 mm long
Lift-up bed (either/or with the TV)
Mini washing machine
Bluetooth speaker
6-channel security monitoring system, 14-inch monitor
18,500 lb rear winch
Mobile phone signal booster
