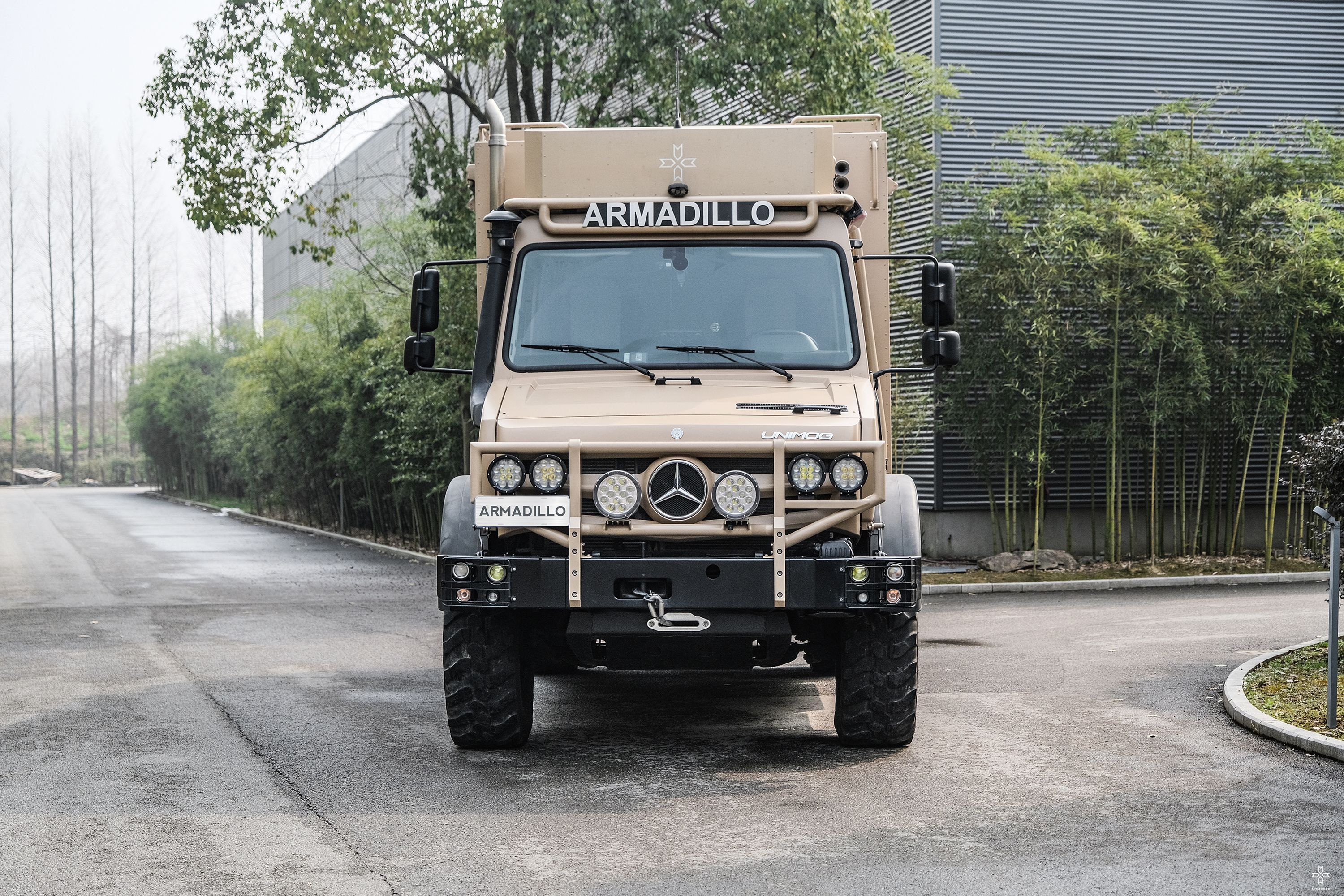

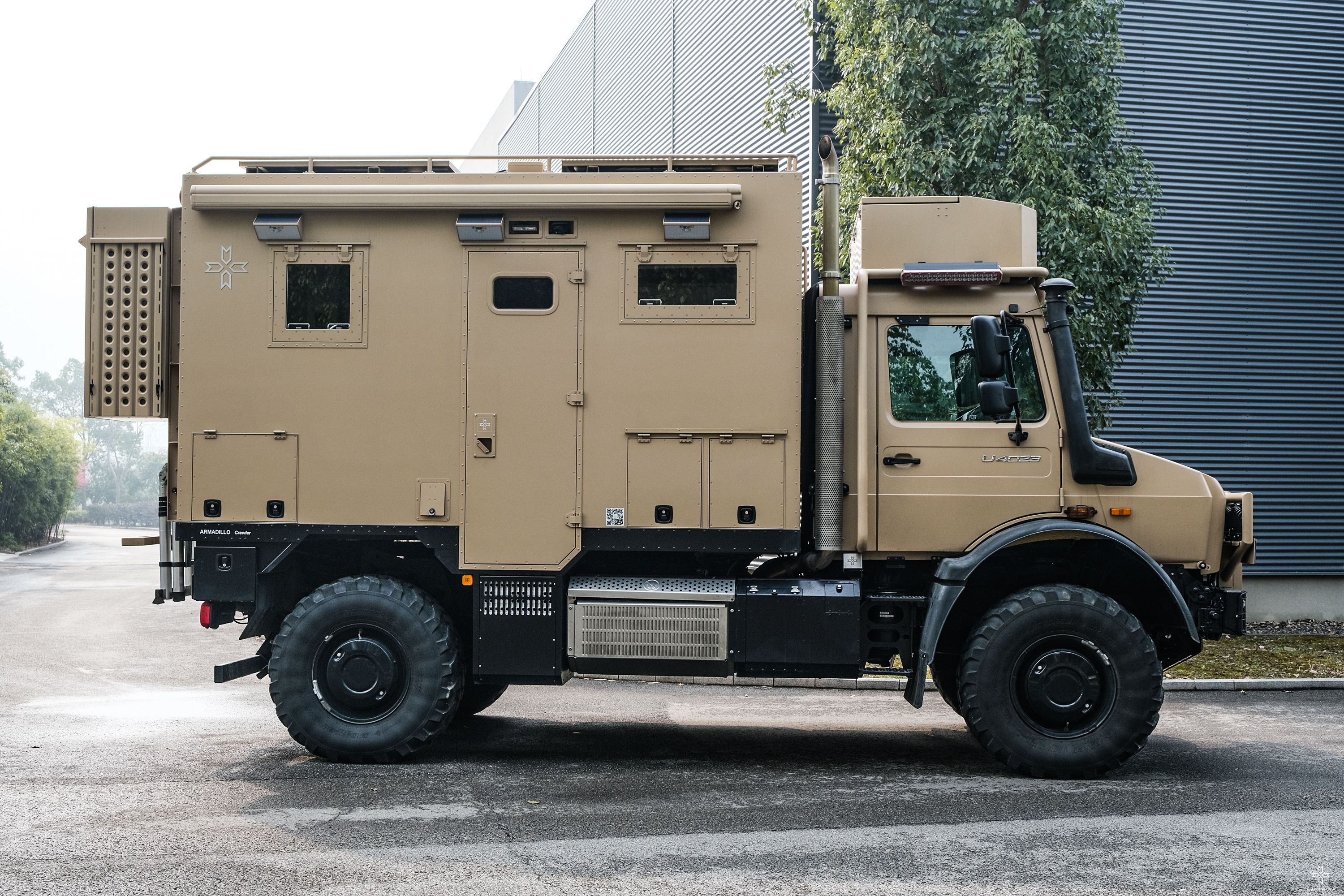

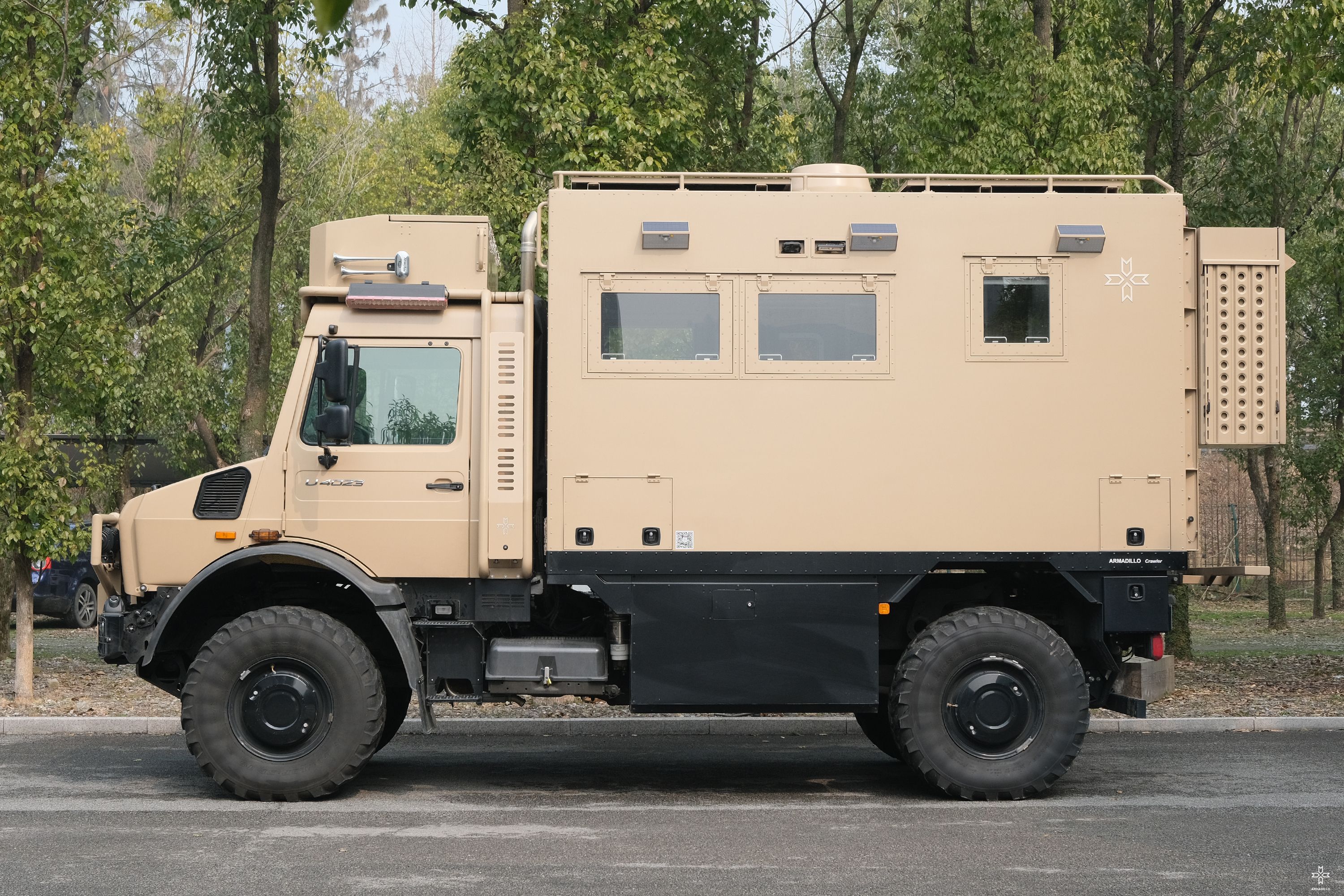

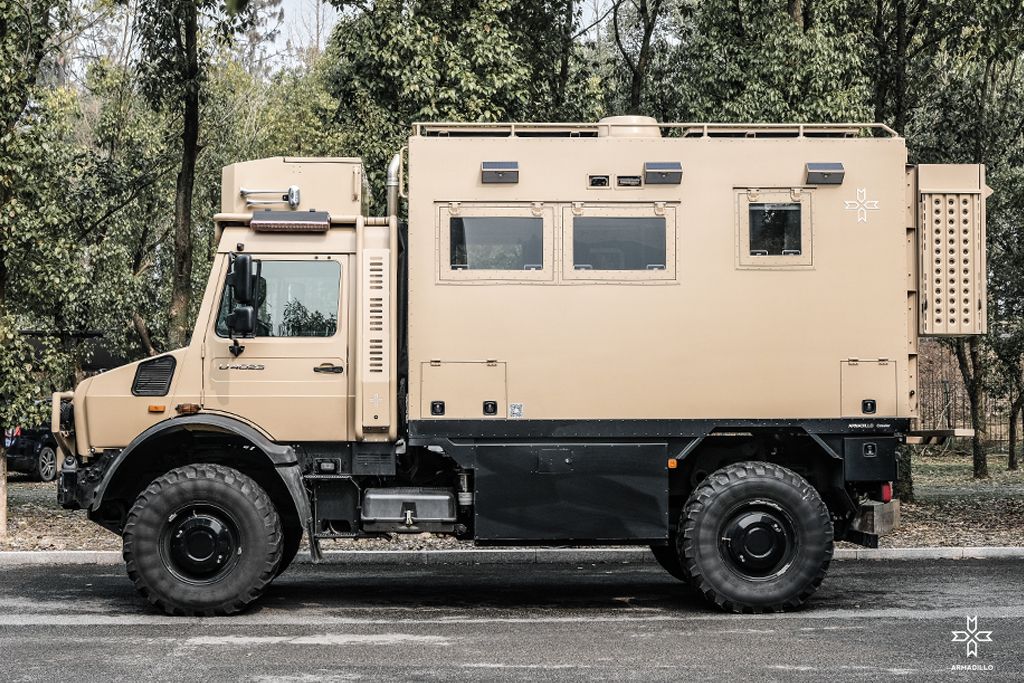

Vehicle information:

Total length: 5995mm

Total width: 2390mm

Total height: 3450mm

Minimum ground clearance: 485 millimeters (based on actual vehicle)

Approach angle: 43 °

Departure angle: 45 °

Vertical passage angle: 41 °

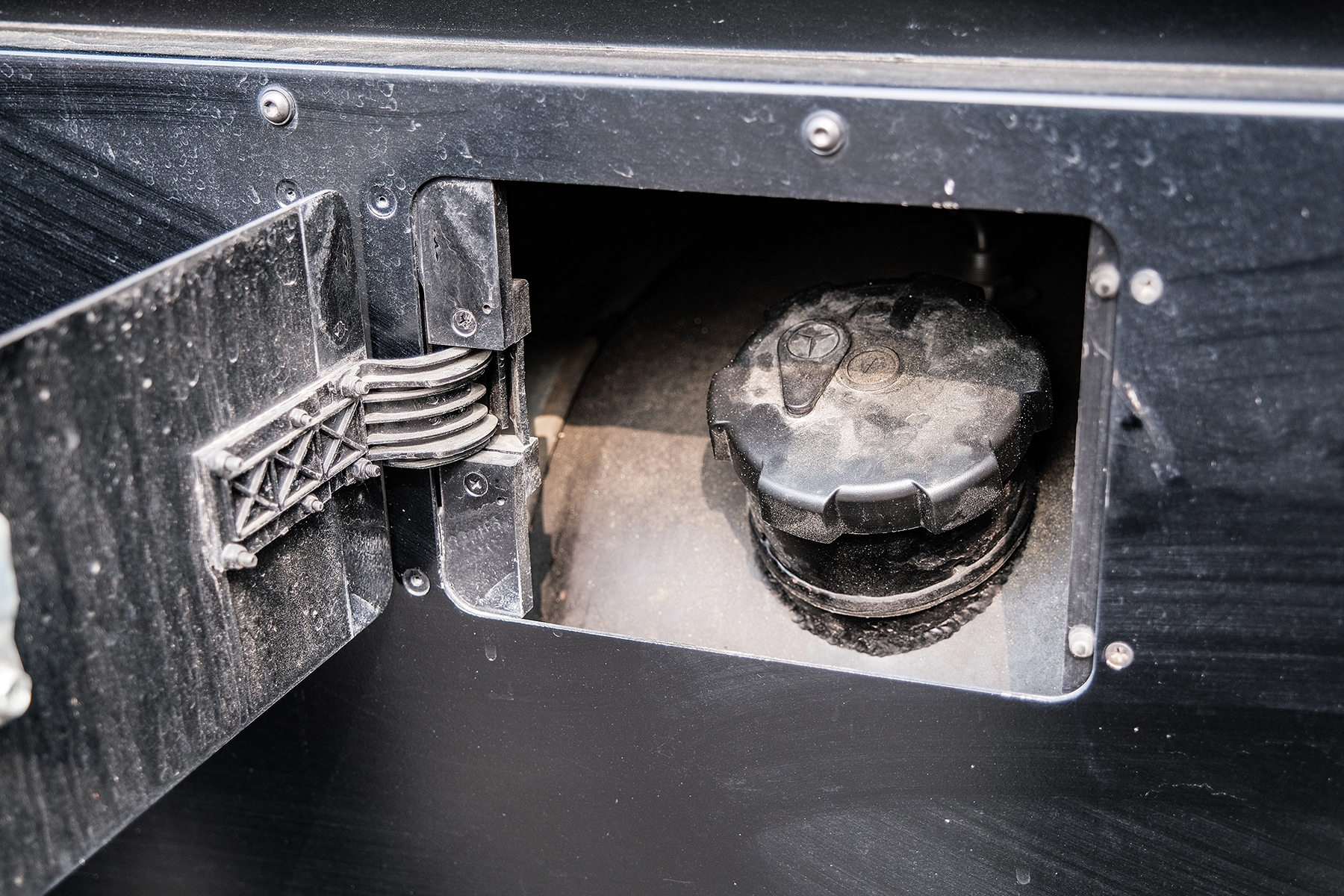

Fuel tank: 320L

Engine: Mercedes Benz 5.2-liter inline 4-cylinder diesel engine

Maximum power: 231 horsepower, 170 kW

Maximum torque: 900 Nm, 2200 rpm

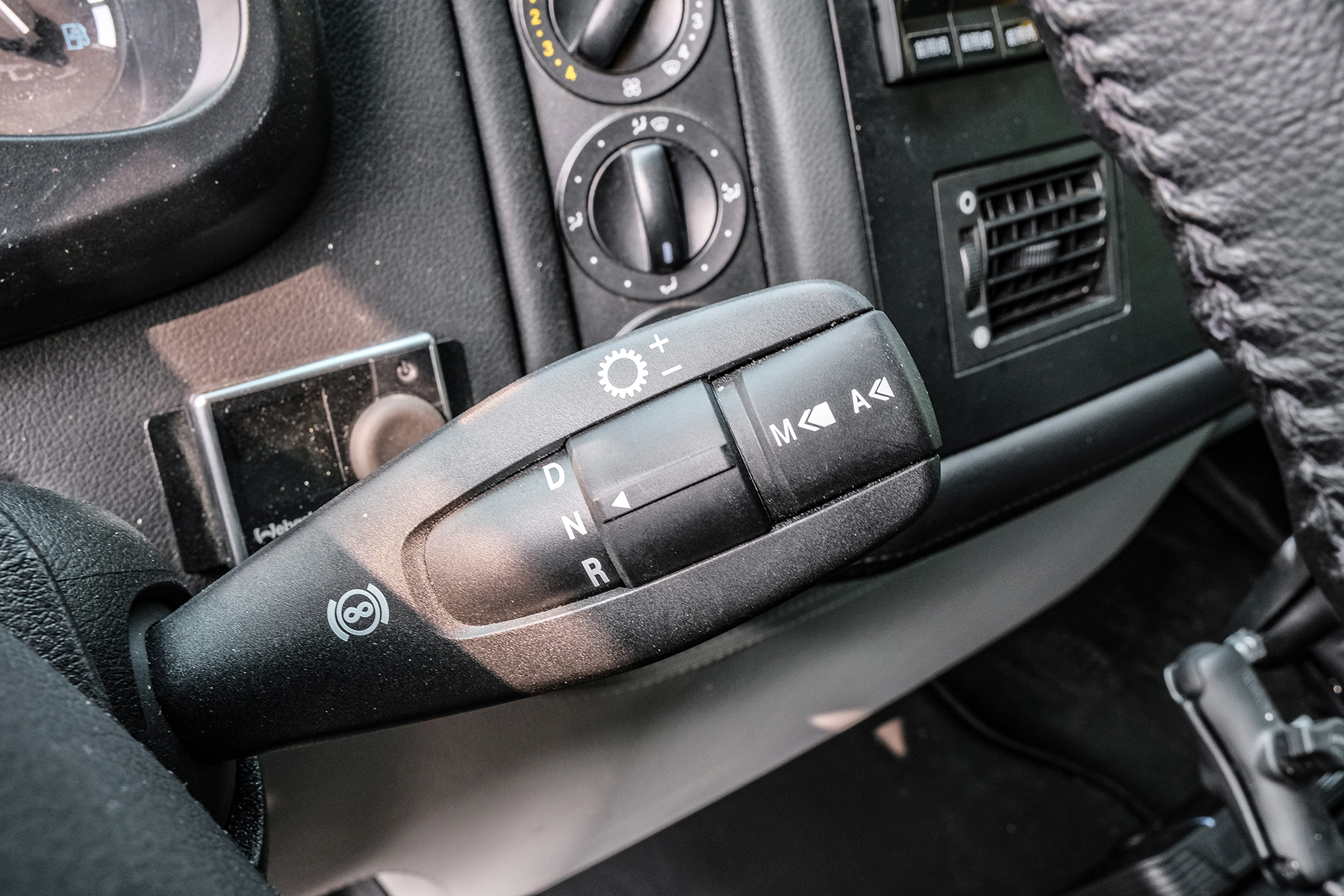

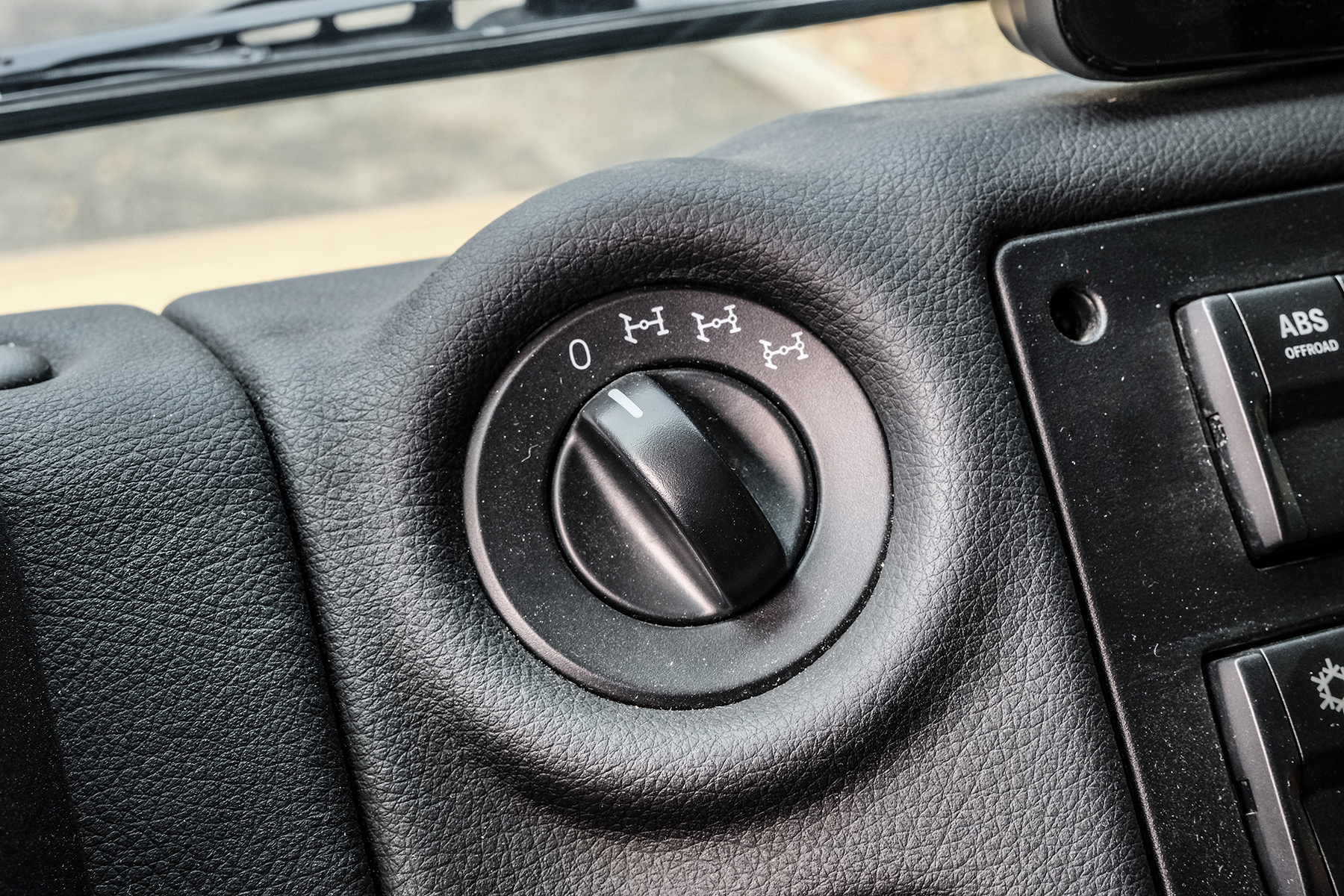

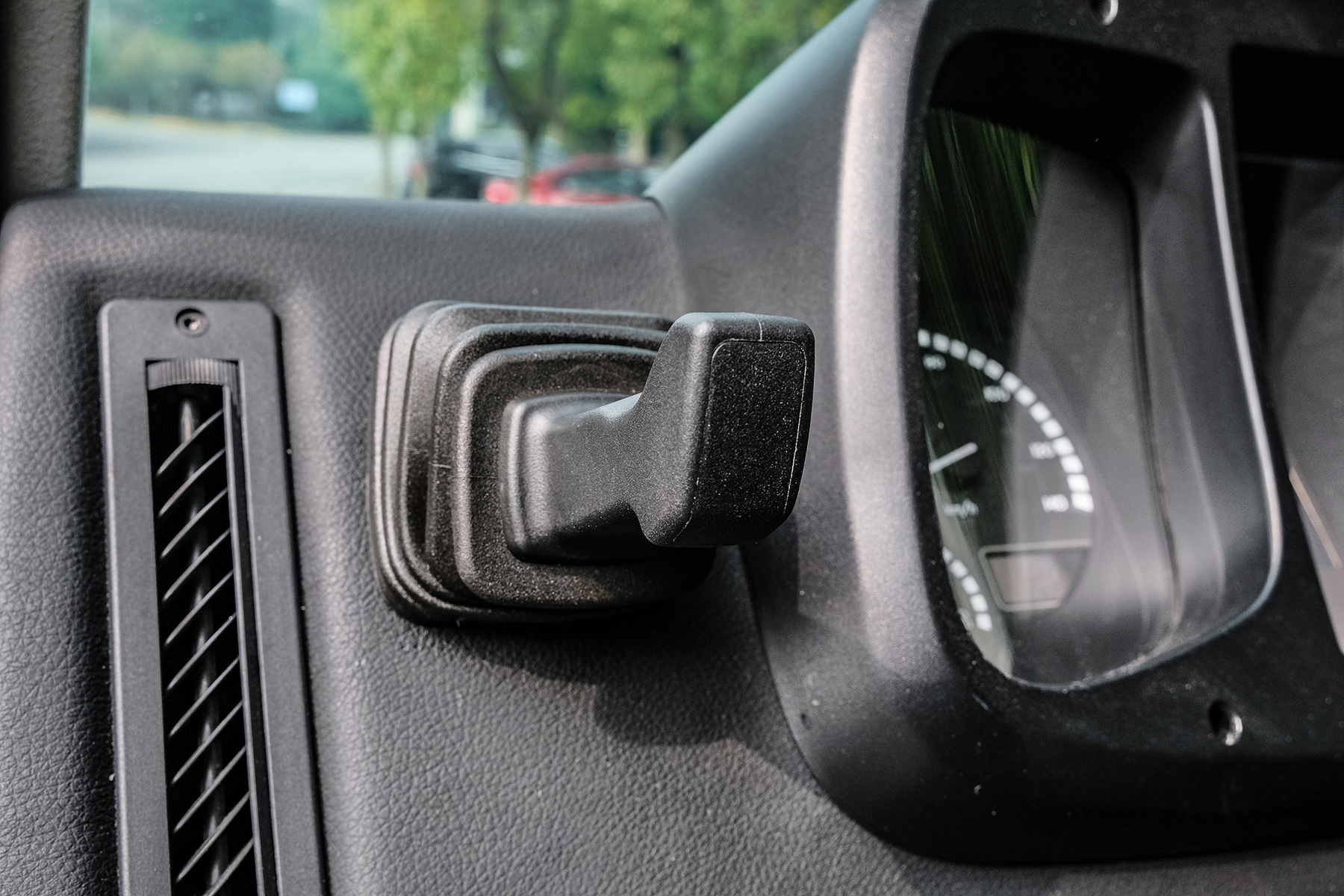

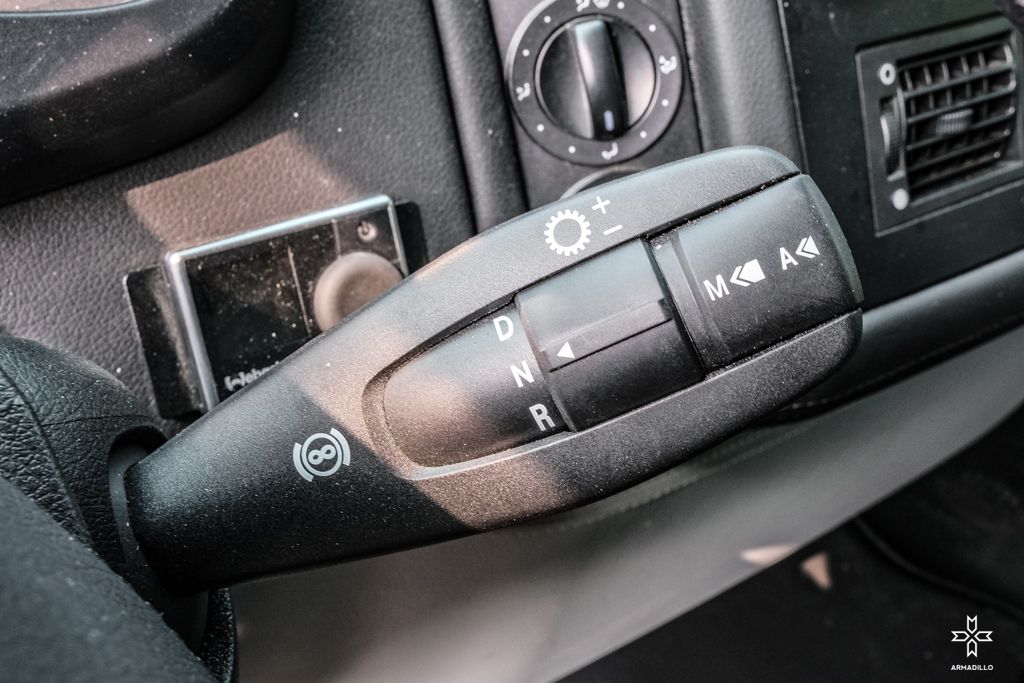

Transmission: The UG100-8 model can switch between automatic and manual modes, with 8-speed forward and 6-speed reverse transmissions; Equipped with climbing gear and integrated transfer box

Tires: Dunlop 405/70R20, 5 pieces (including spare tire)

Tire inflation and deflation: fully automatic central inflation and deflation system

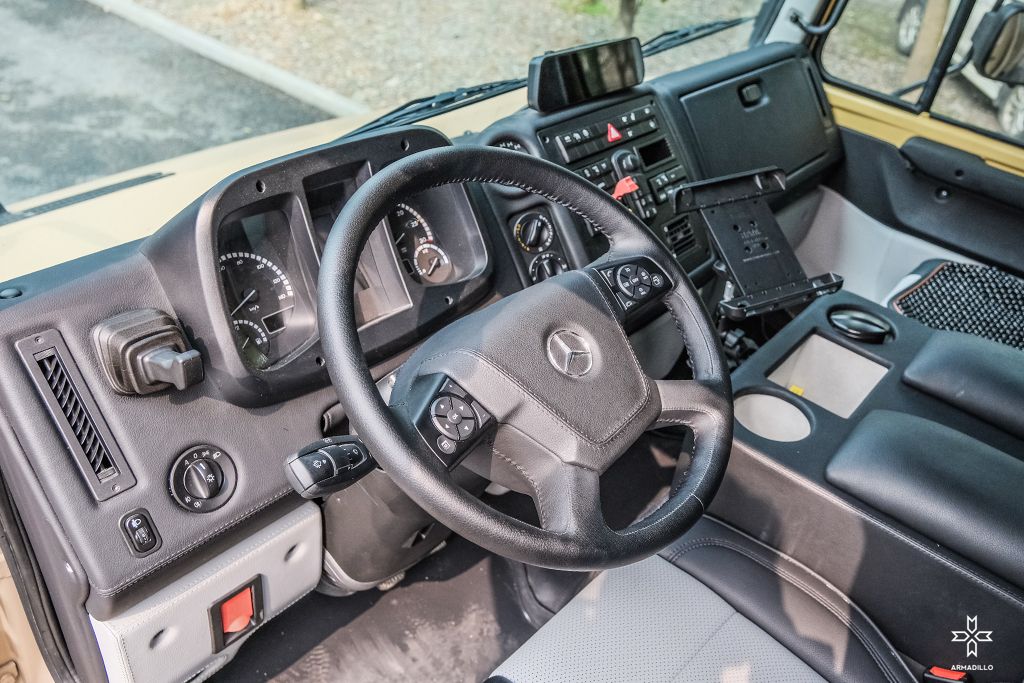

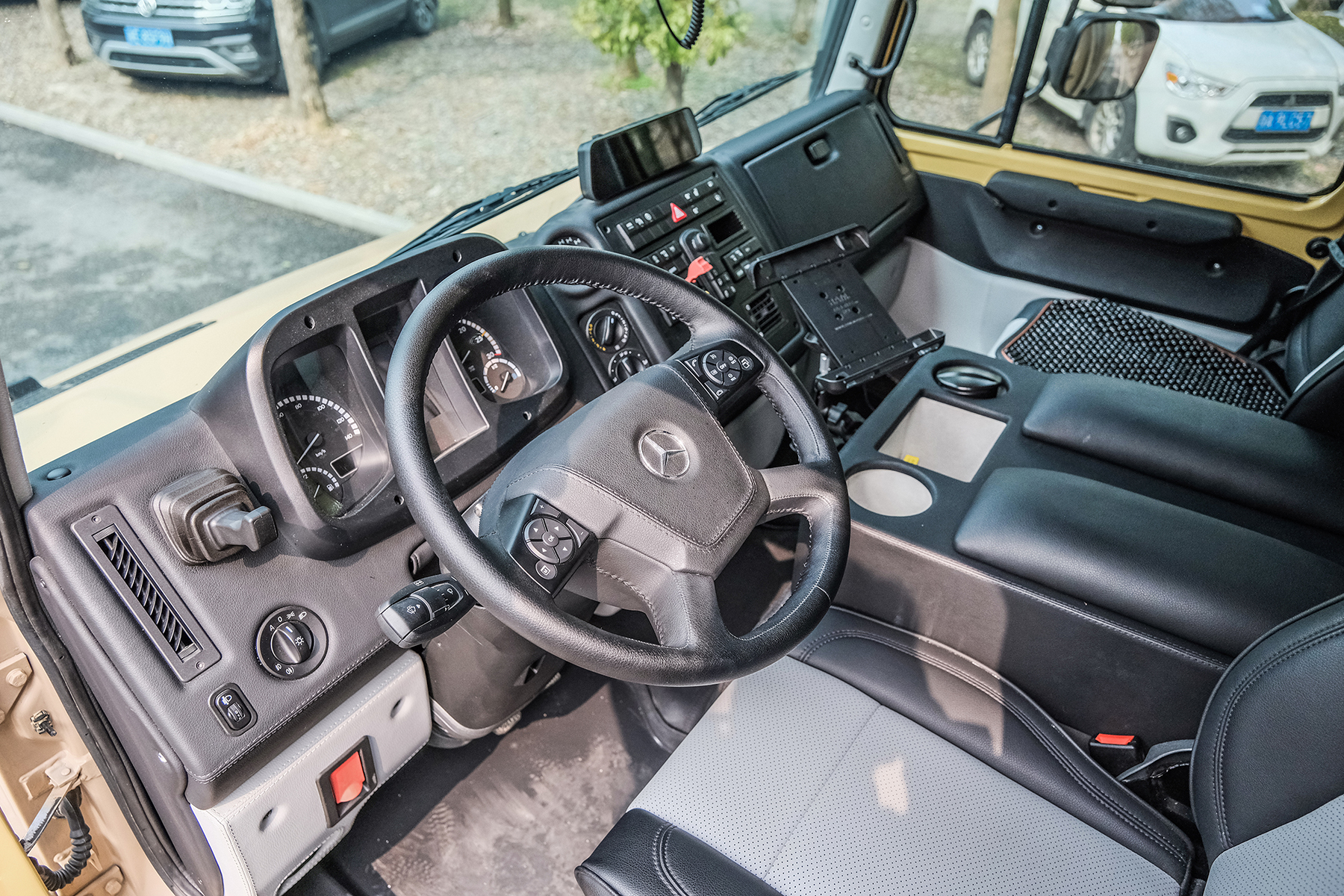

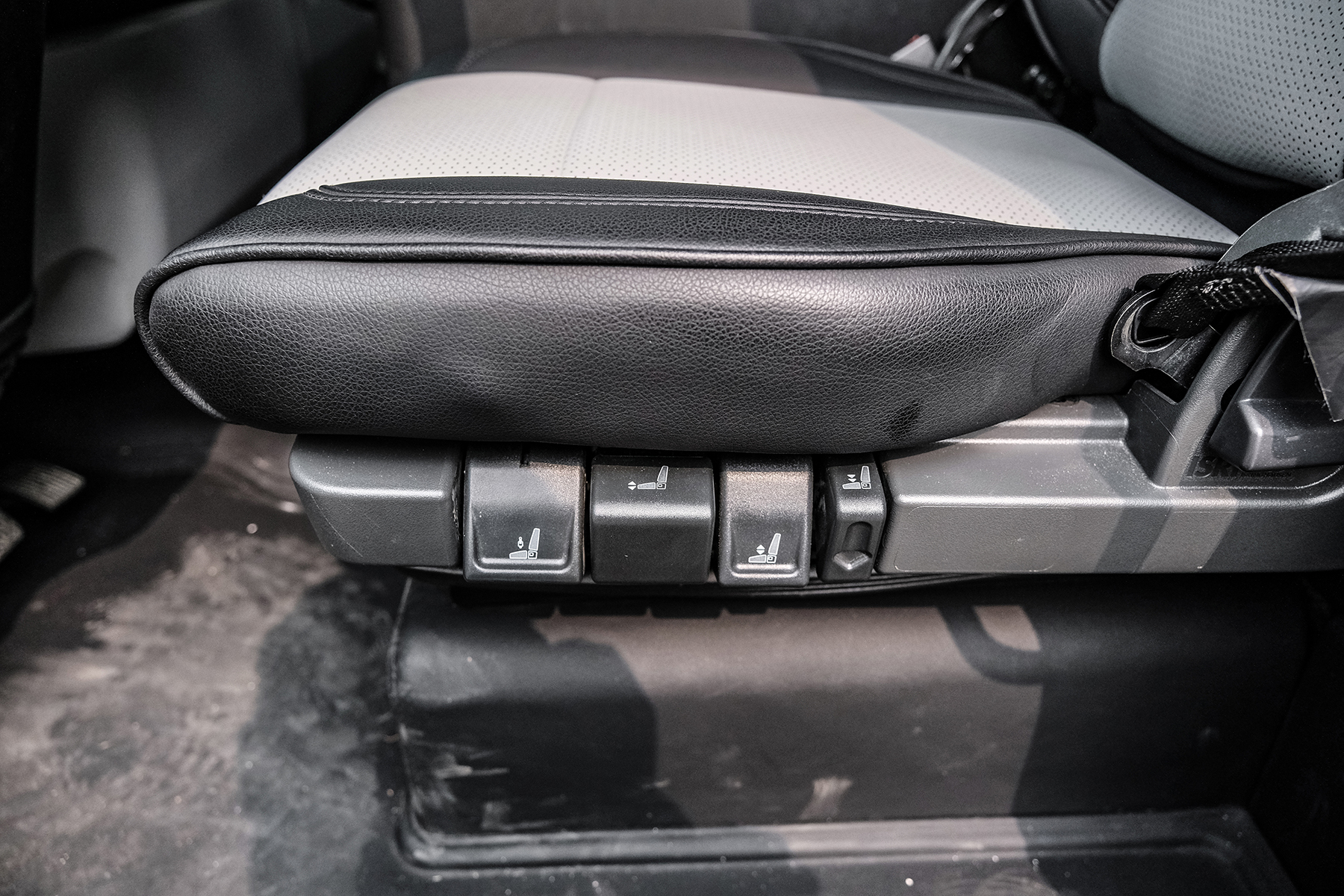

Driver's cab: single row cab with 2 air suspension seats

Power system:

Amordio fully automatic high-power hybrid power supply system

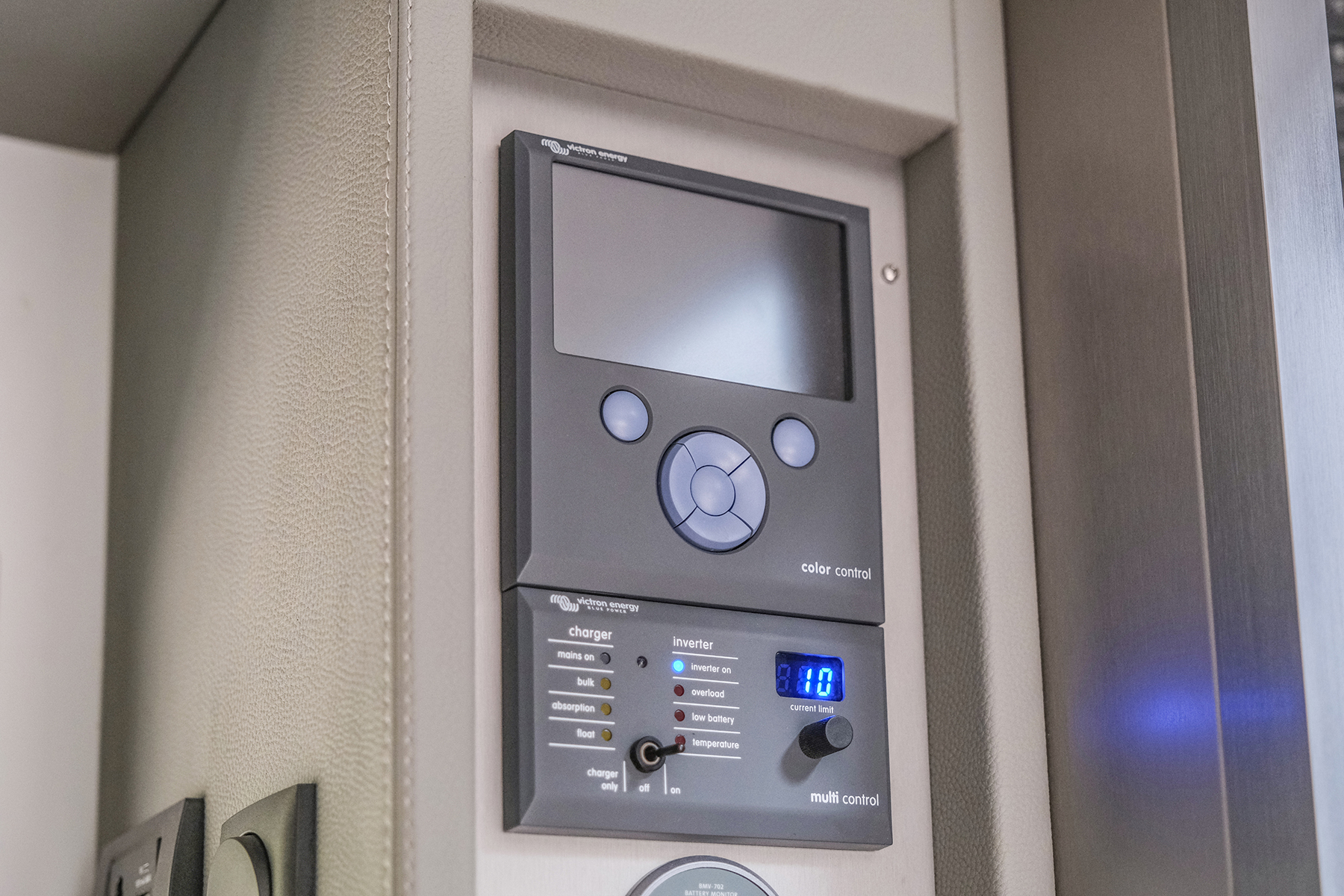

Dutch brand 5kVA inverter charging all-in-one machine

Dutch brand fully automatic intelligent power management system

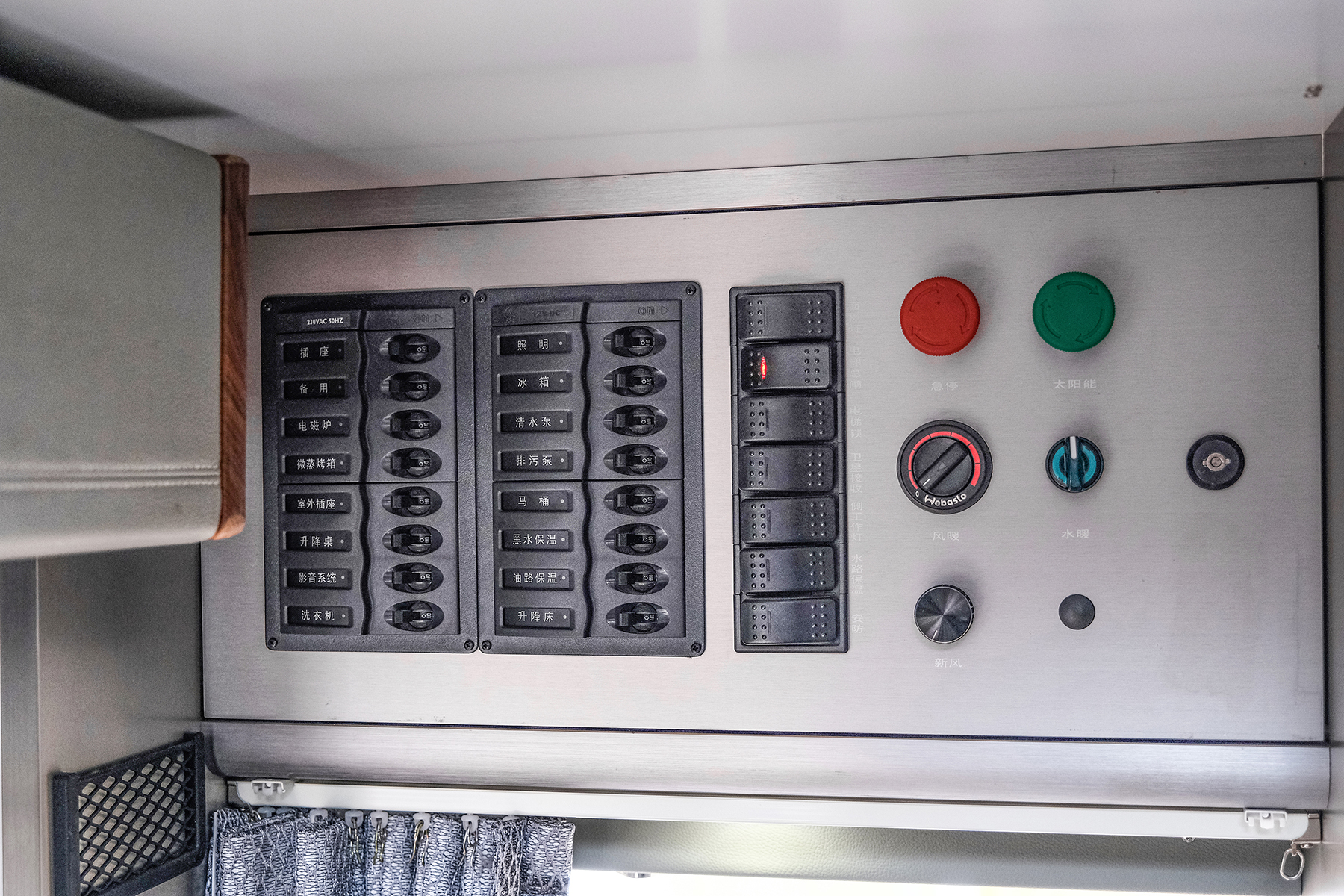

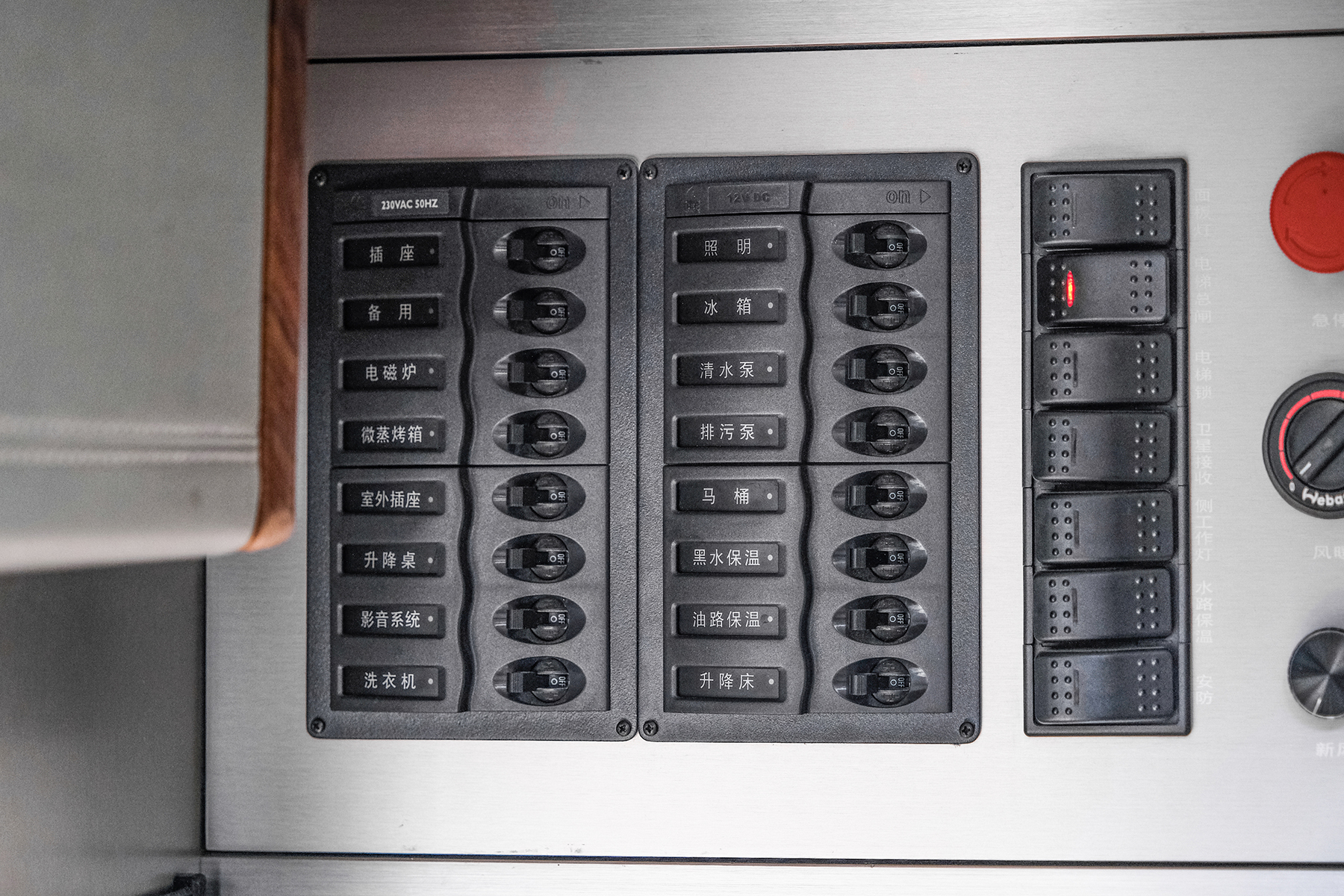

New Zealand brand distribution panel

Dutch brand battery isolator

600 ampere hours, 24 volts, lithium iron phosphate battery pack

Municipal power connection entrance, outdoor power interface

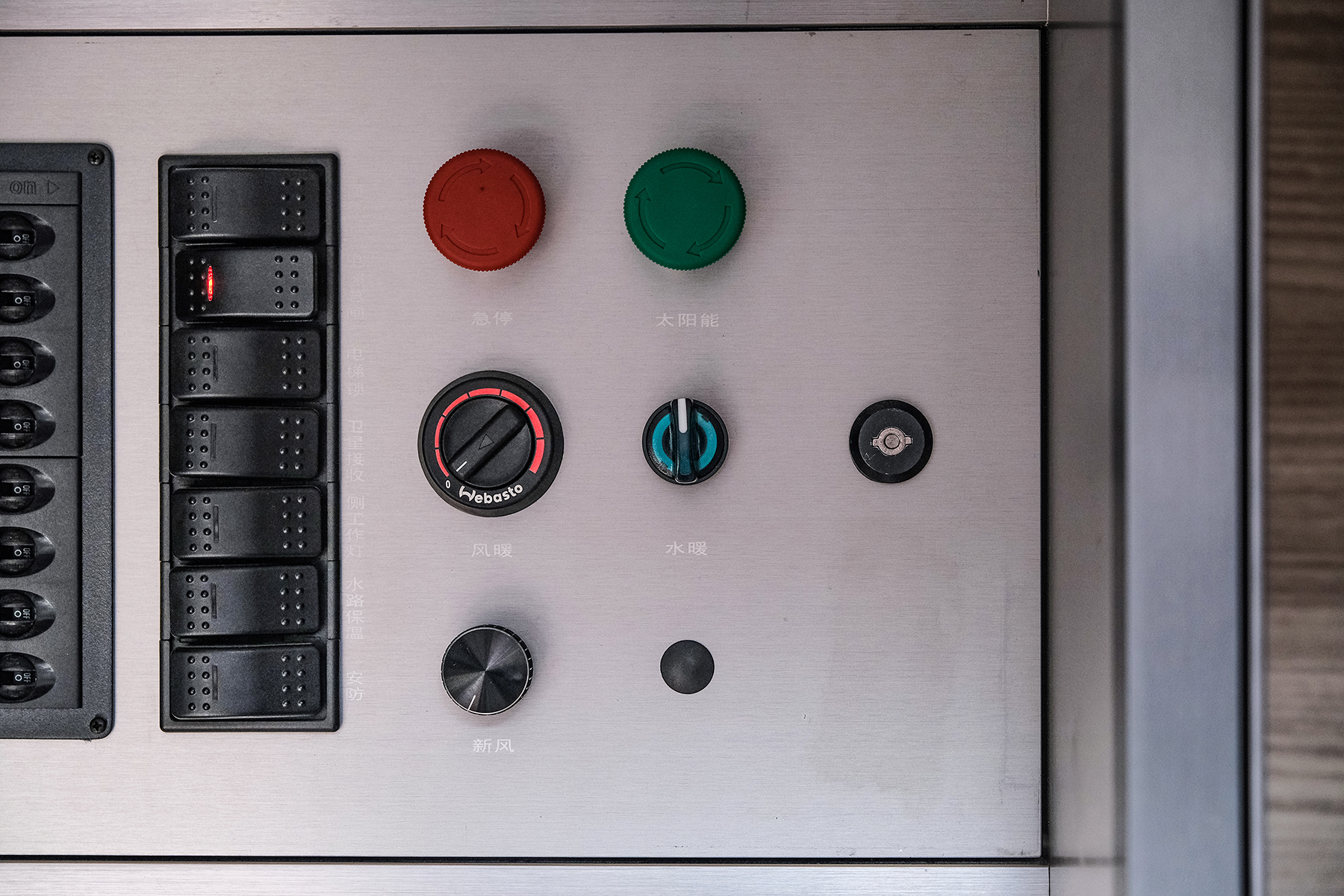

German brand switch, emergency switch for power supply system

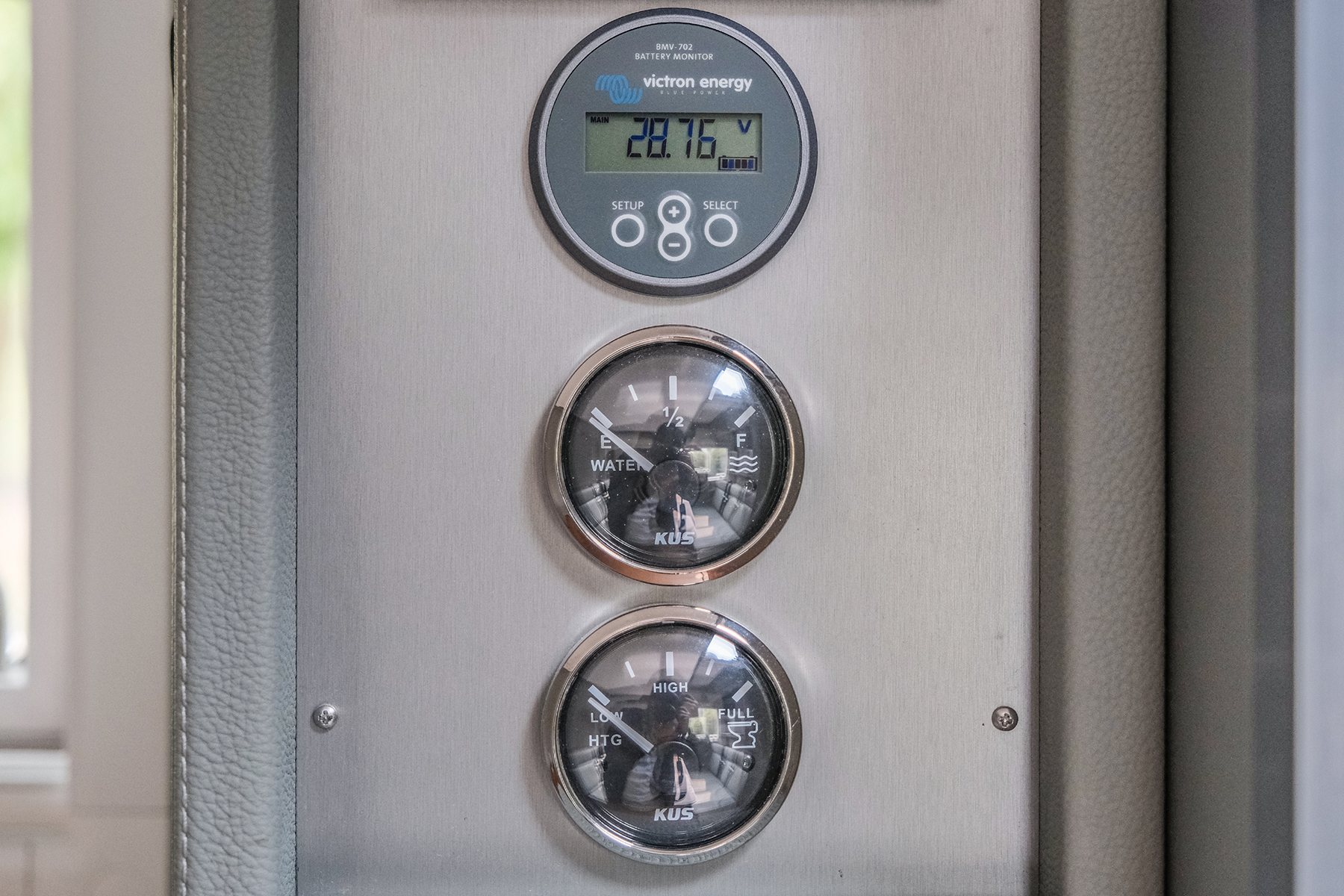

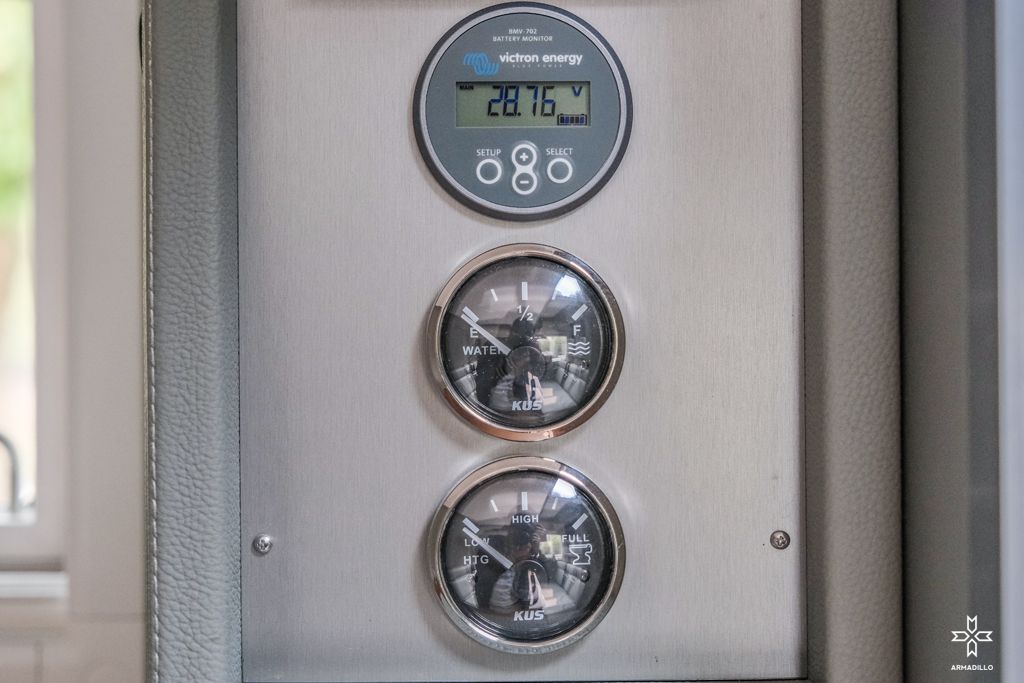

Current monitor

Kitchen system:

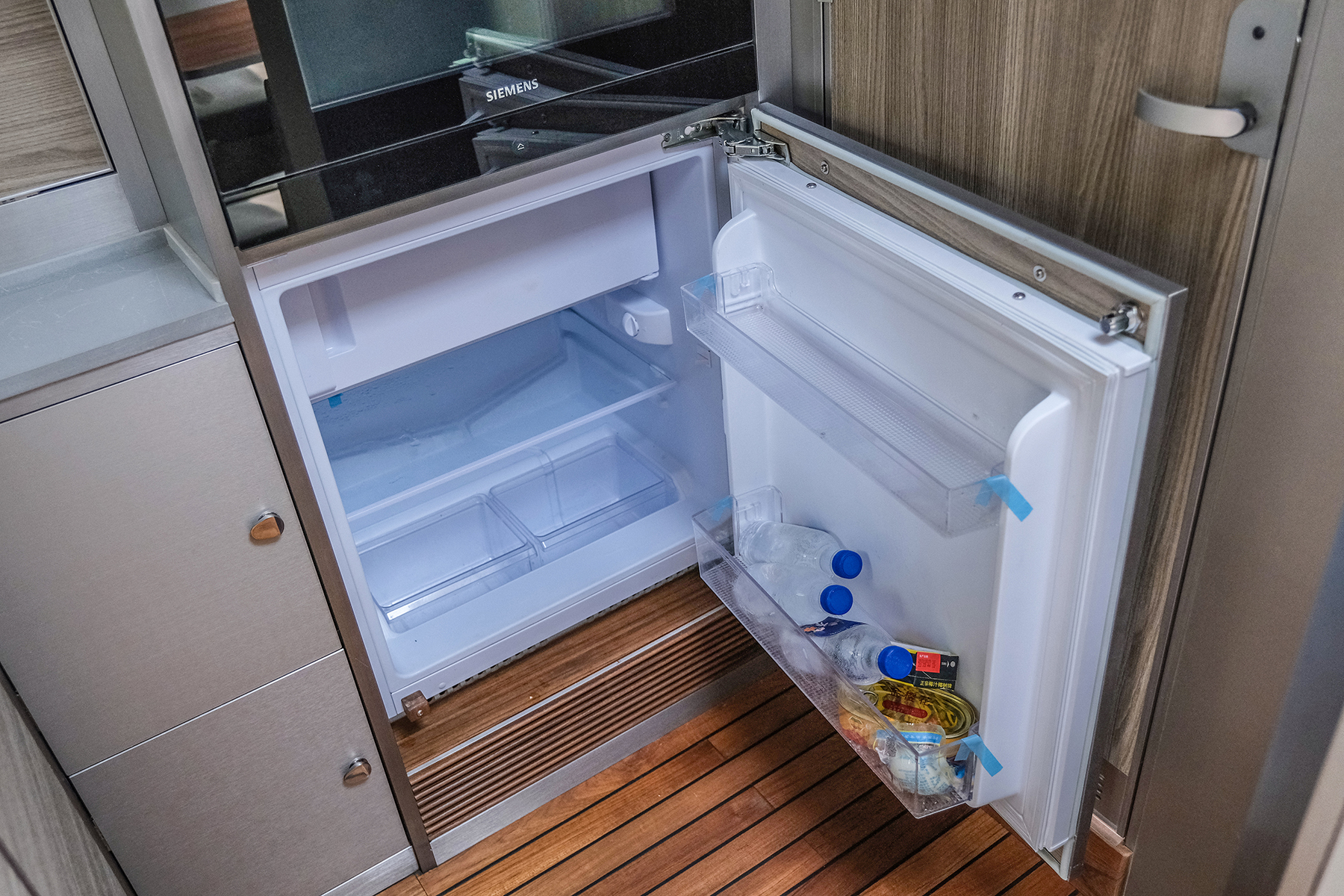

125 liter embedded refrigerator

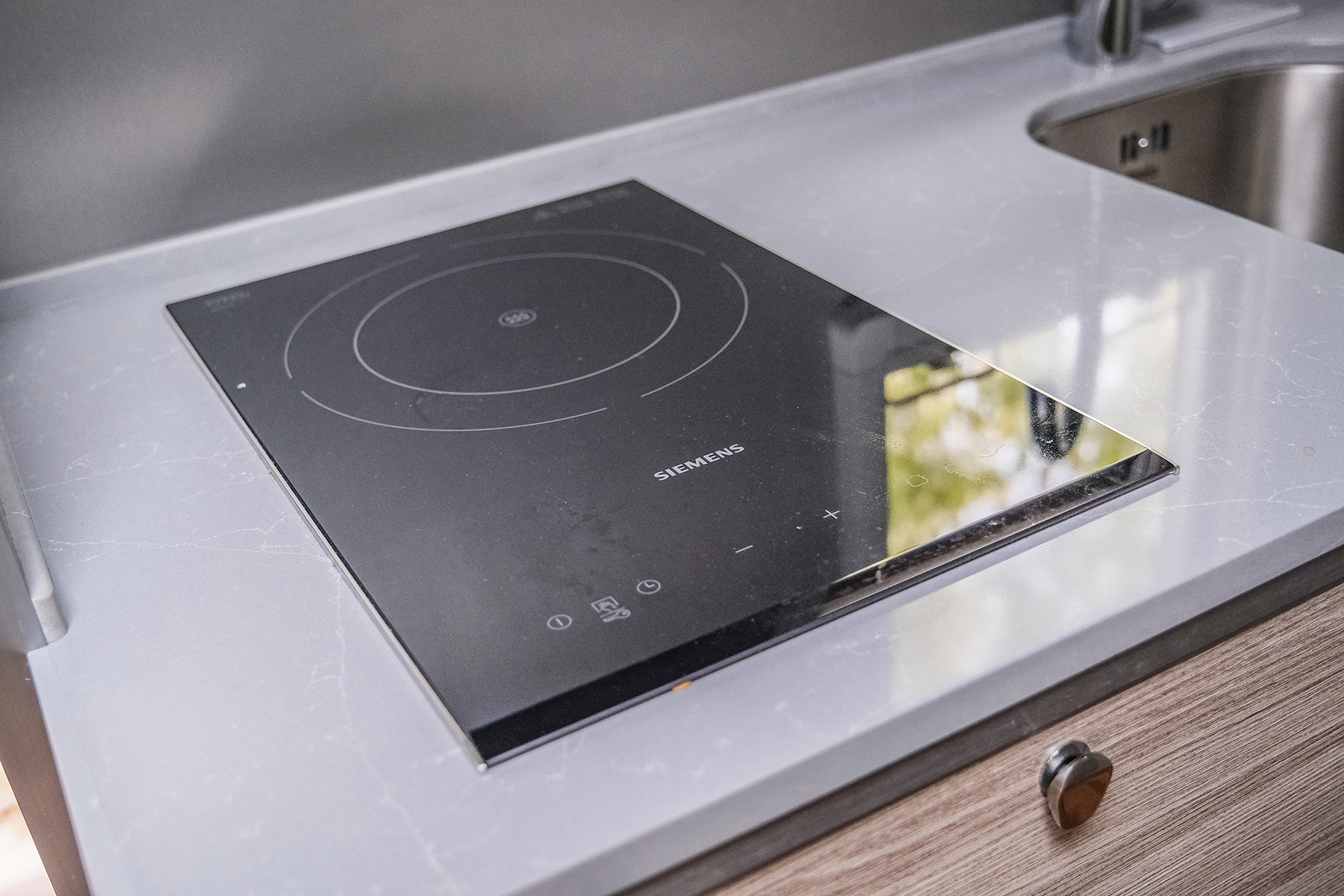

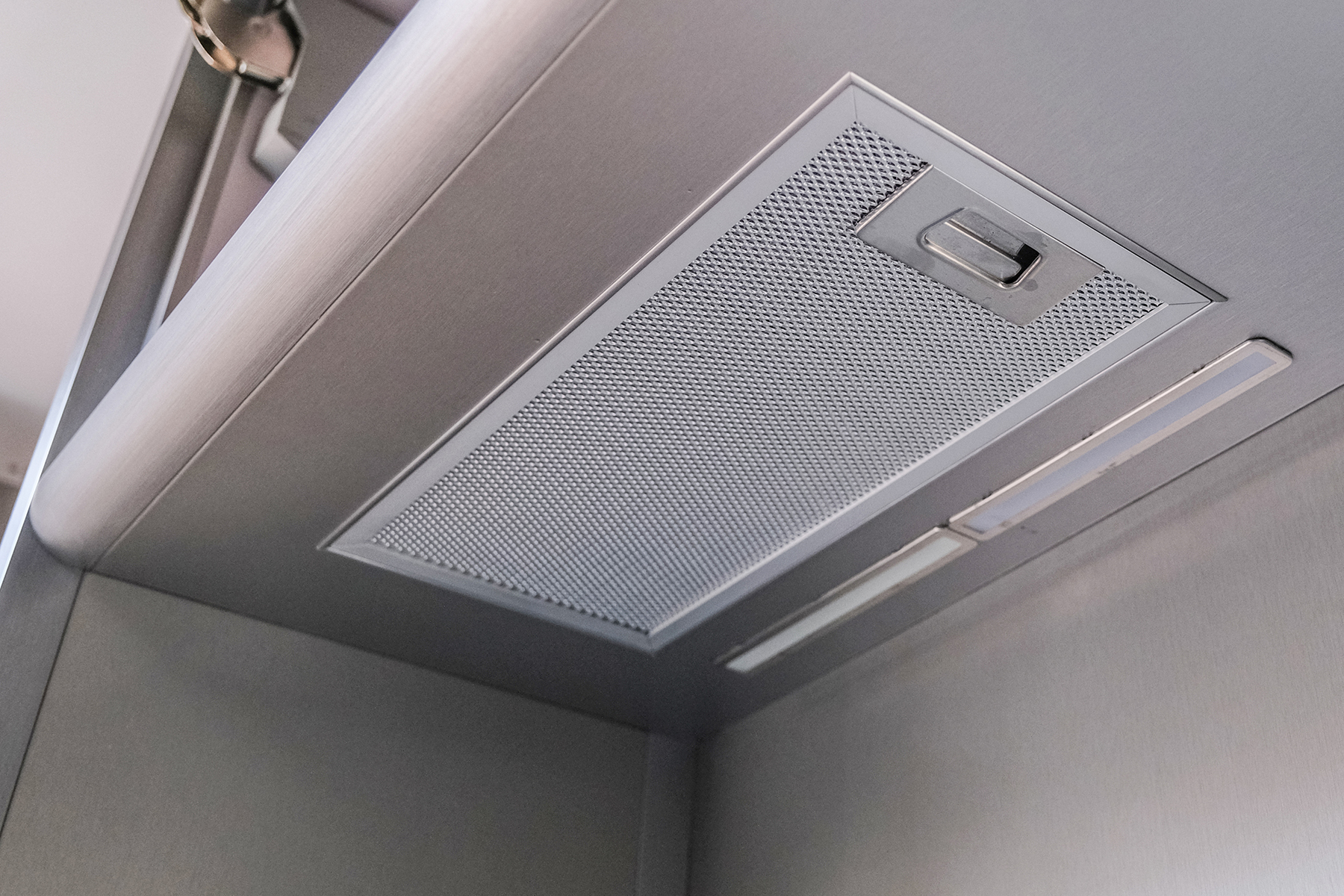

German brand 2.1 kW monocular induction cooker, range hood

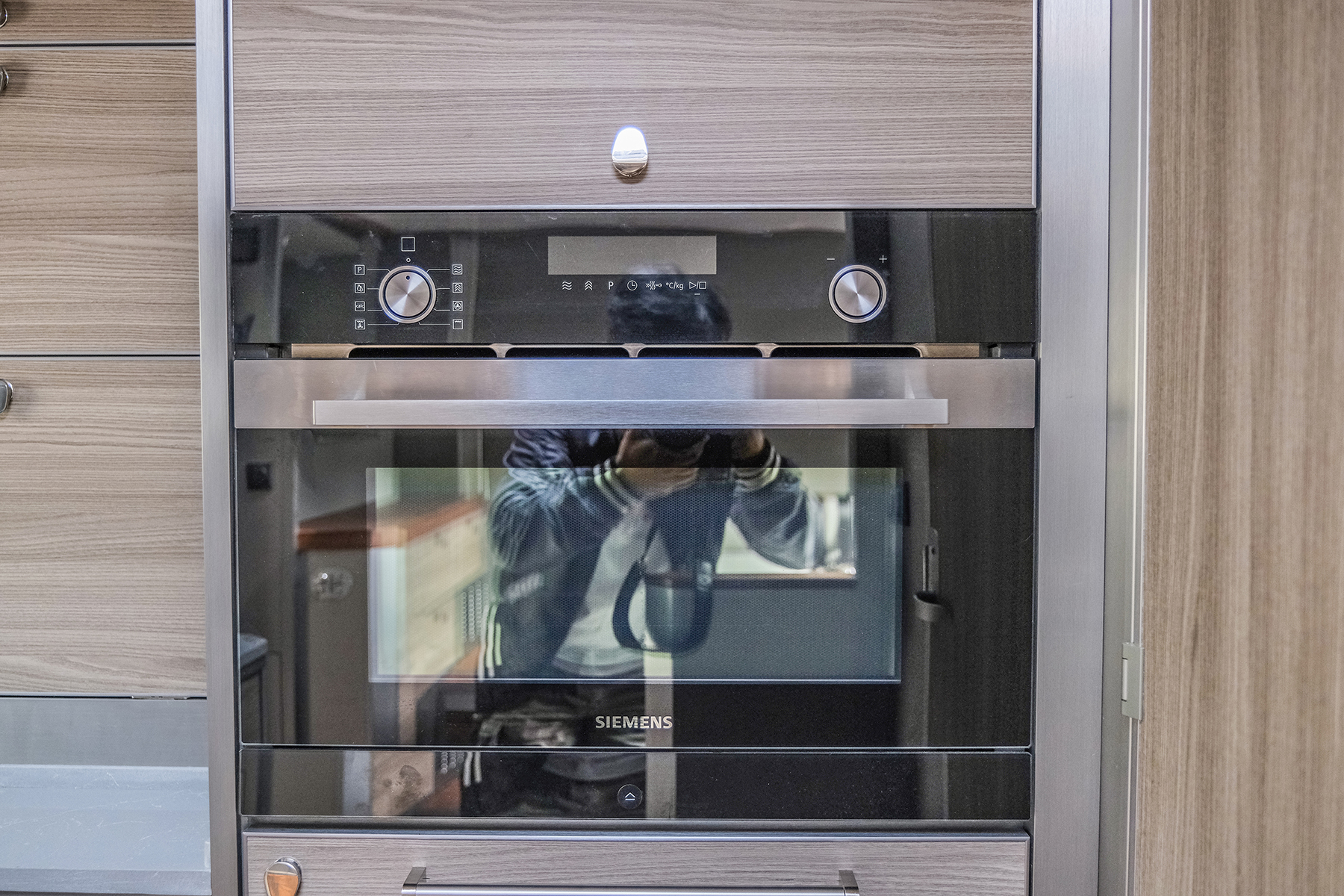

German brand embedded microwave steaming and baking all-in-one machine

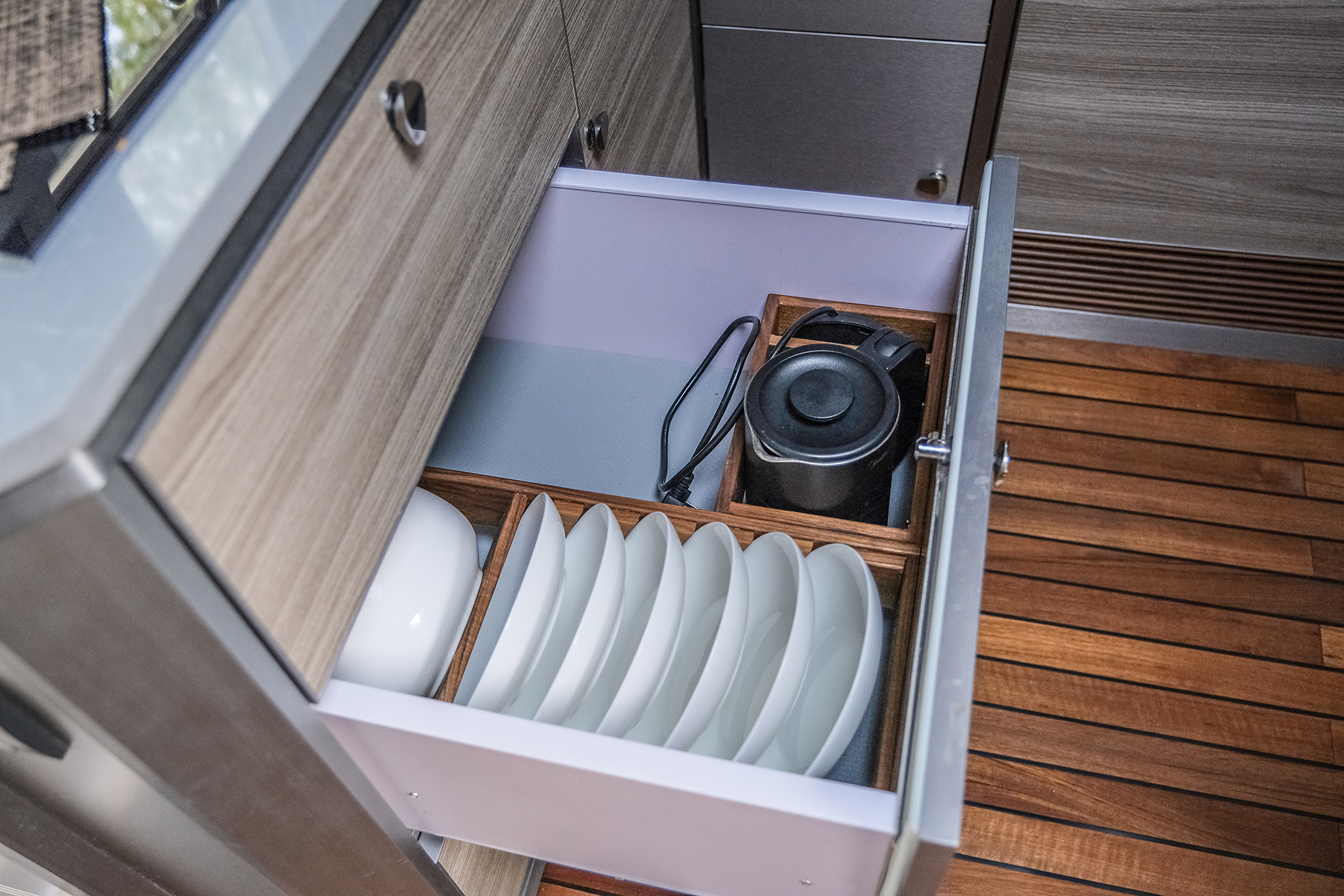

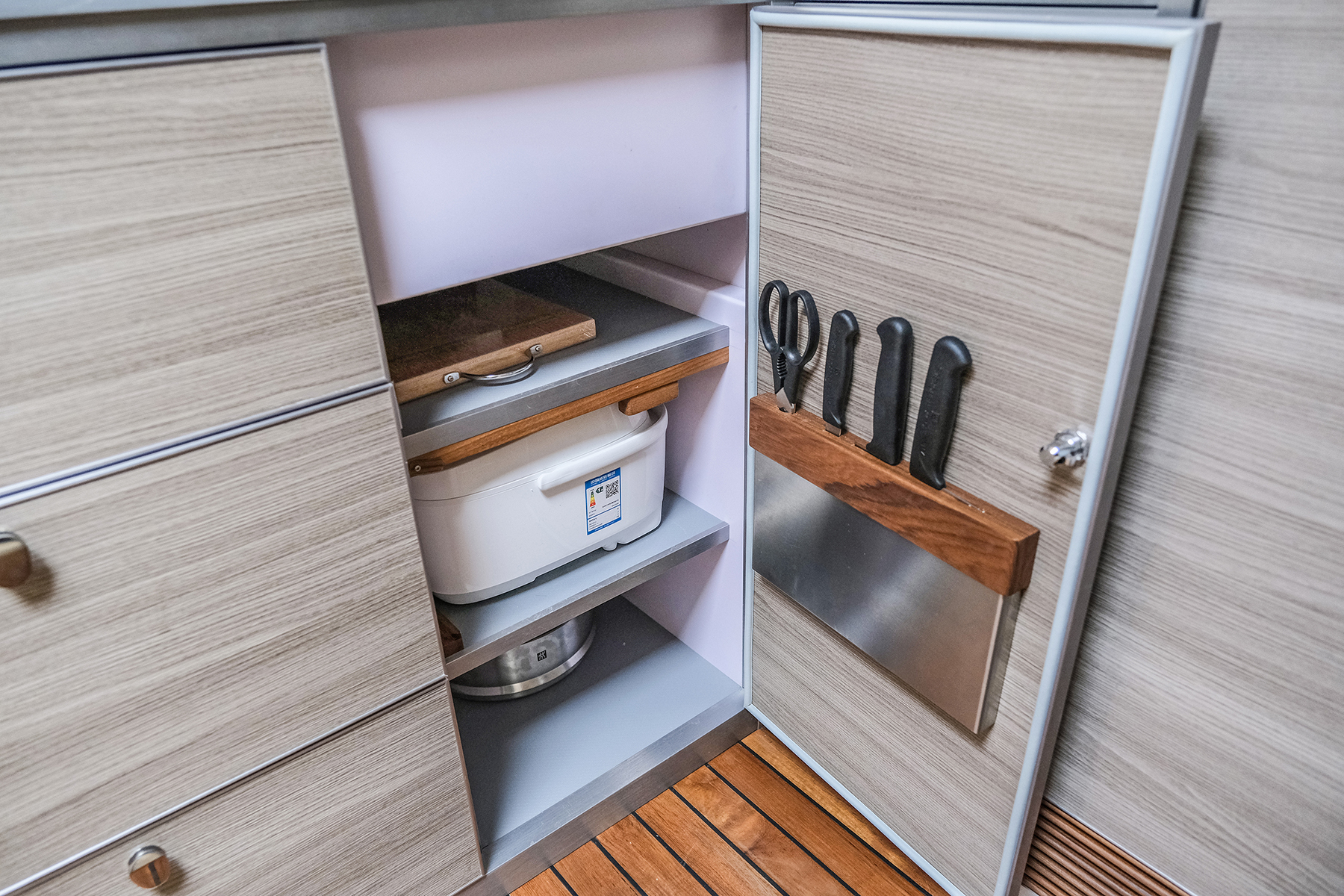

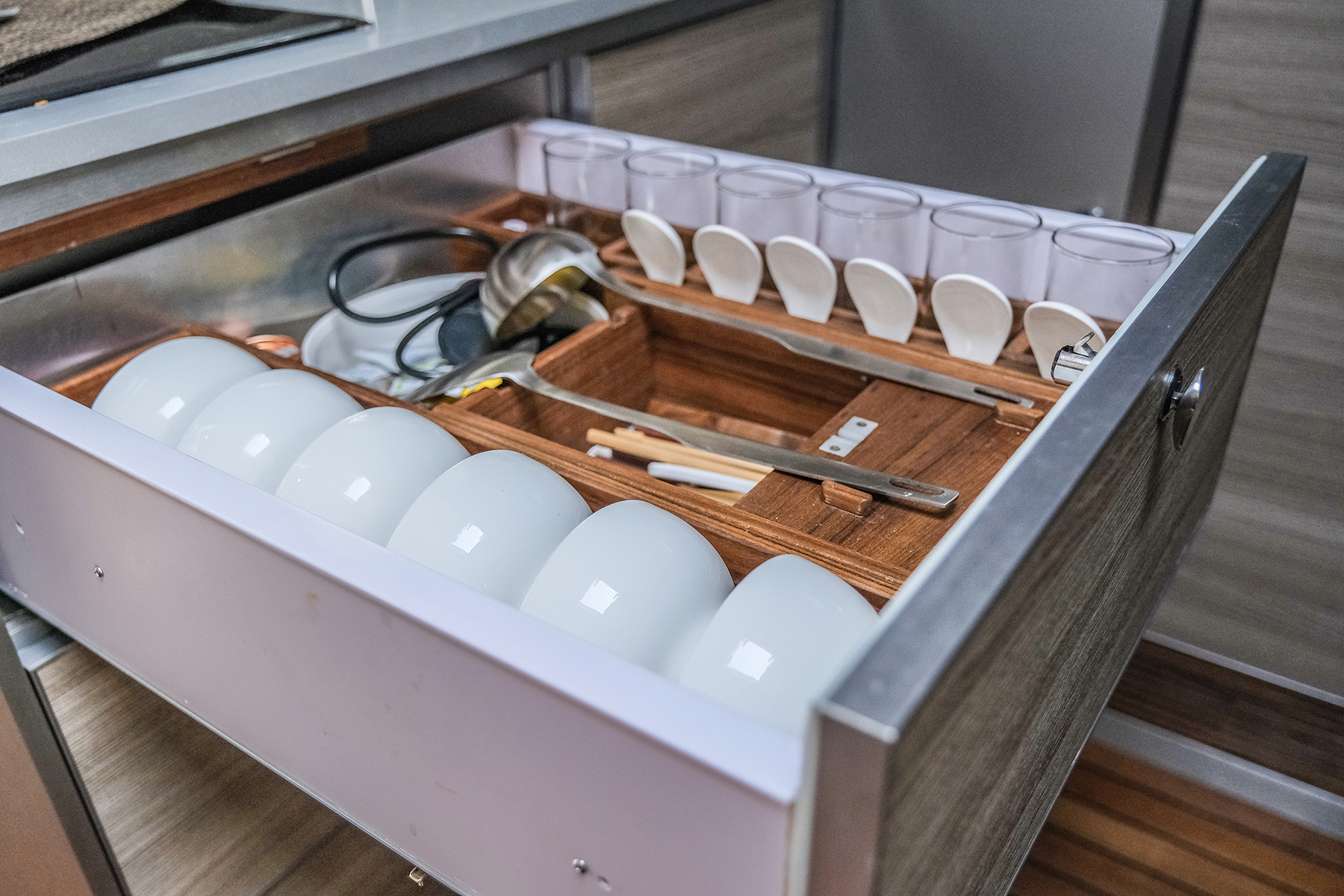

Complete set of German brand kitchen utensils

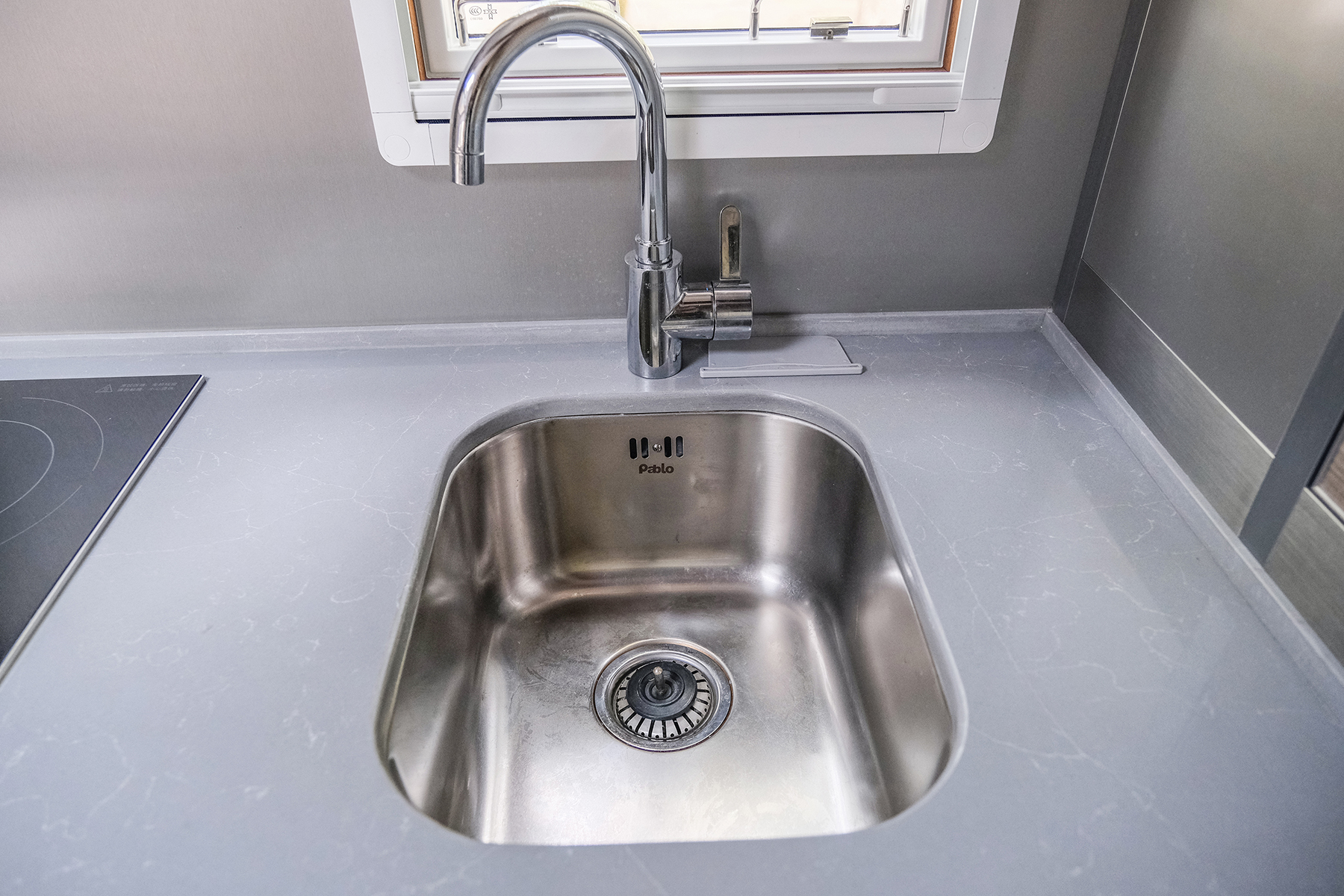

Stainless steel vegetable washing basin with stainless steel hot and cold water faucet

Structure and configuration:

Residency: 4 people

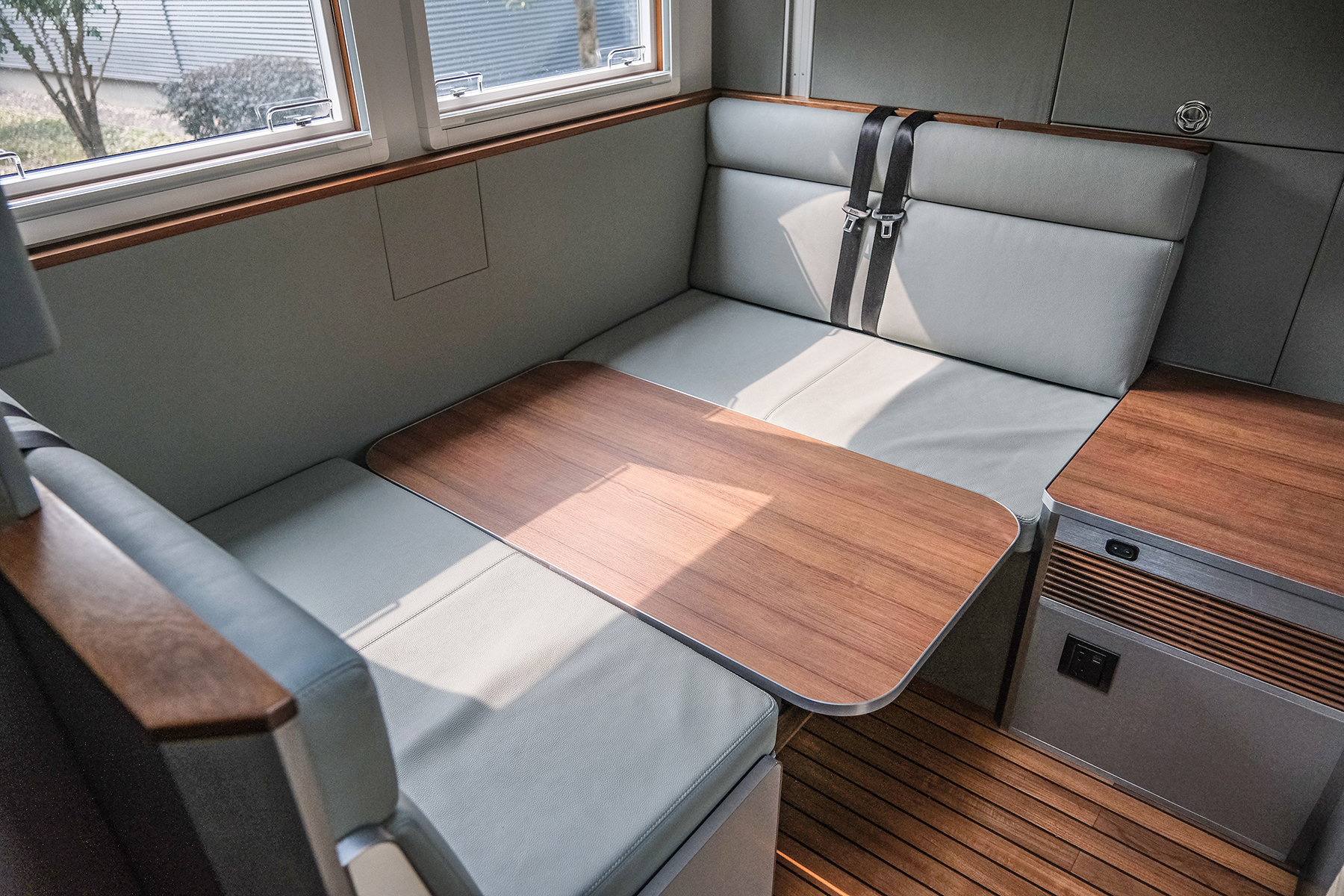

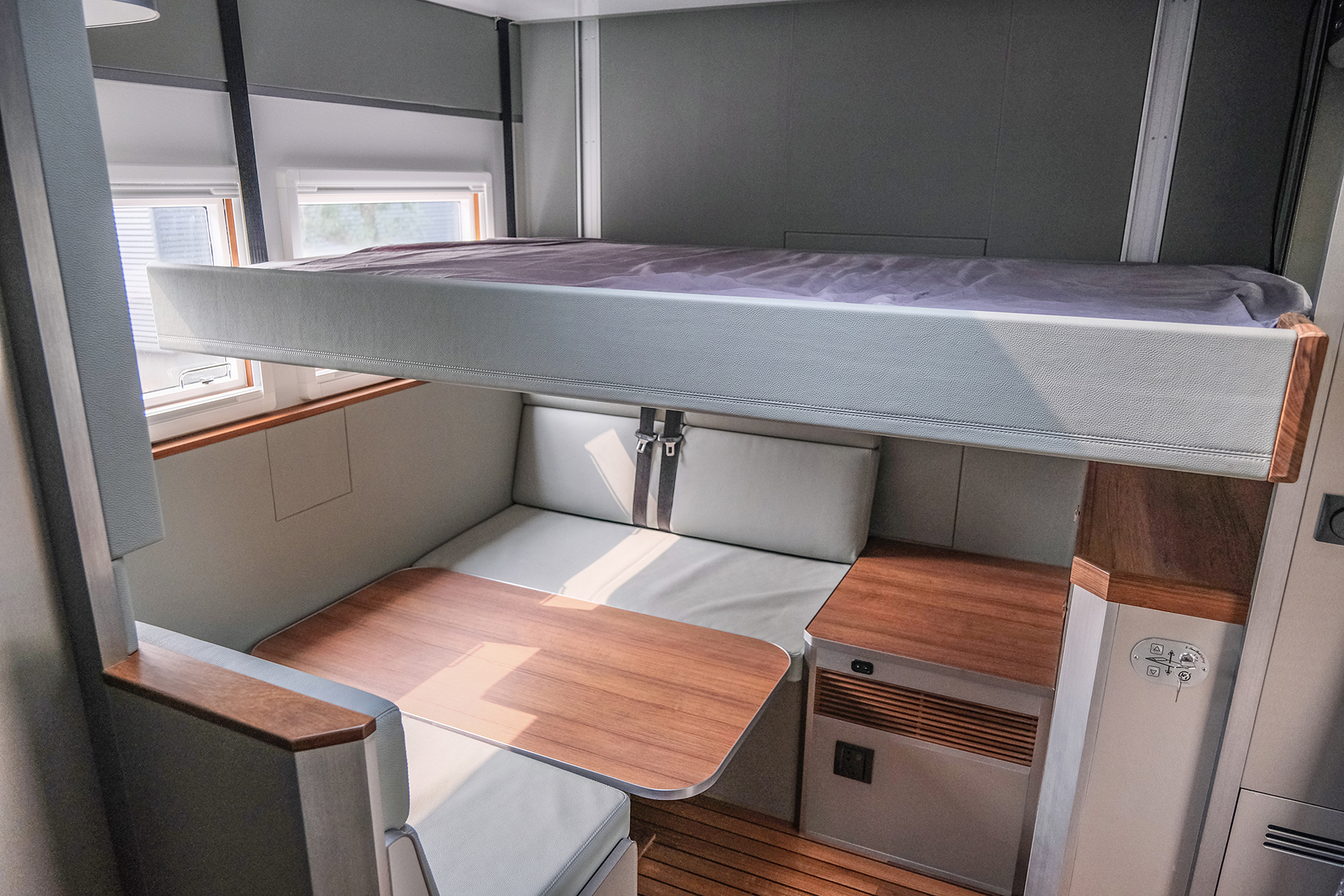

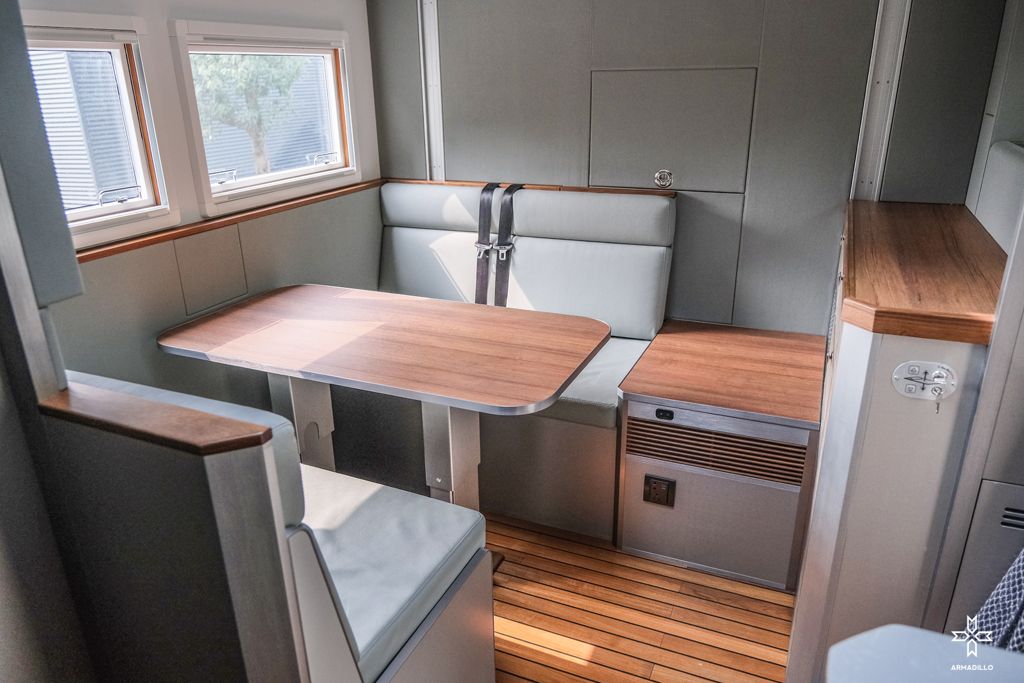

Front: 1 small double bed 1900 x 1050mm (formed by seat area; dining table with two electric synchronous lifting rods)

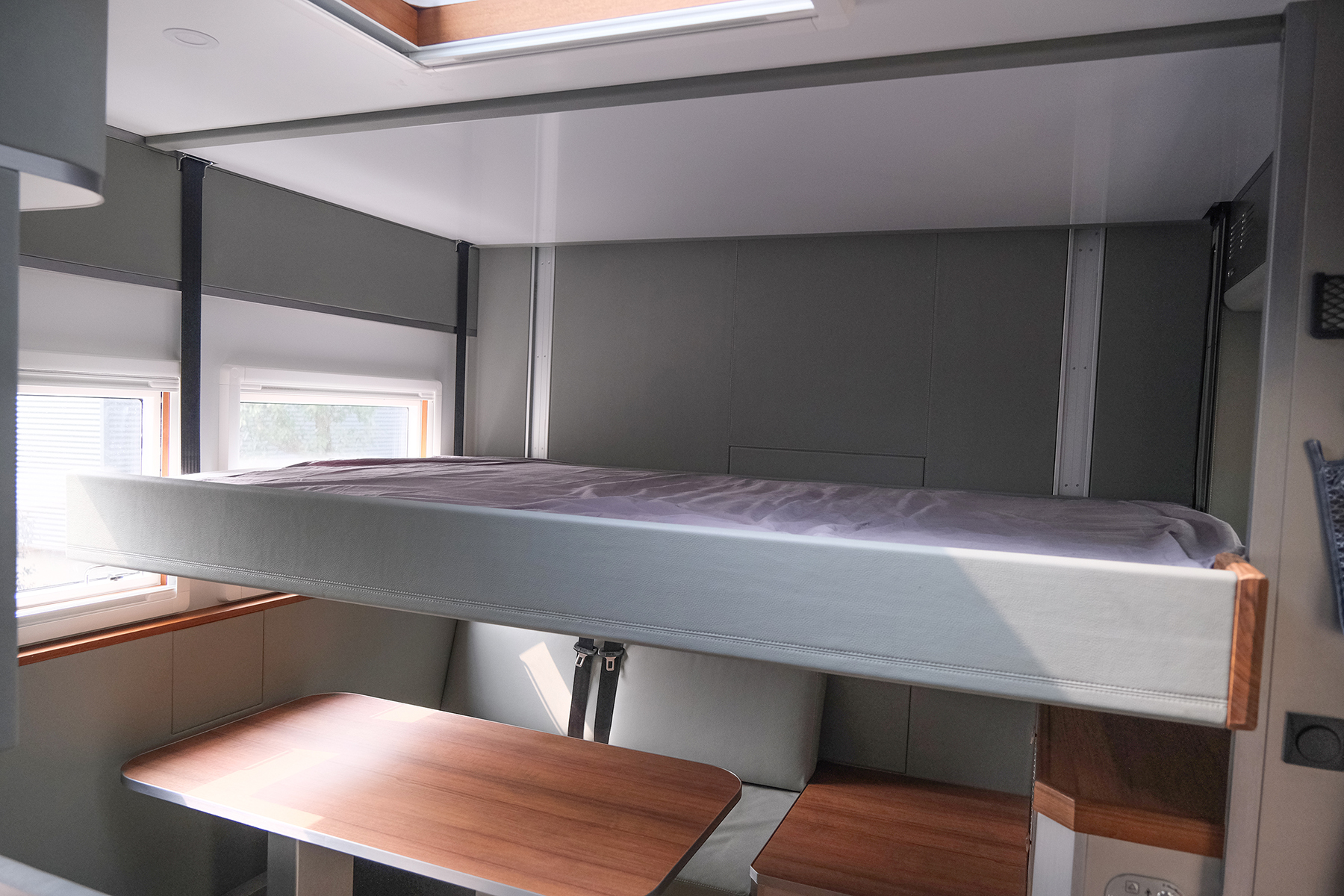

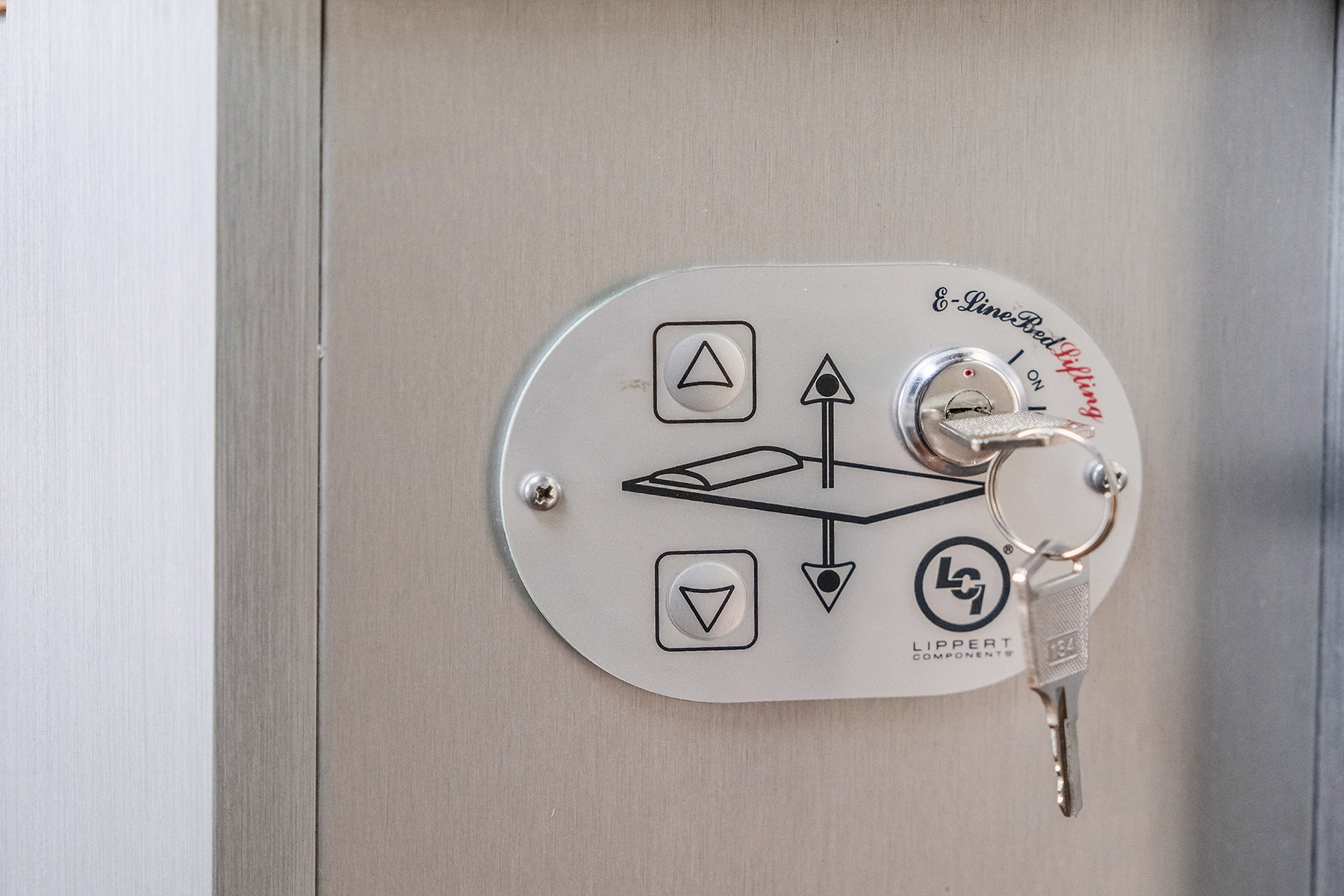

1 lifting double bed 1900 x 1150mm bathroom, kitchen, storage space

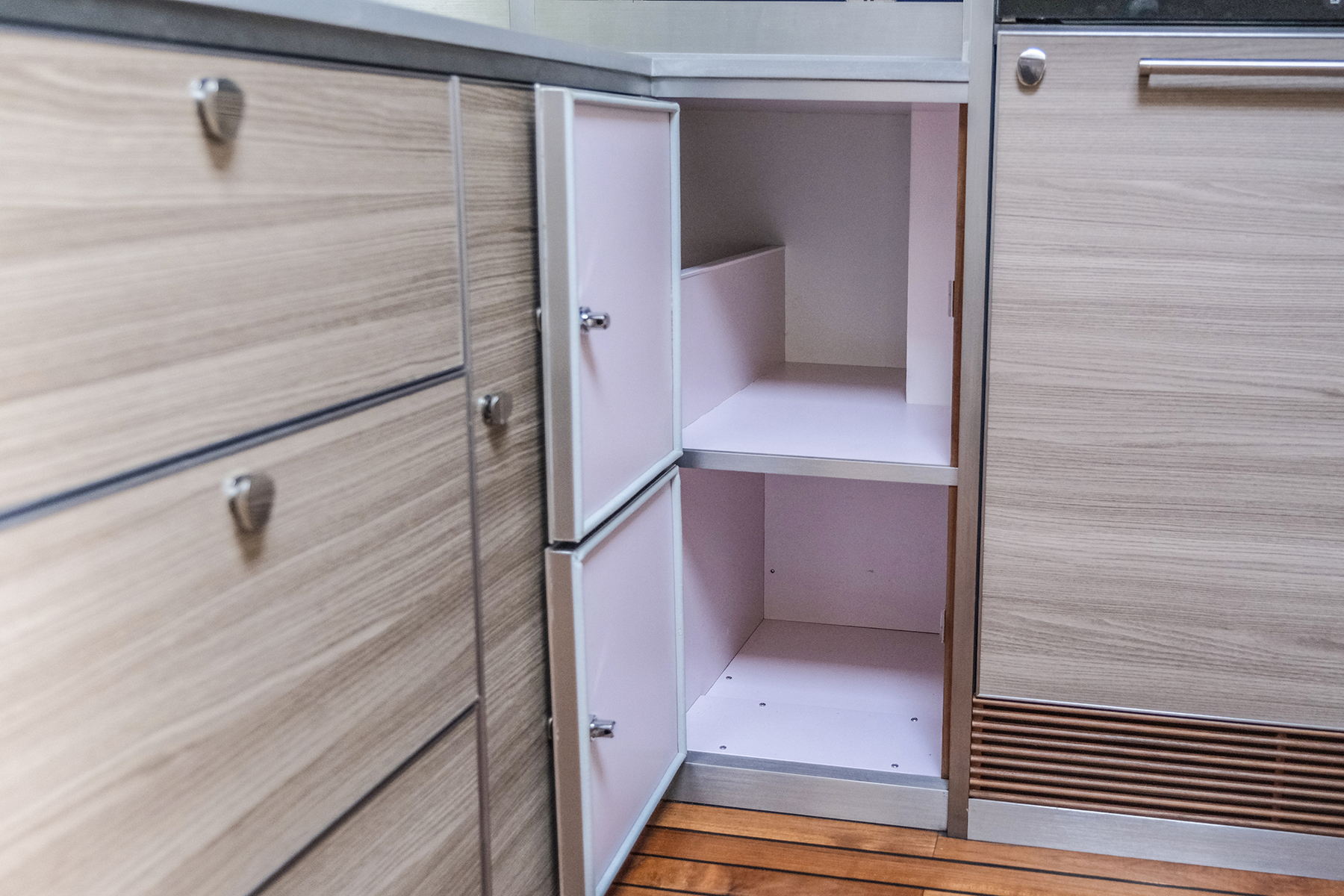

Rear: bathroom, kitchen, storage space

Air conditioning and heating systems:

1 German brand bottom mounted air conditioner with a cooling capacity of 2.4 kW and a heat pump

Positive pressure fresh air system with pollen filtration

Exhaust system

German brand 4 kW diesel heating boiler heating system

Toilet equipment:

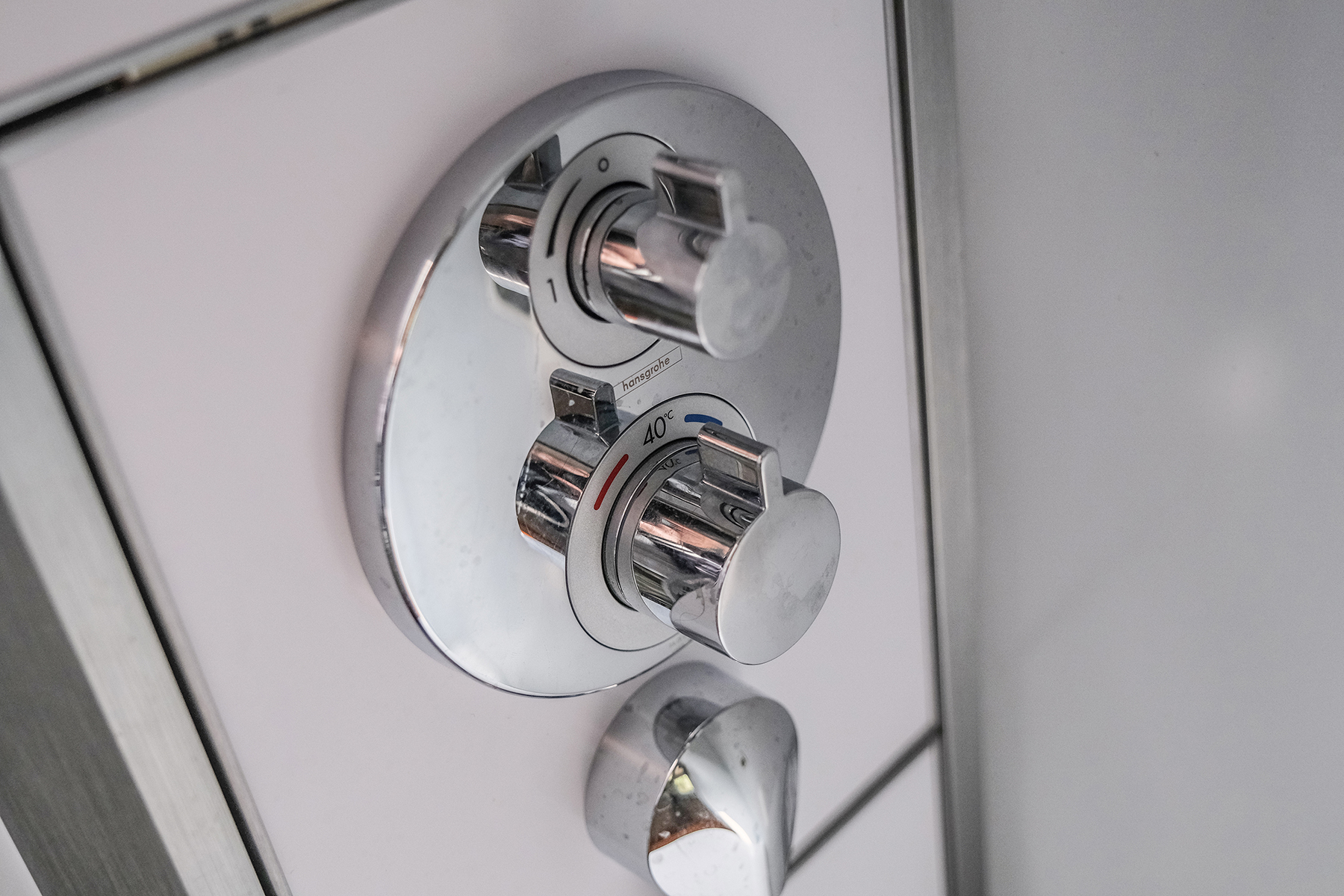

German brand automatic constant temperature water mixer and showerhead

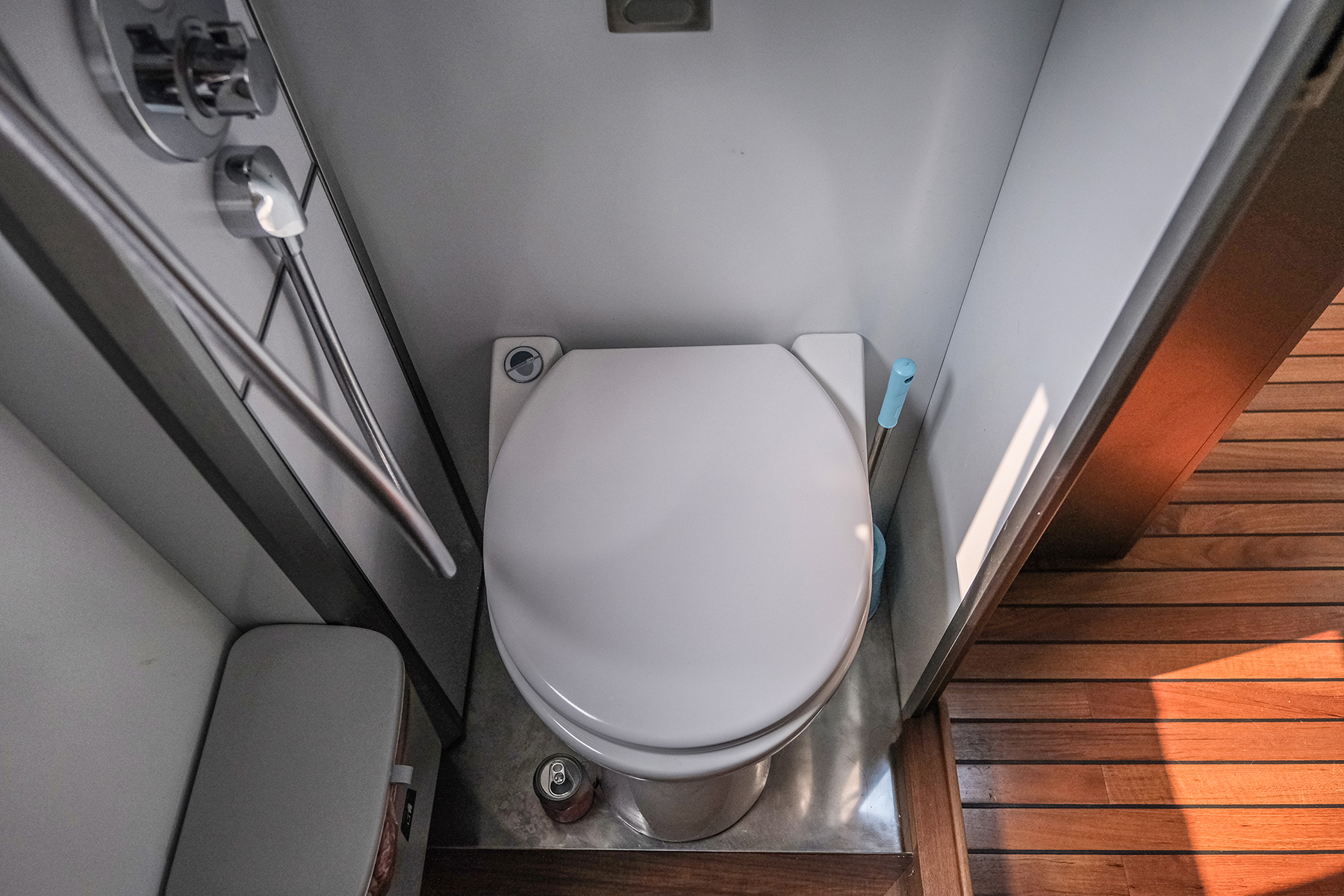

European brand all ceramic electric suction toilet

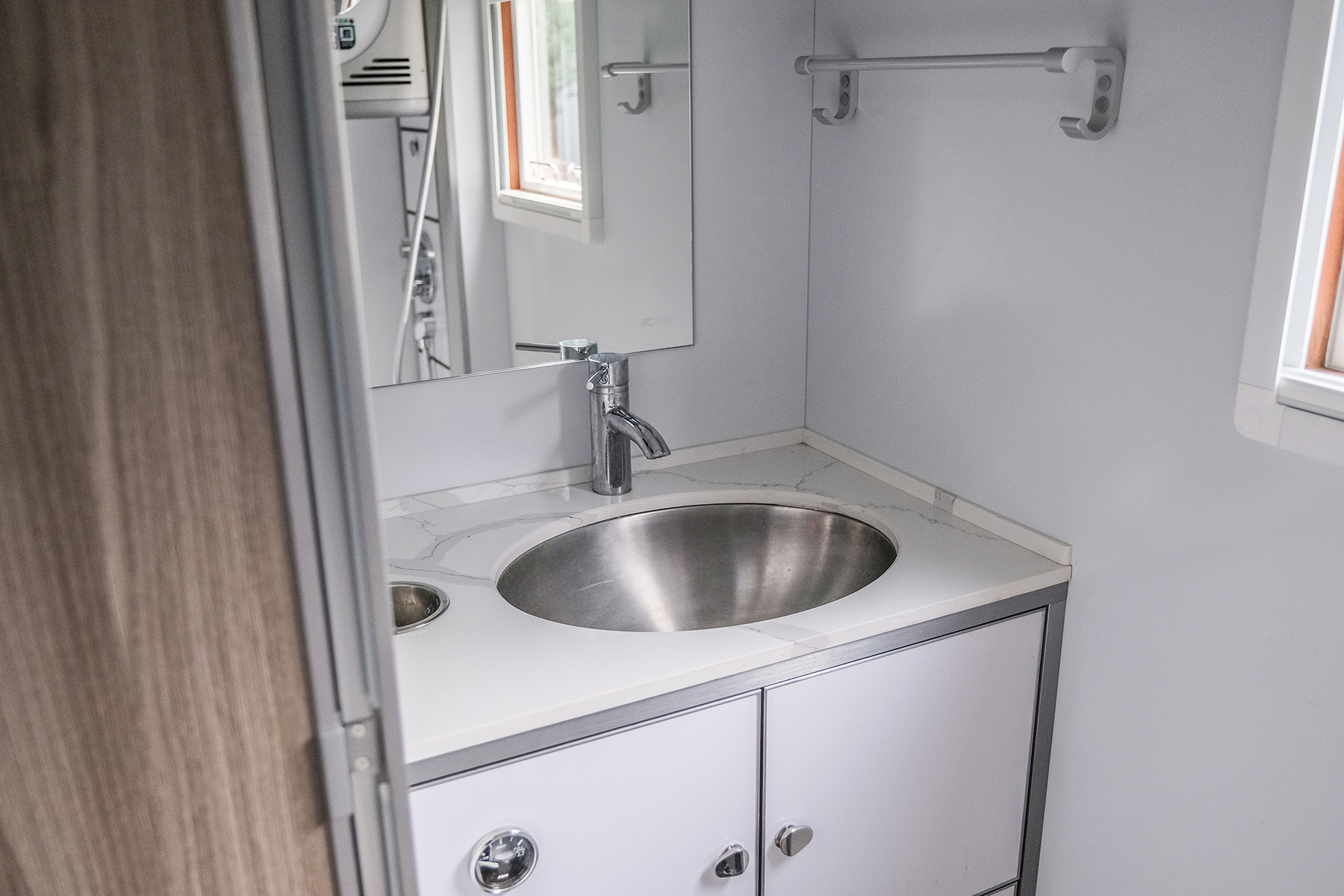

Stainless steel washbasin with imported hot and cold faucets

Exhaust system

Sewage: 50 liter stainless steel gray water tank with liquid level sensor; seventy

Stainless steel black water tank with liquid level sensor, electric sewage pump and manual sewage valve

Other configurations:

Aluminum alloy roll cage in the cab

Top luggage compartment of the cab

Natural latex sofas and mattresses

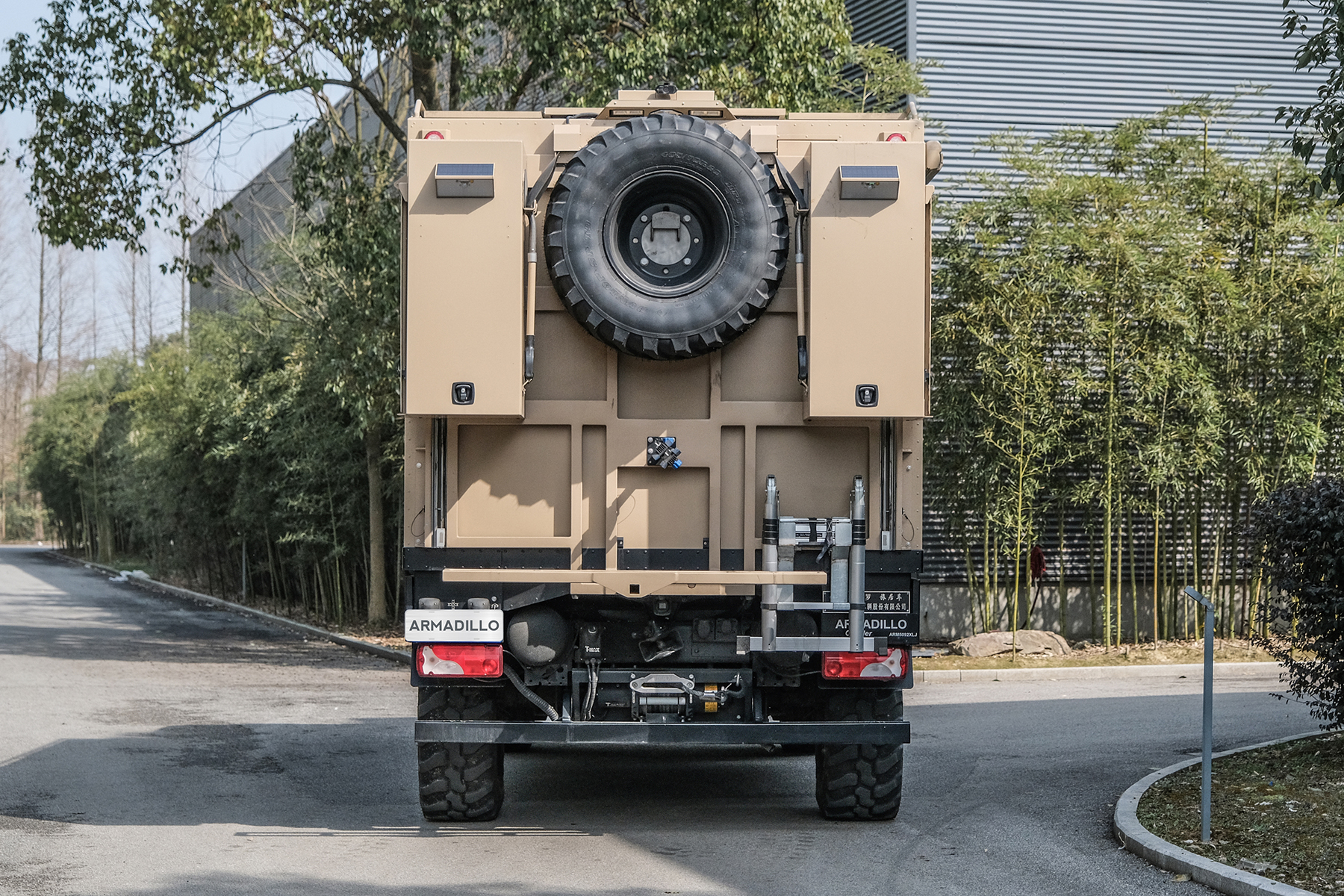

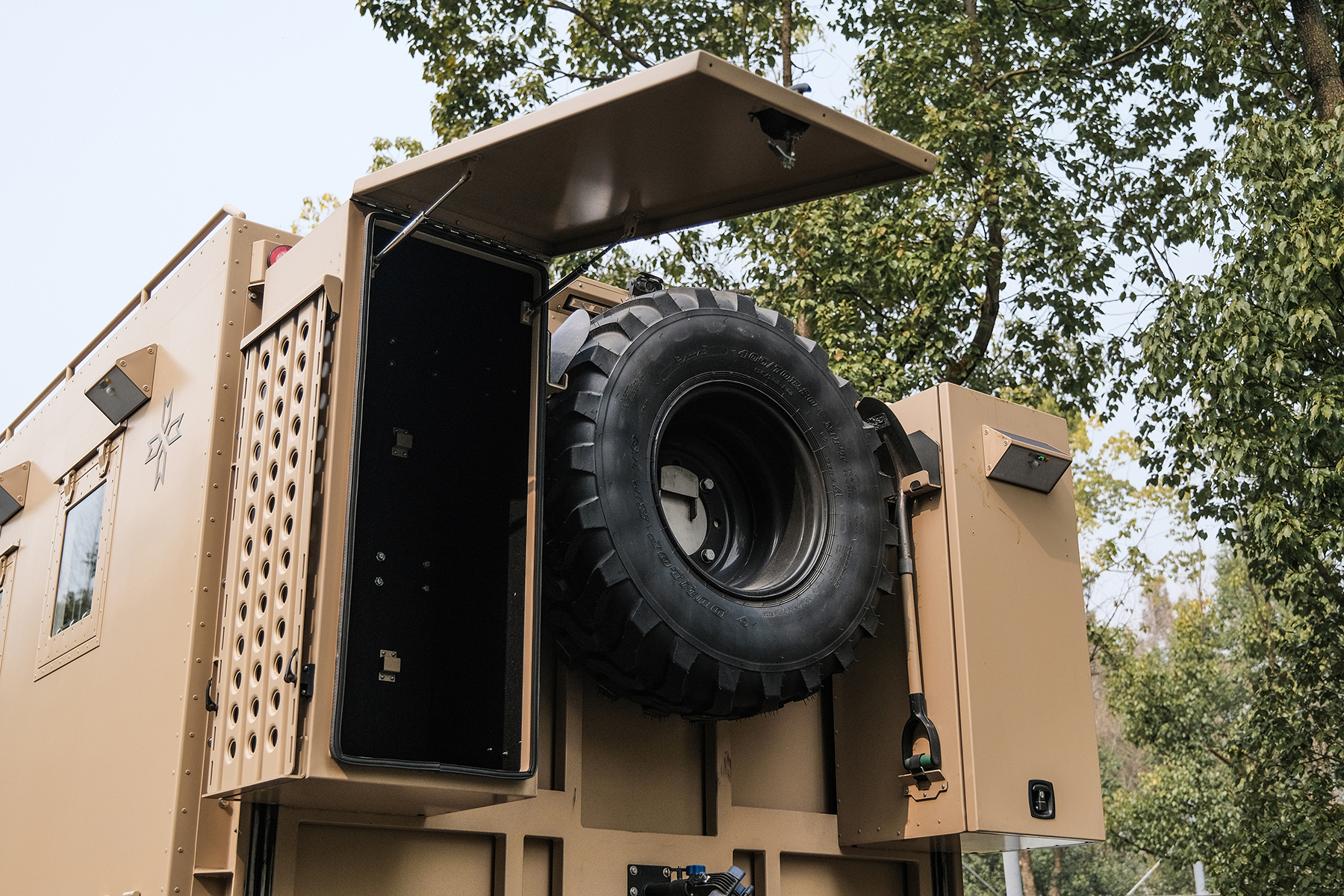

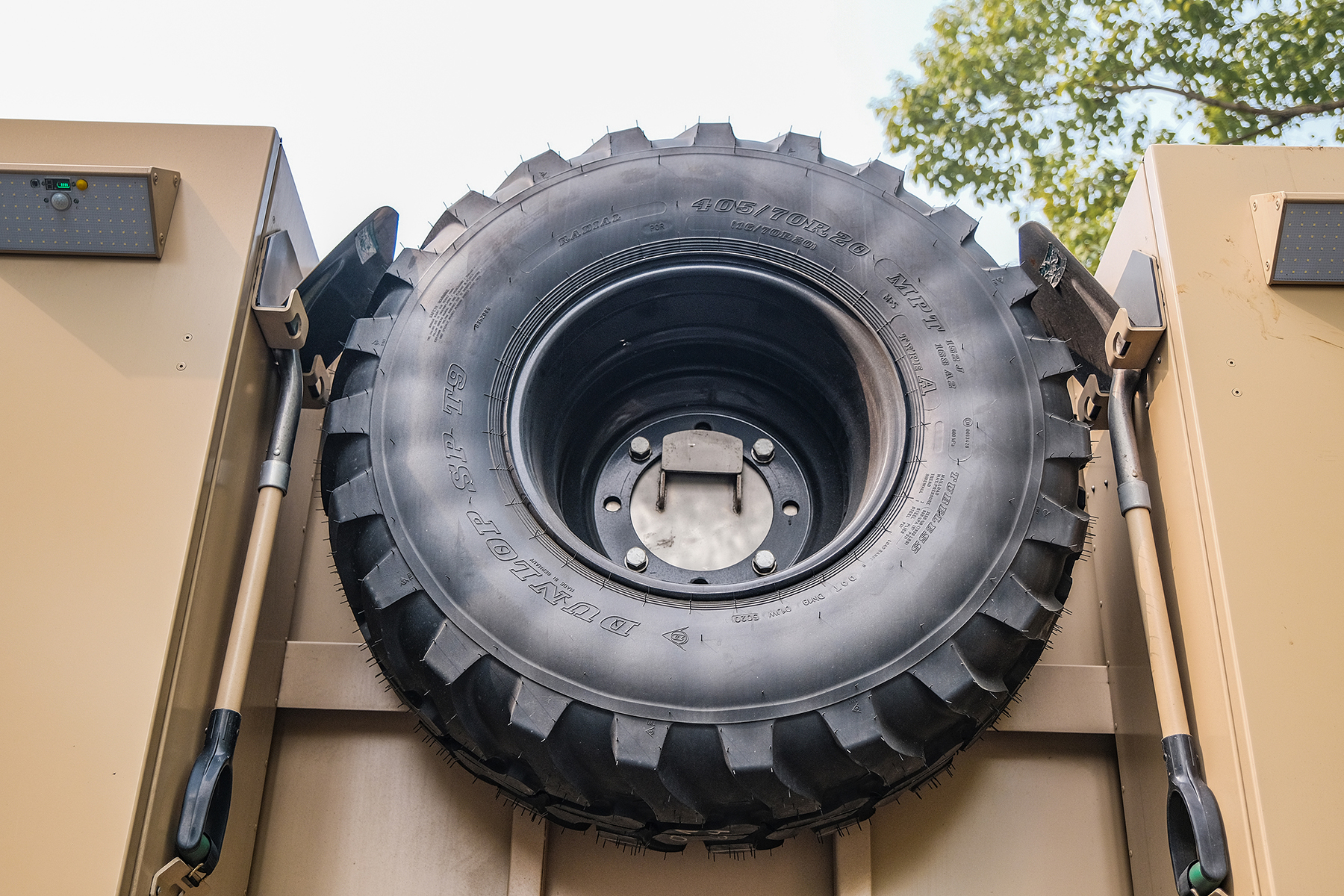

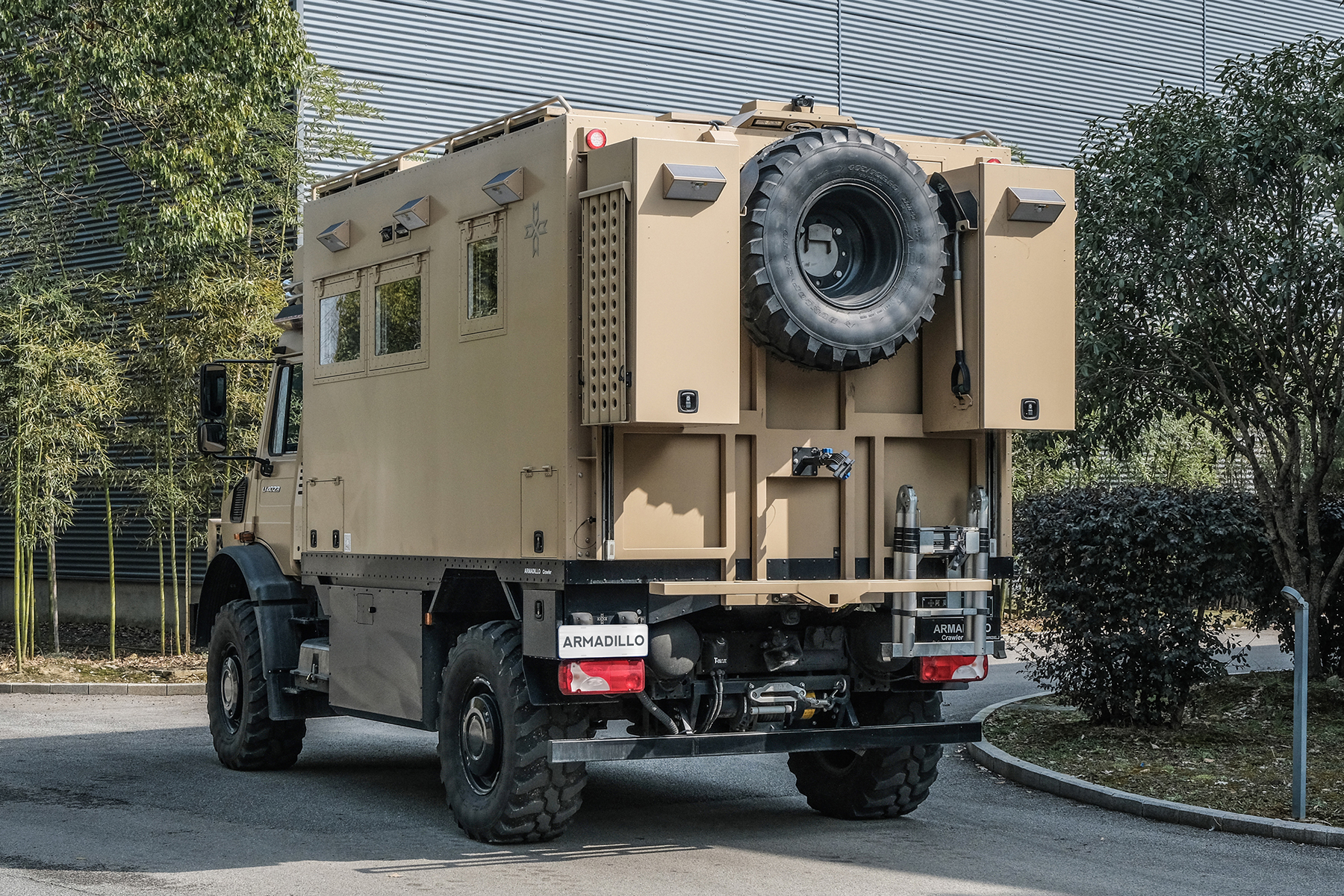

Electric rear spare tire mounting system

Reverse image

Outdoor water interface

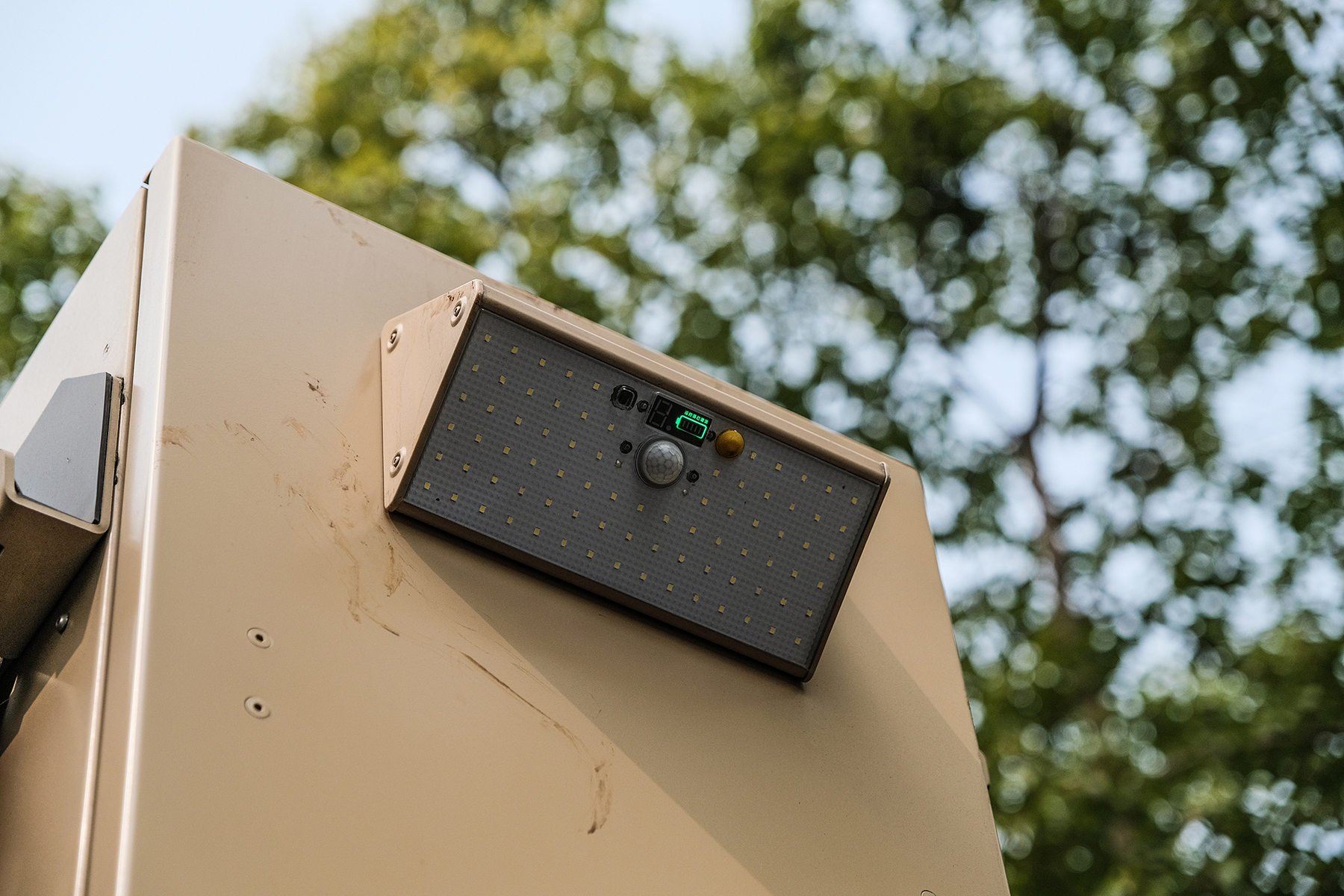

Side lighting

Driver's cabin sound insulation and rear wall soft package

Hatch opening

6 solar charging systems

Front bumper of the cab

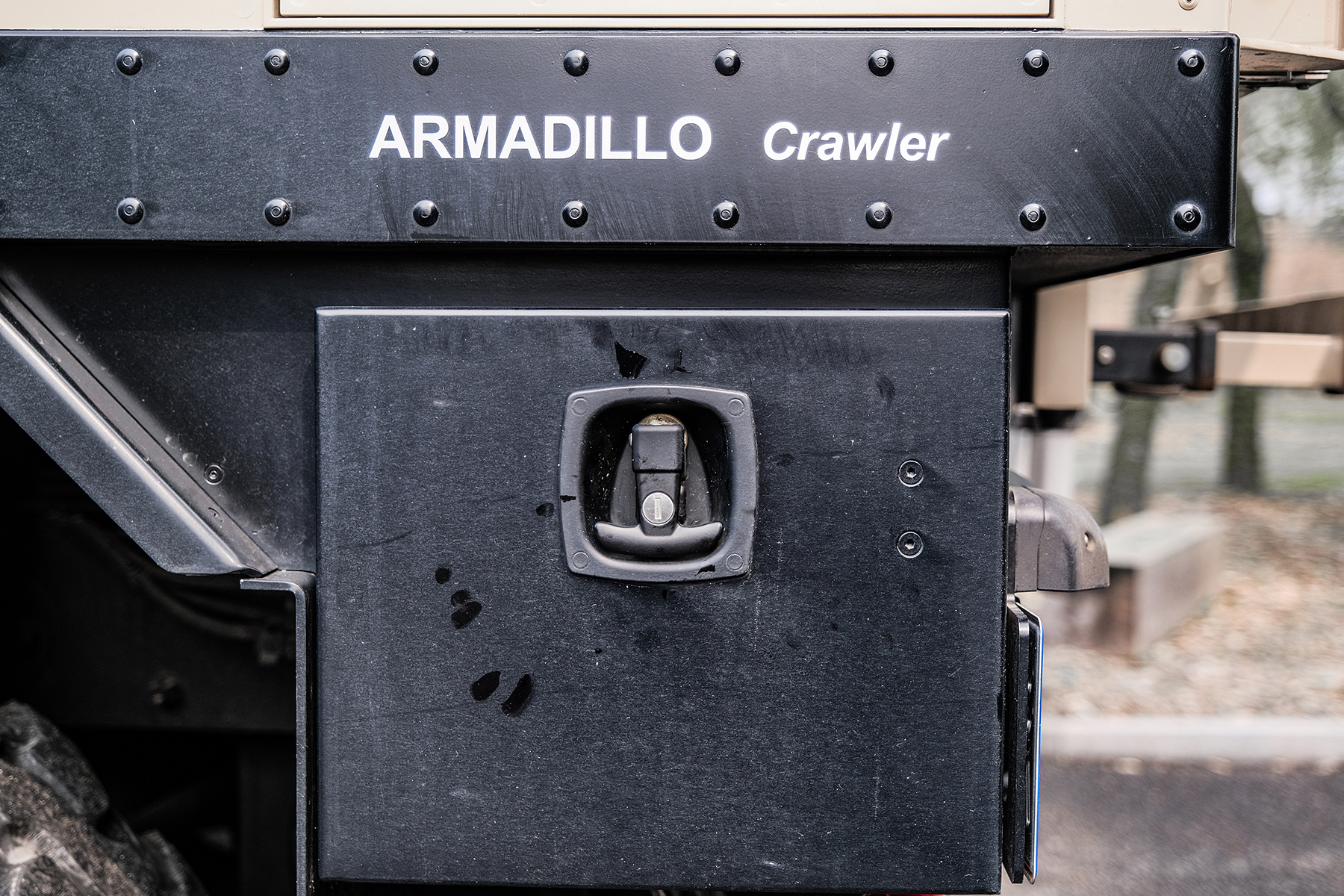

Box:

The box body and chassis beam are flexibly connected by a three-point torque balance mechanism

The box body is a broken bridge insulation structure, and the wall sandwich structure has a thickness of 55 millimeters

Sandwich box structure: The outer skin is made of German brand ultra-high strength fiberglass panels, and the inner layer is made of German brand fiberglass interior panels

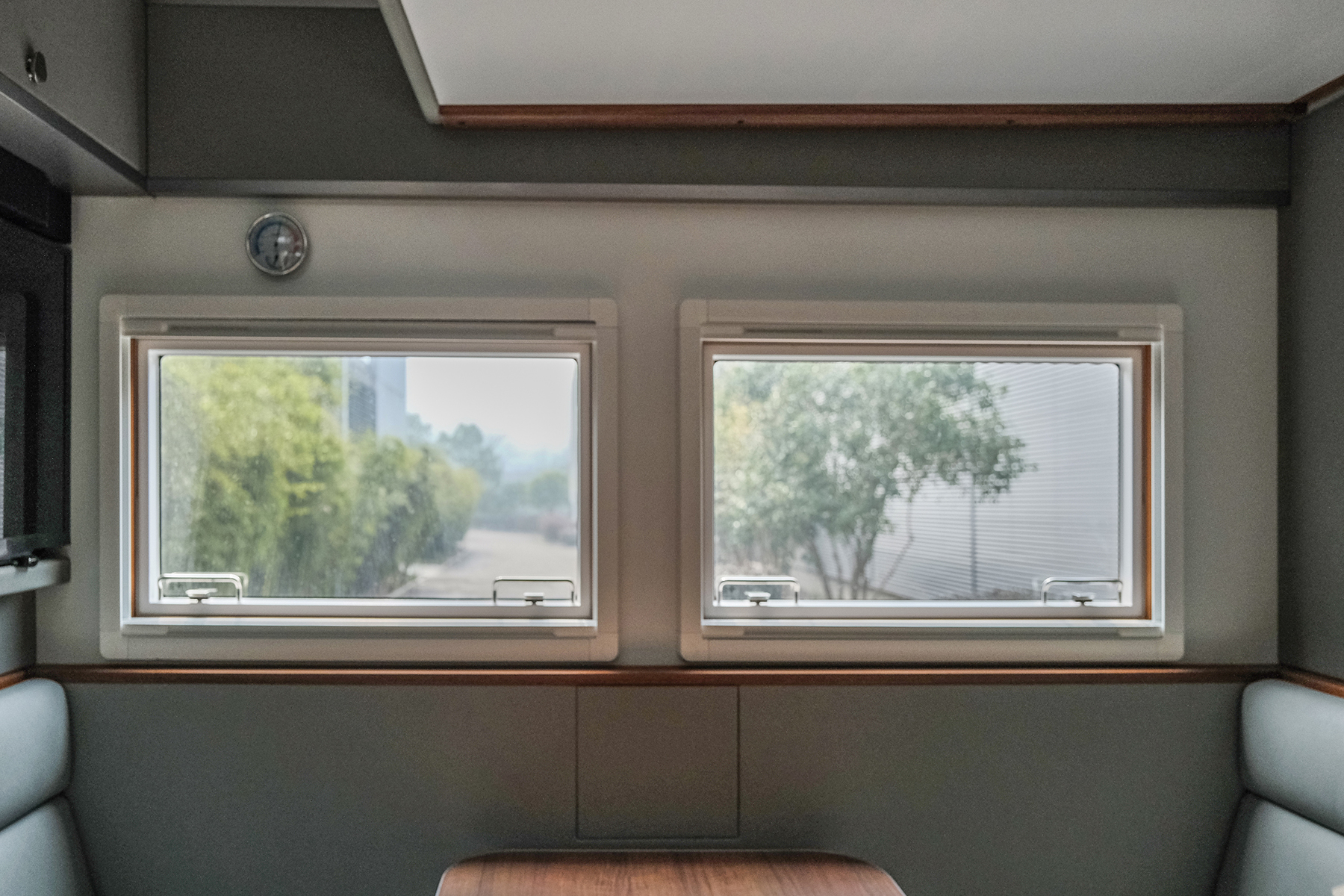

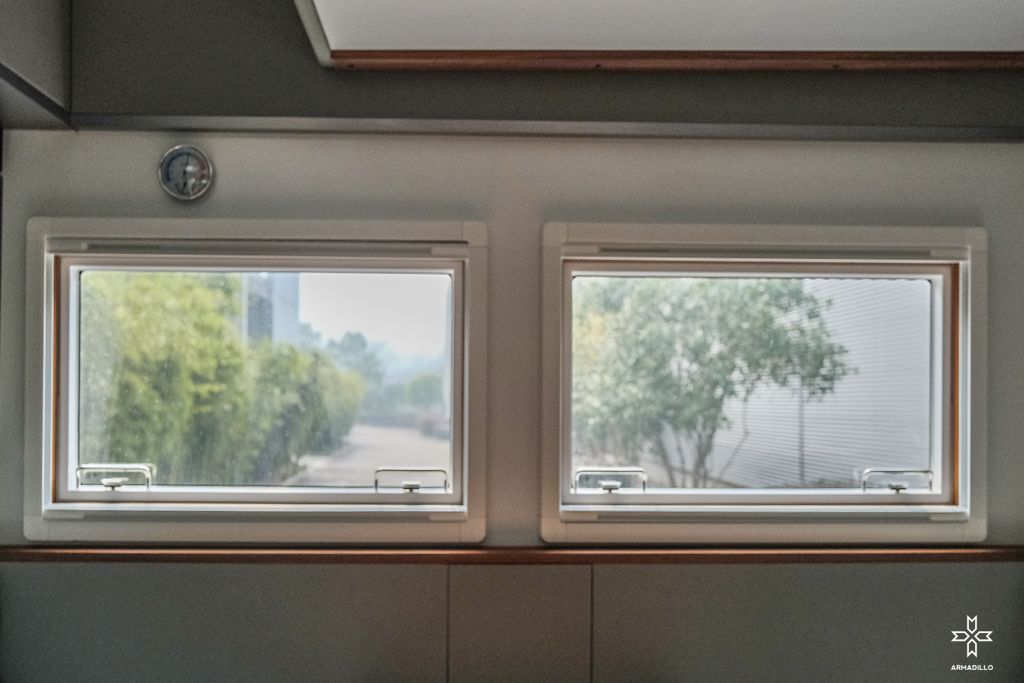

Window: Exclusive window for Amodillo, equipped with British brand sunshades and mosquito nets

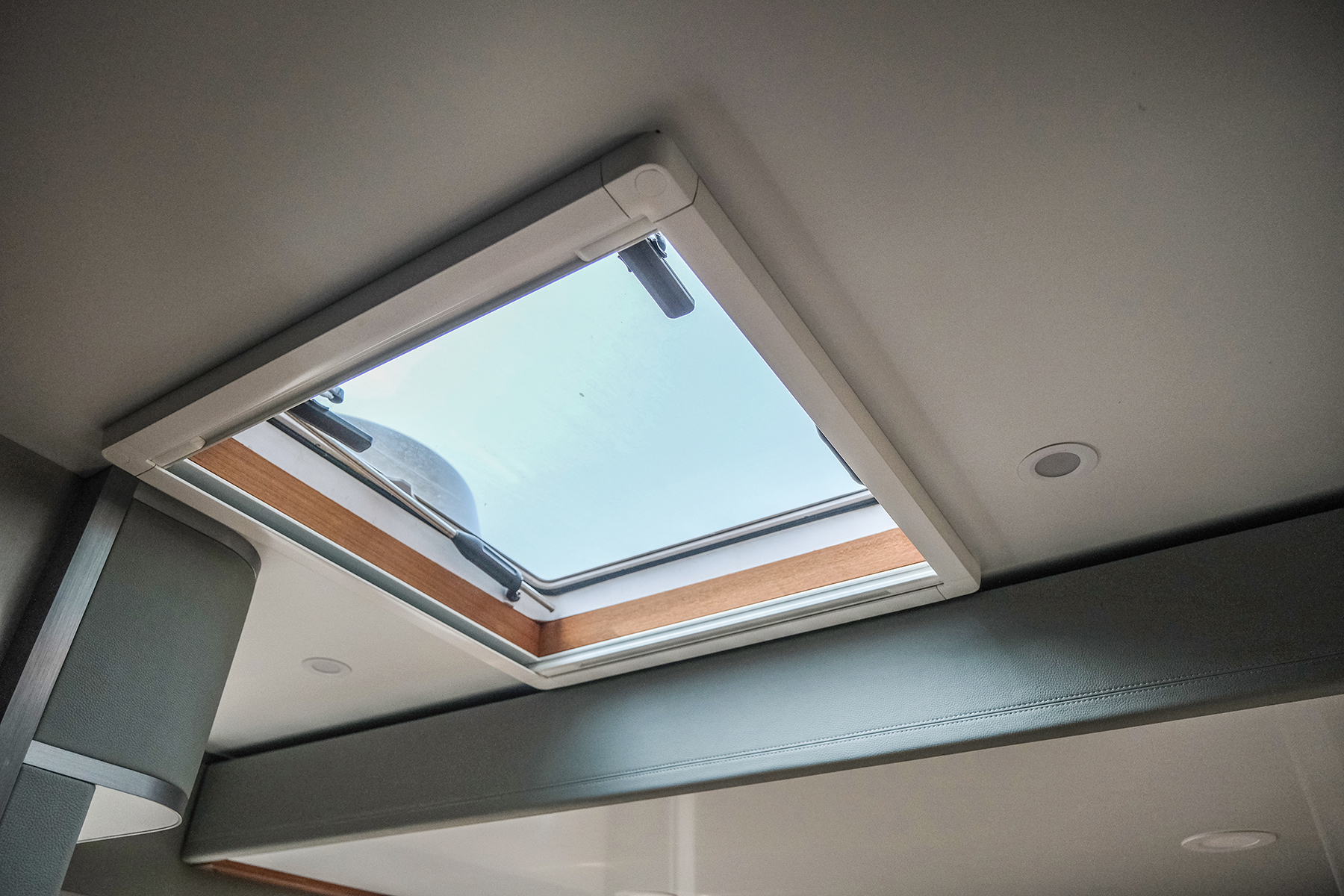

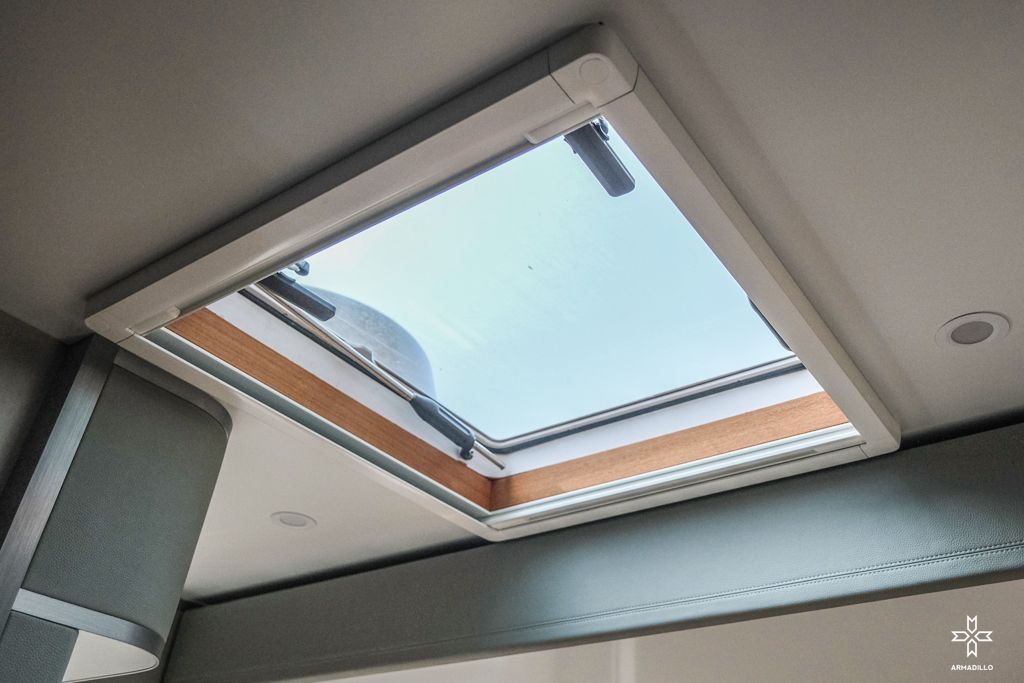

Skylight: imported marine grade, can be opened both inside and outside; Equipped with British brand sunshades and mosquito nets

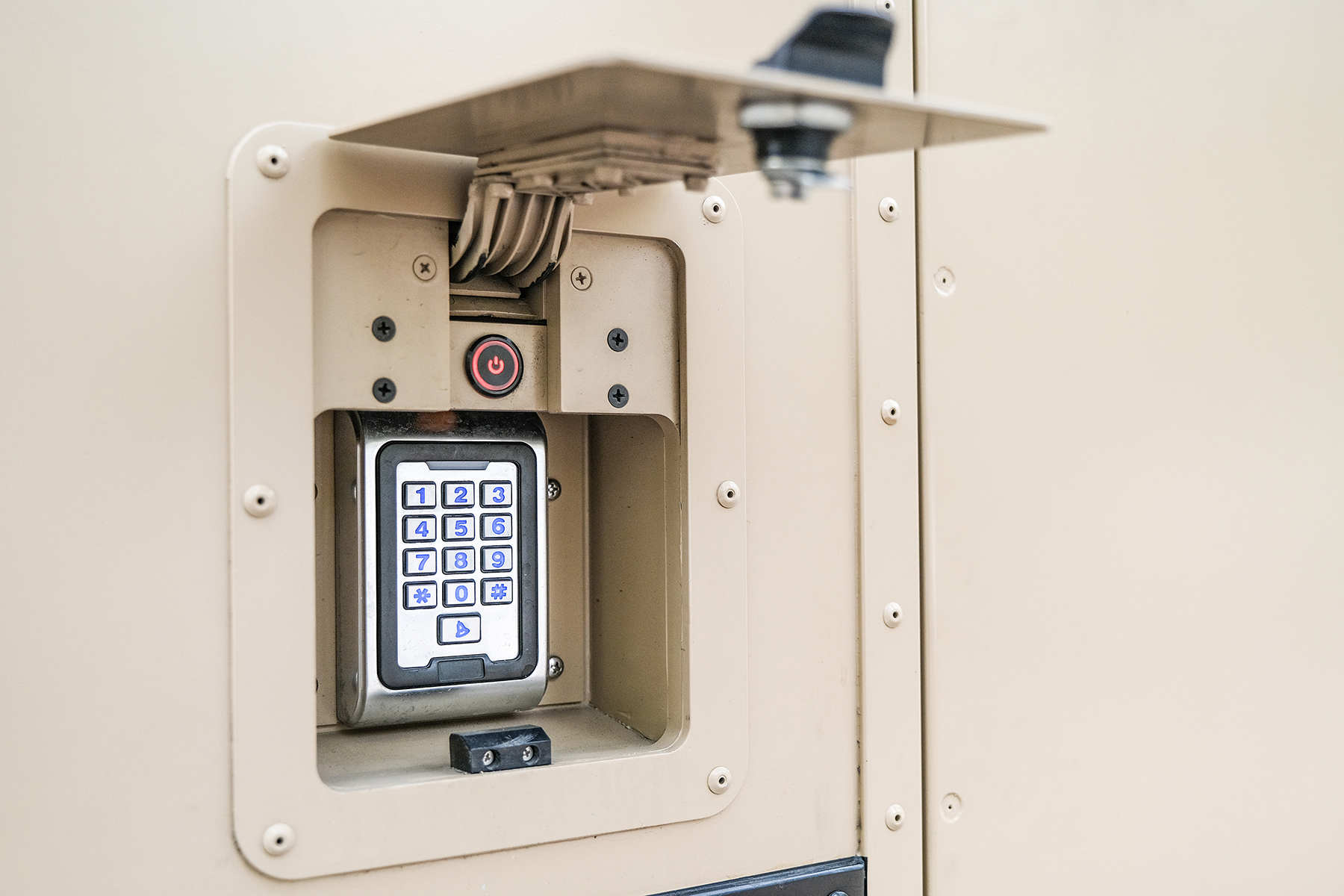

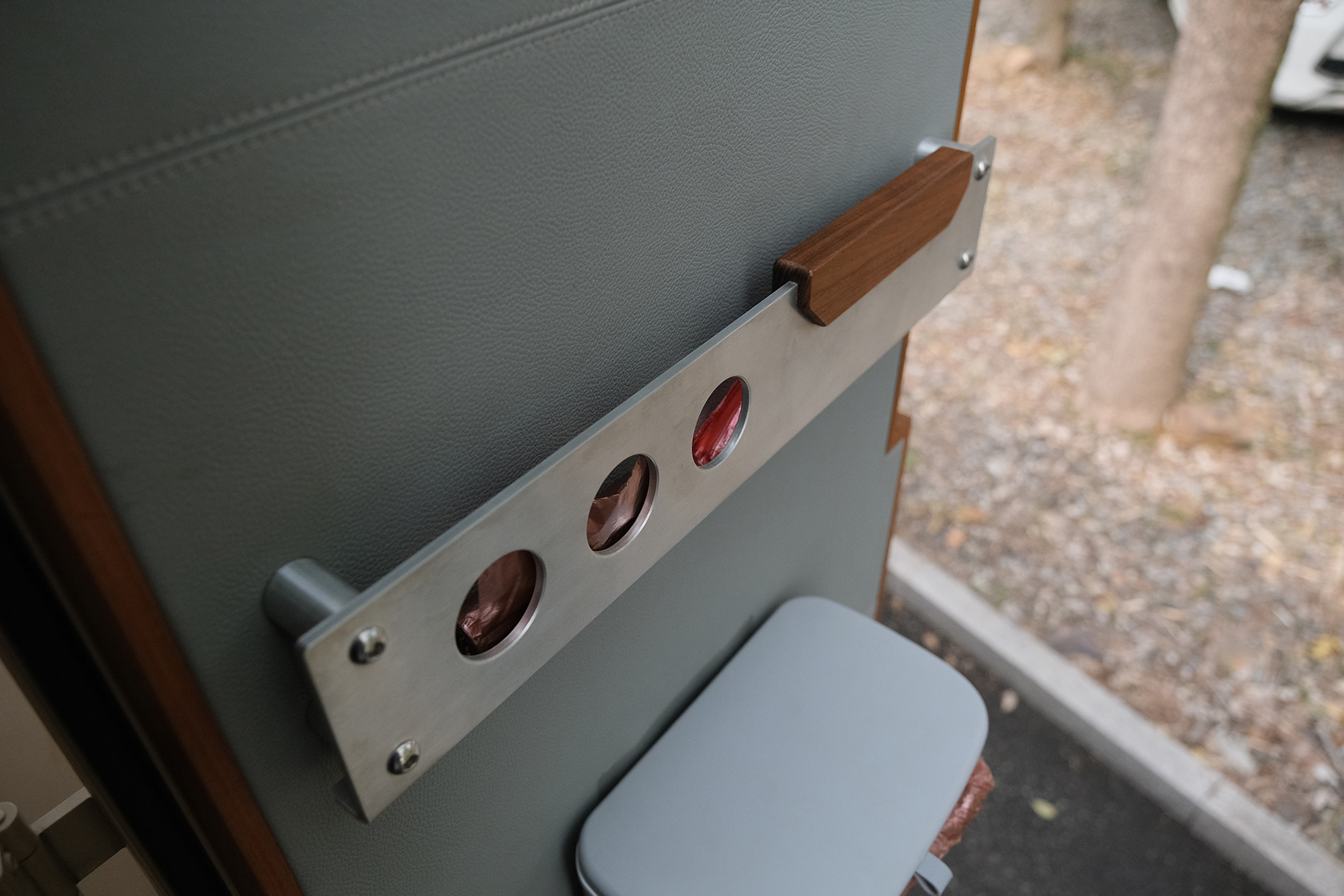

Main door: Exclusive to Amodillo, equipped with American brand electric door locks, password and magnetic card opening, and also equipped with outdoor key opening

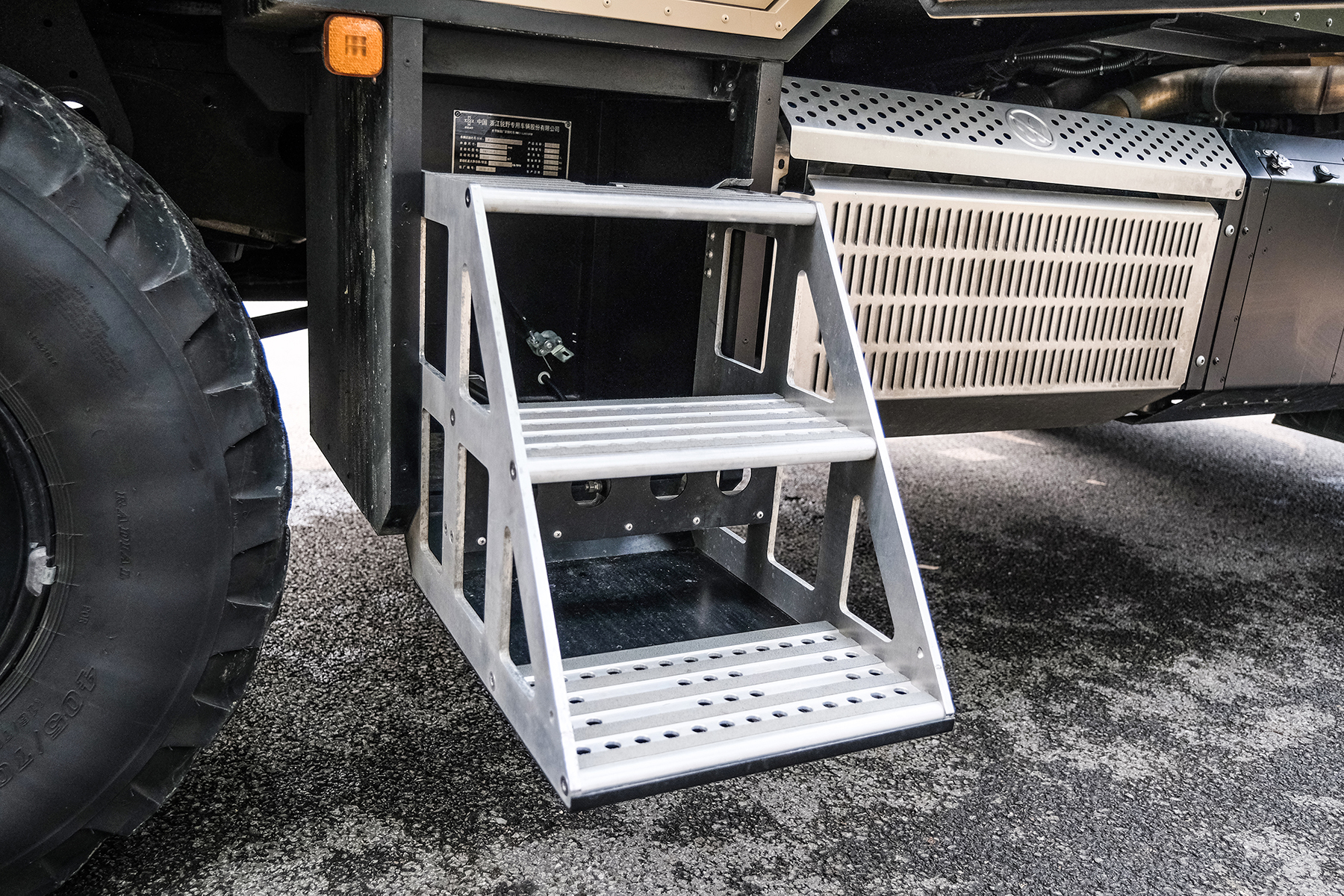

Stairs: self-made electric stairs

Floor: Top grade teak wood flooring for ships, polished with vegetable oil (without chemical paint)

Water supply system:

310 liter stainless steel clear water tank

American brand fully automatic water pump and brand waterway system

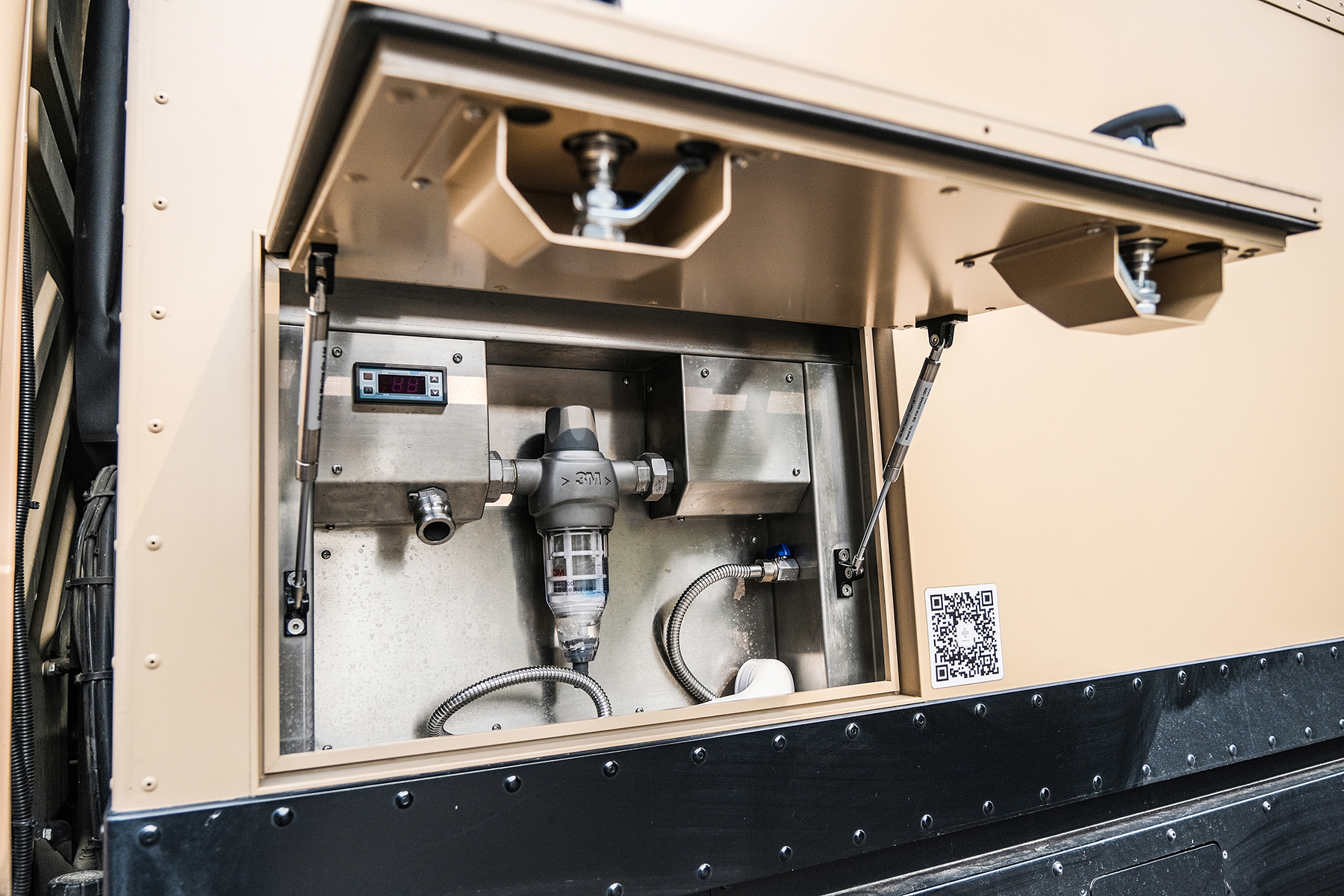

Pressure water inlet, pre filtration

German brand 9 kW fully automatic diesel hot water boiler

Dutch brand 25 liter water heater

Entertainment system:

1 LCD TV with 4G box

Optional configuration:

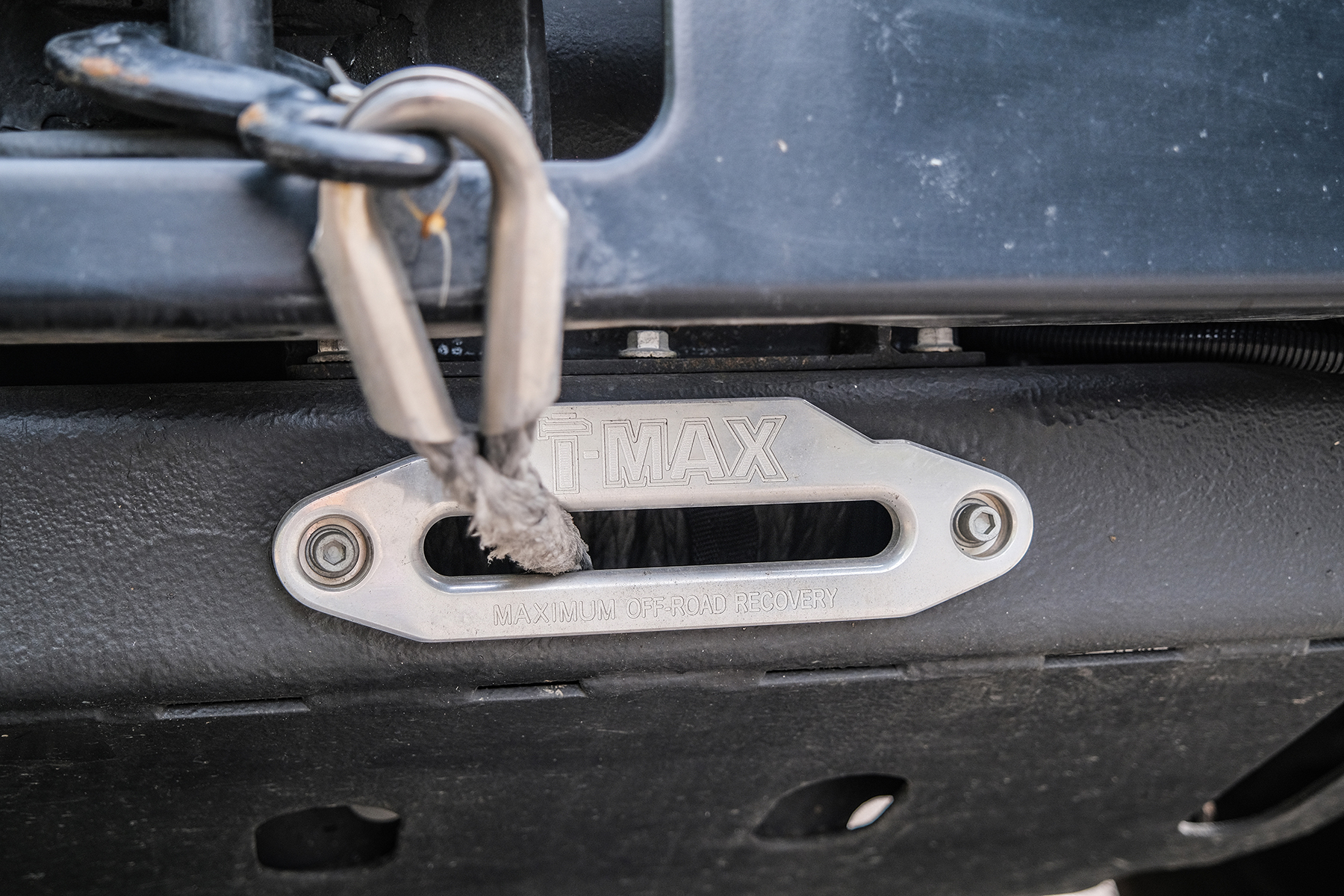

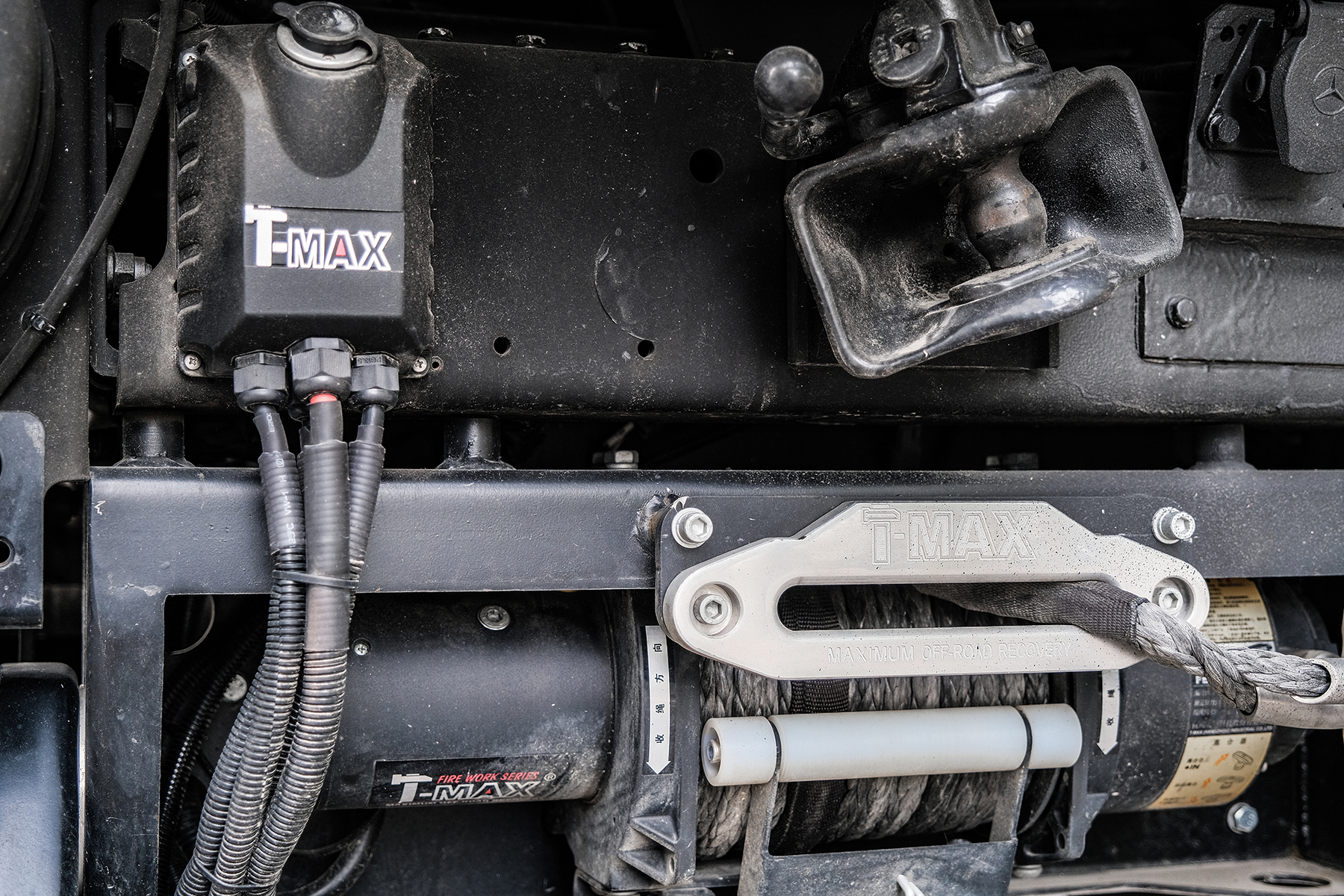

Rear winch

Sunshade

Bose sound system is small

Tail storage box

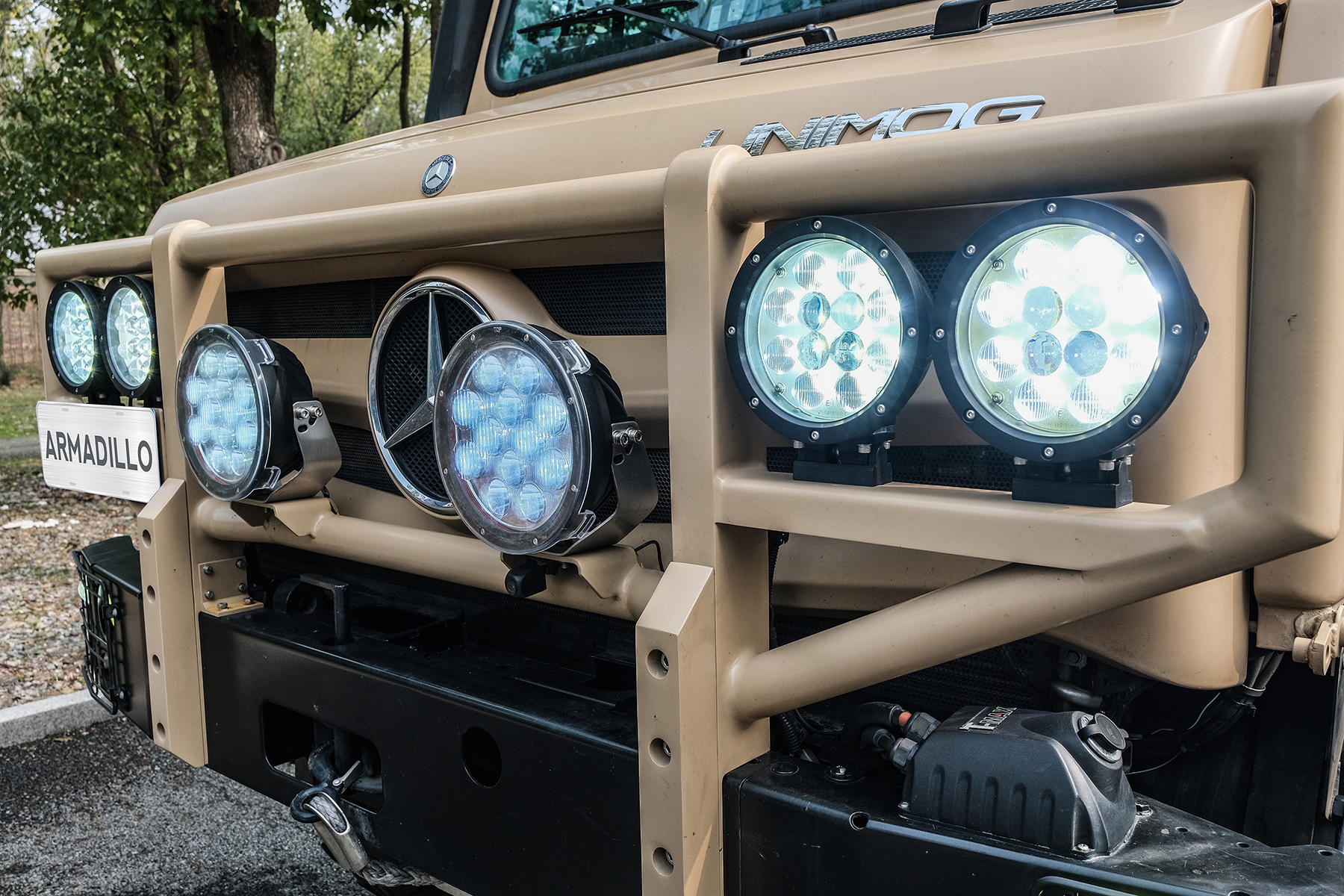

6 LED spotlights in front of the cab

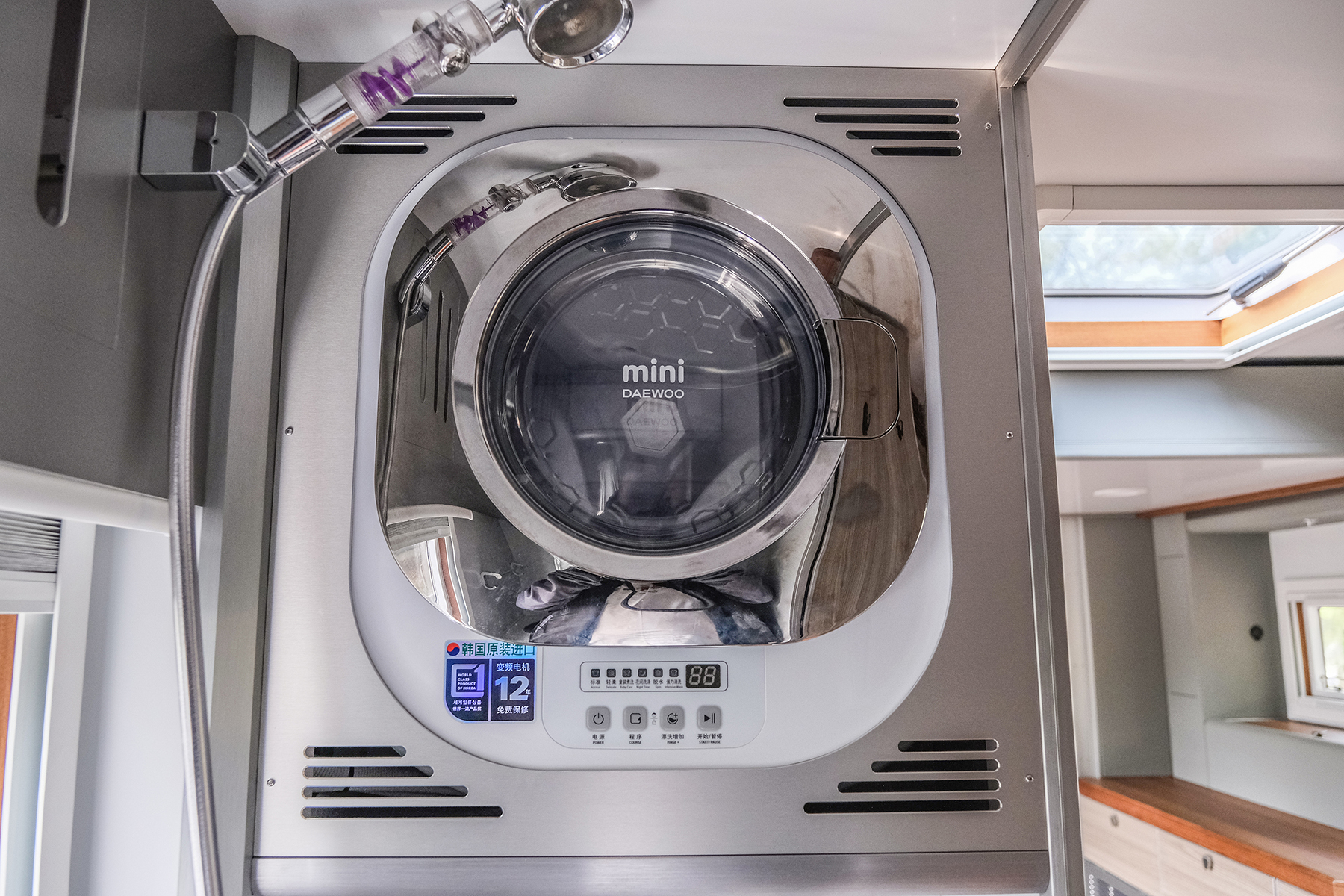

Mini washing machine

Mobile TV receiving system and satellite receiver
