Vehicle information:
Total length: 9995 millimeters
Total width: 2495mm
Total height: 3680 millimeters
Box length: 7405mm
Total weight: 18000 kilograms
Wheelbase: 4500+1400mm

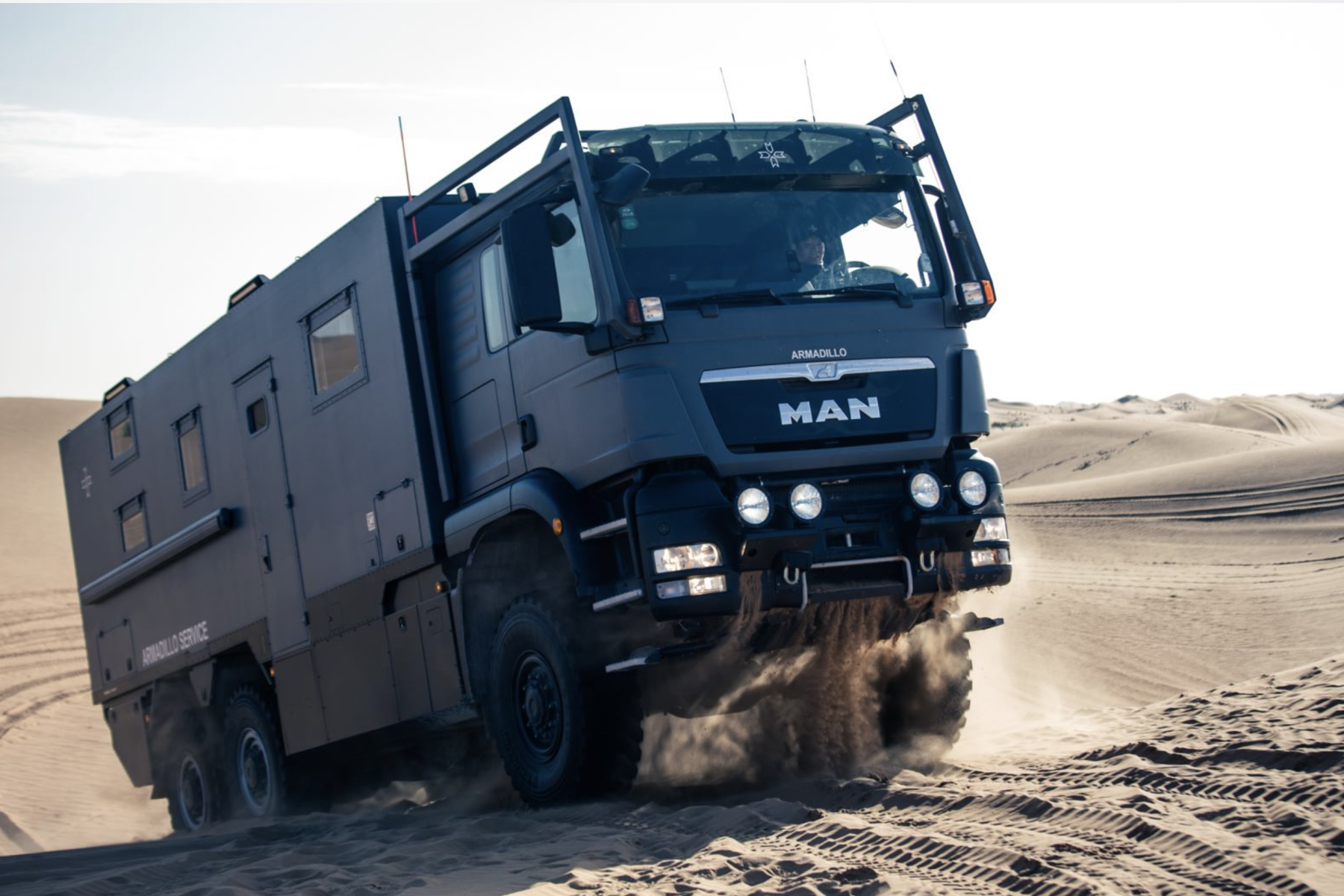

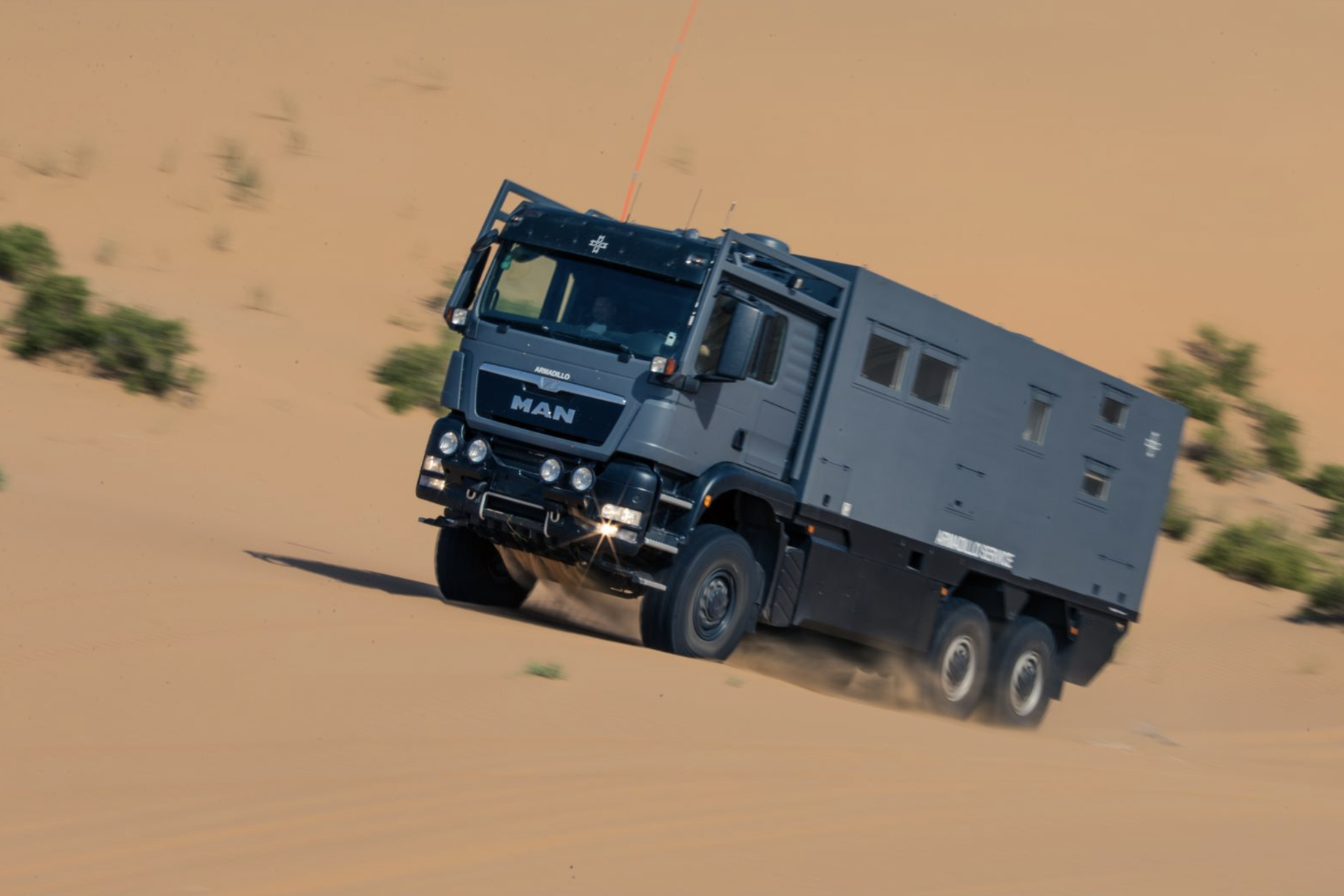

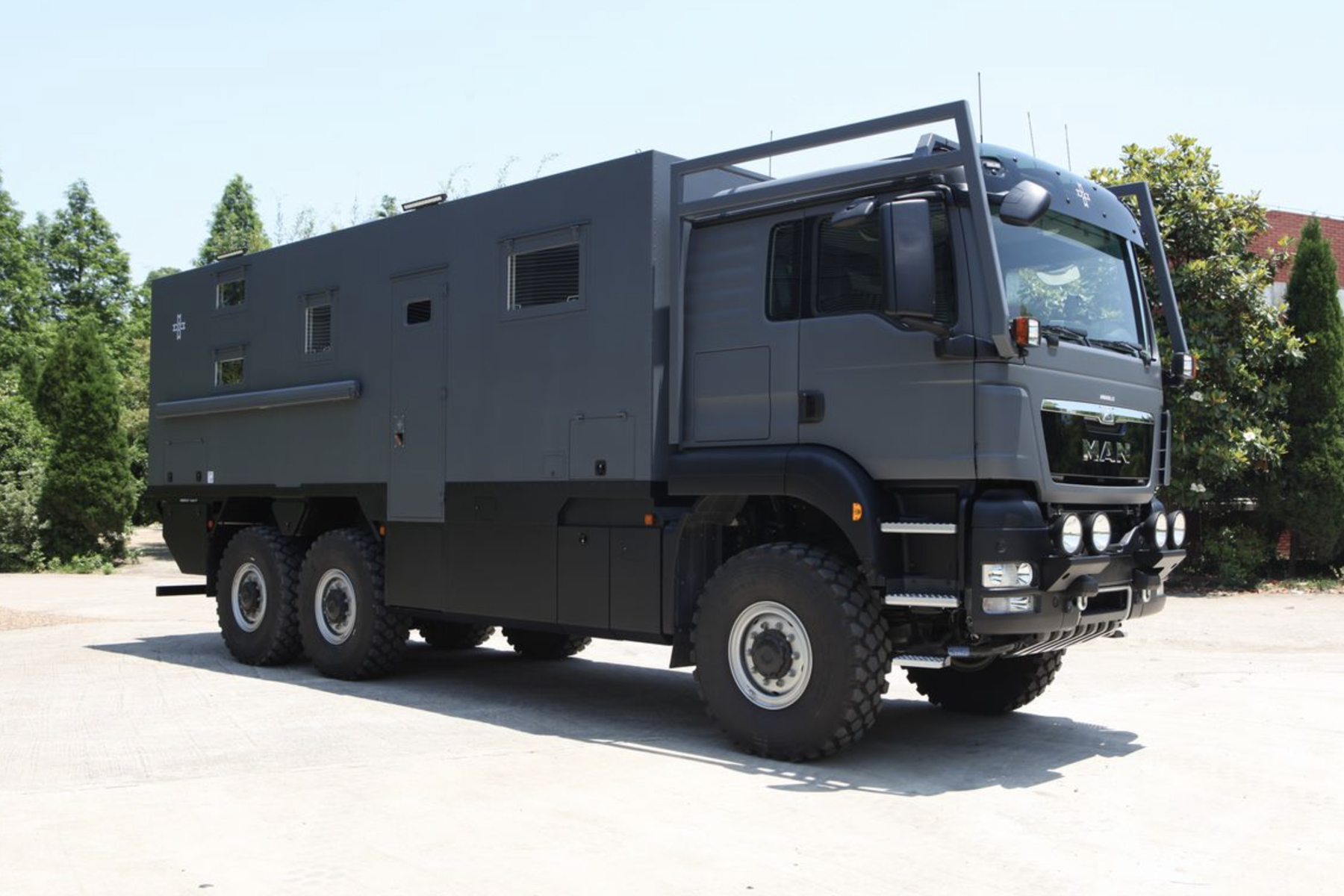

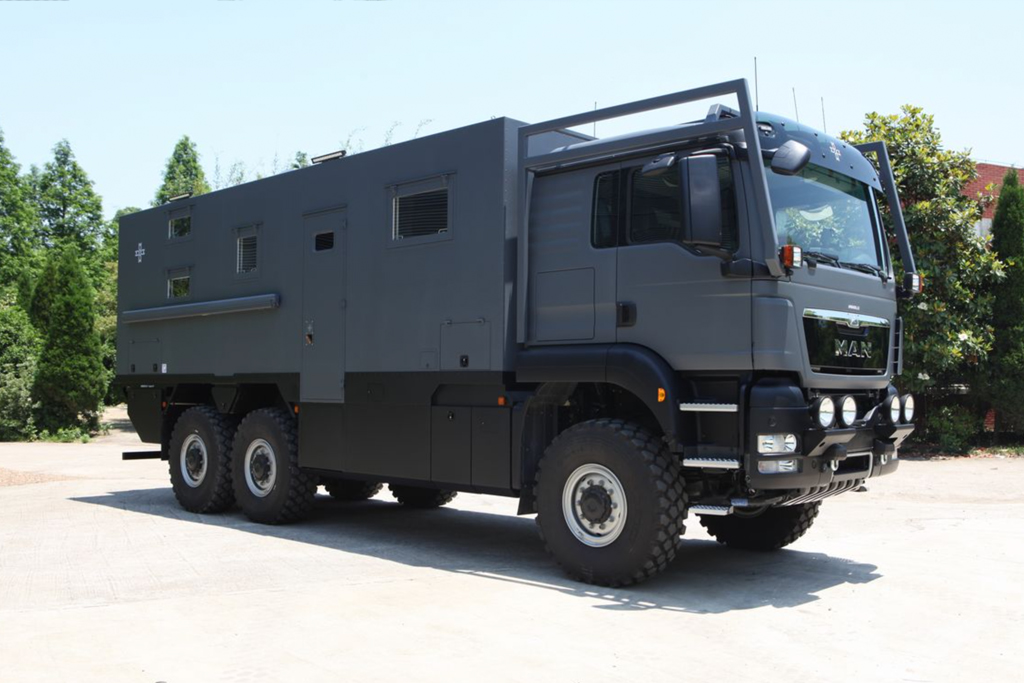

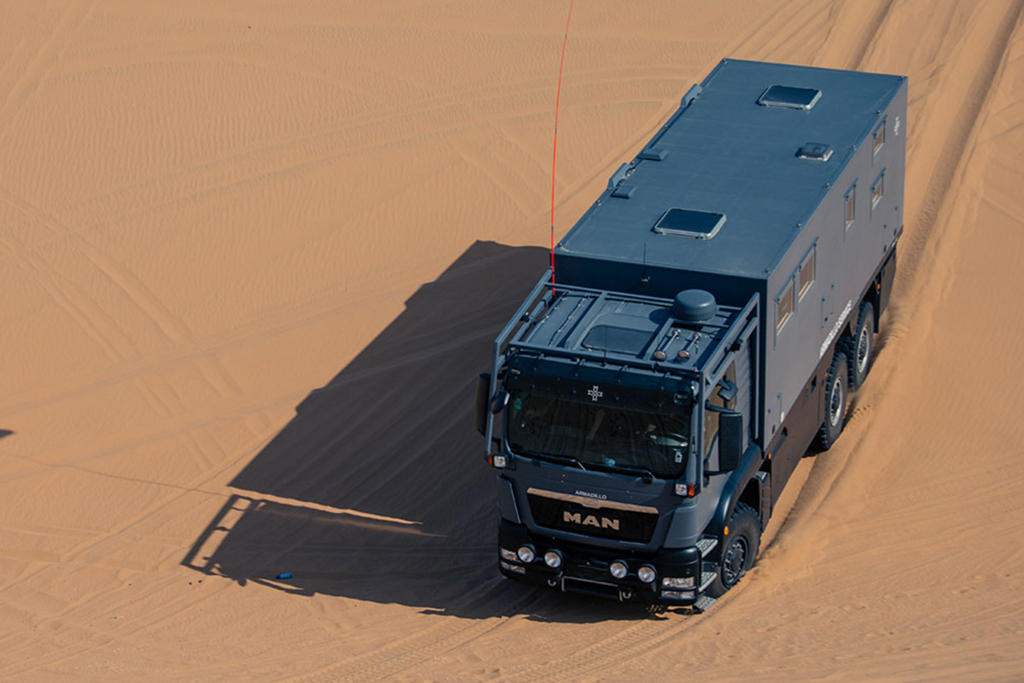

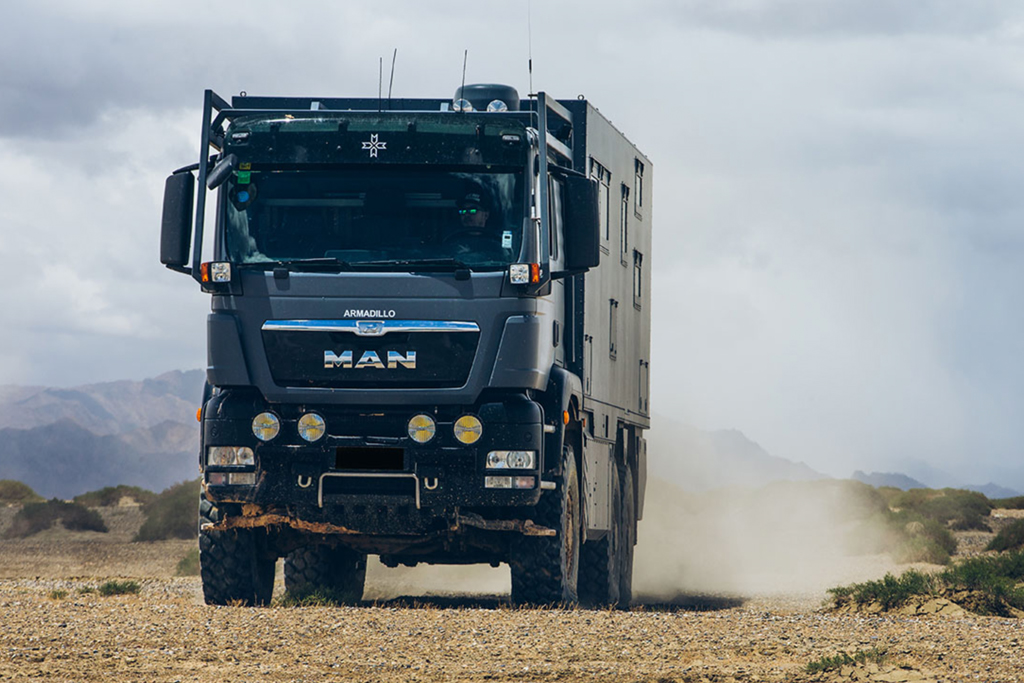

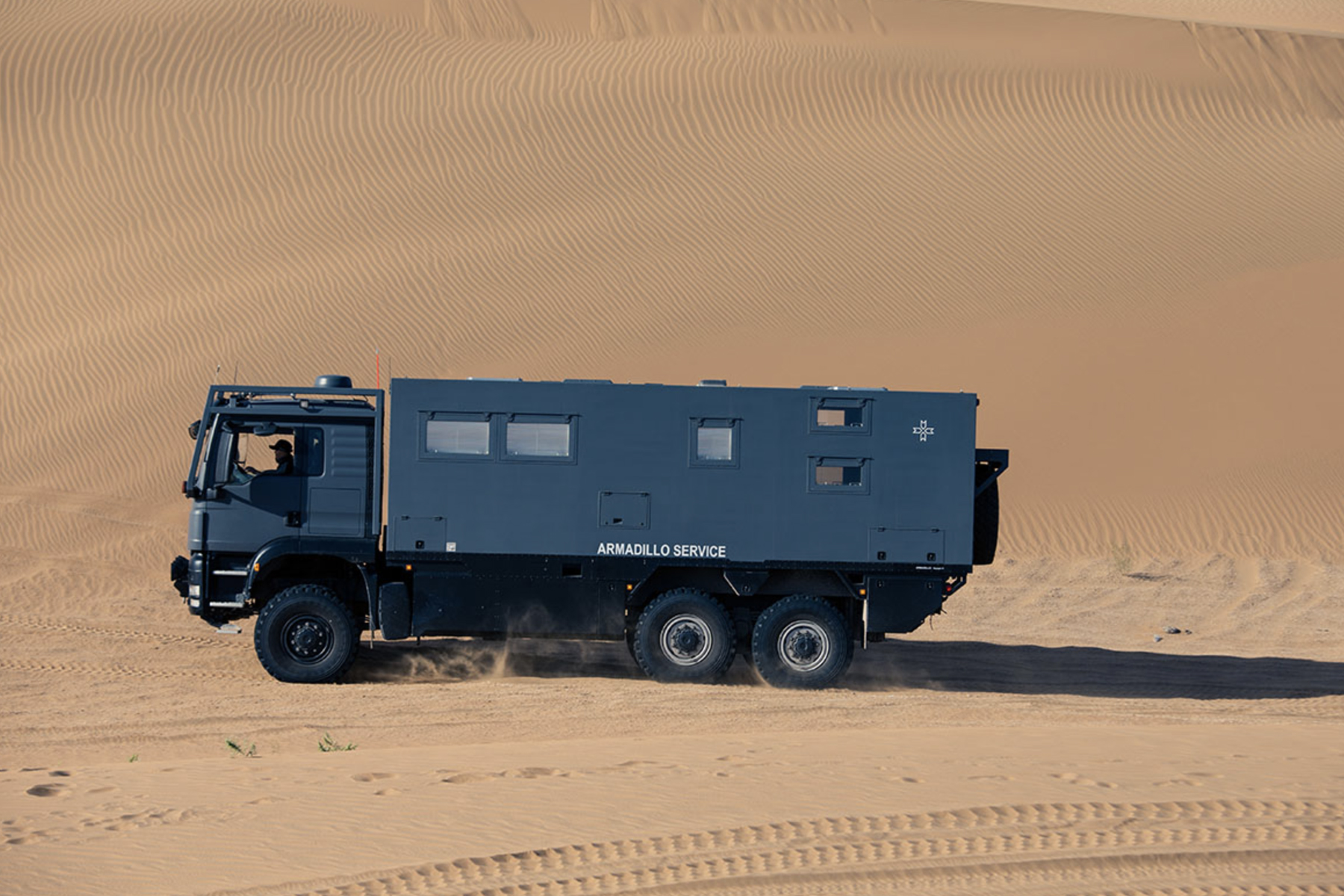

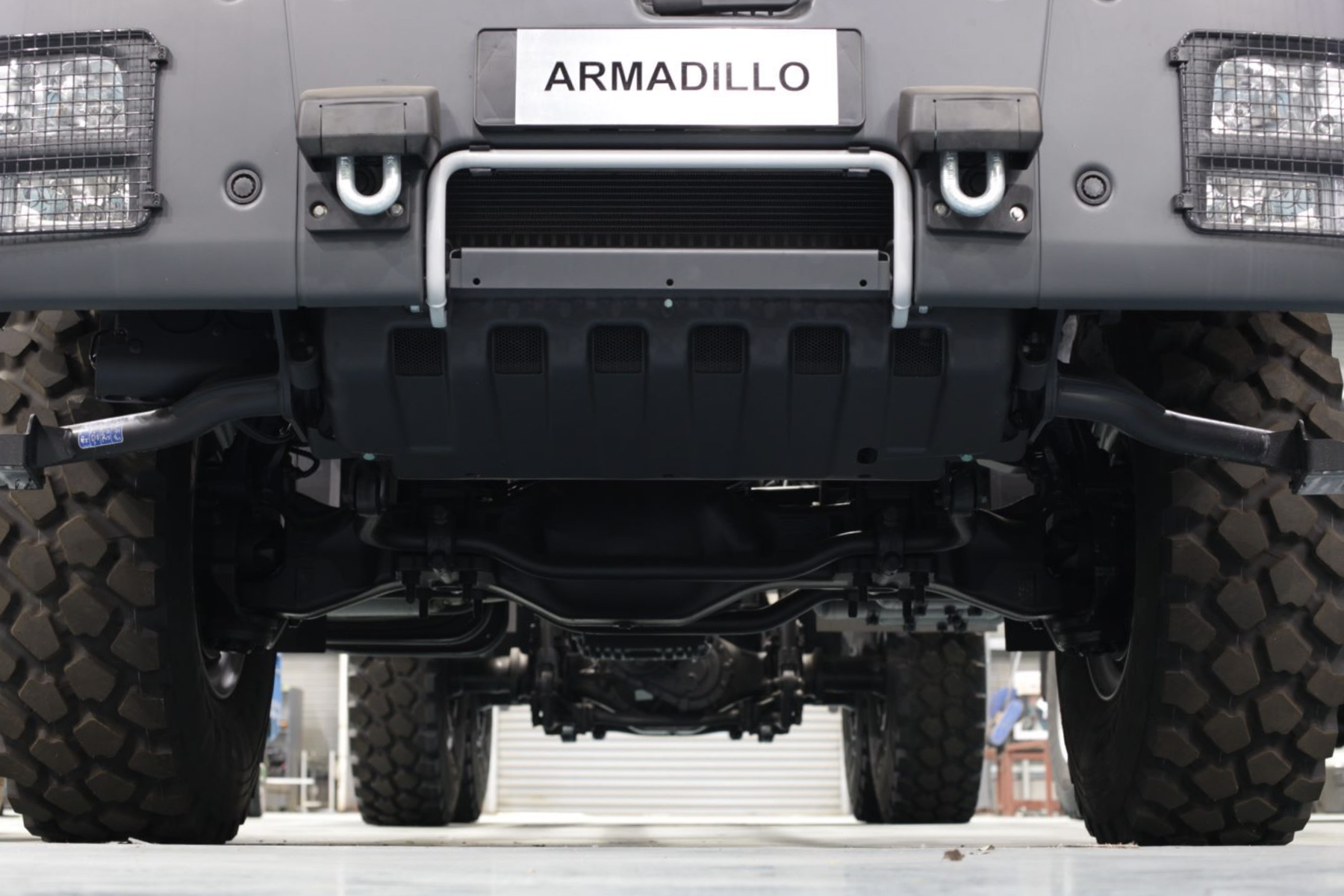

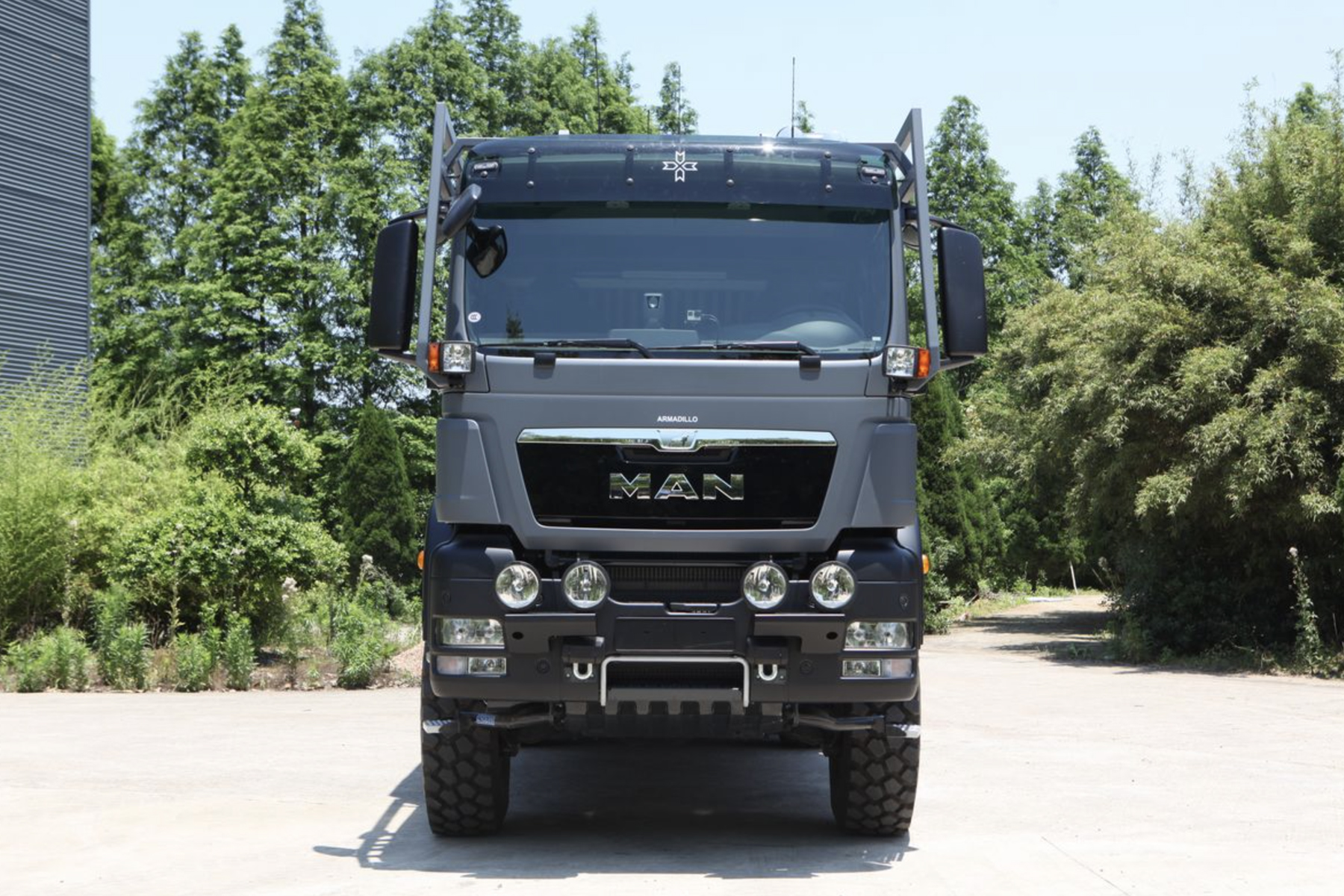

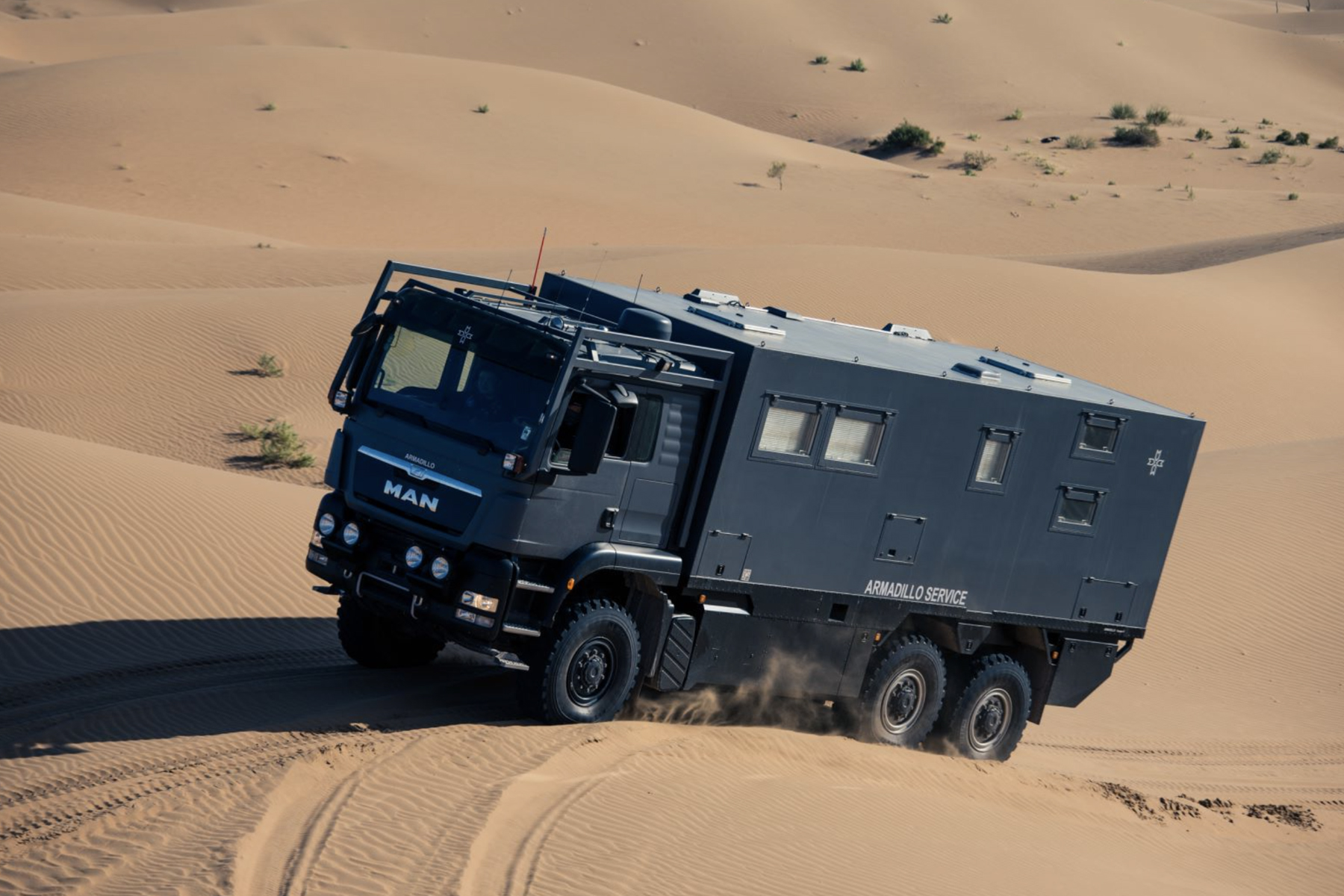

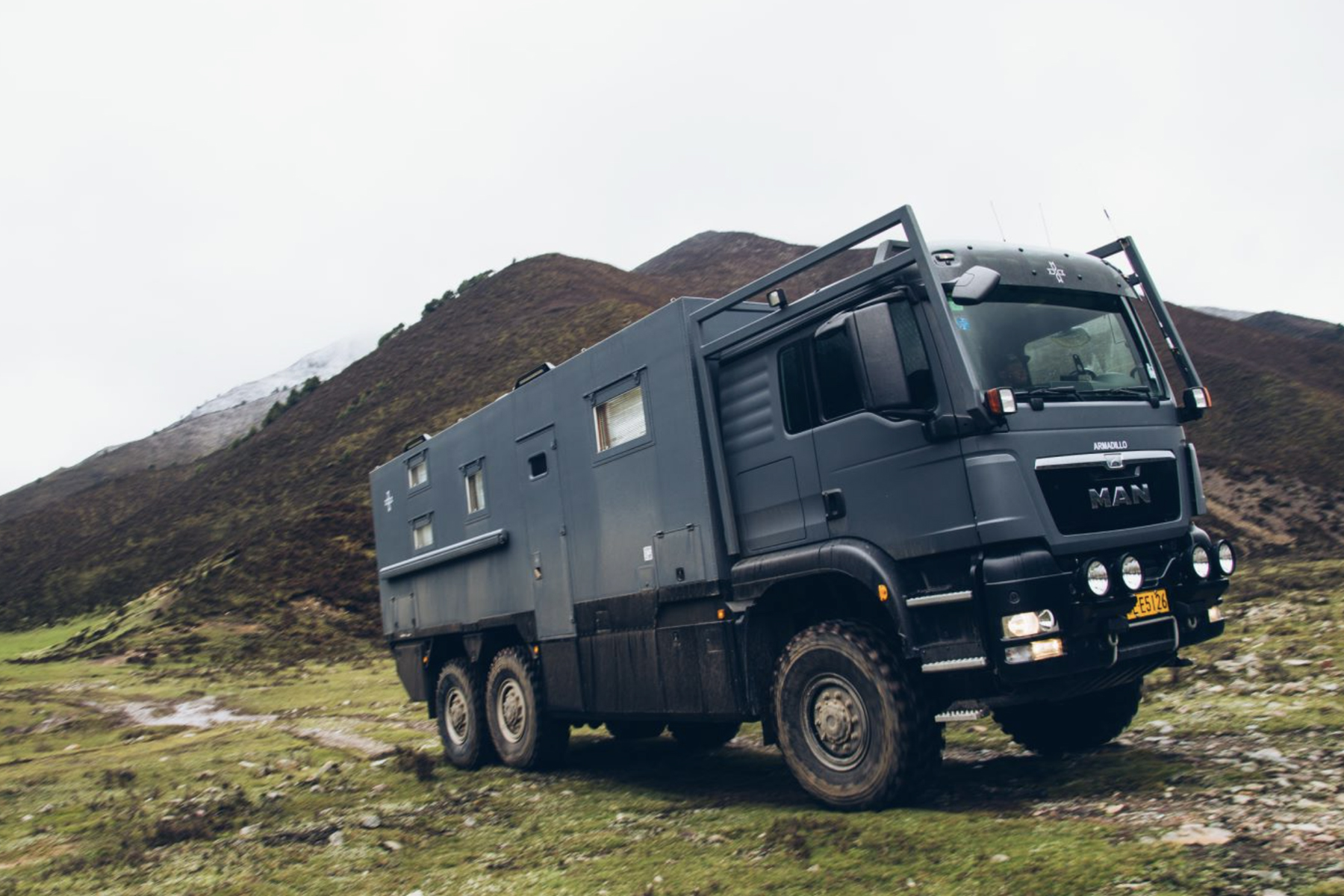

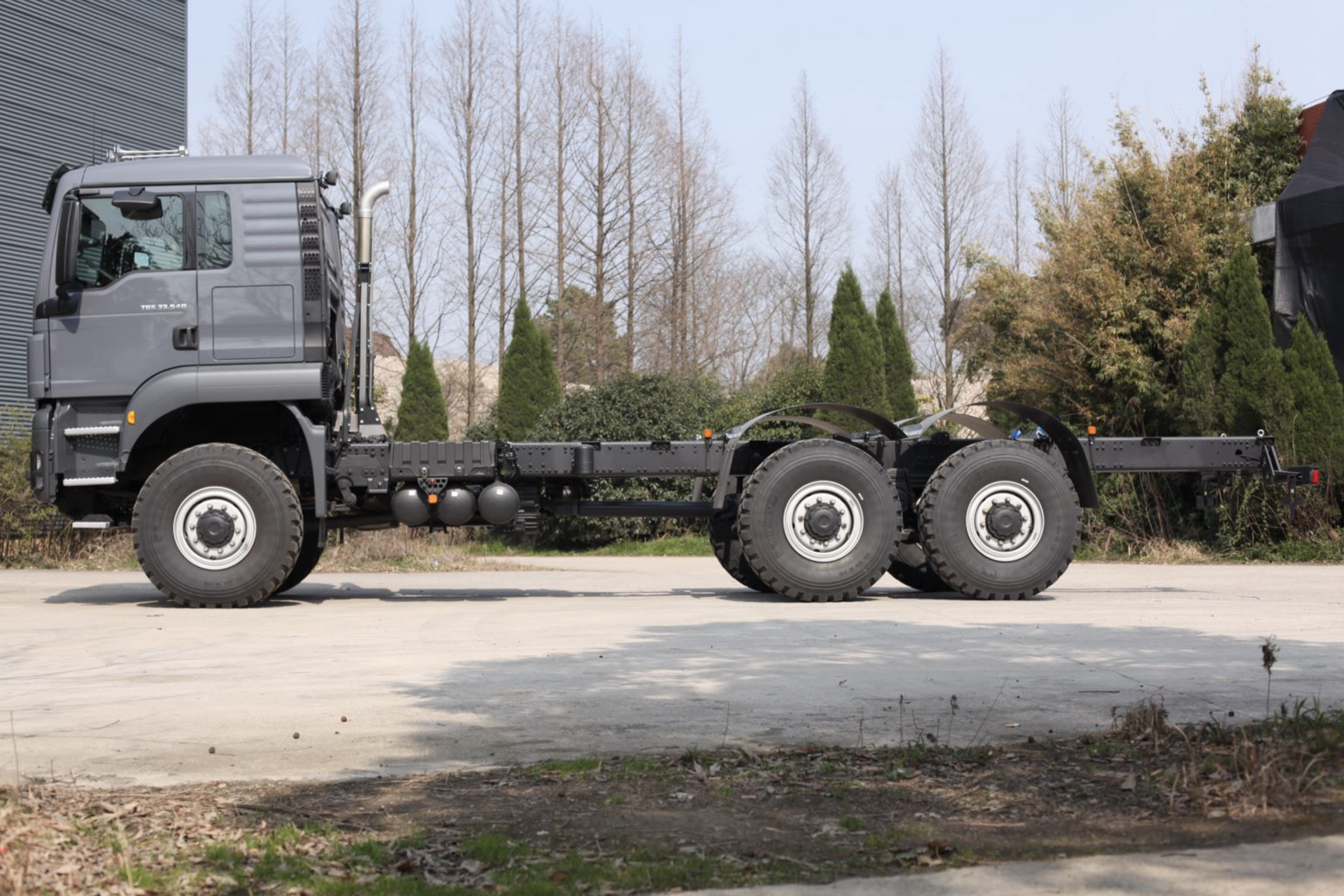

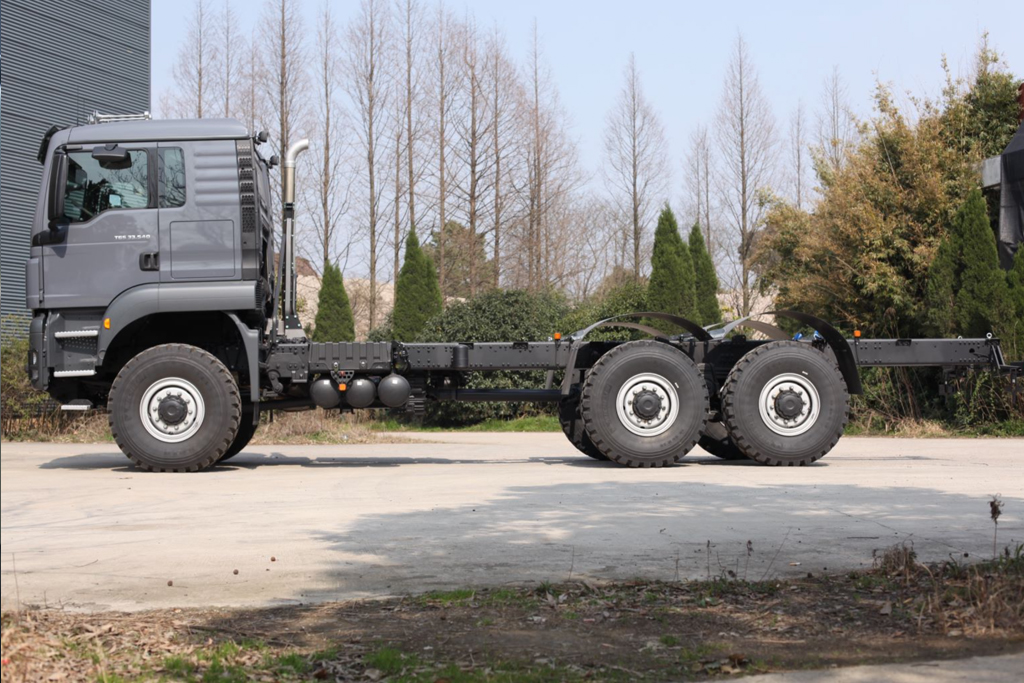

Chassis: German MAN TGS 33.540 6x6

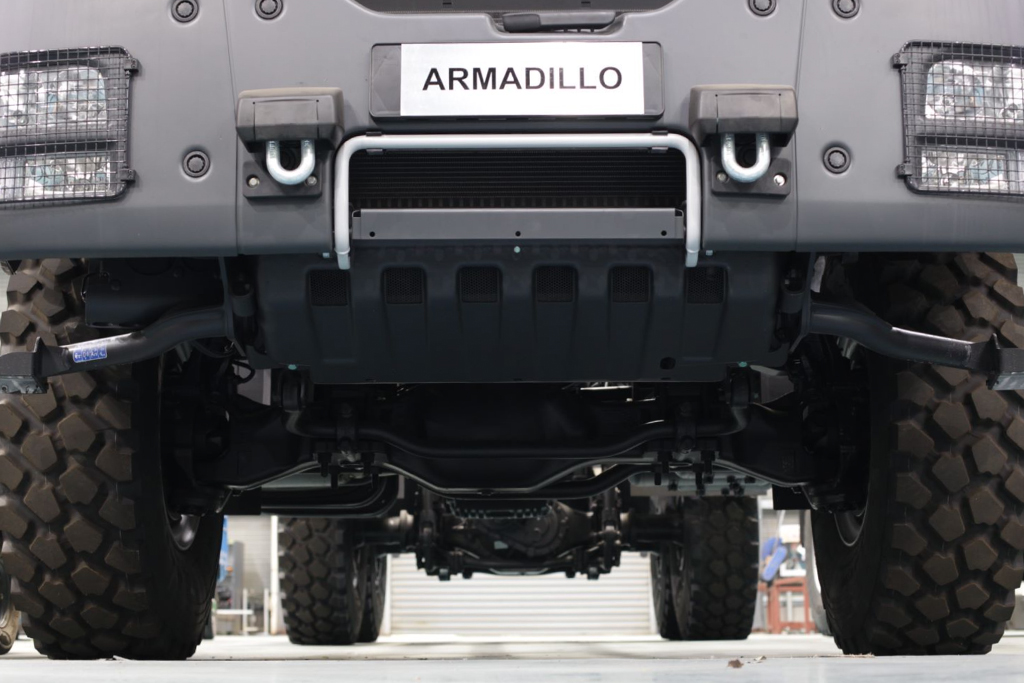

Minimum ground clearance: 385 millimeters
Approach angle: 33 degrees/Departure angle: 37 degrees/Longitudinal passing angle: 28 degrees
Fuel tank: Dual fuel tank 400+400=800 liters

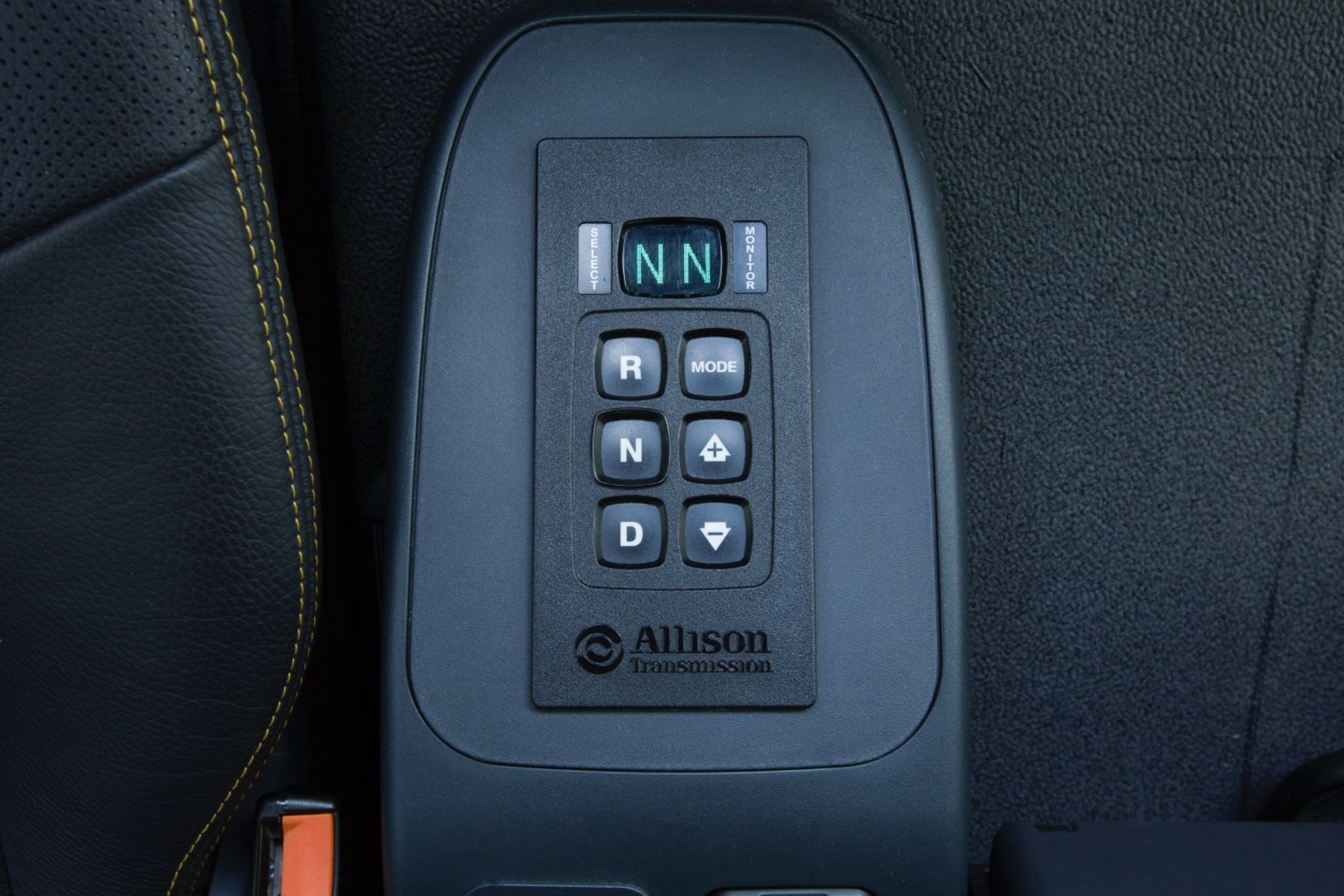

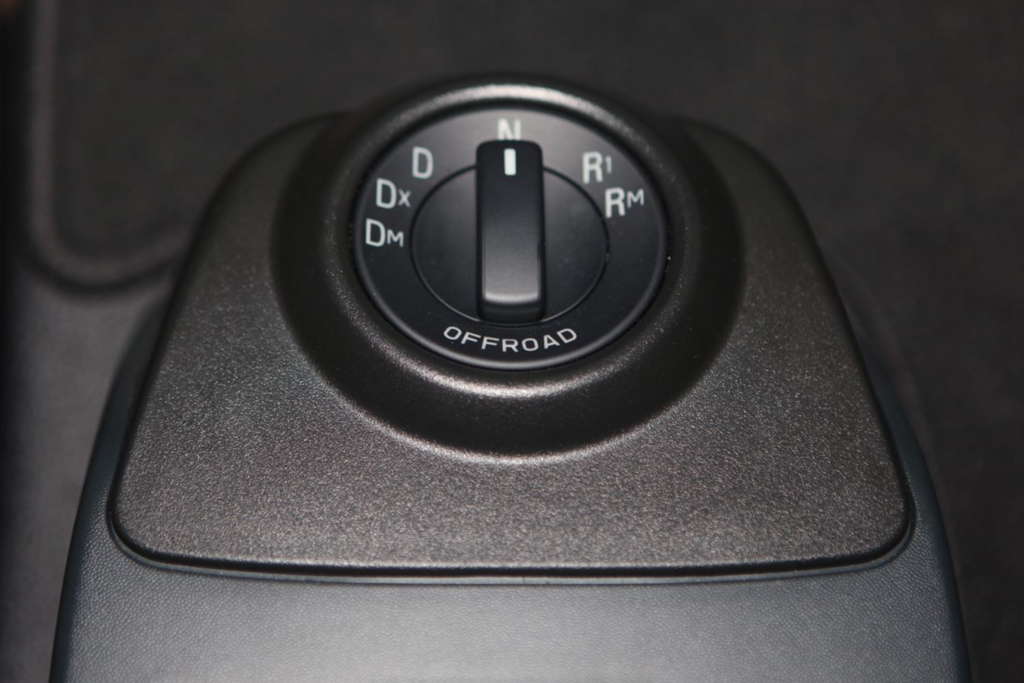

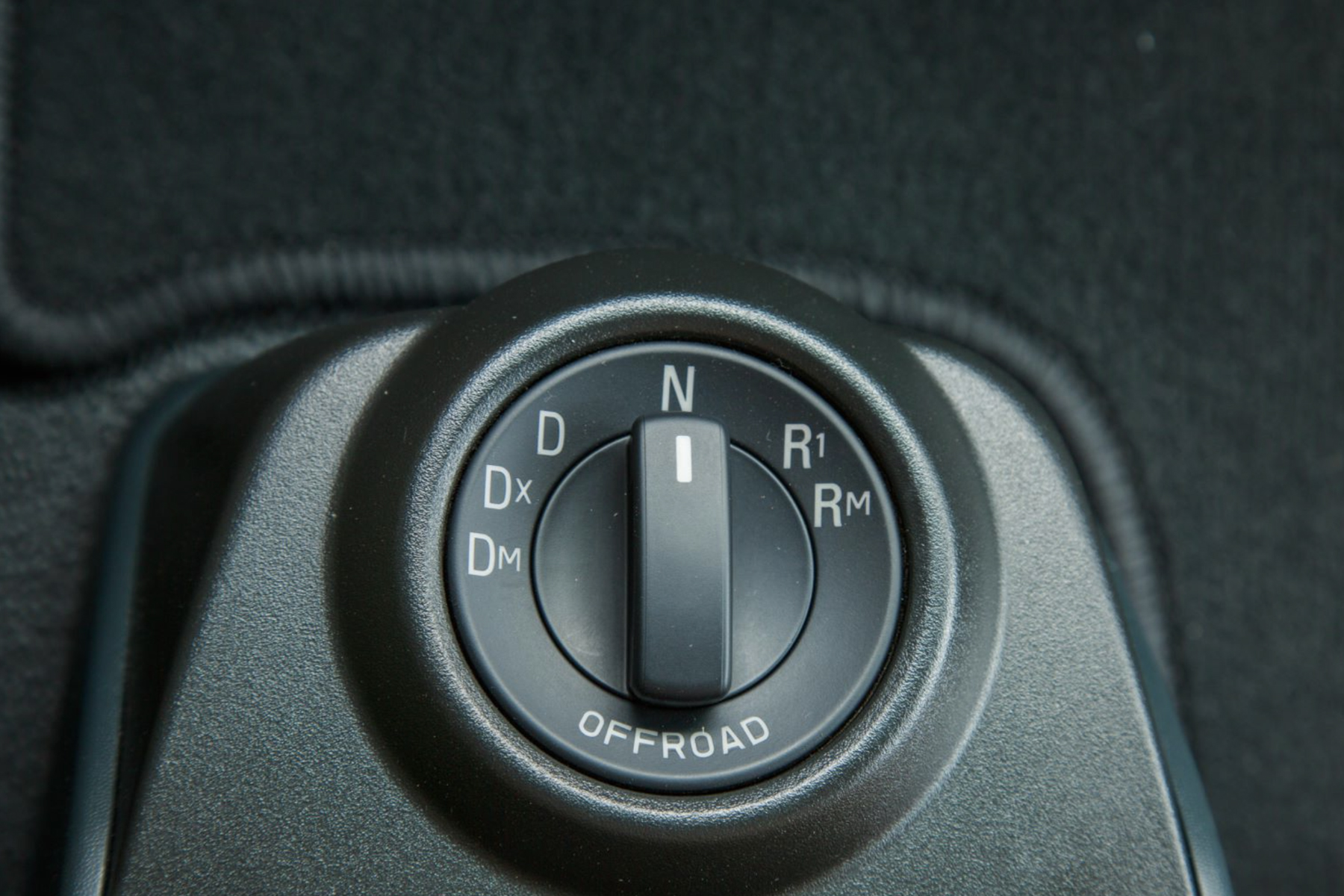

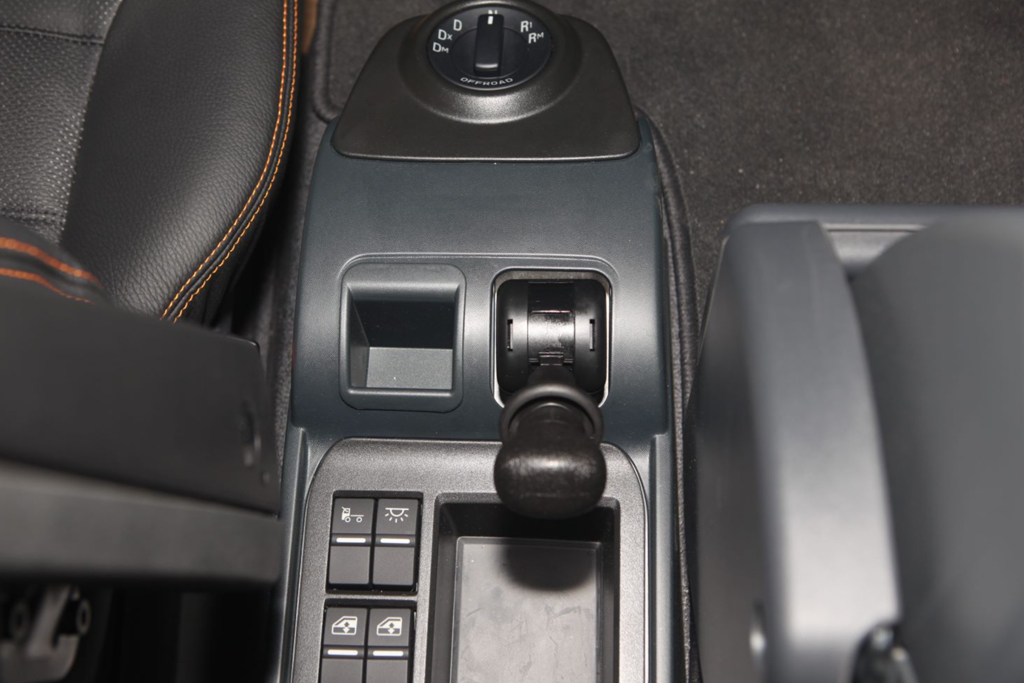

Transmission: 12 speed off-road mode automatic transmission with gear locking device
Power: 540HP
Torque: 2500N · m

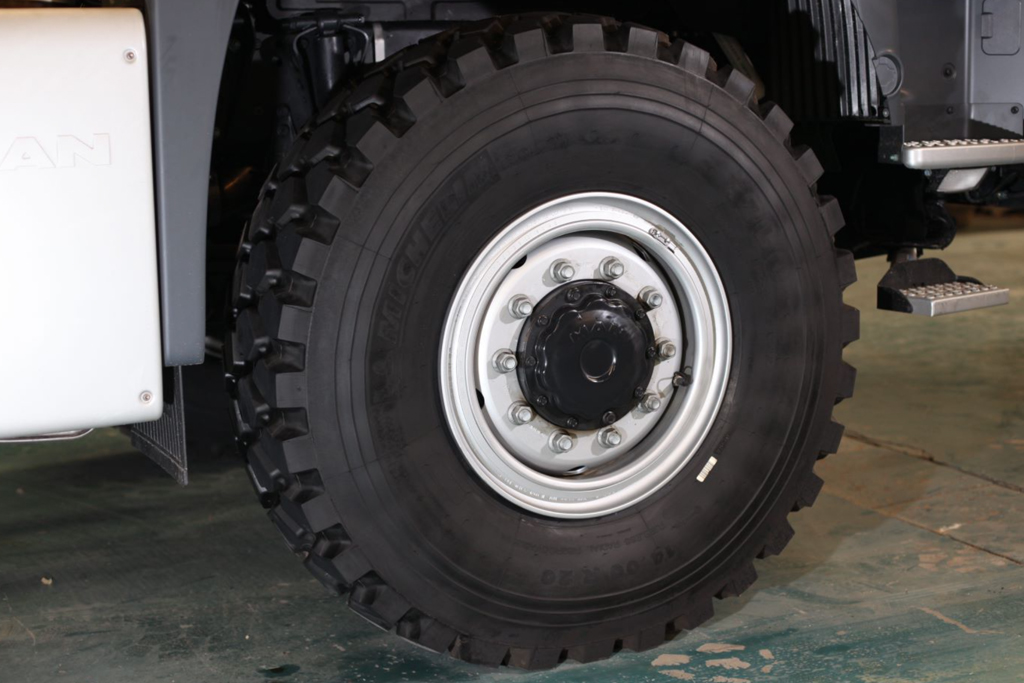

Tire: Michelin 14.00R20 XZL

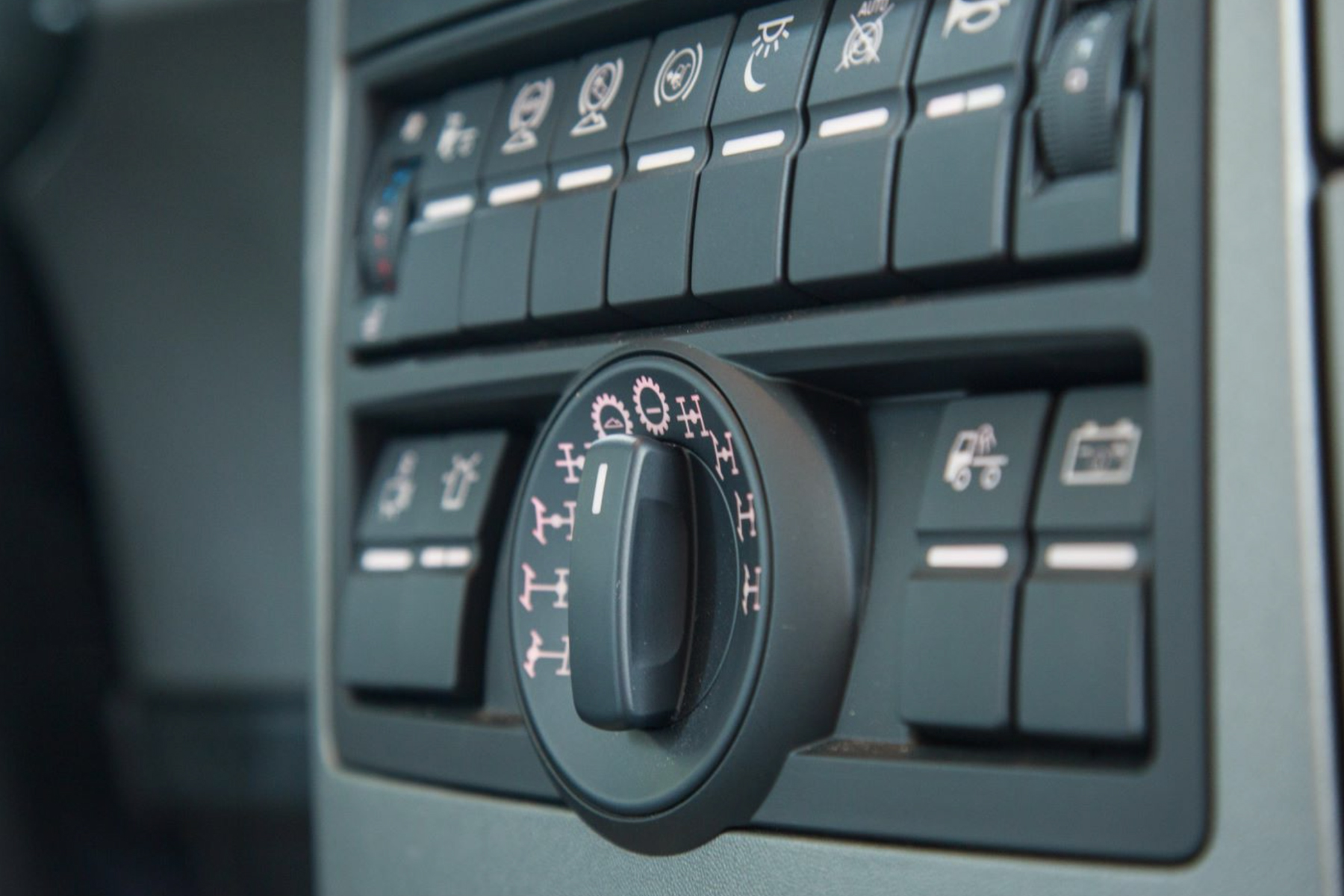

Drive form: full-time six wheel drive with 3 wheel locks and 2 axle locks

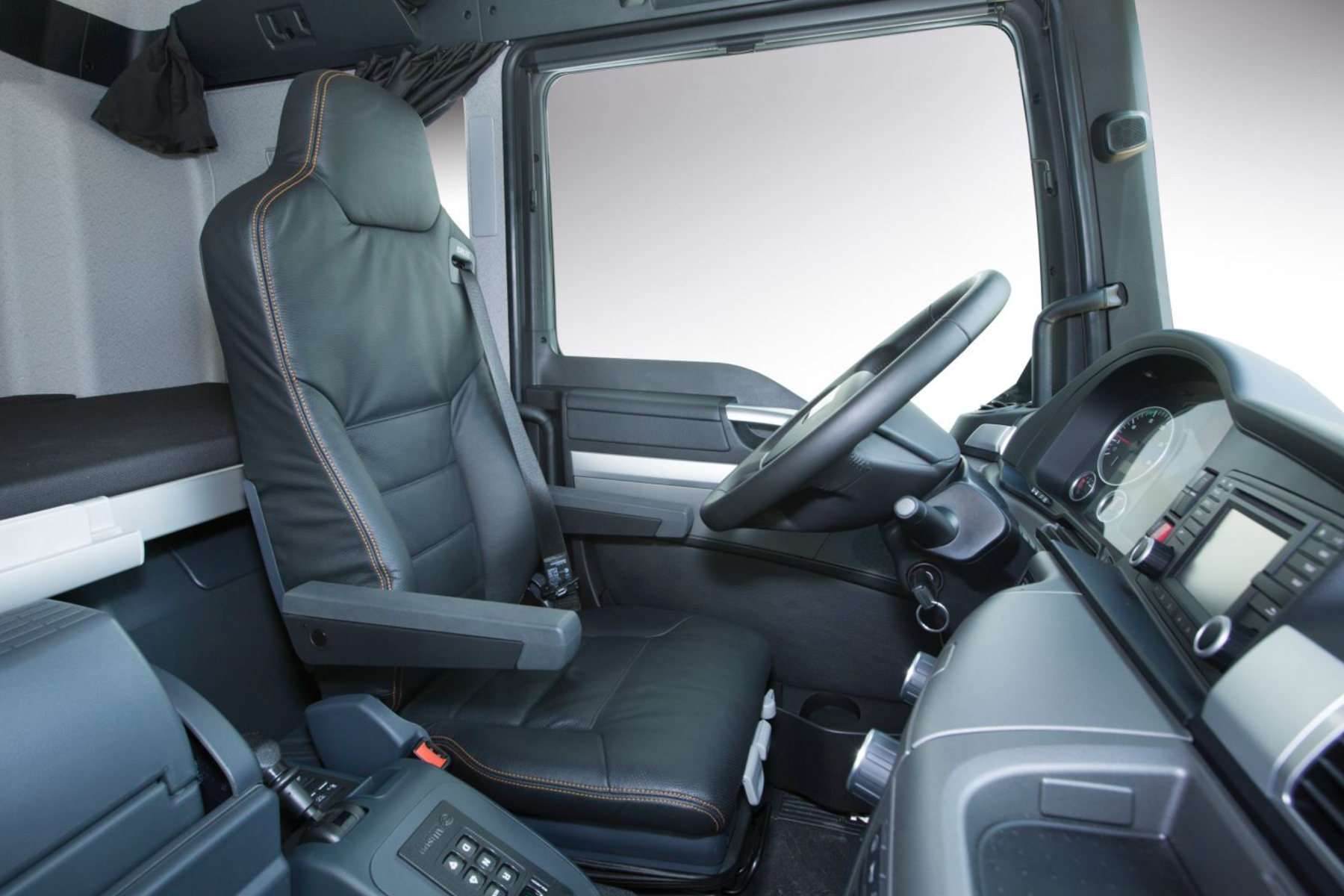

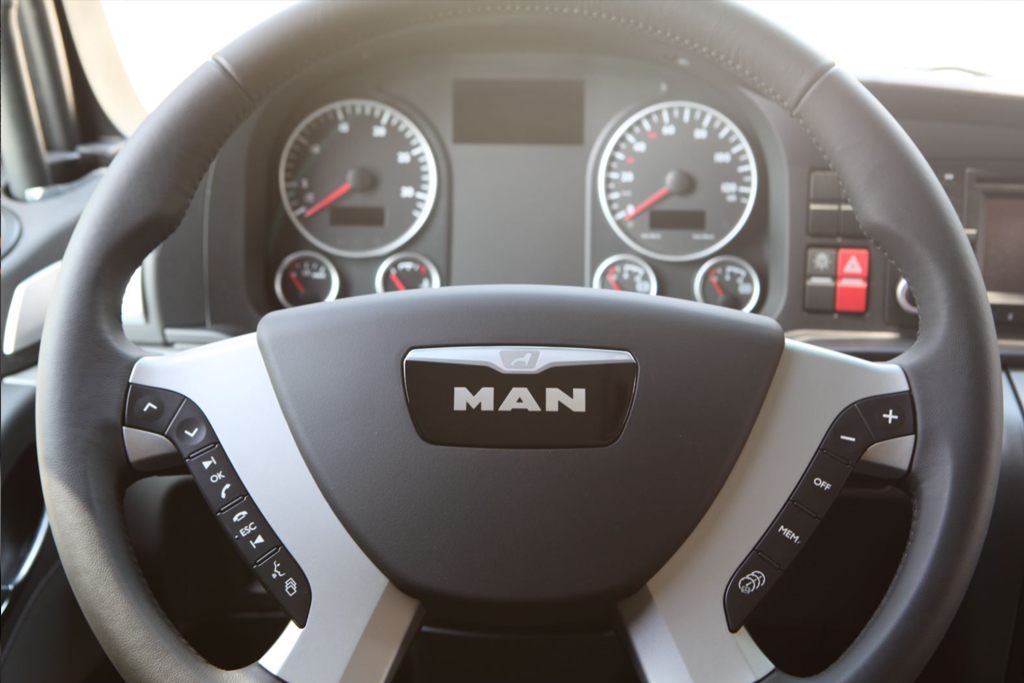

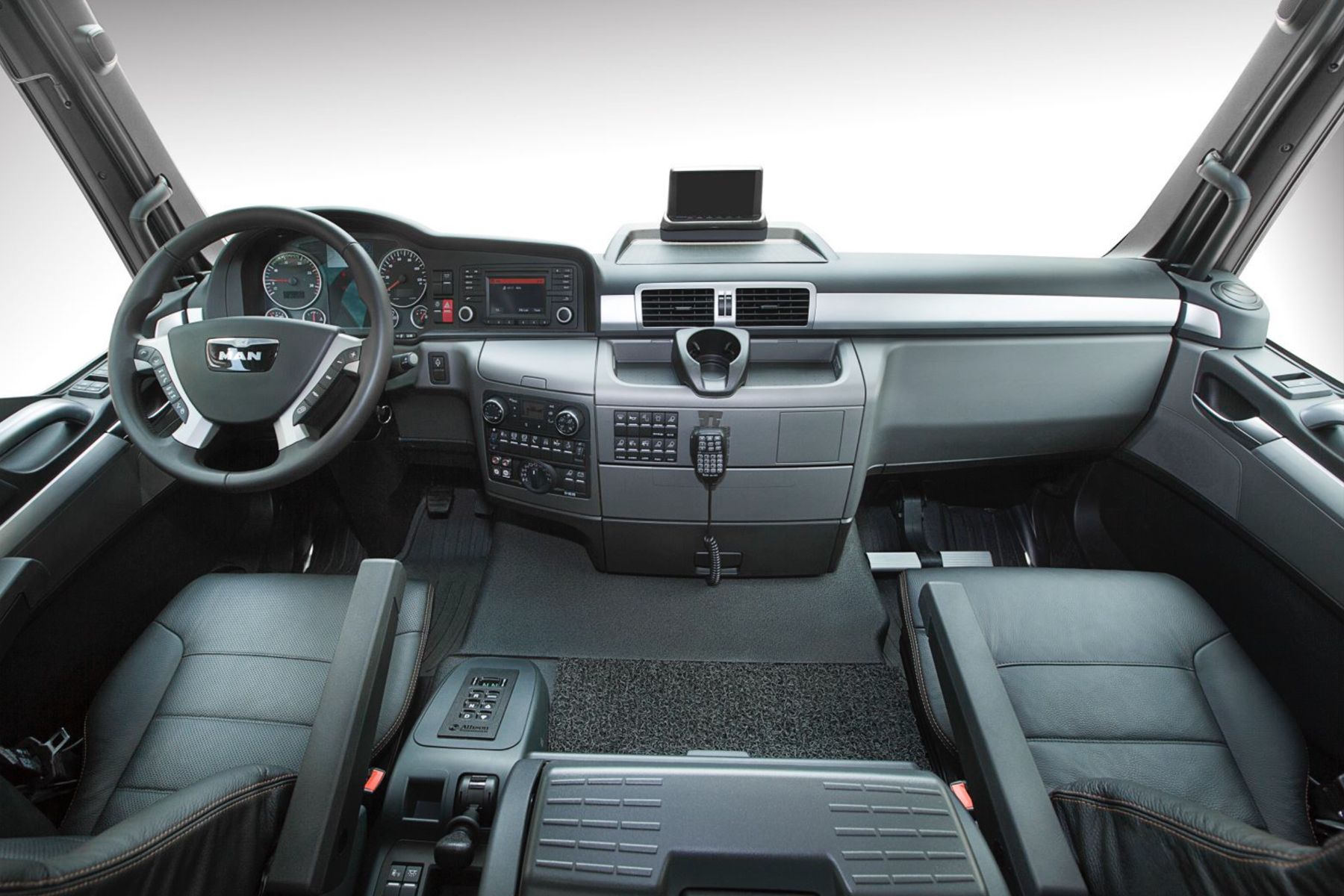

Driver's cab: leather set with 800mm wide sleeper, can accommodate 2 people
Structure and configuration:
Residency: 7 people

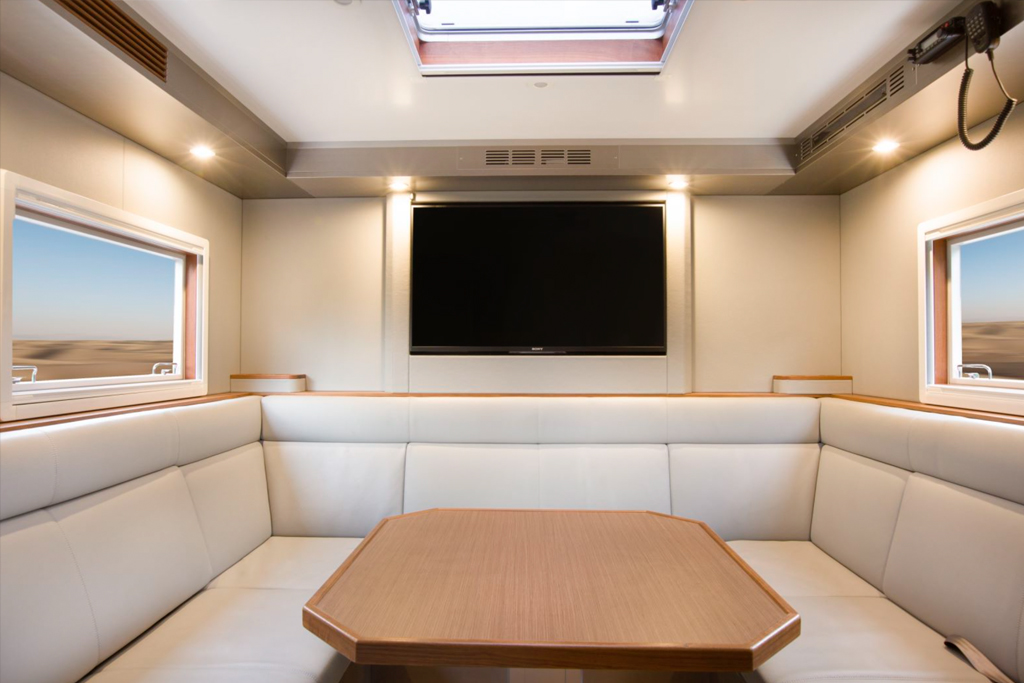

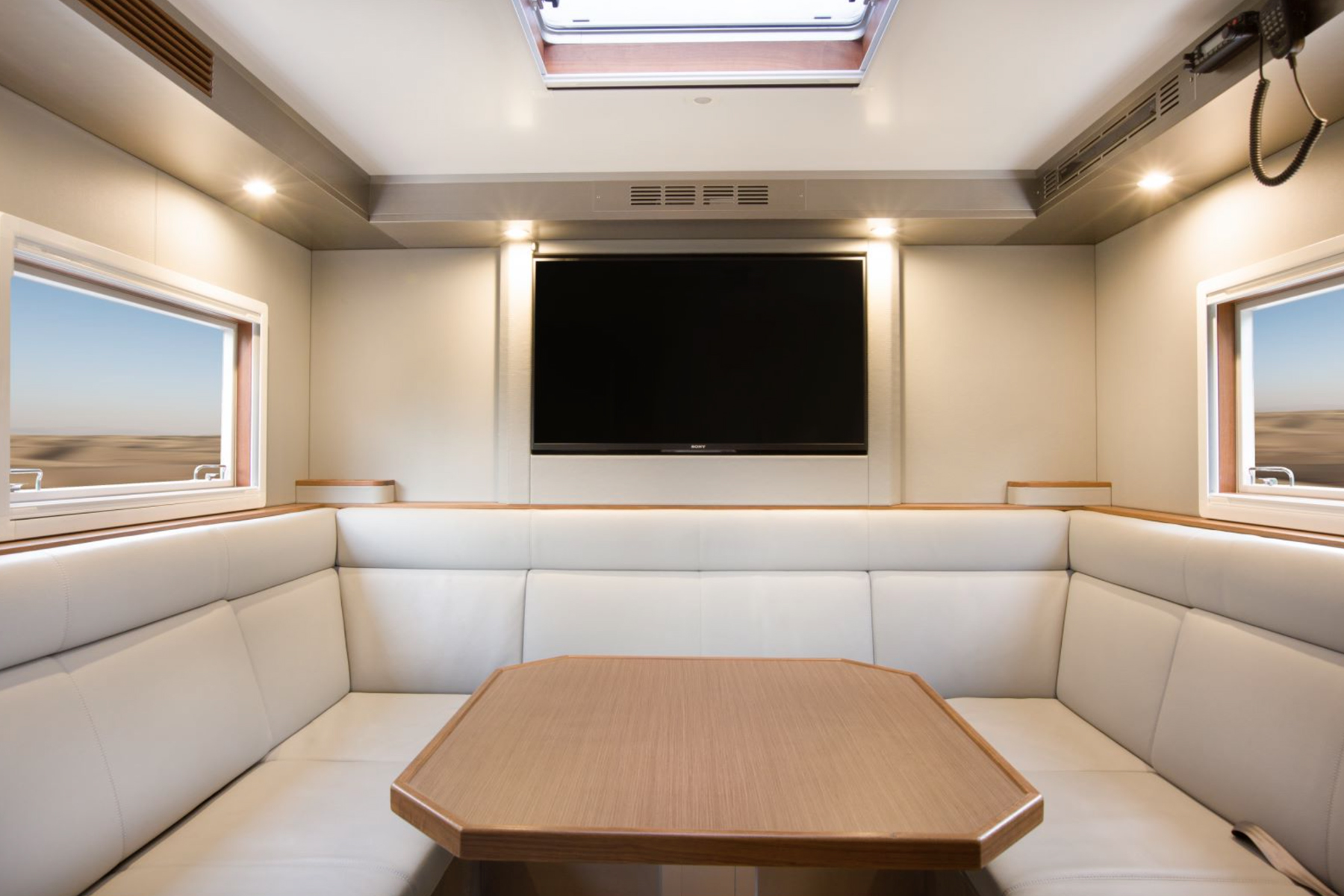

Front: Combination of 6-seater sofa and electric lifting dining table, can be transformed into 1 double bed, 2000 x 1600 mm

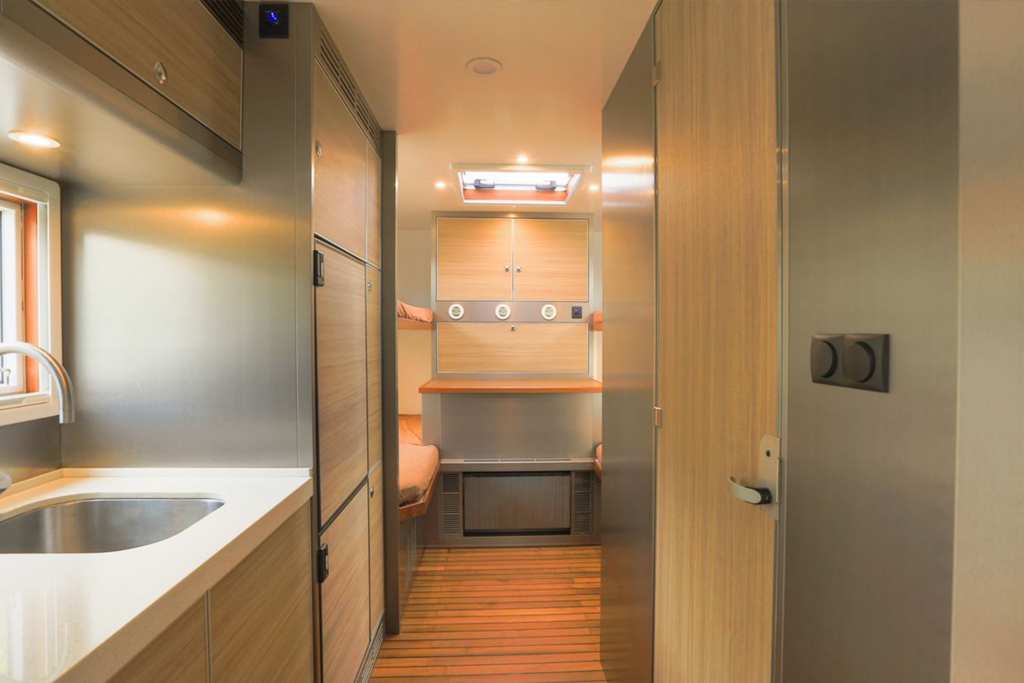

Middle: Wet dry separation bathroom, storage space, standard kitchen

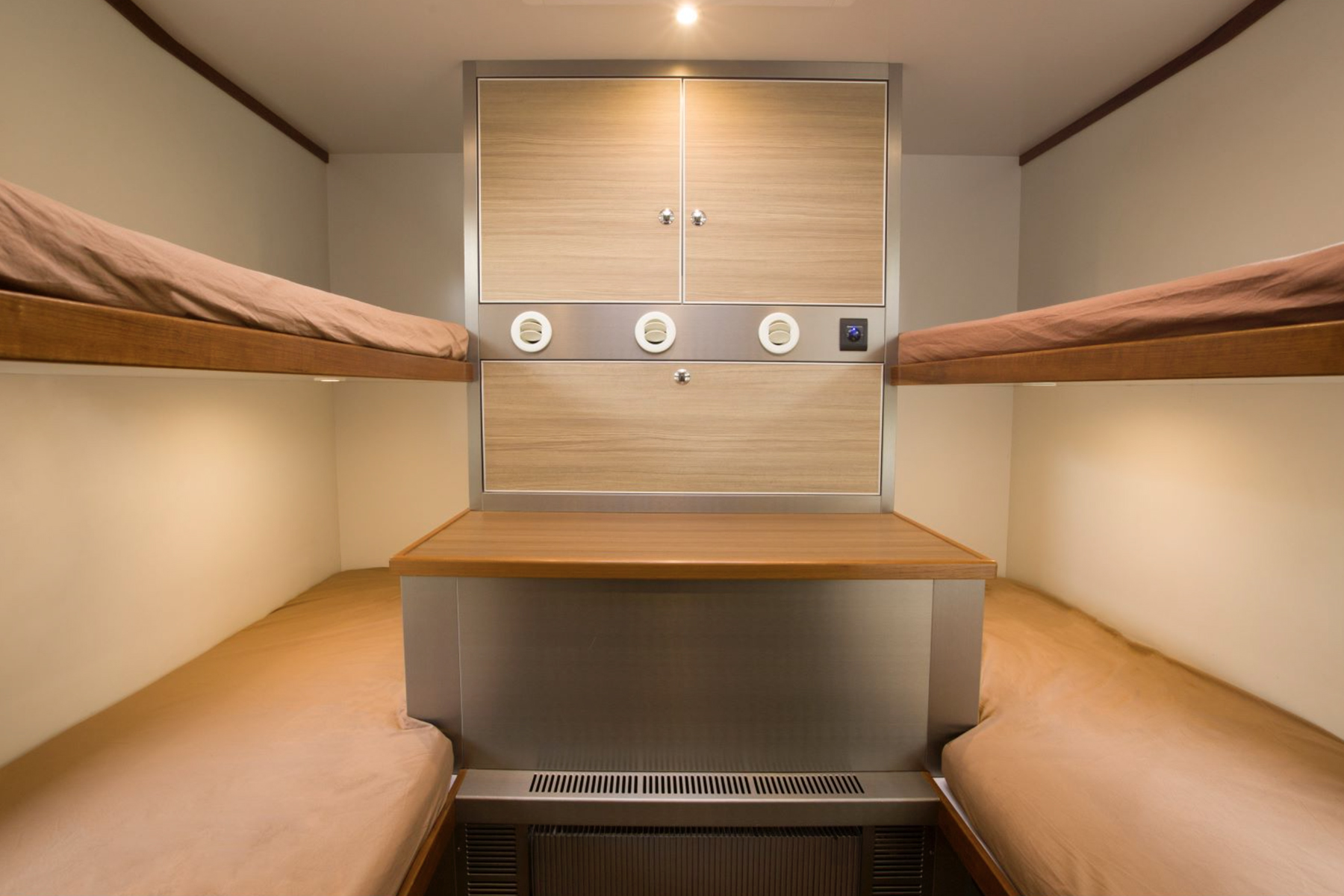

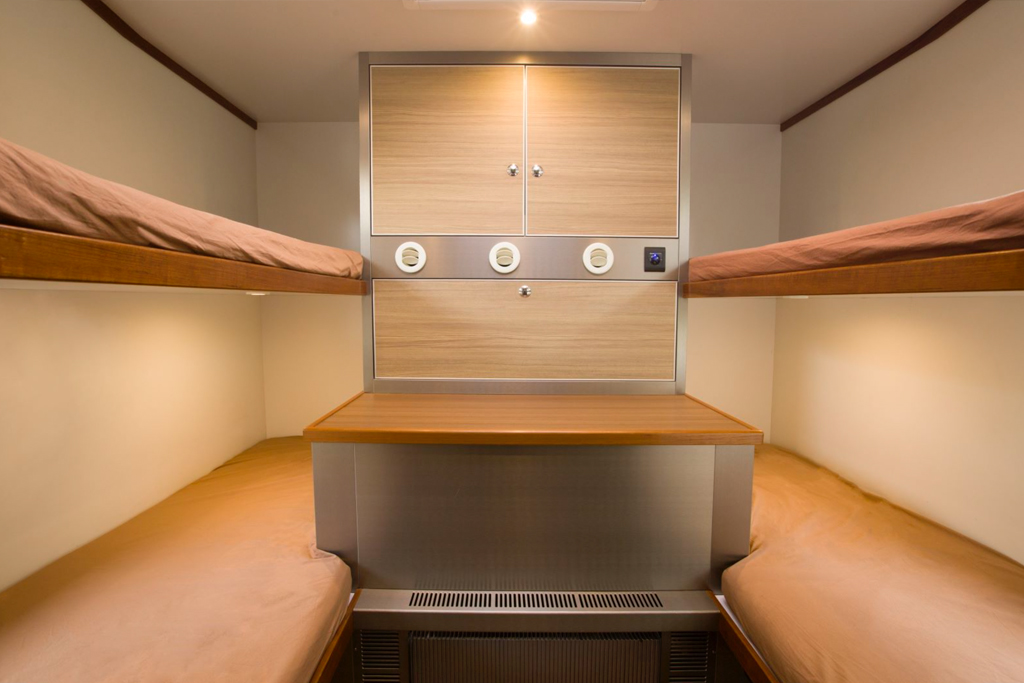

Rear: 4 single beds (top and bottom bunks) with a bed width of 700 millimeters
Box:

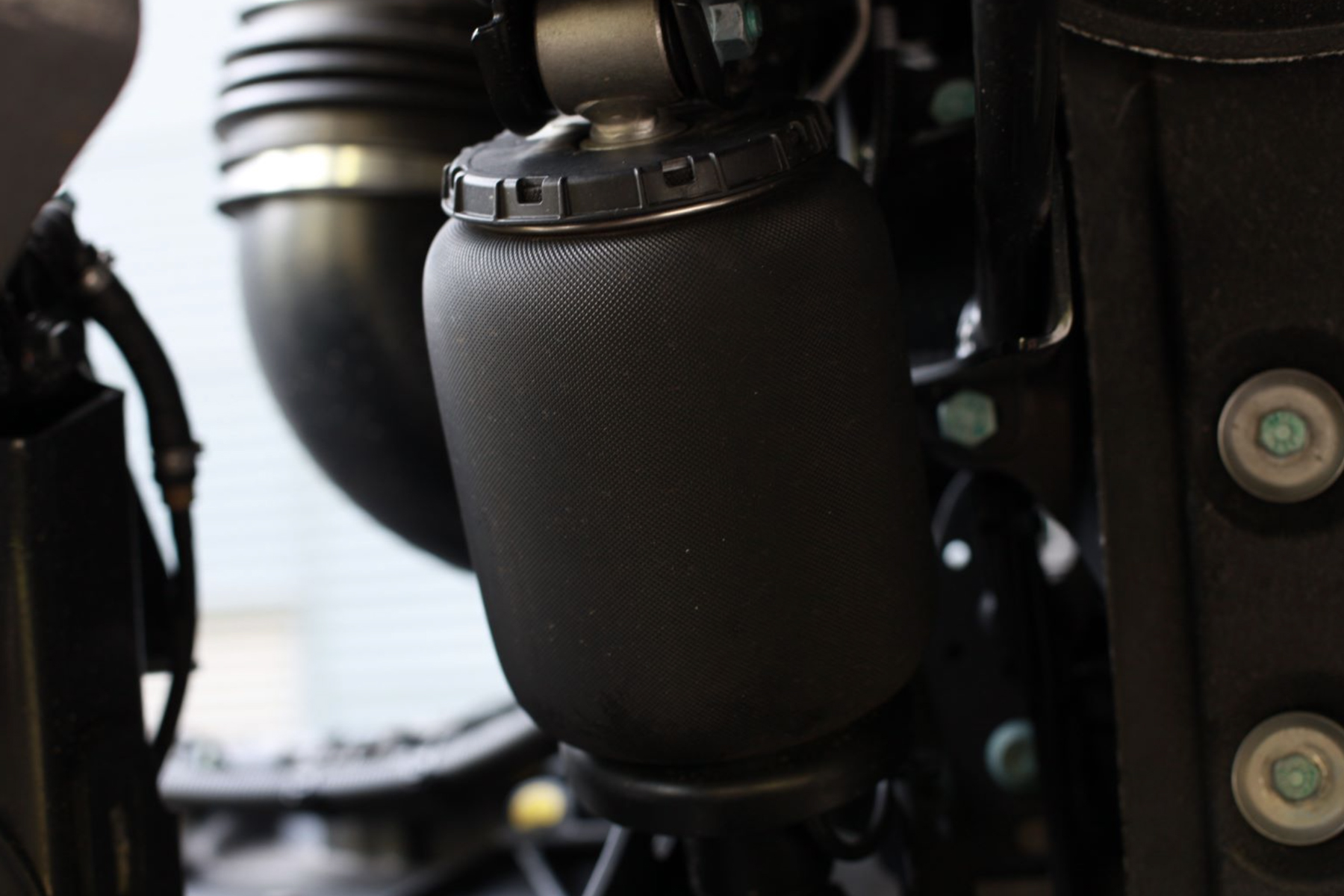

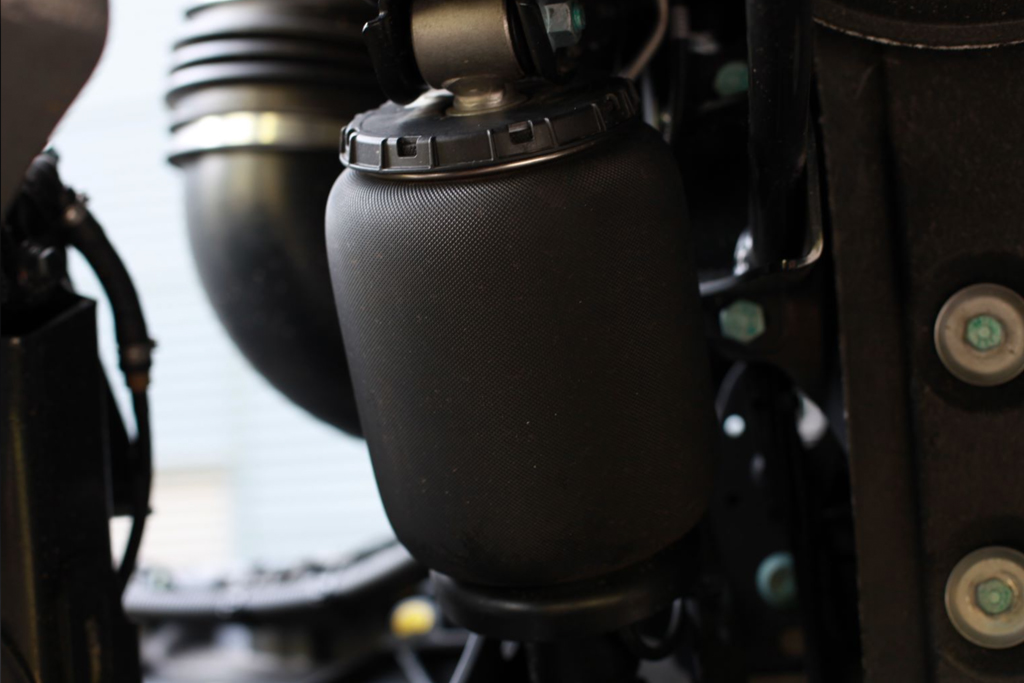

Amodillo three-point floating balance auxiliary beam system
The box body is a broken bridge insulation structure, and the wall sandwich structure has a thickness of 65 millimeters
Sandwich box structure: The outer skin is made of German brand ultra-high strength fiberglass panels, and the inner layer is made of German brand fiberglass interior panels
Window: Exclusive window for Amodillo, equipped with British brand sunshades and mosquito nets
Skylight: imported marine grade, can be opened both inside and outside. Equipped with British brand sunshades and mosquito nets
Main door: Exclusive to Amodillo, equipped with American brand electric door locks, password and magnetic card opening, and also equipped with outdoor key opening
Staircase: Amodillo five step aluminum alloy automatic staircase
Floor: Top grade teak wood flooring for ships, polished with vegetable oil (without chemical paint)
Power system:
Amordio fully automatic high-power hybrid power supply system
American brand 5 kW ultra quiet water-cooled diesel generator
Dutch brand 8 kVA inverter charging all-in-one machine
Dutch brand fully automatic intelligent power management system
New Zealand brand distribution panel
Dutch brand battery isolator
Municipal power connection entrance, outdoor power interface
German brand switch
Battery emergency switch
Current monitor
Air conditioning and heating systems:
3 brand 2.5kW lower mounted air conditioners with heat pumps
Positive pressure fresh air system with pollen filtration
Exhaust system
Bedroom radiator system
German brand 4 kW diesel heating boiler heating system
Water supply system:
830 liter stainless steel clear water tank
American brand fully automatic water pump and brand waterway system
Pressure water inlet, pre filtration
Outdoor water interface
German brand 9 kW fully automatic diesel hot water boiler
German brand 40 liter water heater
Lighting system:
24V LED light; German brand switches; Chinese standard socket

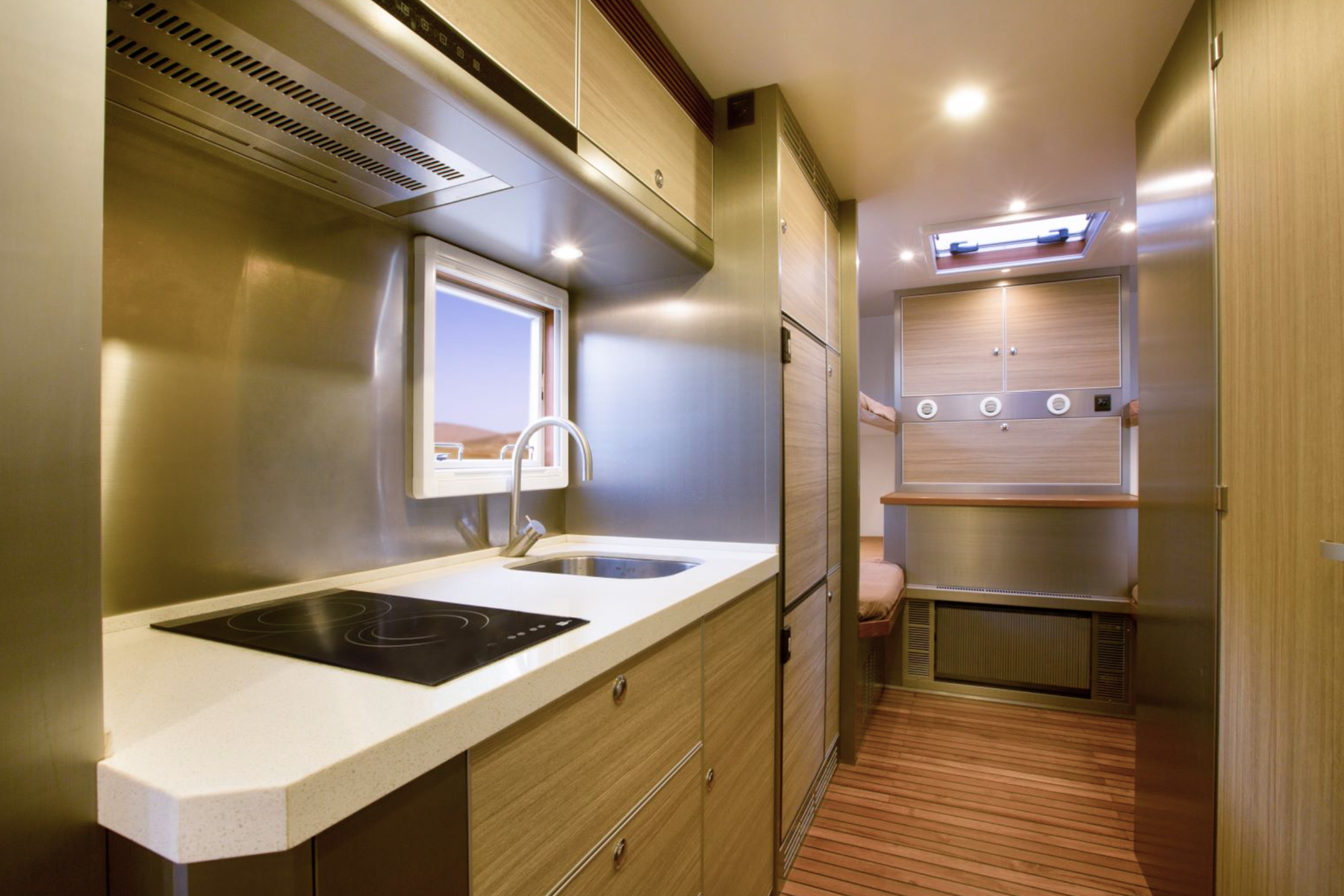

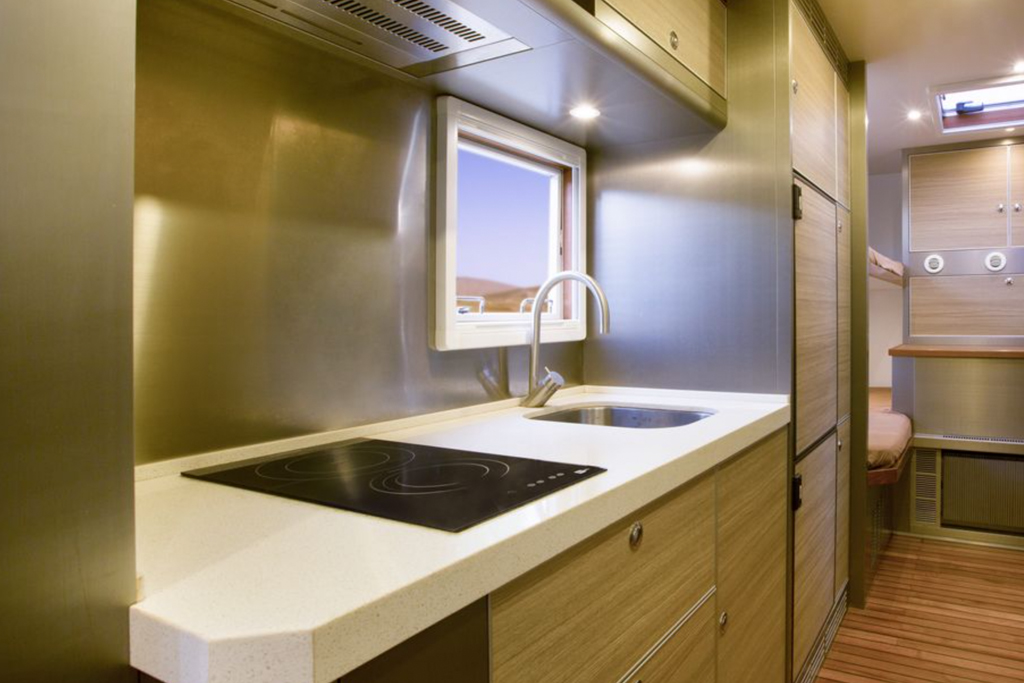

Kitchen equipment:
German brand embedded refrigerator
German brand 3.7 kW double eye induction cooker, range hood
German brand embedded microwave oven

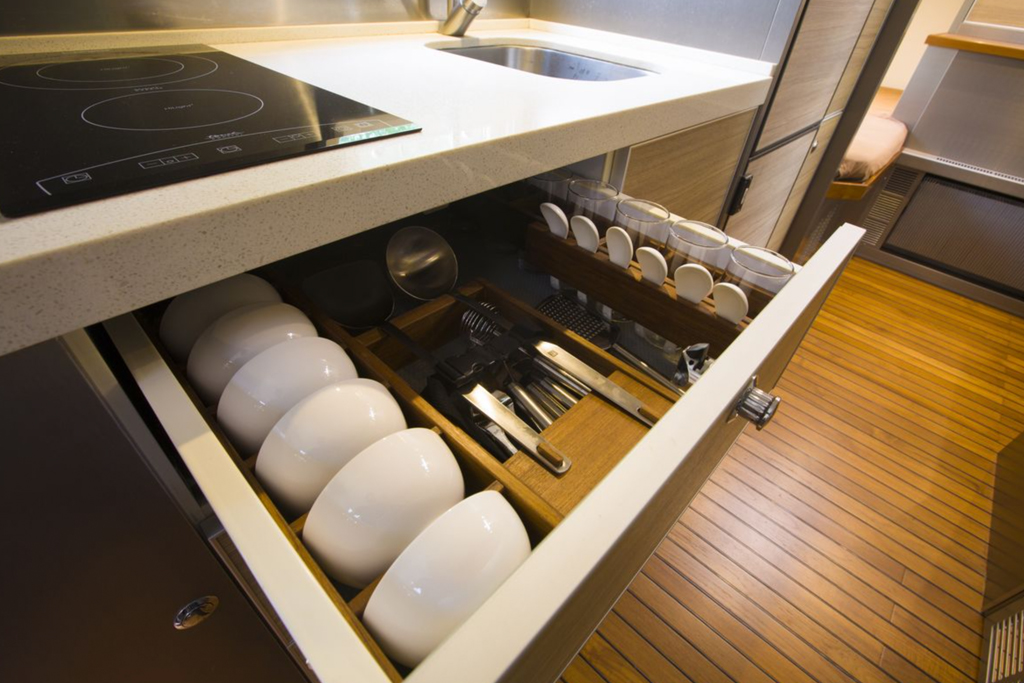

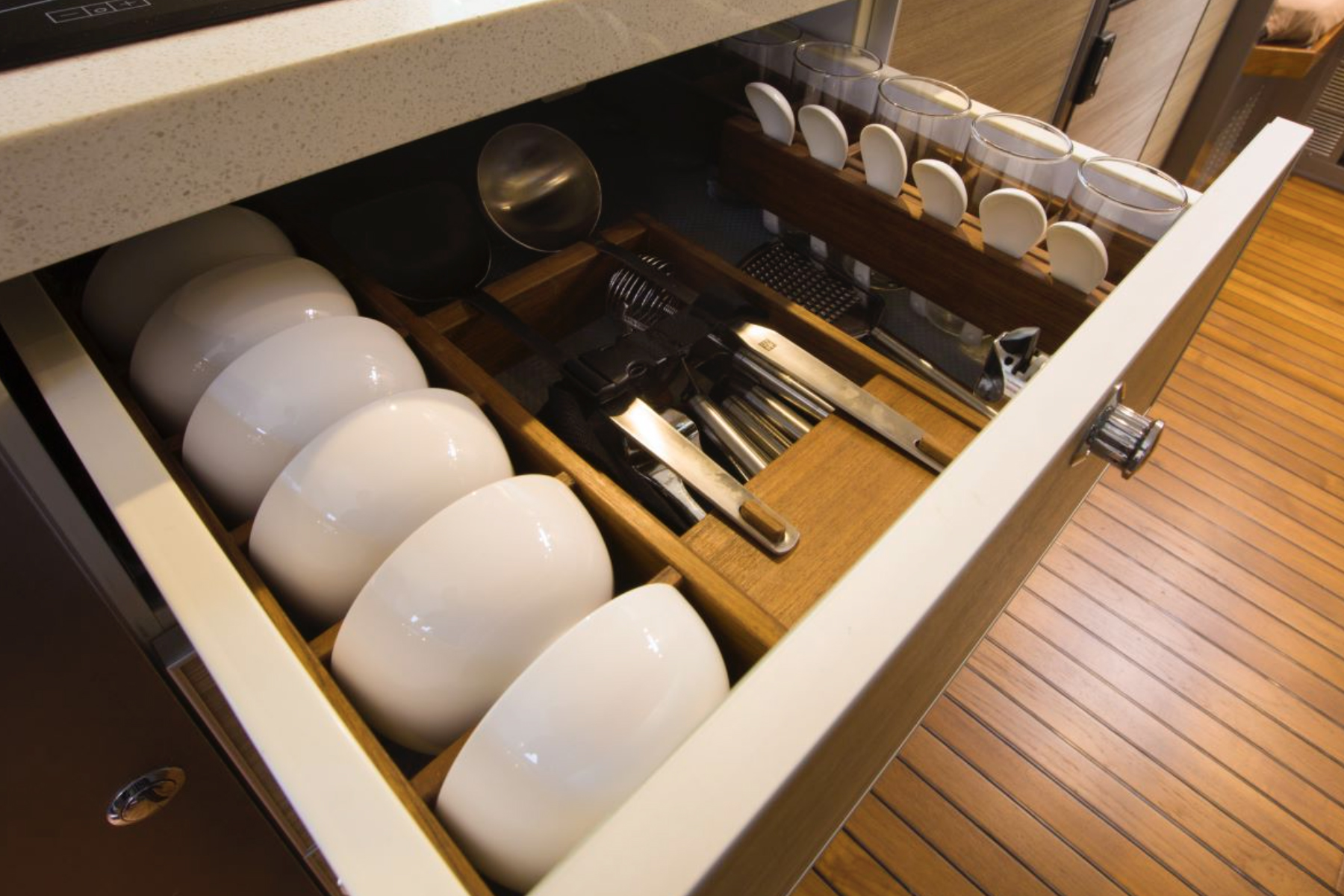

Complete set of German brand kitchen utensils
Locked drawers and cabinets
Toilet equipment:
Dry wet separation toilet, exhaust system
German brand automatic constant temperature water mixer and showerhead
European brand all ceramic electric suction toilet
Sewage: 120 liter stainless steel gray water tank with liquid level sensor; 130 liter stainless steel black water tank with liquid level sensor and electric sewage pump
Entertainment system:
1 mobile satellite TV receiving system
1 mobile satellite receiver
1 LCD TV
Other configurations:
Aluminum alloy roll cage in the cab
LED spotlights
Natural latex sofas and mattresses

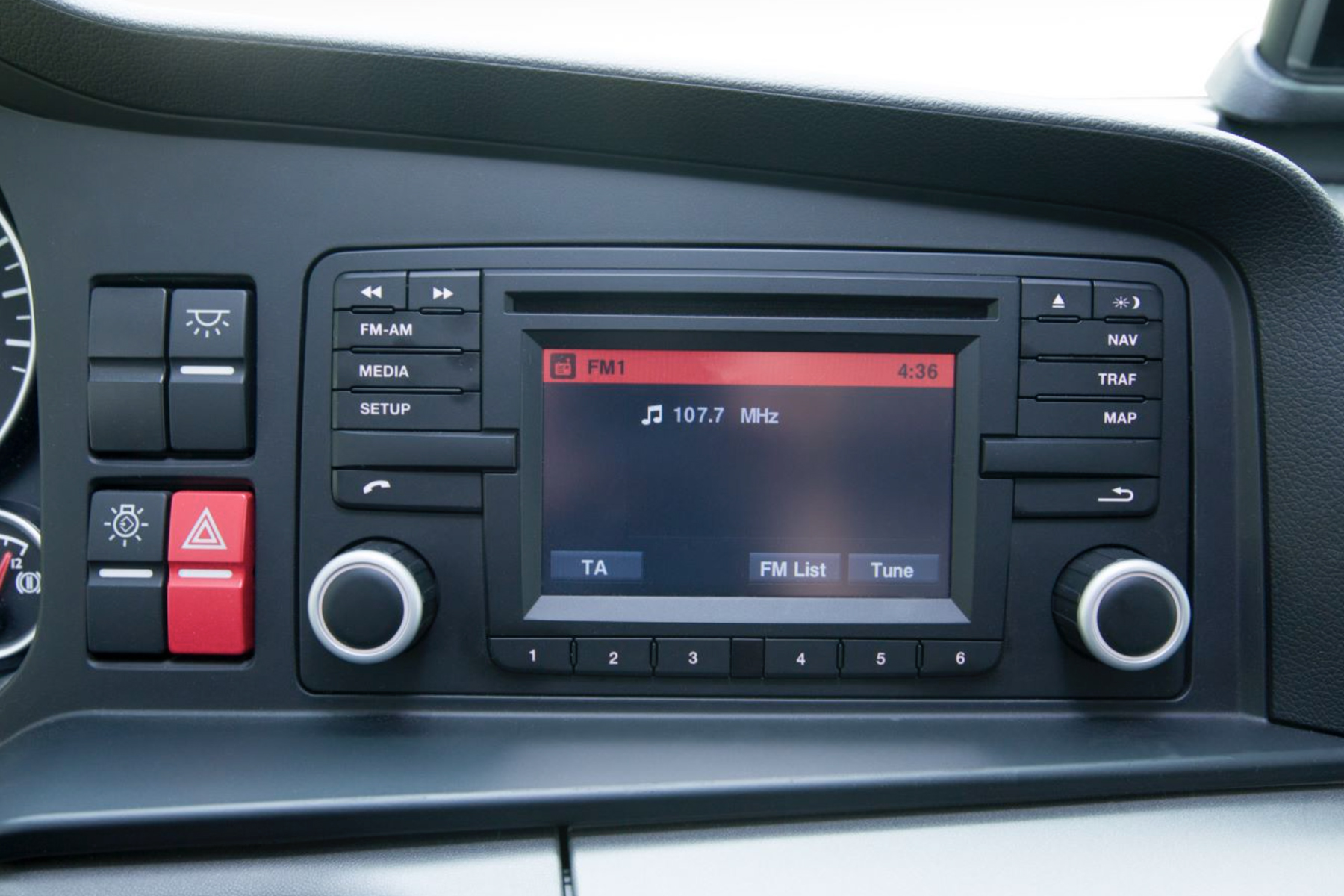

Wireless radio station
Reverse image

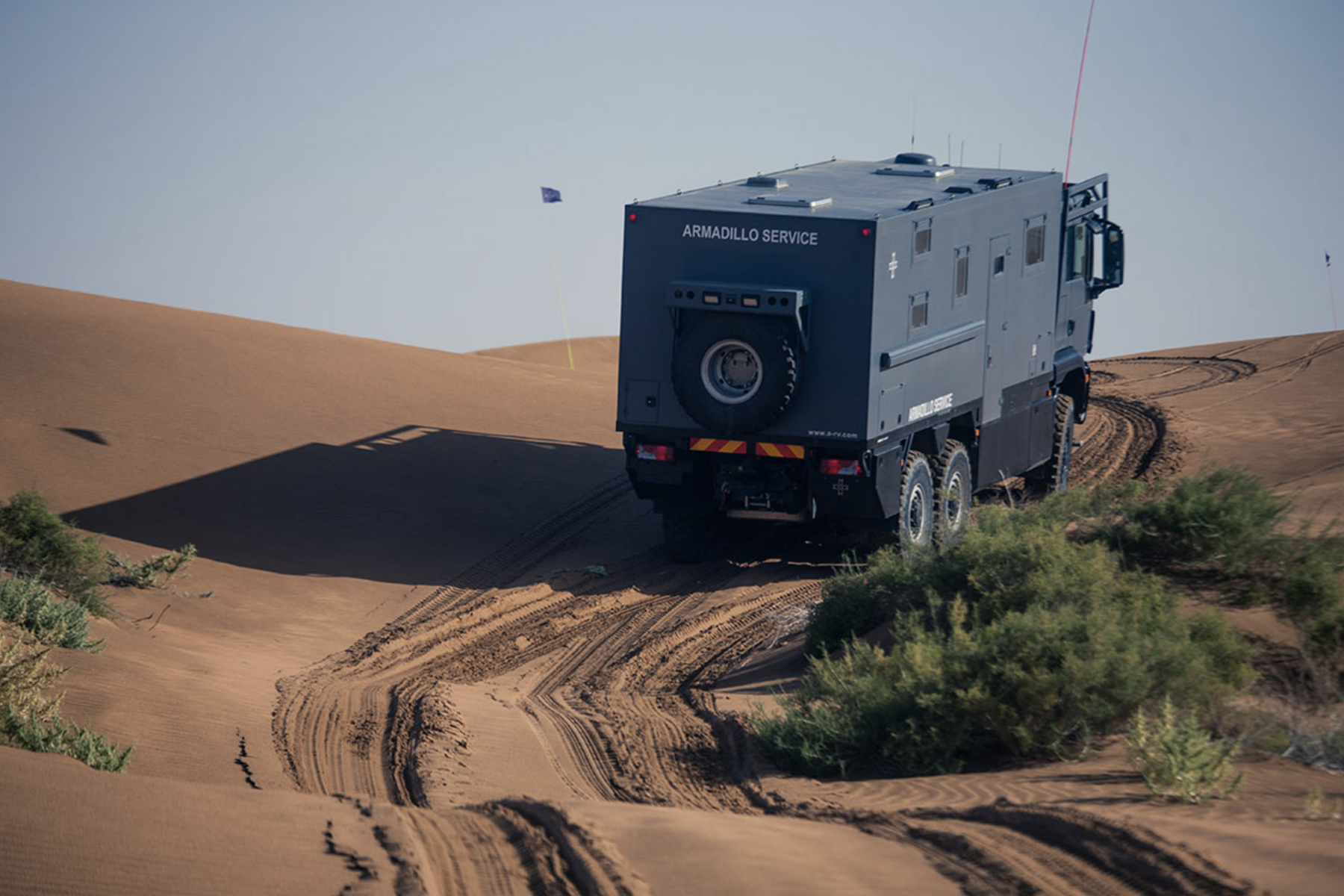

Electric rear spare tire mounting system
Optional configuration:
Front winch
Rear winch
Sound insulation in the driver's cab
High definition camera in the cab
3 seats in the cab
Cabin storage box
Cabin refrigerated box
Dual radio station
Hatch opening
Solar charging system
Sunshade
Outdoor shower
Outdoor kitchen
Outdoor lighting
Tail storage box
Tail sand board+shovel
Embedded freezer
Embedded steamer
Embedded coffee machine
Embedded washing machine (with drying)
Bose audio 5.1/6 channels
