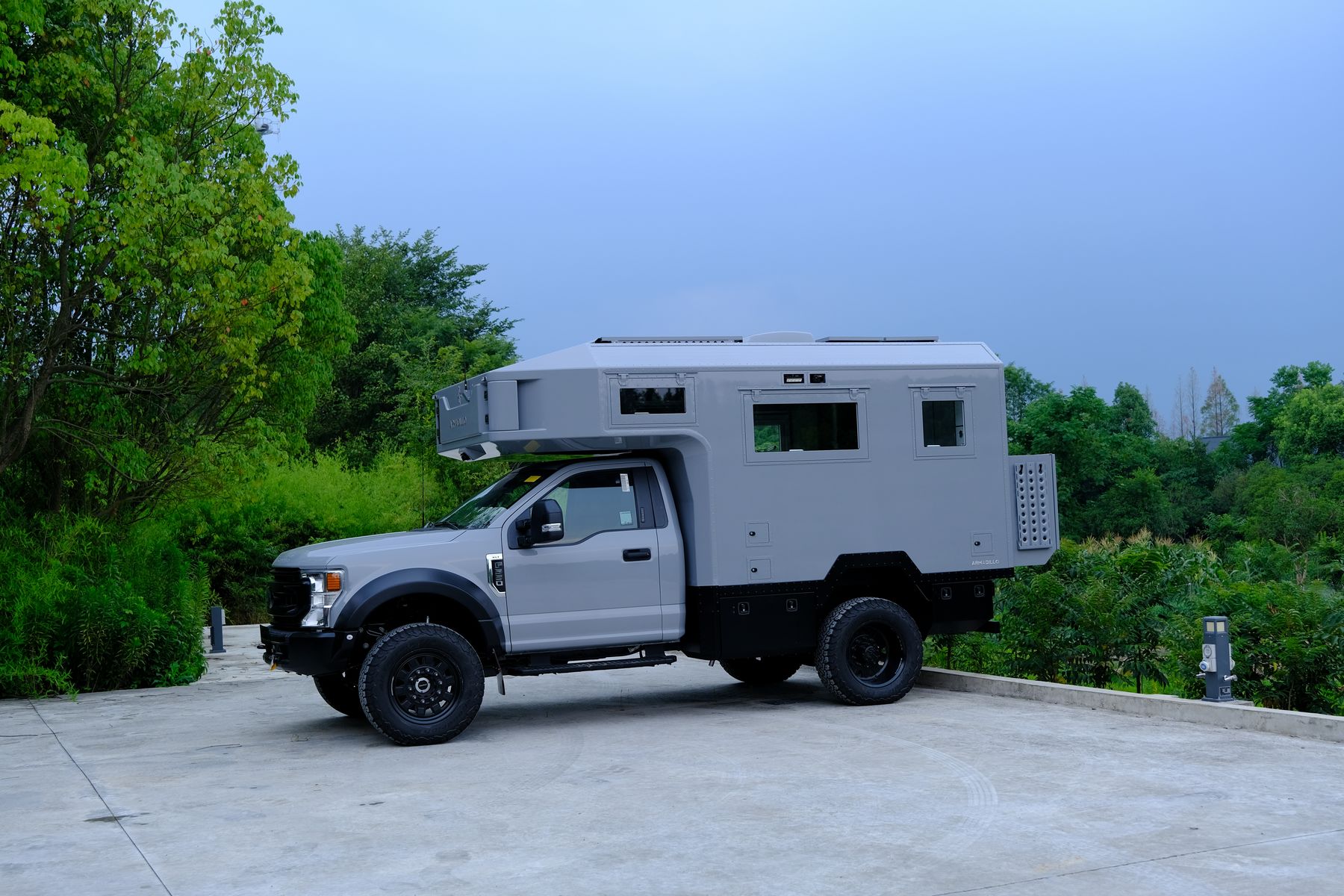

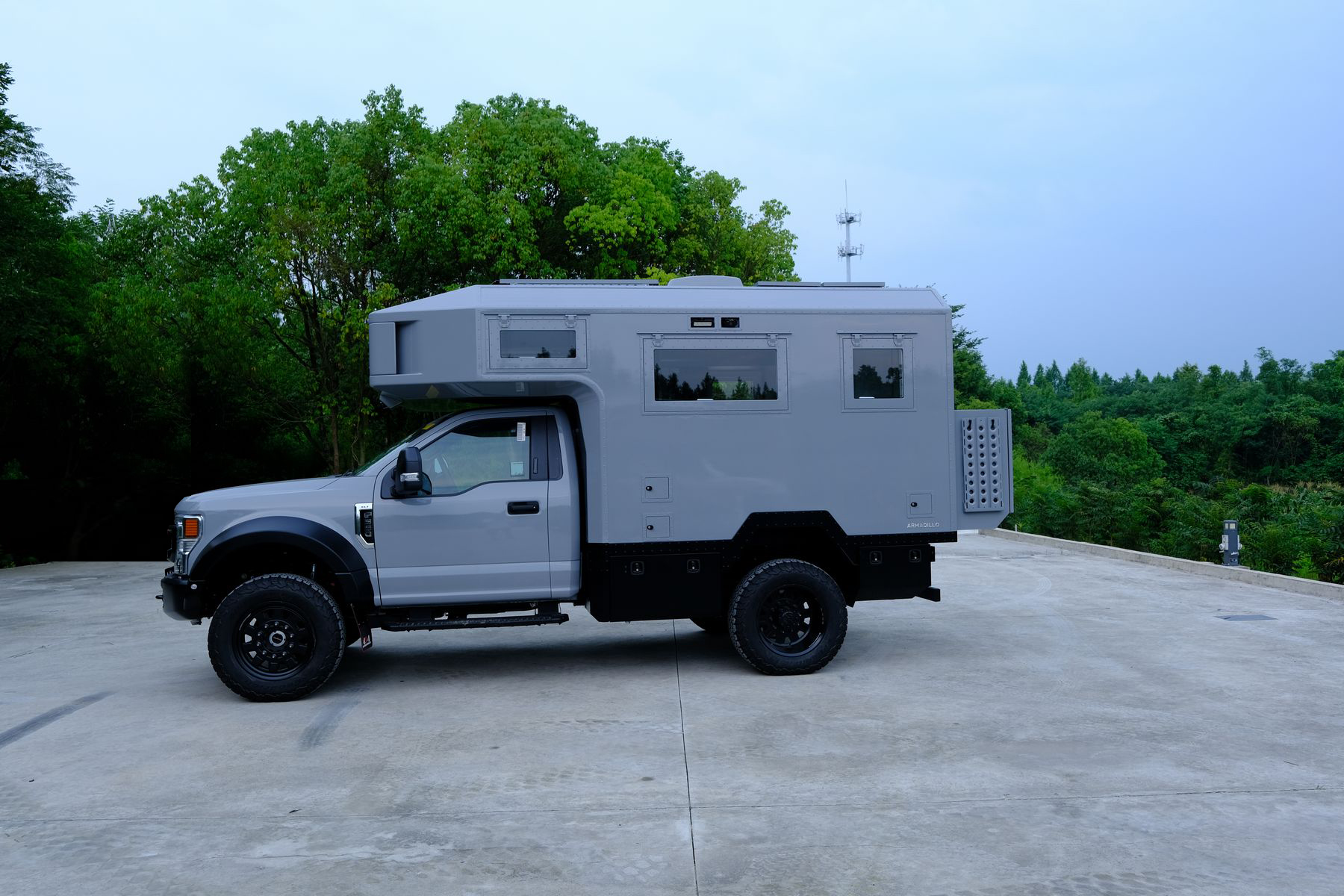

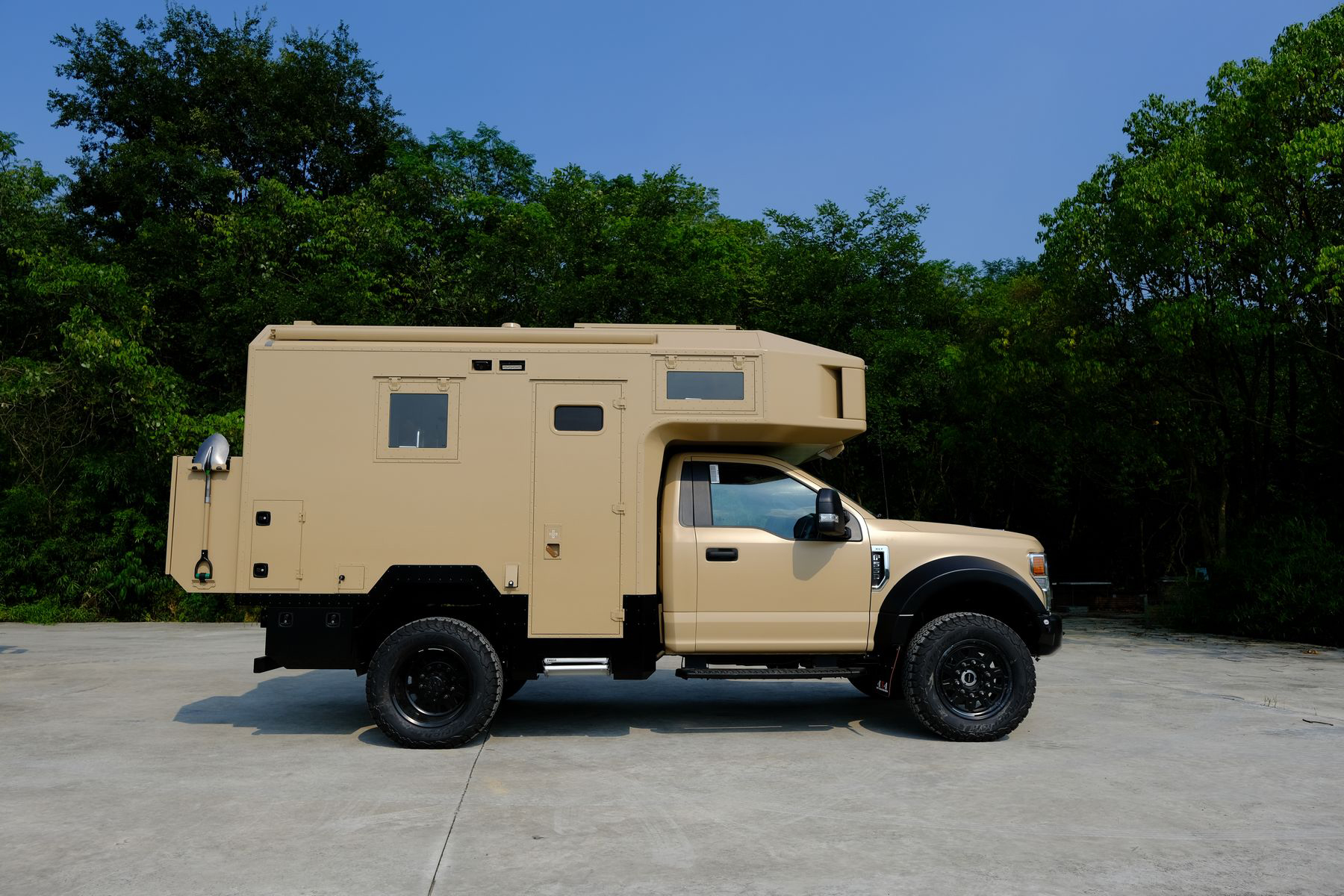

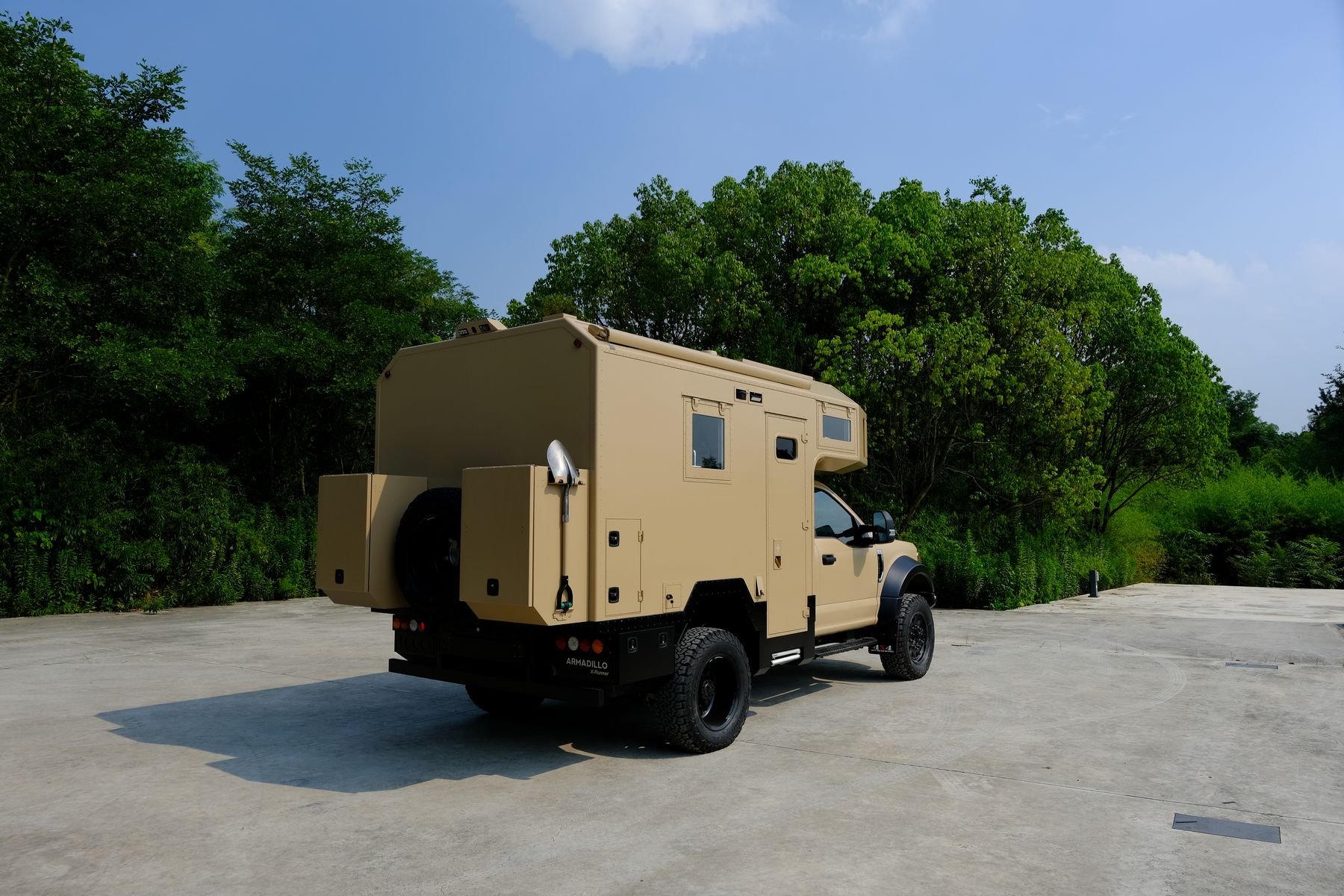

Vehicle information:
Total length: 5995 millimeters
Total width: 2345mm
Total height: 3050 millimeters
Total weight: 5490 kilograms
Minimum ground clearance: 300mm
Approach angle: 33 degrees
Departure angle: 23 degrees
Vertical passage angle: 30 degrees
Fuel tank: 151 liters

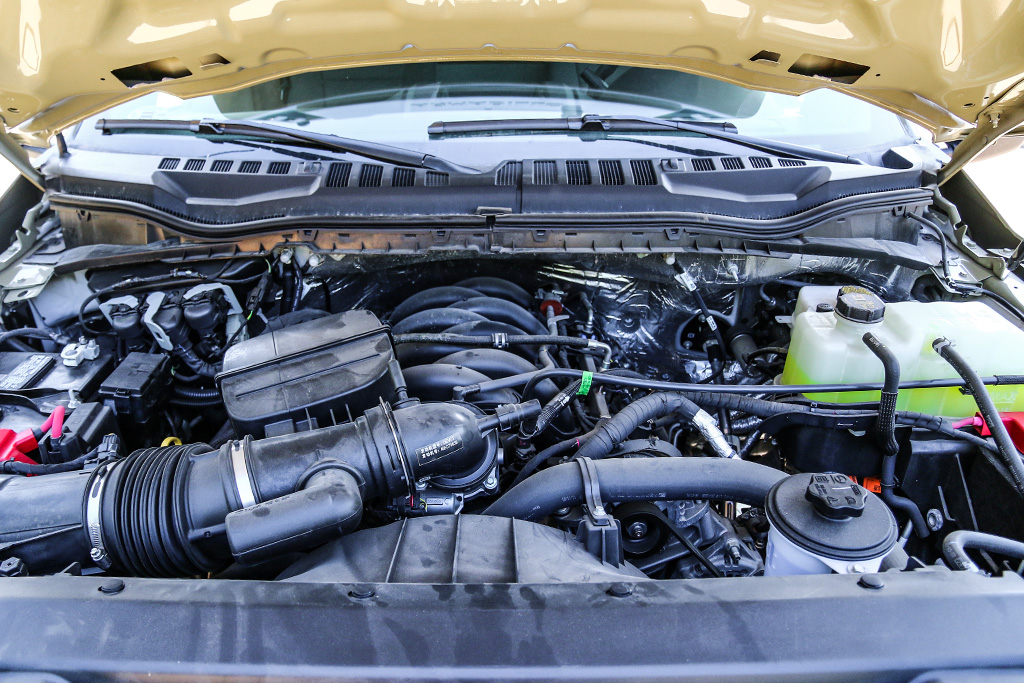

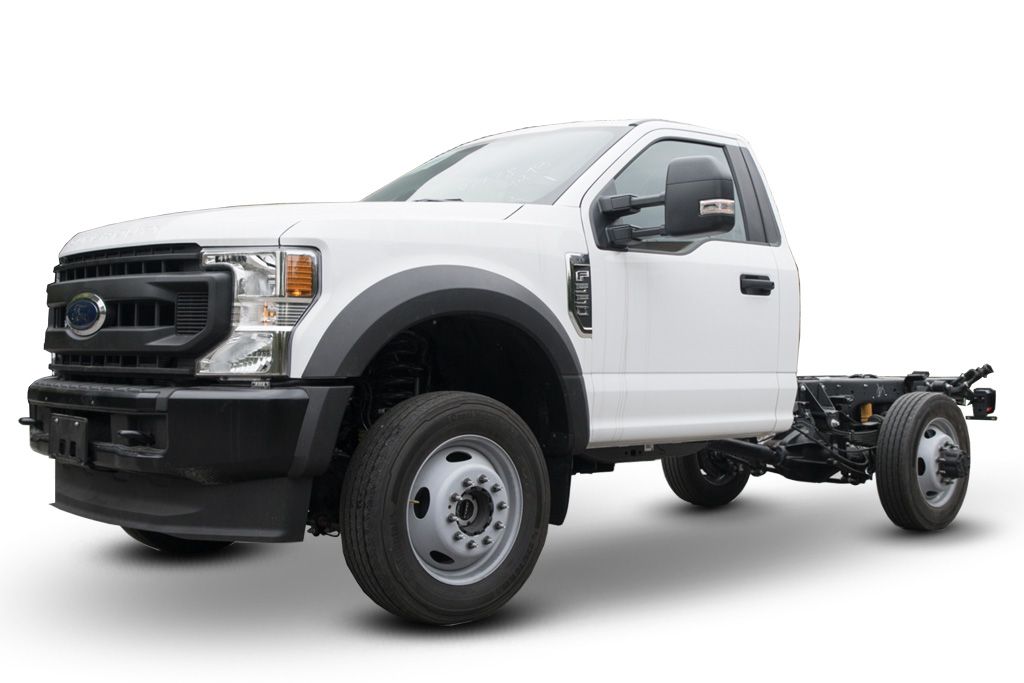

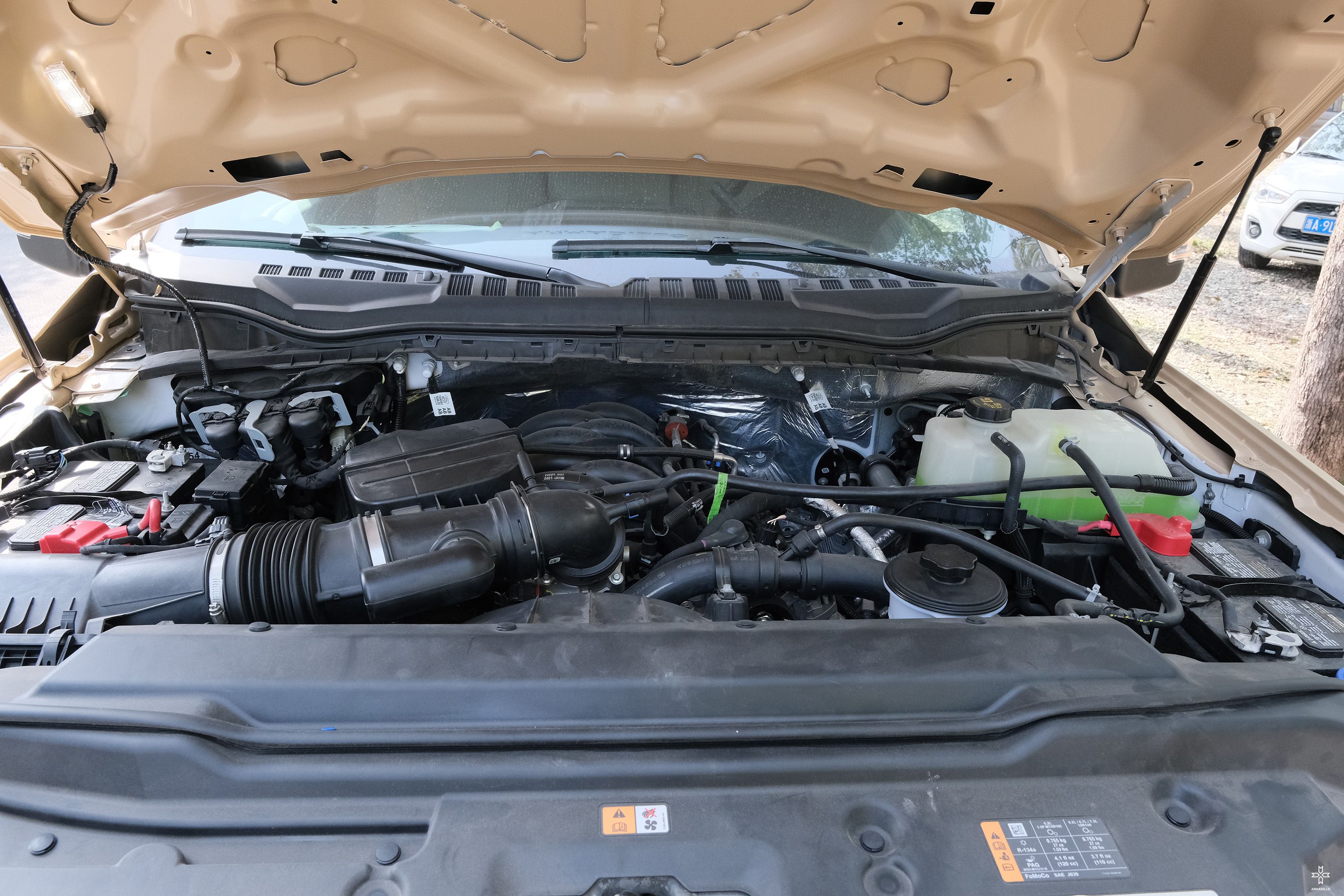

Engine: Ford 7.3-liter 2V DEVCT V8 gasoline engine
Maximum power: 350 horsepower
Maximum torque: 635 Nm
Tires: 295/65R20

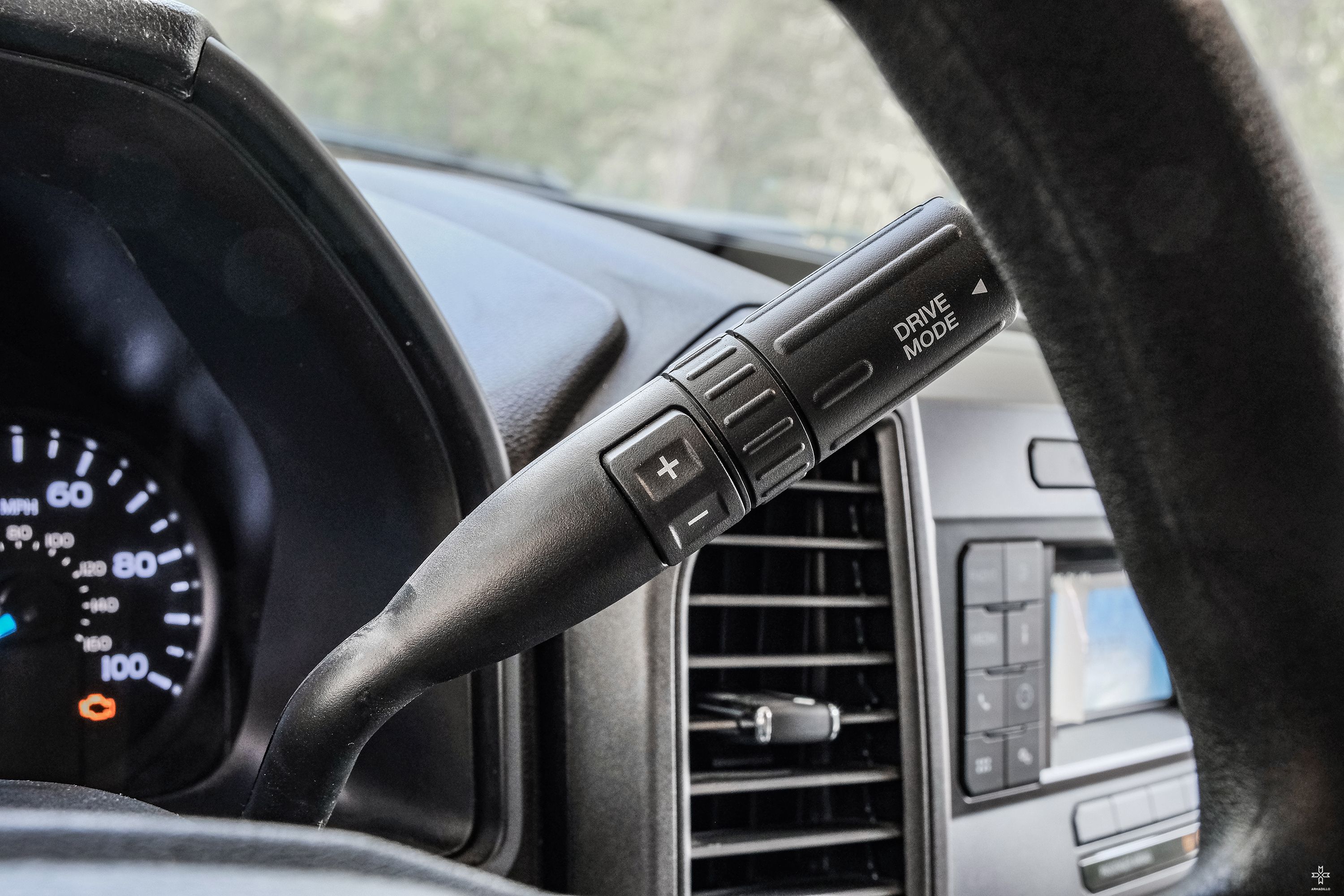

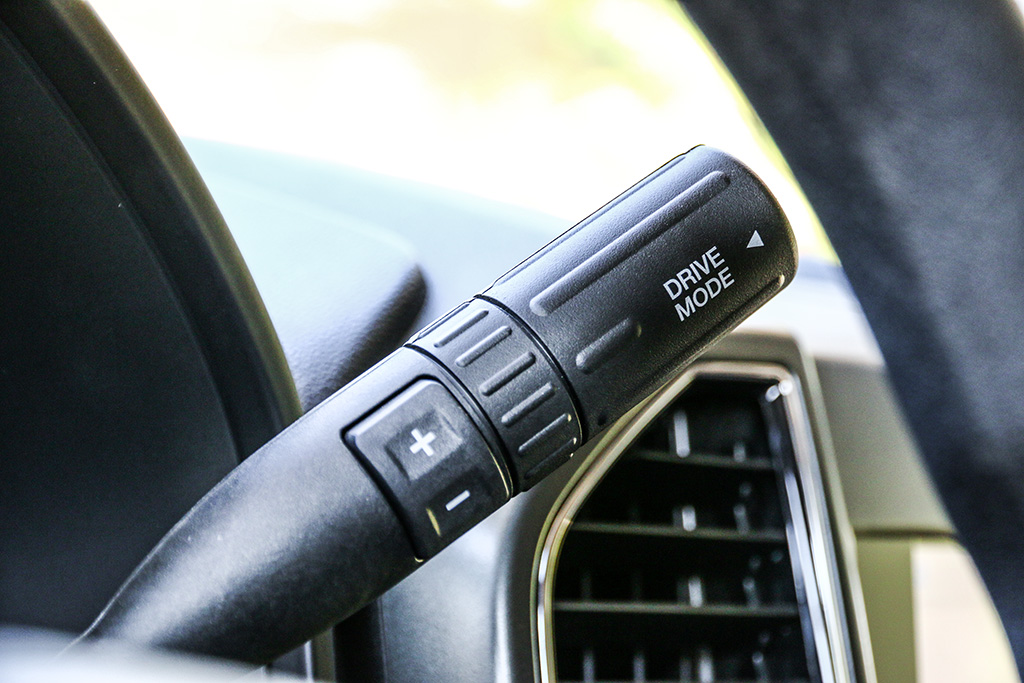

Transmission: 10 speed Ford TorqShift with mode selection ® Automatic transmission

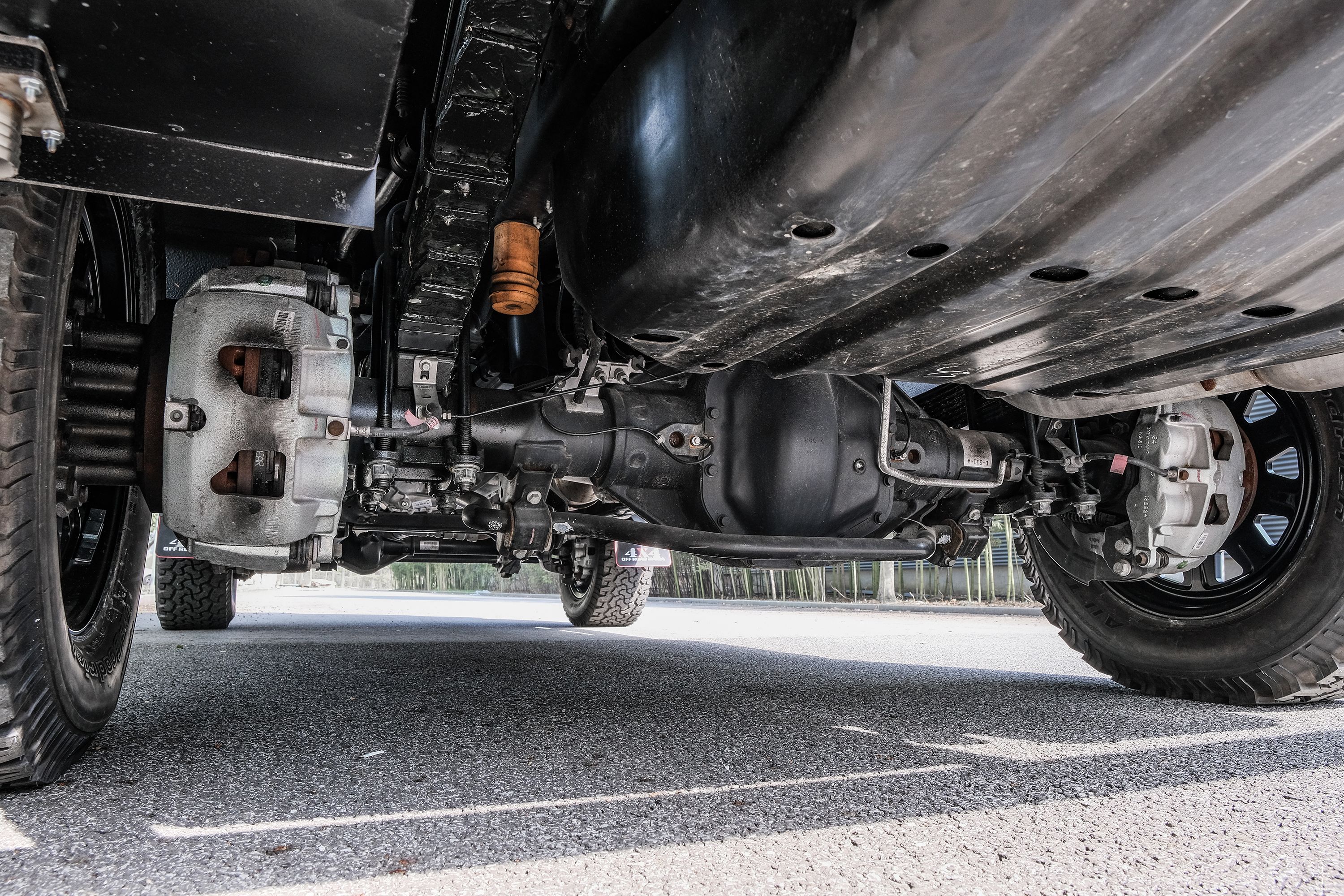

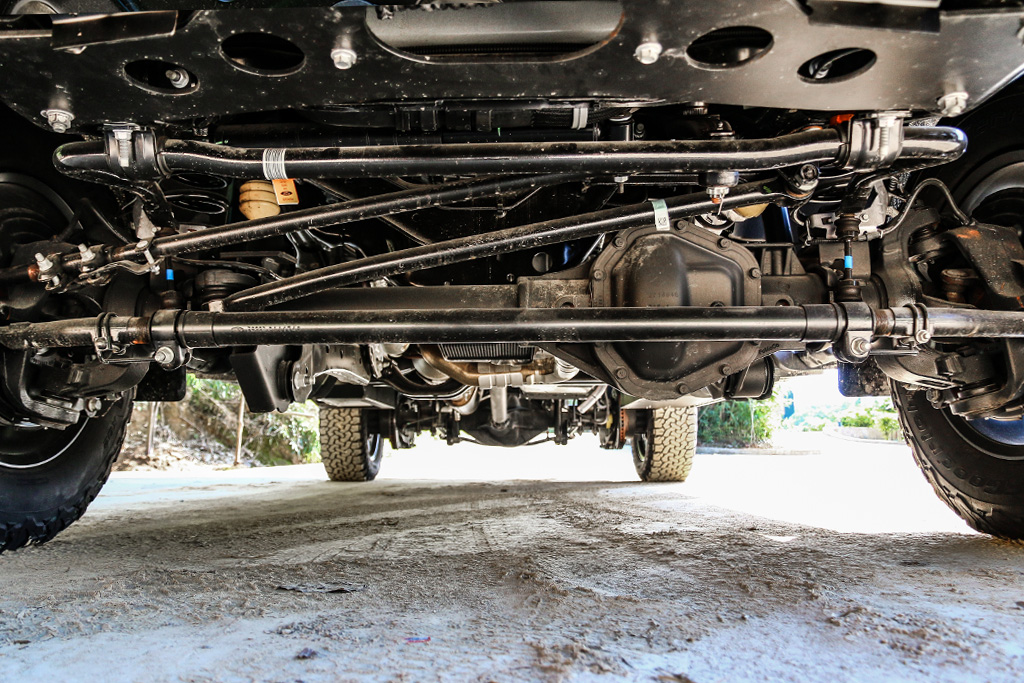

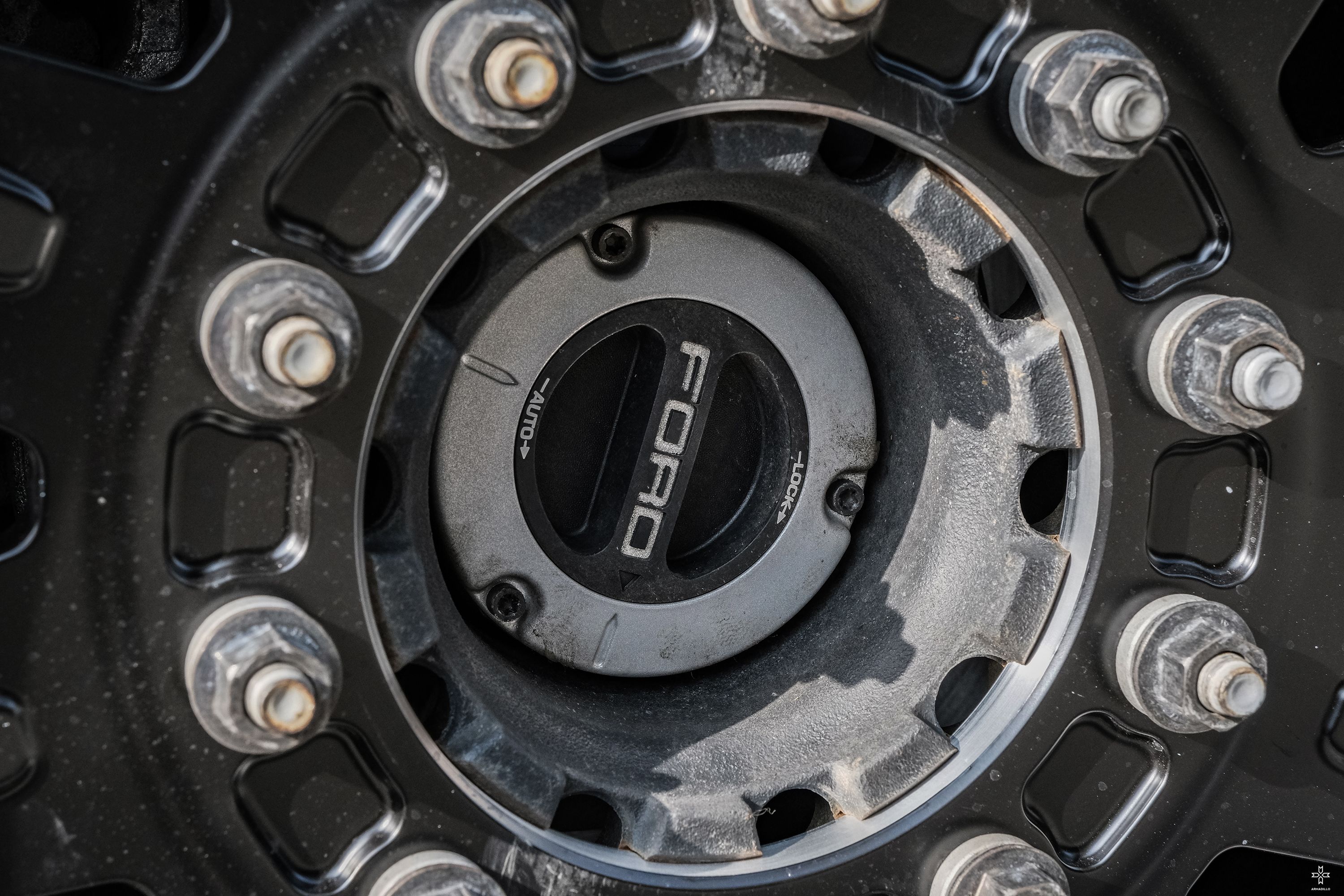

Driving form: part-time four-wheel drive

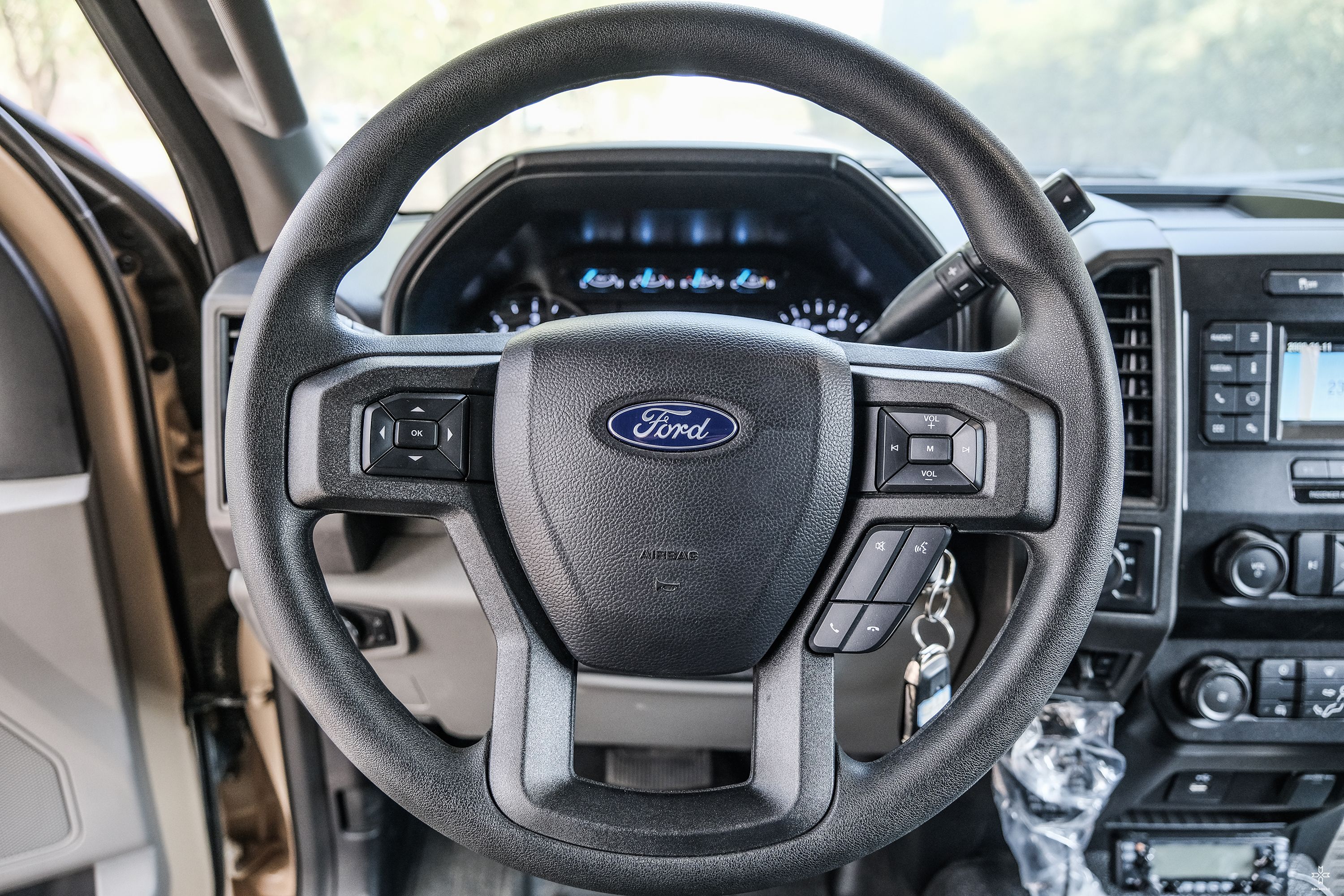

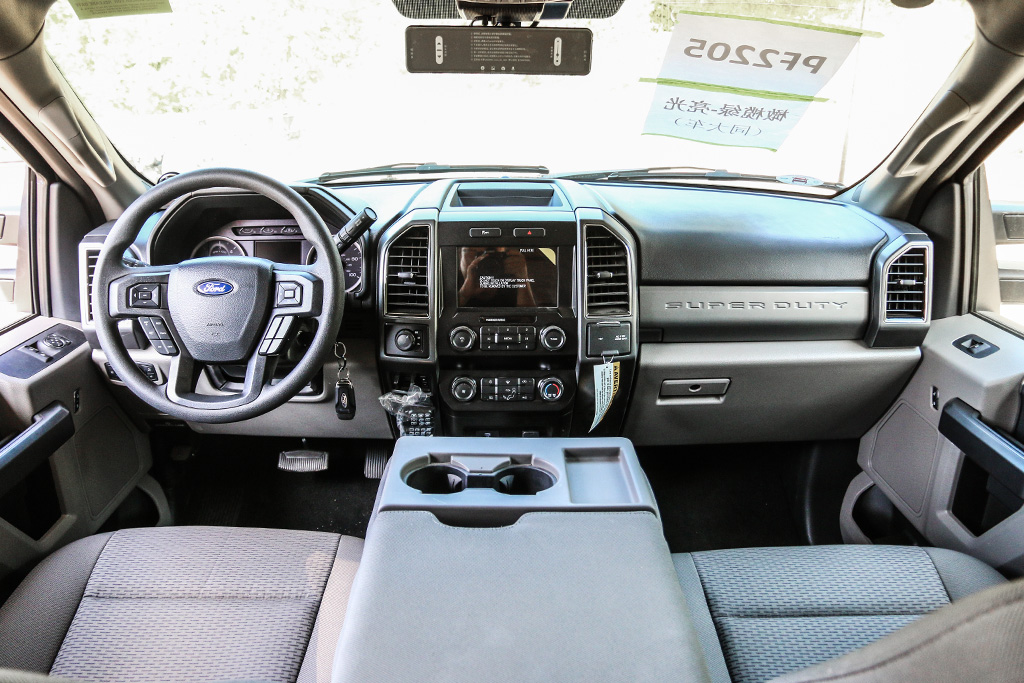

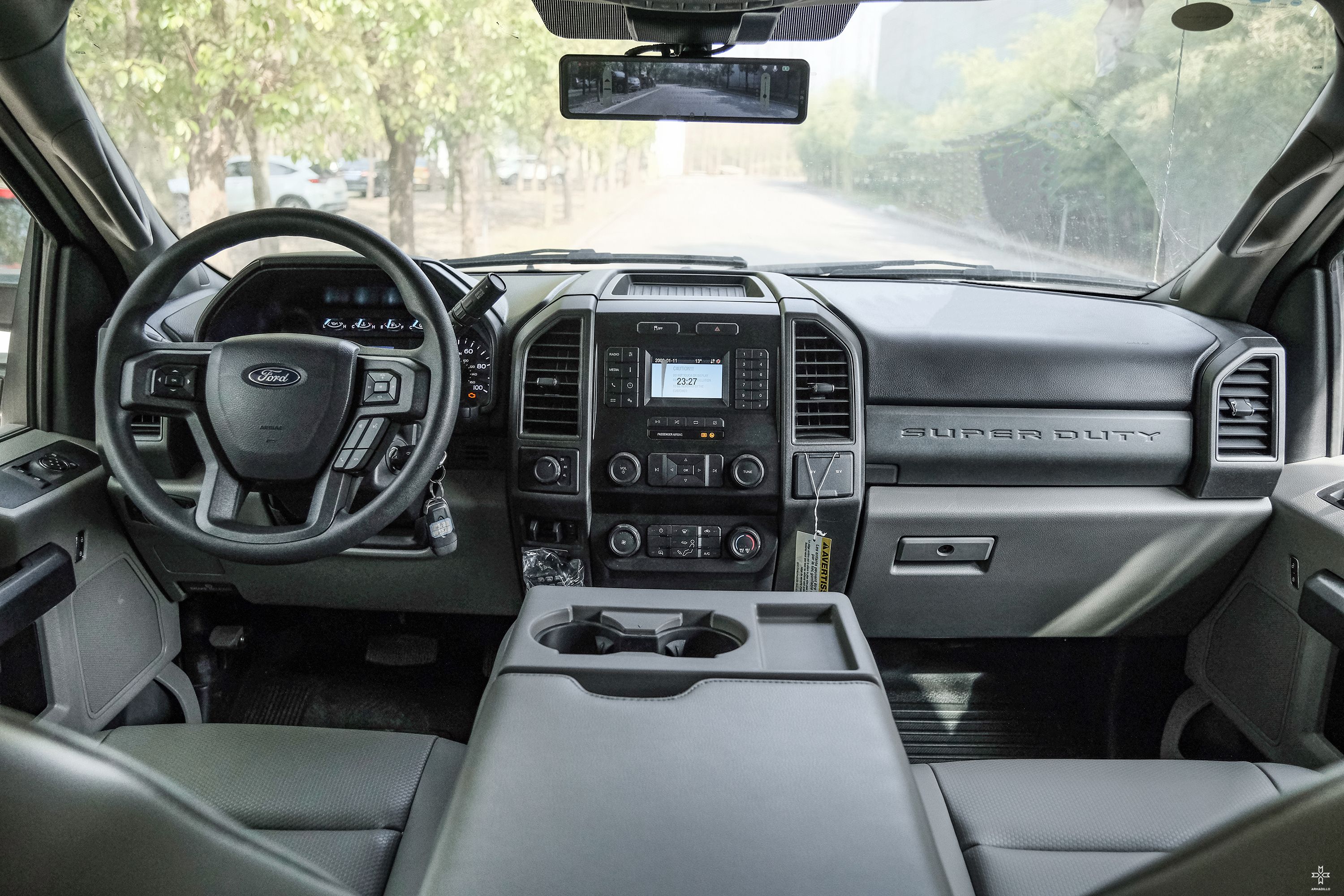

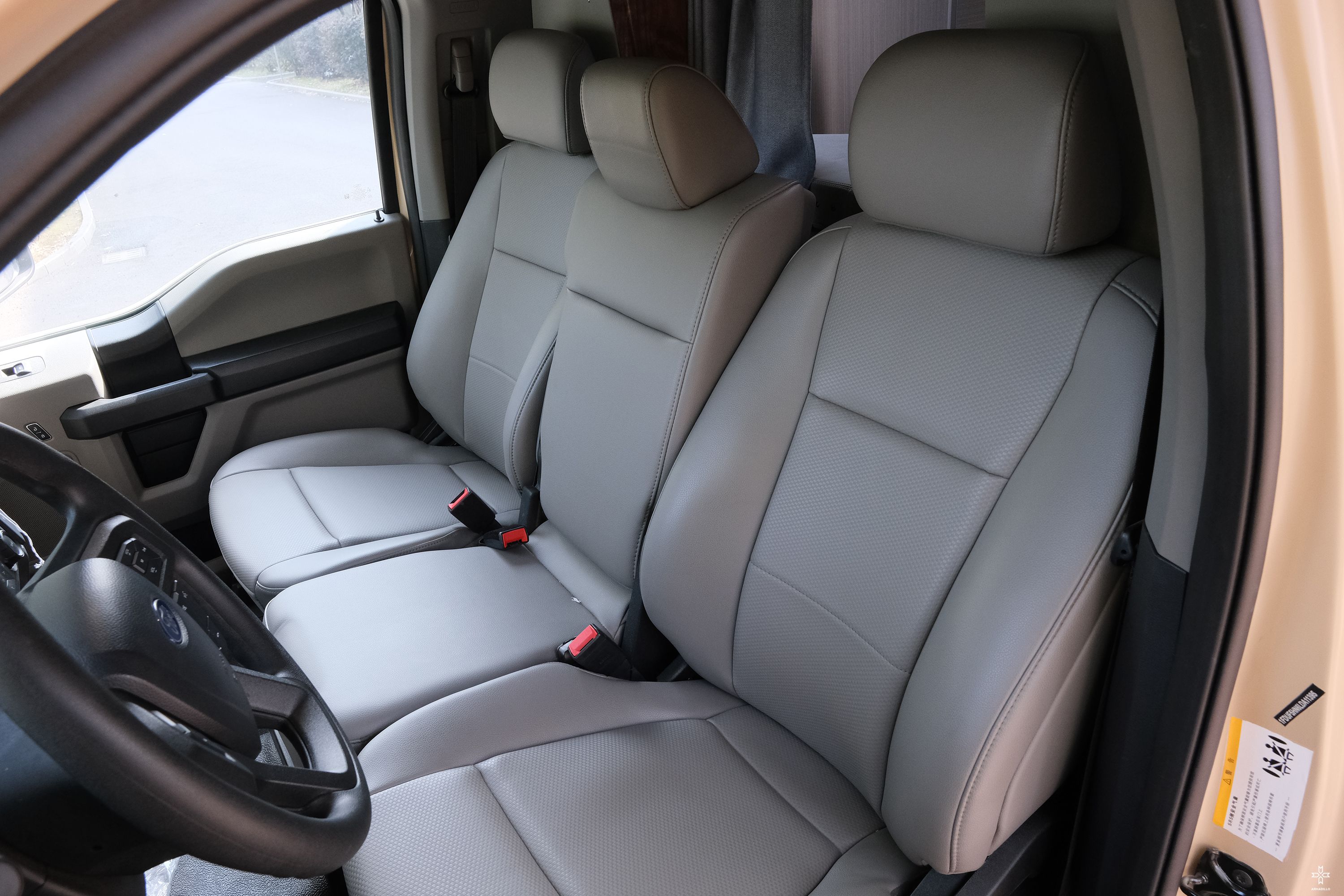

Driver's cab: single row cab with 2 seats
Structure and configuration:
Passengers: 2 or 4

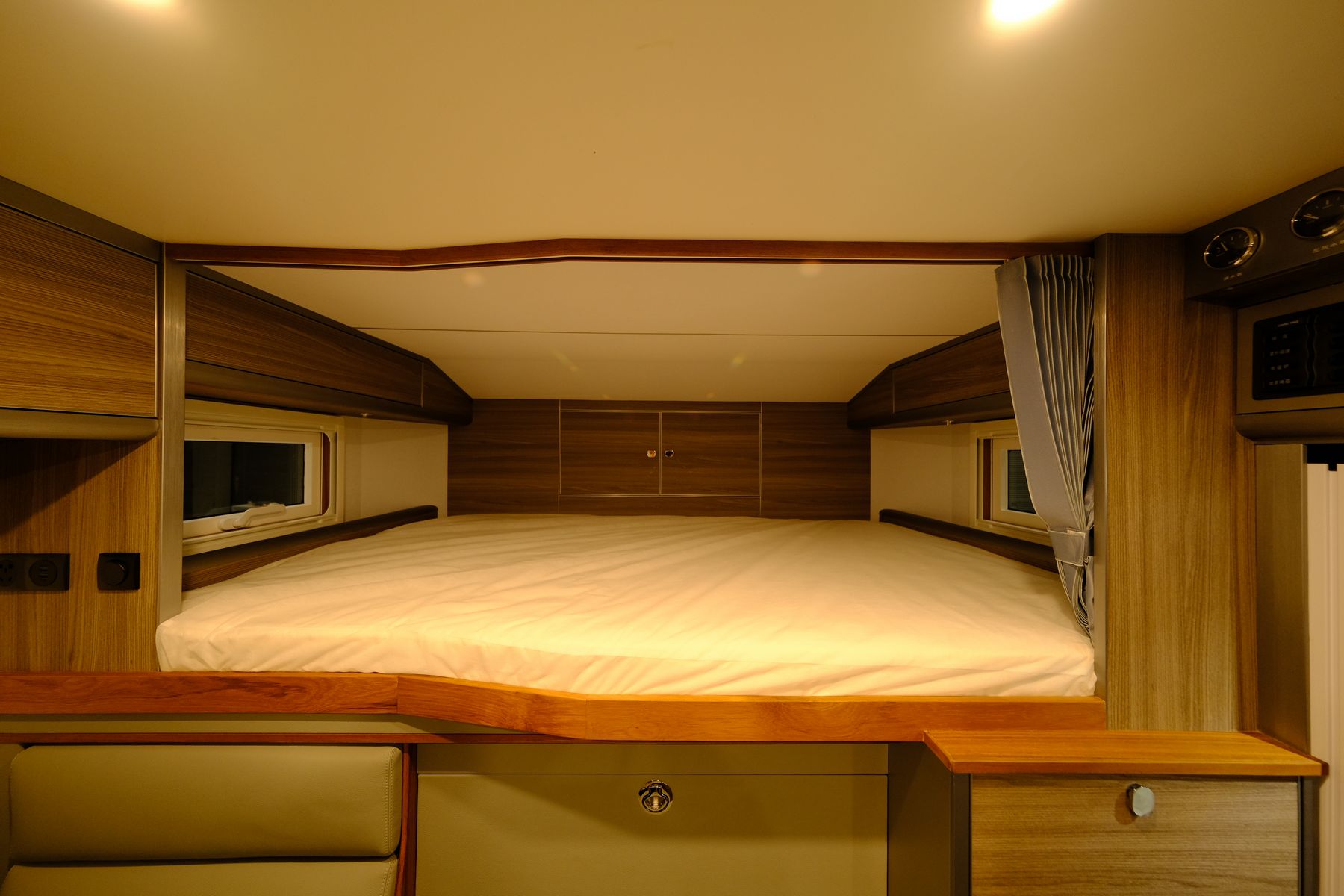

1 double bed 1920 x 1315mm

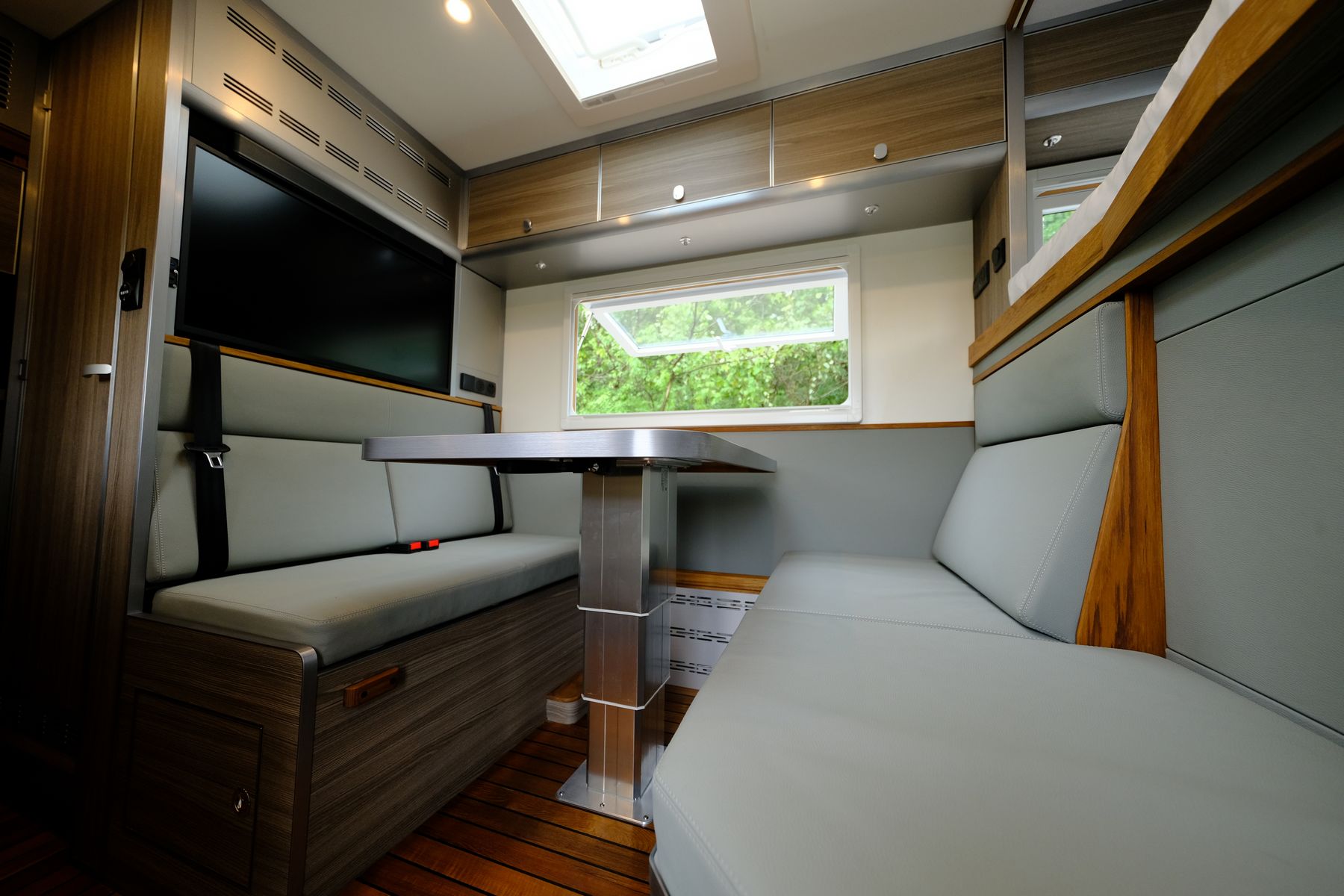

4-seater dining table holder, variable bed 1840 x 1050 mm
Standard kitchen
Toilet with washbasin
Storage cabinet
Box:
The box body and chassis beam are flexibly connected by a three-point torque balance mechanism
The box body is a broken bridge insulation sandwich structure
Internal and external ultra-high strength fiberglass panels
Window: Exclusive to Amodillo, equipped with imported brand ship sunshades and mosquito nets
Skylight: can be opened both inside and outside, equipped with imported brand sunshades and mosquito nets
Main door: Exclusive to Amodillo, equipped with imported brand electric door locks, password and magnetic card opening, mosquito net
Stairs: Electric two-stage stairs
Flooring: Teak flooring
Power system:
Amordio fully automatic high-power hybrid power supply system
Imported brand 5kVA inverter charging all-in-one machine
Imported brand fully automatic intelligent power management system
Imported brand distribution panel
Imported brand battery isolator
1200 ampere hours, 12 volts, lithium iron phosphate battery pack
5 solar panels 550 watts
Imported brand solar charger
Municipal power connection entrance, outdoor power interface
Switch, power supply system emergency switch
Current monitor
LED indoor lighting
Air conditioning and heating systems:
1 split type DC variable frequency air conditioner with a cooling capacity of 2.6 kW
Exhaust system
Imported brand 4 kW gasoline fuel air heater system
Water supply system:
260 liter stainless steel clear water tank
Imported fully automatic water pump and waterway system
Gravity water inlet, self-made
Imported brand 5 kW fully automatic gasoline fuel water heater
heat exchanger

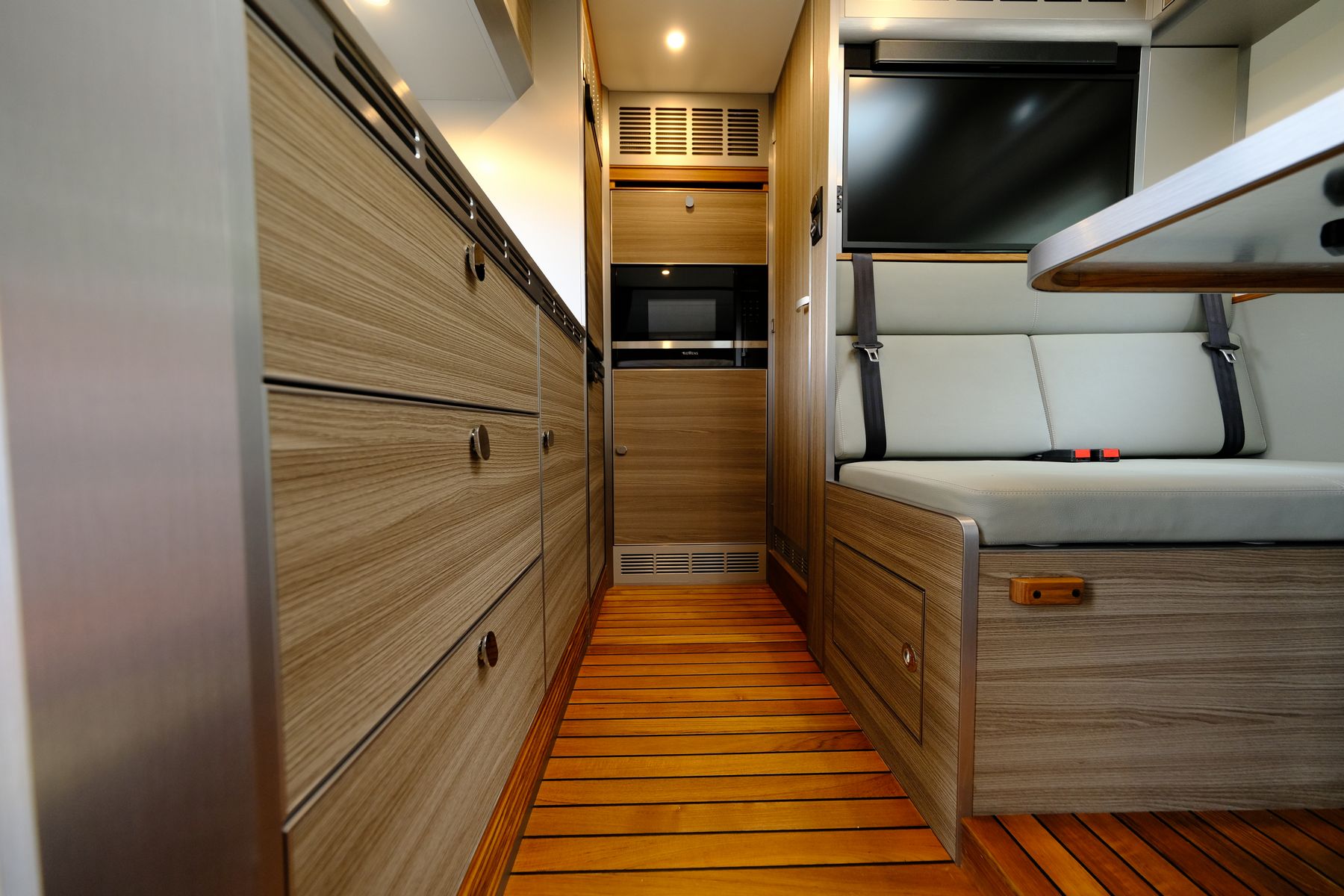

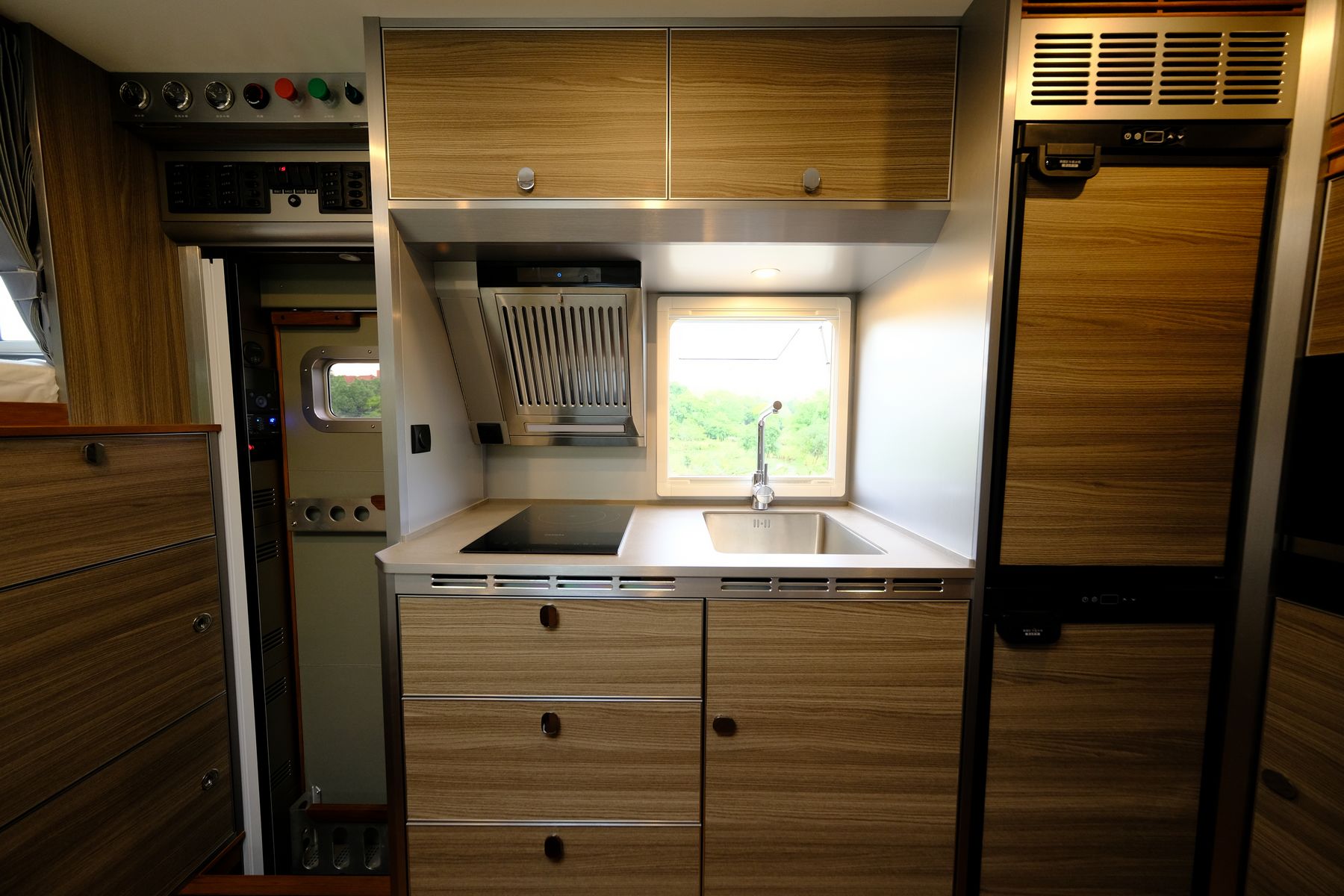

Kitchen system:
76 liters with 2 refrigerators, switchable for refrigeration and freezing
Imported brand monocular induction cooker, range hood
Imported brand embedded microwave oven

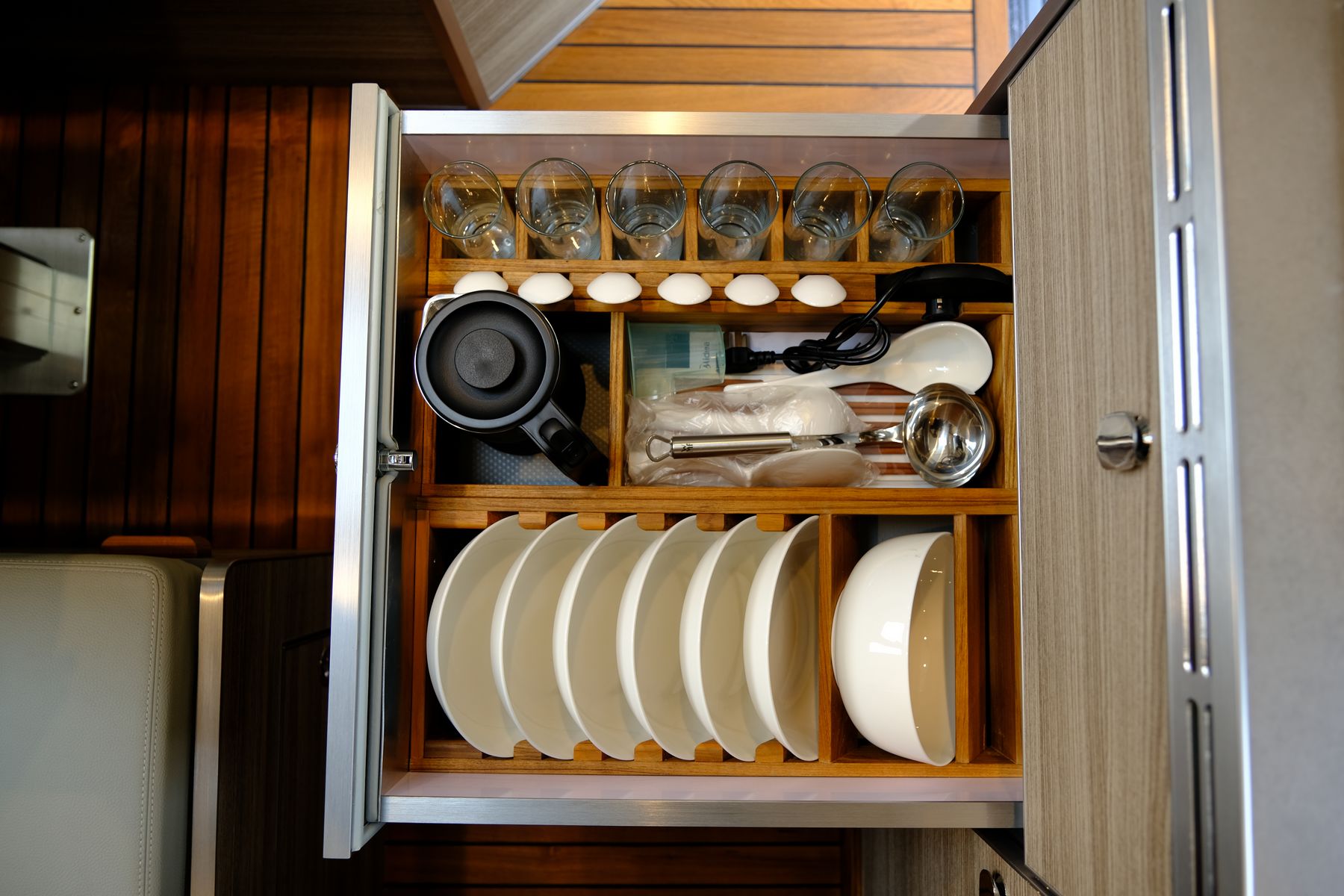

Complete set of kitchen utensils
Stainless steel vegetable washing basin with hot and cold water faucets

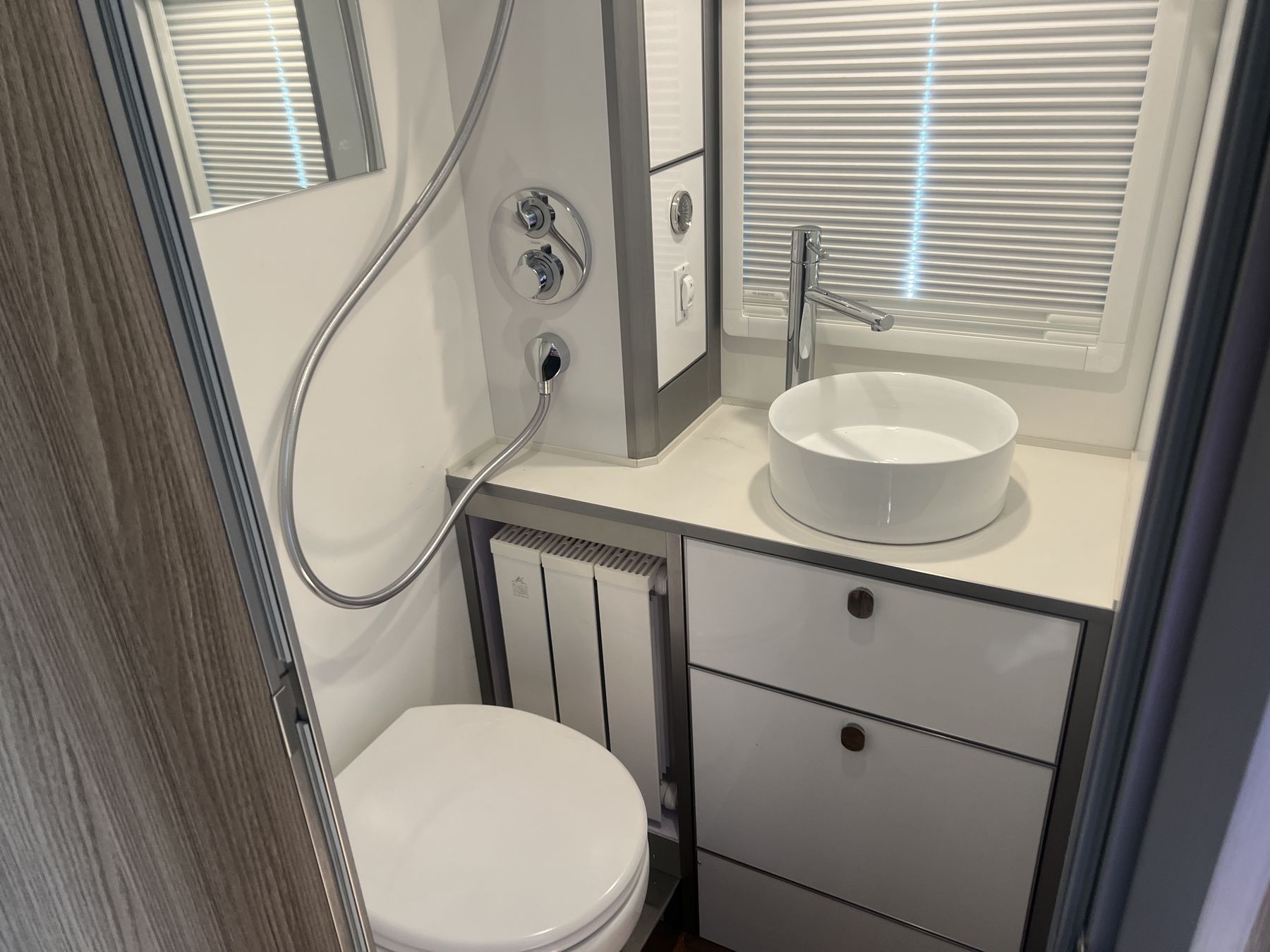

Toilet equipment:
shower head
Imported brand all ceramic electric suction toilet
Imported brand ceramic washbasin, equipped with imported brand hot and cold faucets
Exhaust system
Radiator
Sewage: 60+35 liter stainless steel gray water tank with liquid level sensor; 85 liter stainless steel black water tank with liquid level sensor and manual drain valve
Entertainment system:

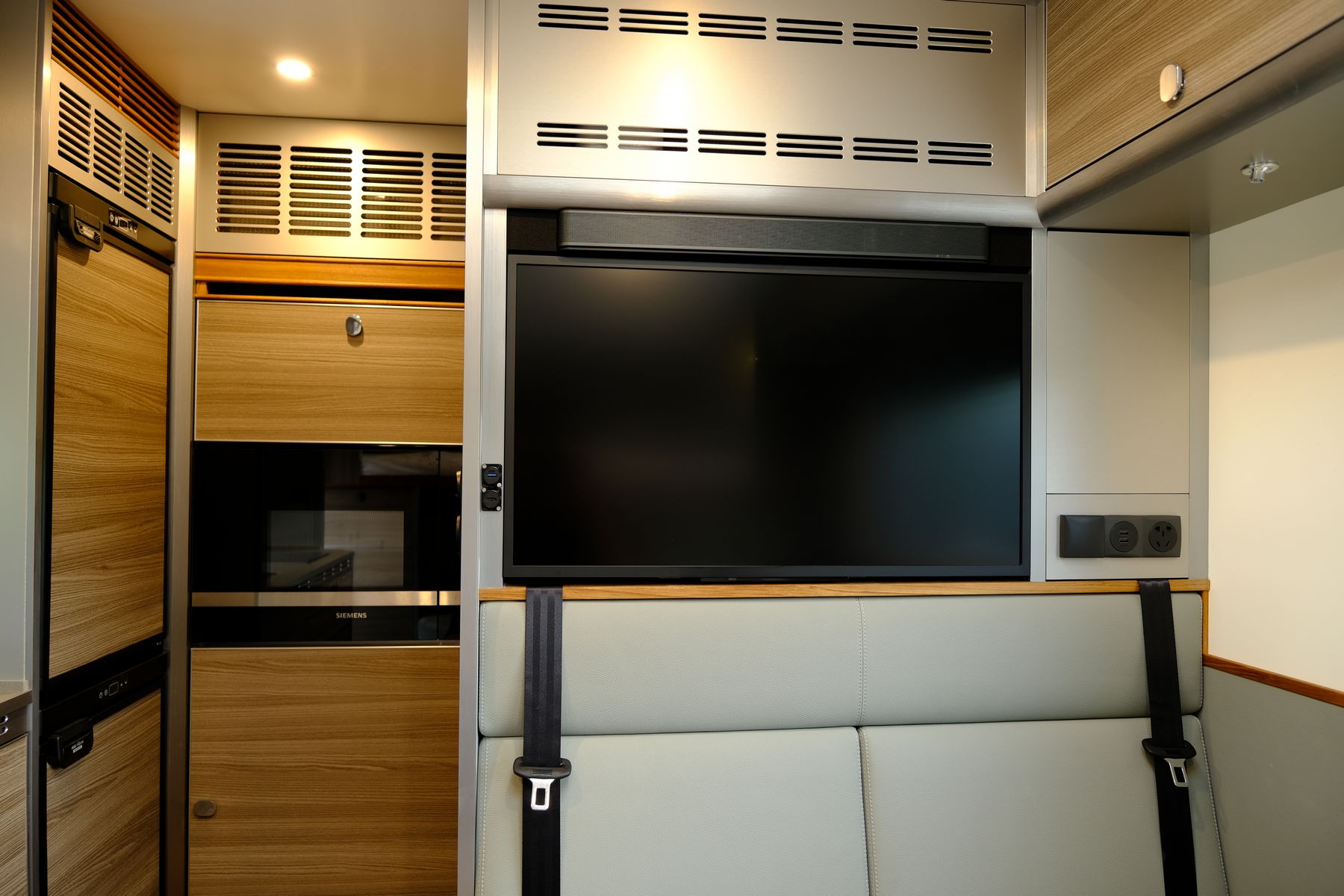

TV with 5G router
Imported brand Bluetooth audio system
Other configurations:
Natural latex sofa and 3D printing+latex mattress

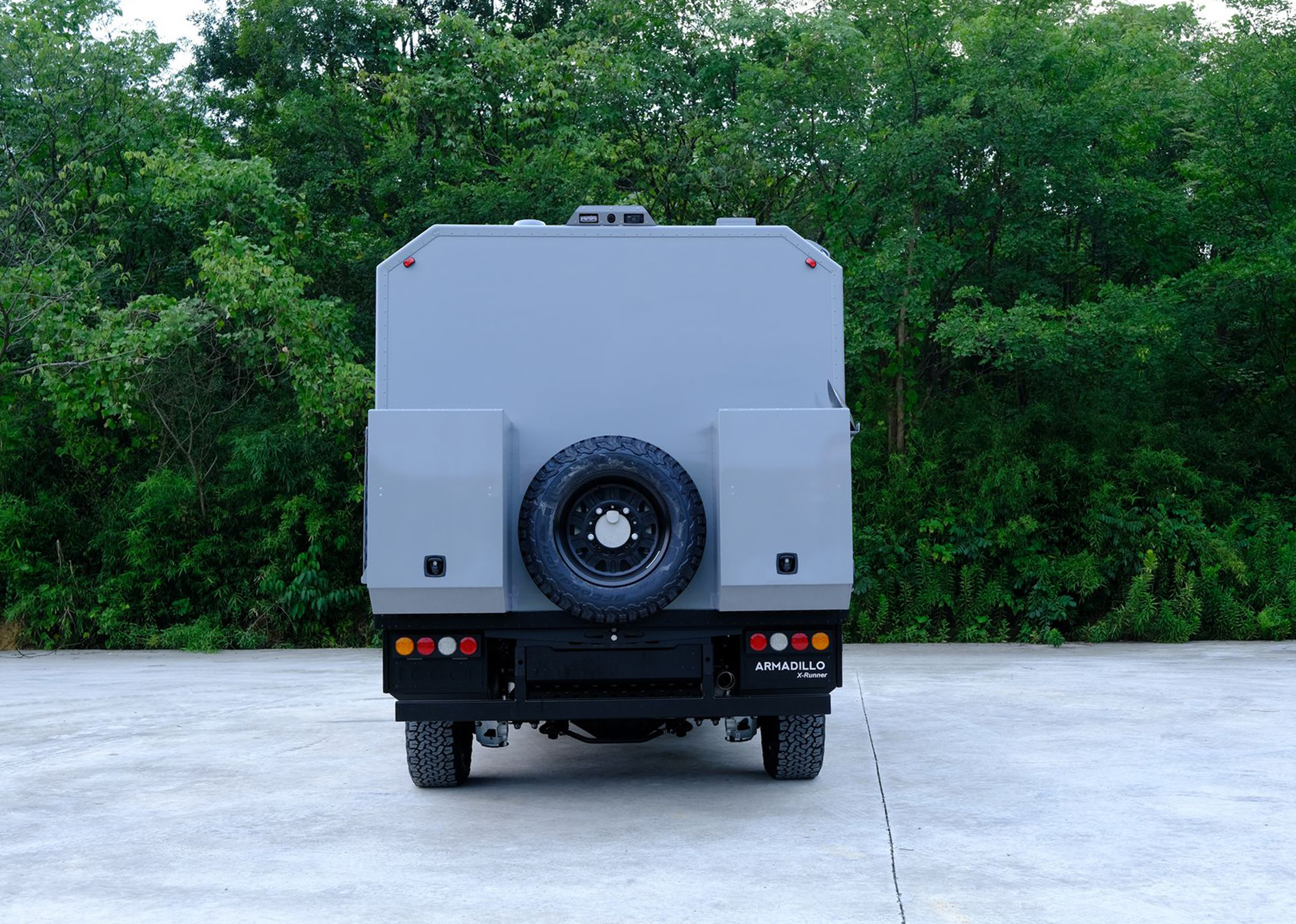

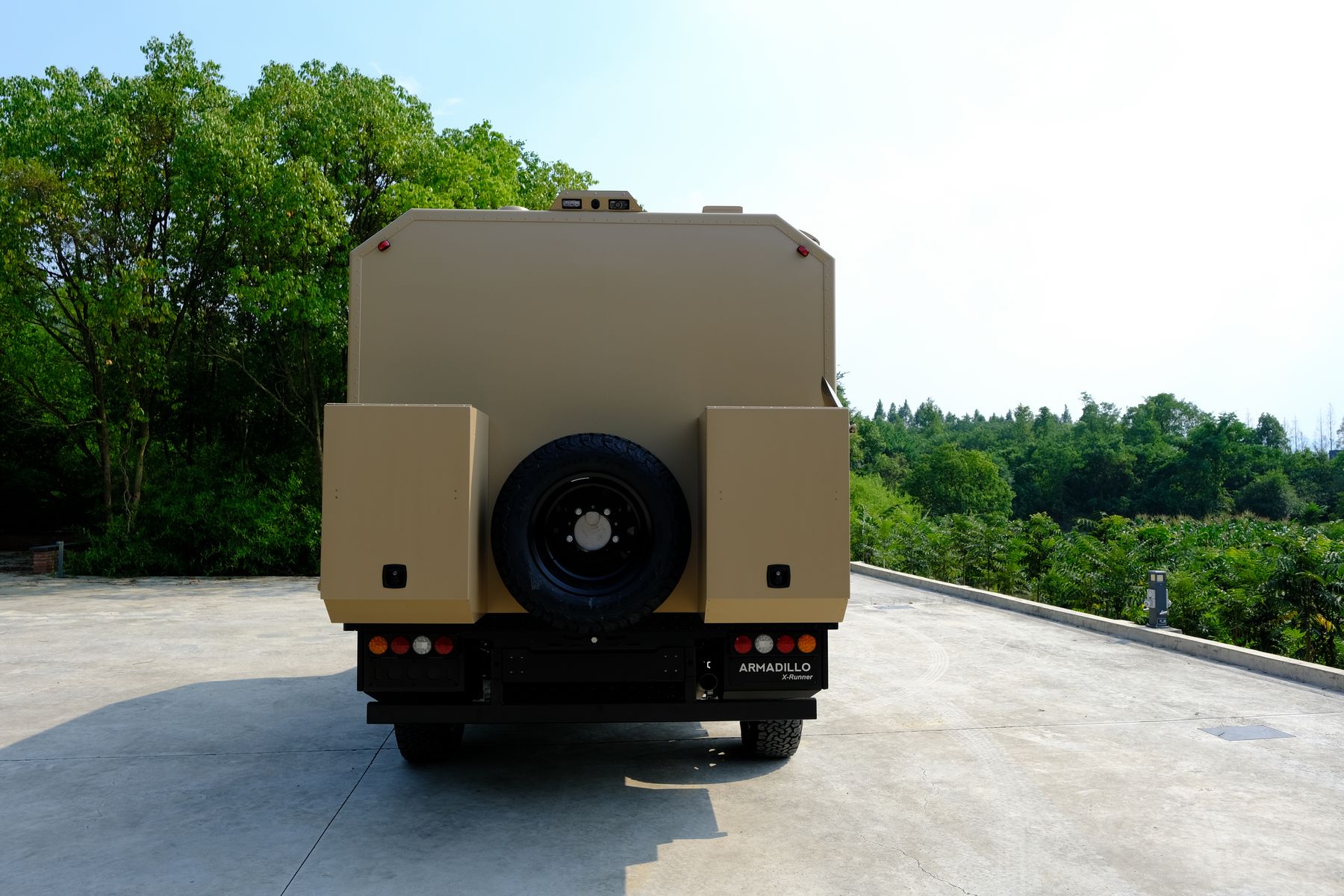

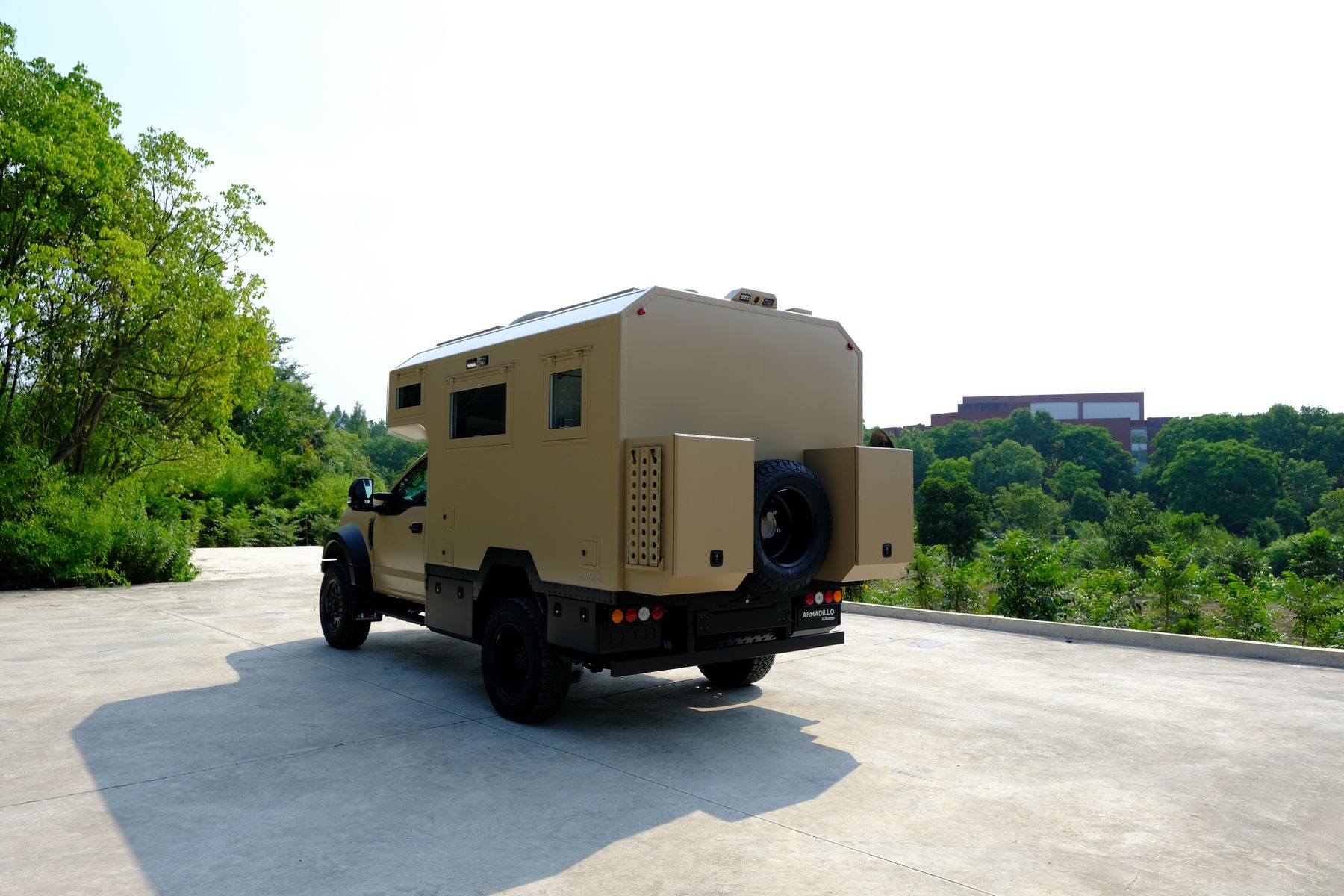

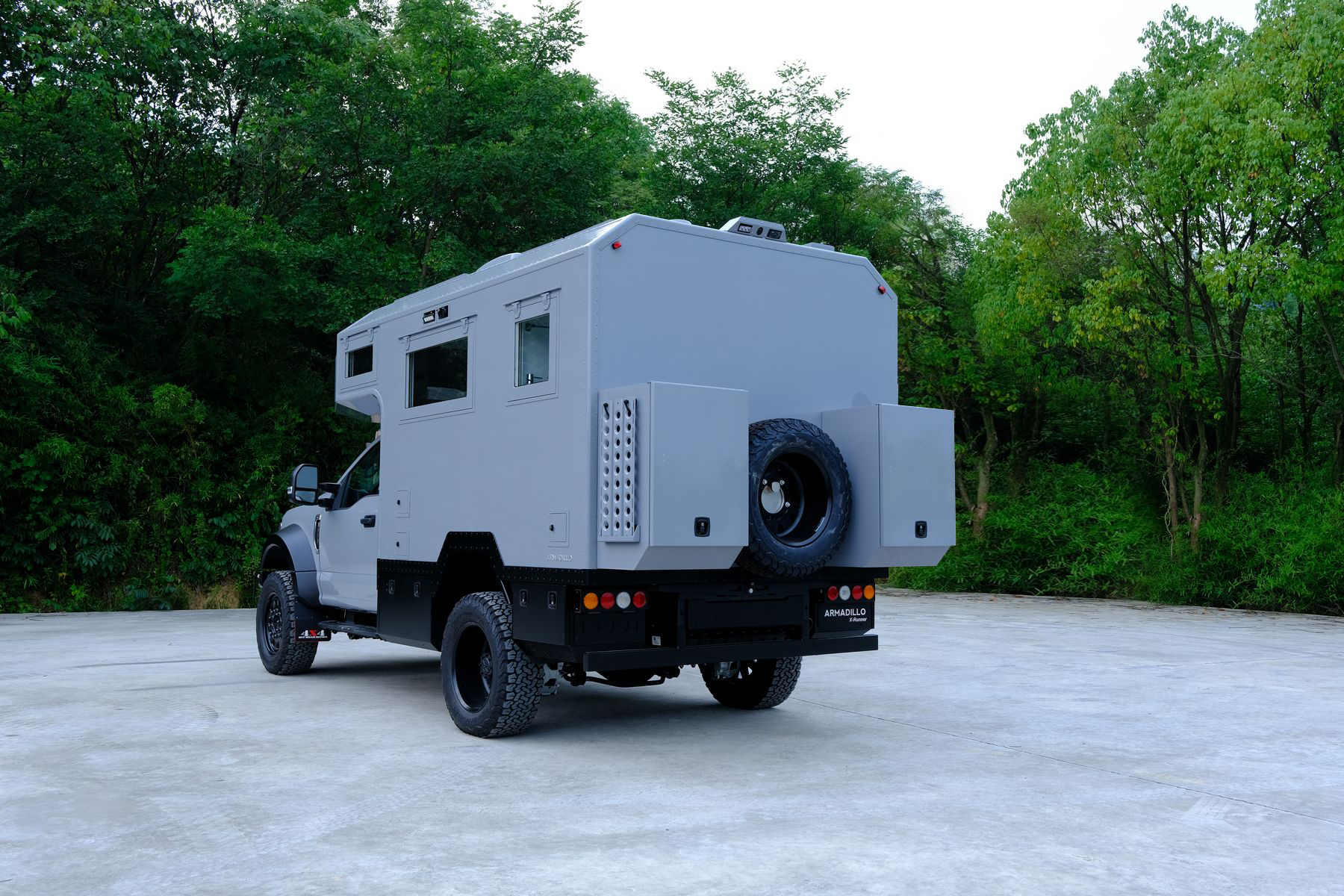

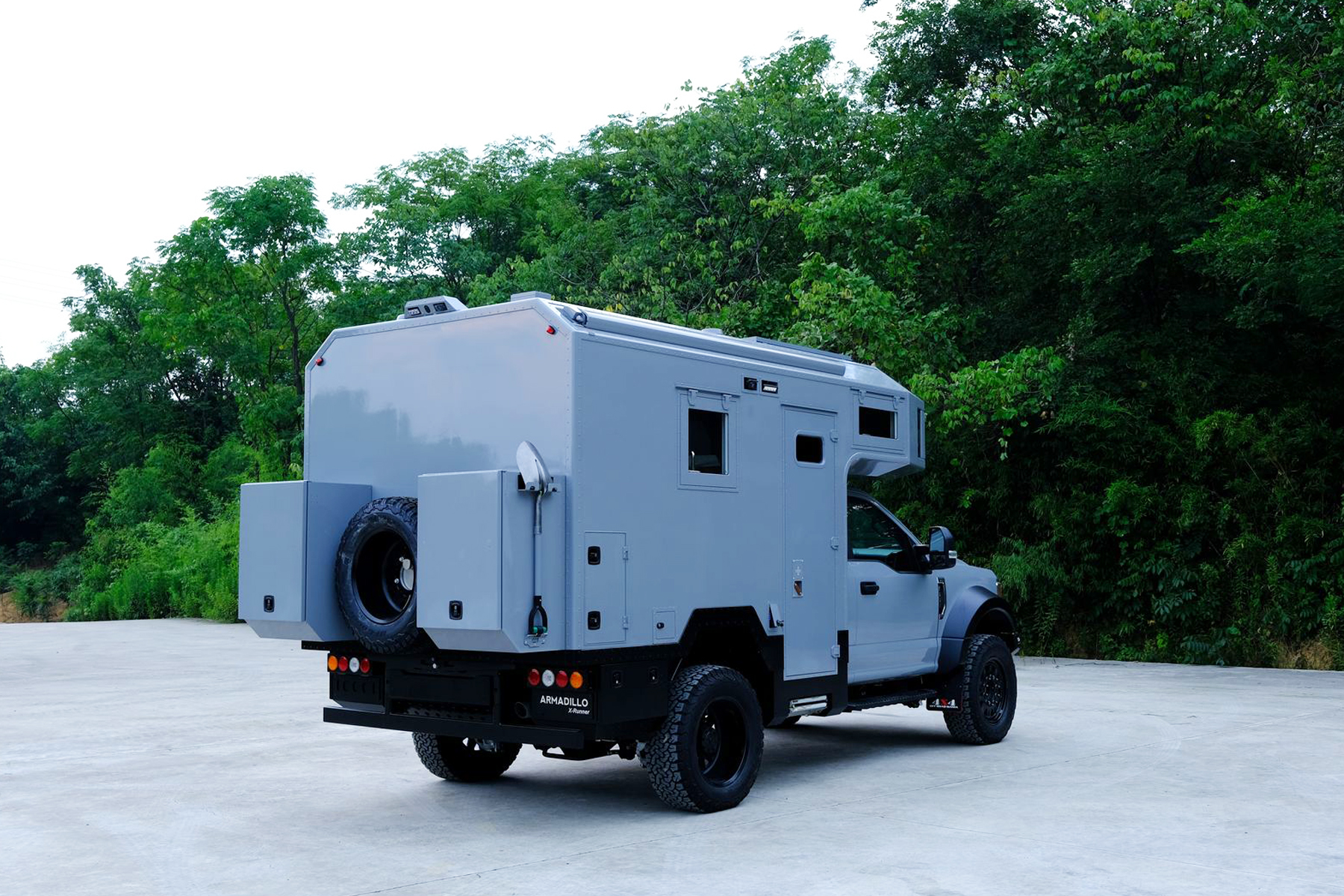

Rear mounted spare tire
Reverse image
Outdoor pull-out kitchen
LED side lighting
Hatch opening
Side sunshade
Wireless radio station
Front winch
2 external storage boxes at the rear
4 off-road spotlights
Four way monitoring
washing machine
Shovel+sand board

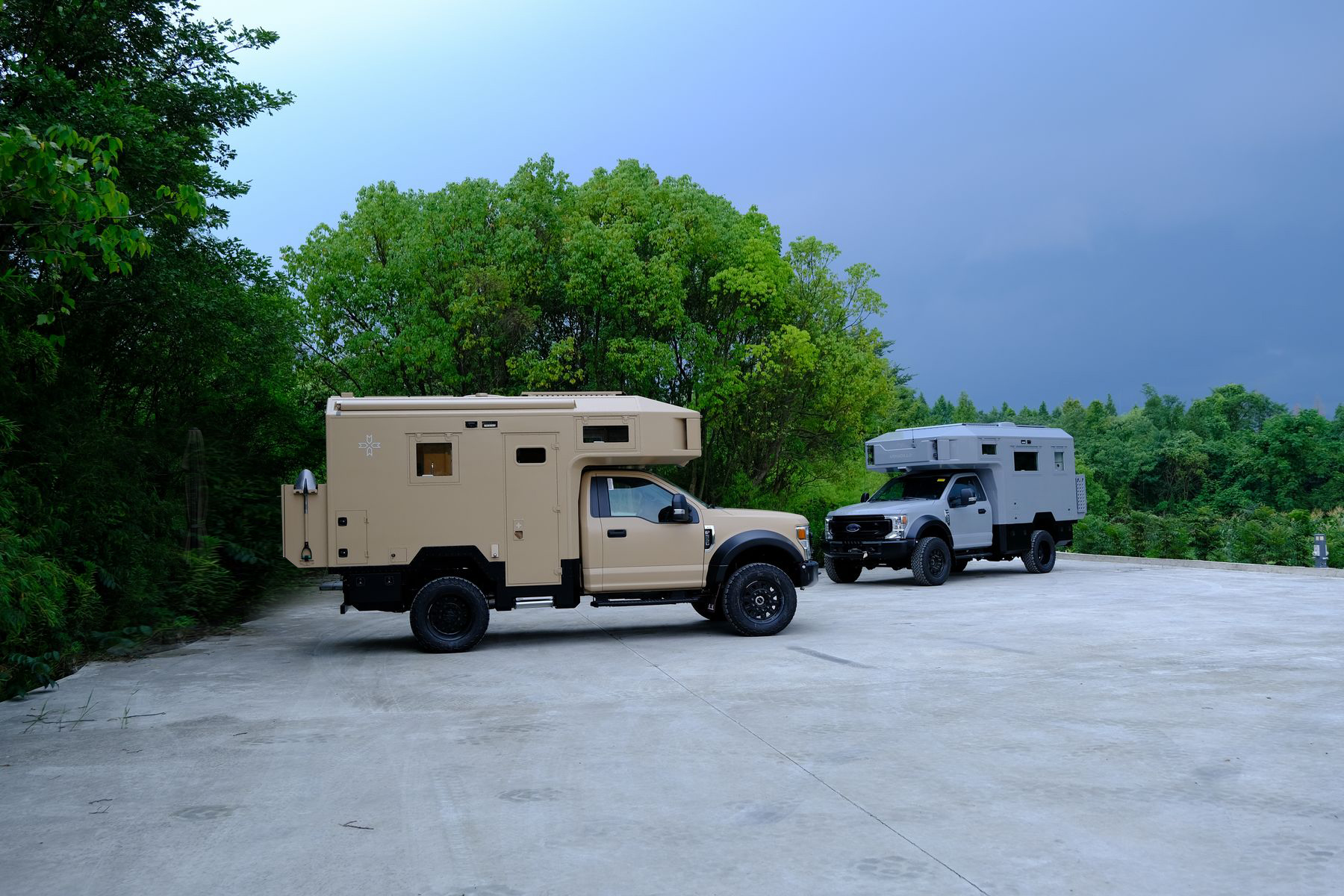

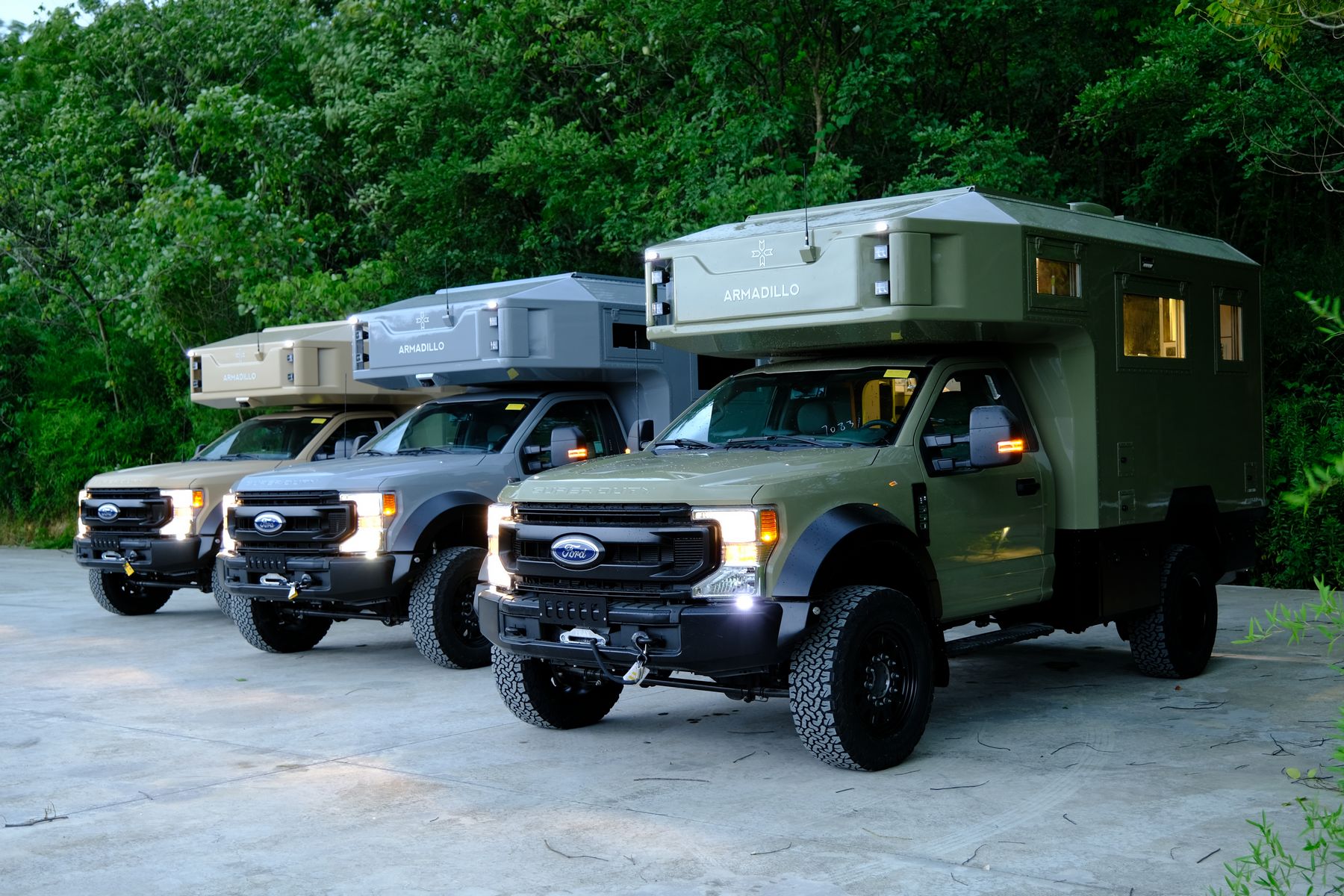

Car paint color optional
(White, cement gray, matte gray, desert yellow, green, olive green)
